Experience the future of astrophotography with the Wanderer ETA M54 Electronic Tilt Adjuster. This ultra-thin, 5mm device revolutionizes your setup, eliminating the need for manual tilt adjustments for your ZWO and Touptek cooled cameras. With an adjustment range of 1.2mm and a motor resolution of just 0.3 microns per step, it offers unparalleled precision that far surpasses traditional manual tilters.

The Wanderer ETA M54 stands out with its three independent adjustment motors and high-precision encoders, allowing for incredibly precise adjustments. Whether you are using fast focal ratio systems or large-format cameras, this tool meets your high standards effortlessly.

Compact Design: Weighing only 470g and occupying just 5mm of back focus, it's perfect for any astrophotography setup.
Robust Performance: Tested to operate flawlessly even at -20°C, it's built to withstand harsh winter conditions.
Professional Build: Crafted from nearly 1,000 meticulously designed components, ensuring maximum rigidity and durability.
Aesthetic Appeal: Each curve and corner is sculpted to make the Wanderer ETA not just a tool, but a work of art.
Light leakage: Additionally, it features a dual-layer nested structure that eliminates any light leakage.

Control your adjustments with ease using the WandererEmpire software, which provides an intuitive interface for seamless operation. Whether you are an expert astrophotographer or just starting out, the Wanderer ETA M54 is your ultimate companion for achieving the perfect shot.

Don’t let manual adjustments hold you back. Enhance your astrophotography experience today with the Wanderer ETA M54 Electronic Tilt Adjuster!

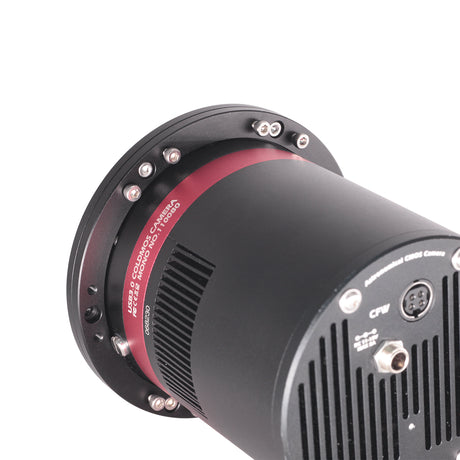

The ETA can be connected directly to the camera or the OAG. If your setup include only a camera and a filter wheel, you need to include the filter wheel adapter for the ETA.

*The camera, OAG, and other equipment shown in this page are for installation demonstration purposes only and are not included with the Wanderer ETA.

The Wanderer ETA can be directly mounted in front of an OAG or camera using screws and, in most cases, still maintain a 55mm back focus. For detailed installation instructions and device compatibility, please refer to the user manual.

Three-Point Electronic Tilt Adjustment

The Wanderer ETA features three independent adjustment motors and three high-precision encoders, offering an adjustment range of 1.2mm with a motor resolution of 0.3 micron per step and a positioning accuracy of up to 2 microns. Compared to traditional manual tilters, this achieves a precision several orders of magnitude higher, fully meeting the demanding tilt and back focus adjustment requirements of fast focal ratio systems and large-format cameras.

Professional Design

The Wanderer ETA is composed of nearly 1,000 curved surfaces and over 50 components. Every detail has undergone professional analysis, precise calculations, and countless optimizations to ensure the highest level of rigidity.

Unparalleled Aesthetic Design

WandererAstro's aesthetic design never disappoints. Every rounded corner and every carefully sculpted curve make the Wanderer ETA not just a precision instrument but also a beautifully crafted piece of art.

Software Support

The WandererEmpire software provides an excellent control and visualization interface for the Wanderer ETA.

Related Accessories

Camera Side M54 Female Adapter for Wanderer ETA M54

Connect to camera/OAG/filter wheel etc. via M54 thread

M54 male to male adapter 1.2mm extension

Ideal for Takahashi Epsilon 130/160/180

Dimensions/Specifications

Specification

Optical Thickness	5mm
Weight	470g
Adjustment Range	1.2mm
Motor Resolution	0.3 micron per step
Positioning Accuracy	up to 2 microns
Operating Temperature	-20°C to 40°C
Material	Aluminium
Compatibility	OAG, camera, filter wheel, etc.
Connection	M54 thread
Power requirements	USB cable (5V 0.5A)
Connection	USB 2.0 Type B
Max Payload	<3kg
