ZWO M54 SENSOR TILT PLATE

$34.00 USD
SKU: ZWO-M54-Plate

ZWO

  • M54 x 0.75 Female
  • Optical thickness: 5 mm




The ZWO M54 Sensor Tilt Adapter Plate connects to APS-C and full-frame ASI cameras such as the ASI071, ASI2600, ASI6200 and ASI2400. It has an optical thickness of 5mm.



You can connect it to the ZWO M68 OAG and 2” EFW, and mount them on the M48-thread telescope side with an M54-M48 adapter, or on the M42-thread telescope side with M54-M42 adapter.

Note: This adapter comes supplied with ZWO full-frame cameras by default.

ZWO M54 Sensor Tilt Adapter Plate backfocus diagram





Compatible cameras APS-C, Full-frame - ASI071, ASI2600, ASI6200, ASI2400
Optical thickness 5mm
Internal thread M54 x 0.75
Tilt screws
6 x M4
Connection screws
6 x M2.5
Compatible accessories
ZWO EFW 2", M68 Off-Axis Guider
SKU
ZWO-M54-Plate



ZWO M54 Sensor Tilt Adapter Plate schematic

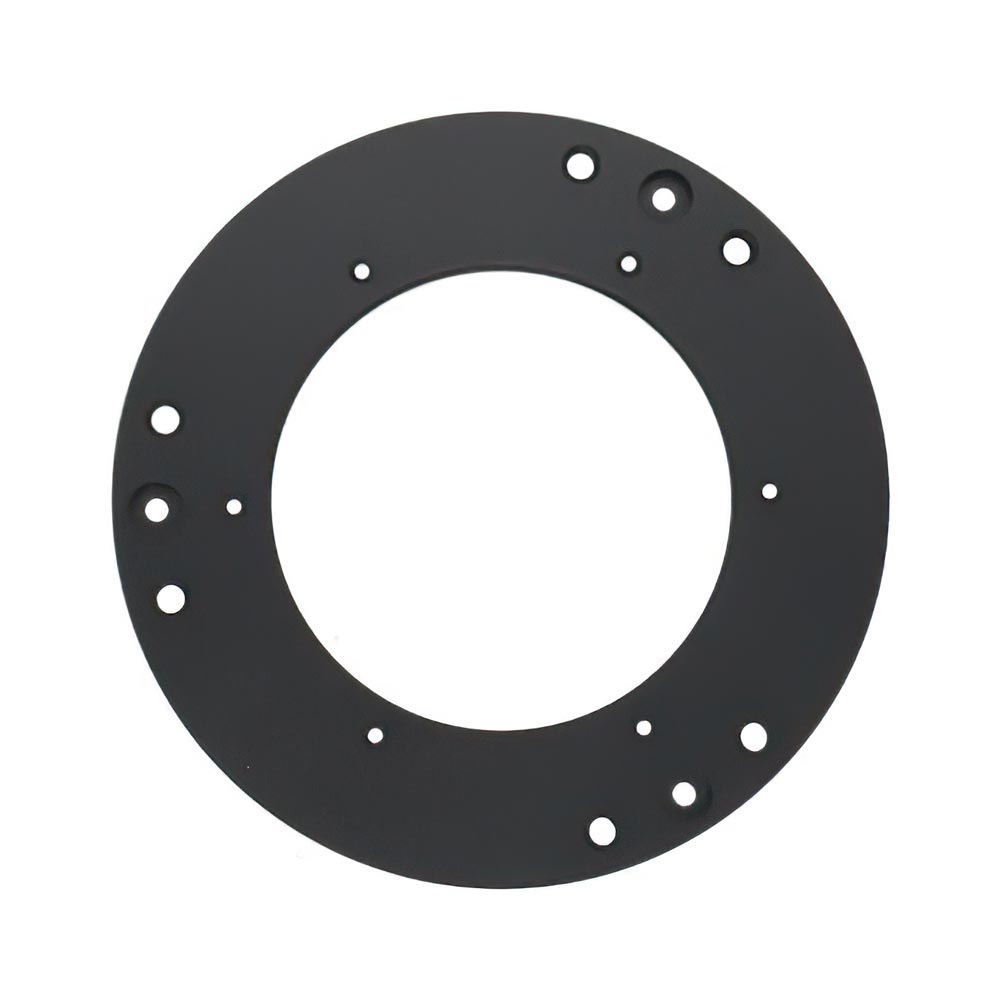

ZWO M54 SENSOR TILT PLATE.
