TOUPTEK G3M 178M PLANETARY CAMERA [MONO]

$499.00 AUD
SKU: TT-G3M178M

ToupTek

60 FPS

14-bit

7.4 x 5.0 mm

2.4 µm




The ToupTek G3M178M Planetary Mono is a 1.25" barrel size planetary camera using the Sony IMX178 CMOS sensor. With a quantum efficiency of >81%, read noise as low as 1.4e- and 2.4µm pixels, the G3M178M is an ideal camera for high resolution imaging of the moon and sun with medium focal length telescopes.

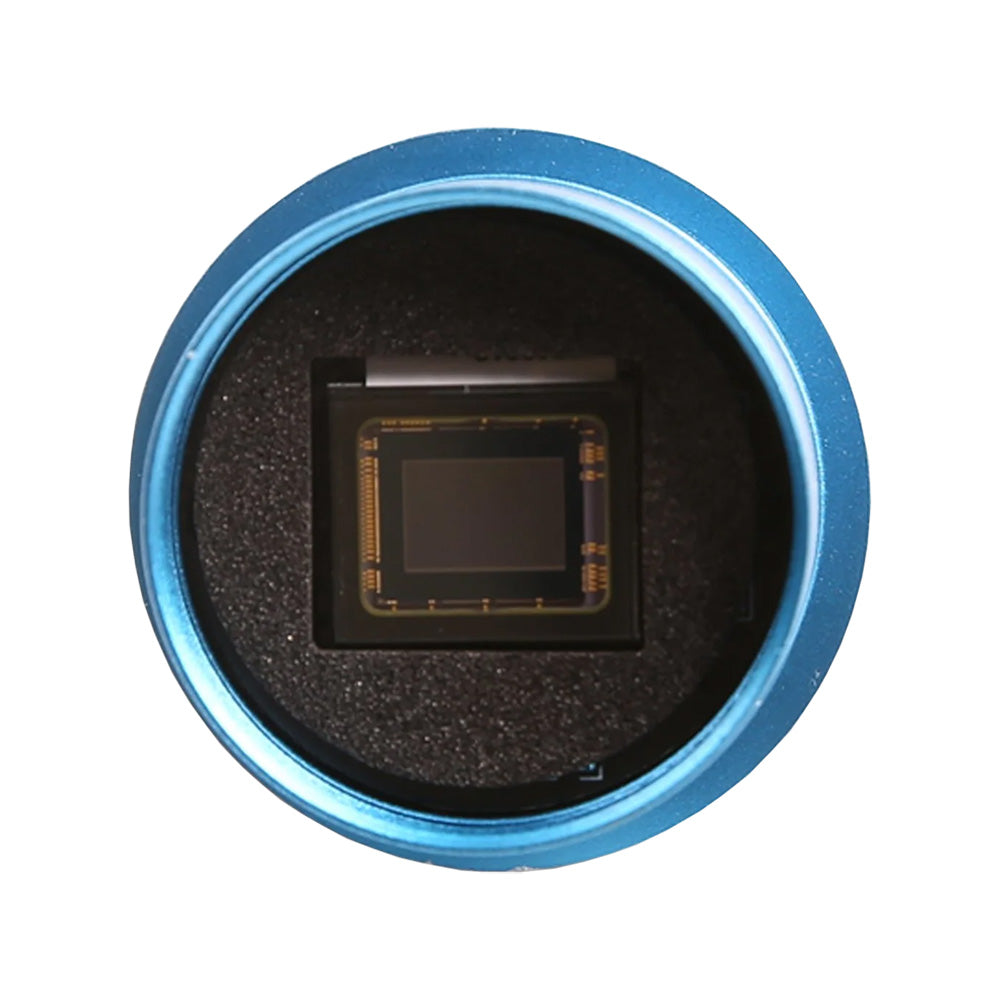

The G3M178M's back-illuminated sensor has good UV and NIR sensitivity, making it possible to use IR-pass filters to cut through the atmosphere and bring out finer details.





The G3M178M is equipped with USB 3.0 connectivity as well as a traditional ST-4 autoguiding interface. Thanks to the high transmission speed of USB 3, the 178C can reach a fast 60FPS at full resolution. The built-in 512MB DDR3 memory ensures reliability over long sequences of high framerate video capture. Its 1.25" barrel design also makes it straightforward to use with most off-axis guiders (OAG not included).

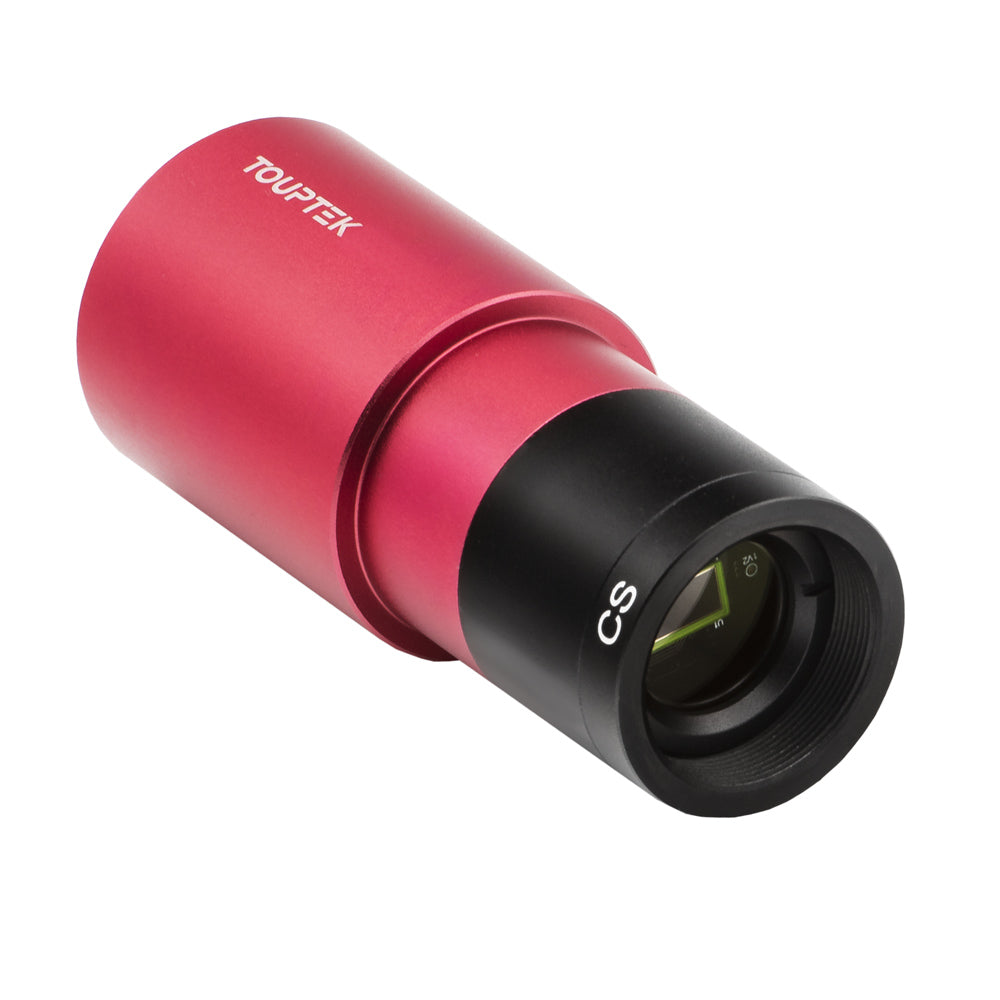

Available in anodized Red.


Sensor

CMOS Sony IMX178 monochrome

Resolution

6.3 megapixels 3096 x 2080

Pixel size

2.4 µm

Sensor size

7.4 mm x 5.0 mm (8.92 mm diagonal)

Quantum efficiency

>81%

Exposure range

0.244 ms - 1000 s

Read noise

1.4 e-

Full well capacity

10,700 e-

Bit rate

14 bit

Speed

60 fps

Shutter type

Rolling shutter

ROI

Supported

Compatibility

Windows, Mac, Linux

Protecting window

AR coated

Ports

USB 3.0 + ST-4

Back focus

12.5 mm

Connections

CS-mount, 1.25" barrel

Dimensions

Ø 37 mm; ↨ 87.4 mm

Weight

TBD

Power supply

USB 3.0

SKU

TT-G3M178M




  • Camera body
  • USB 3.0 cable
  • ST-4 cable (2 metres)
  • 1.25" extender
