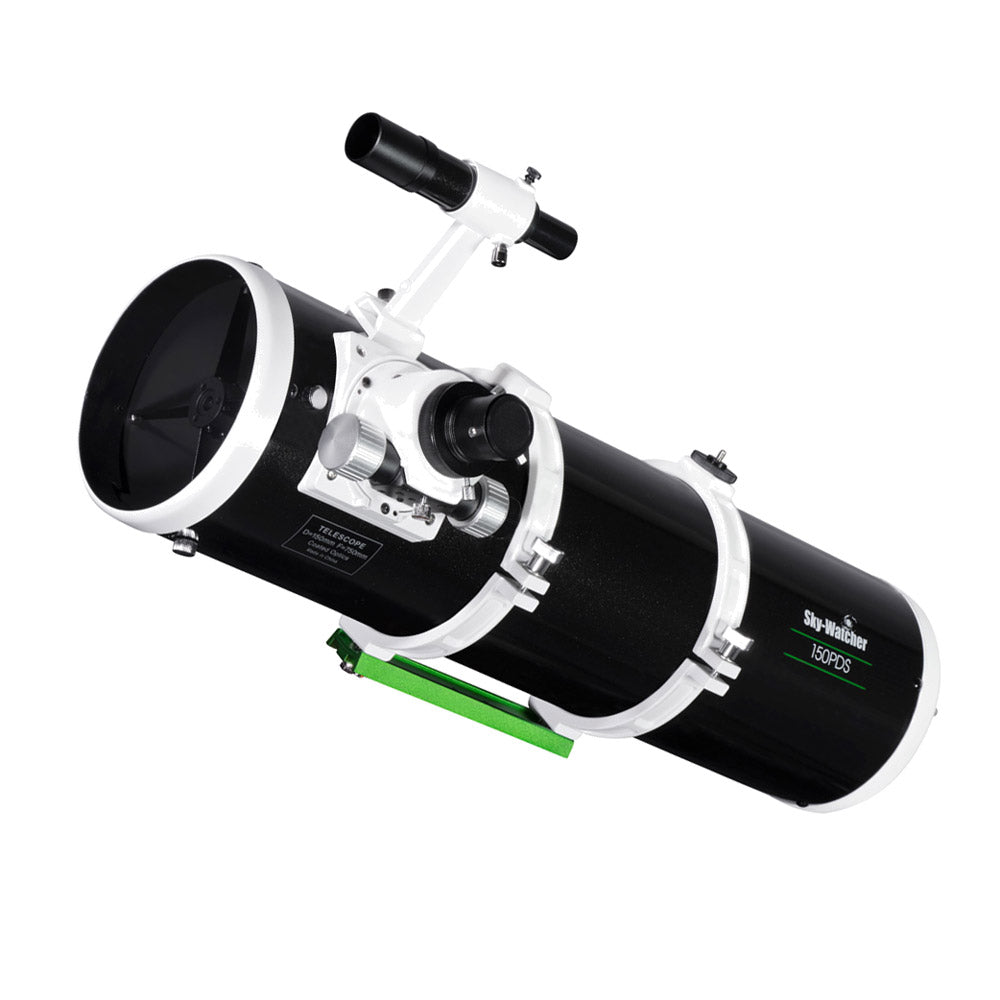

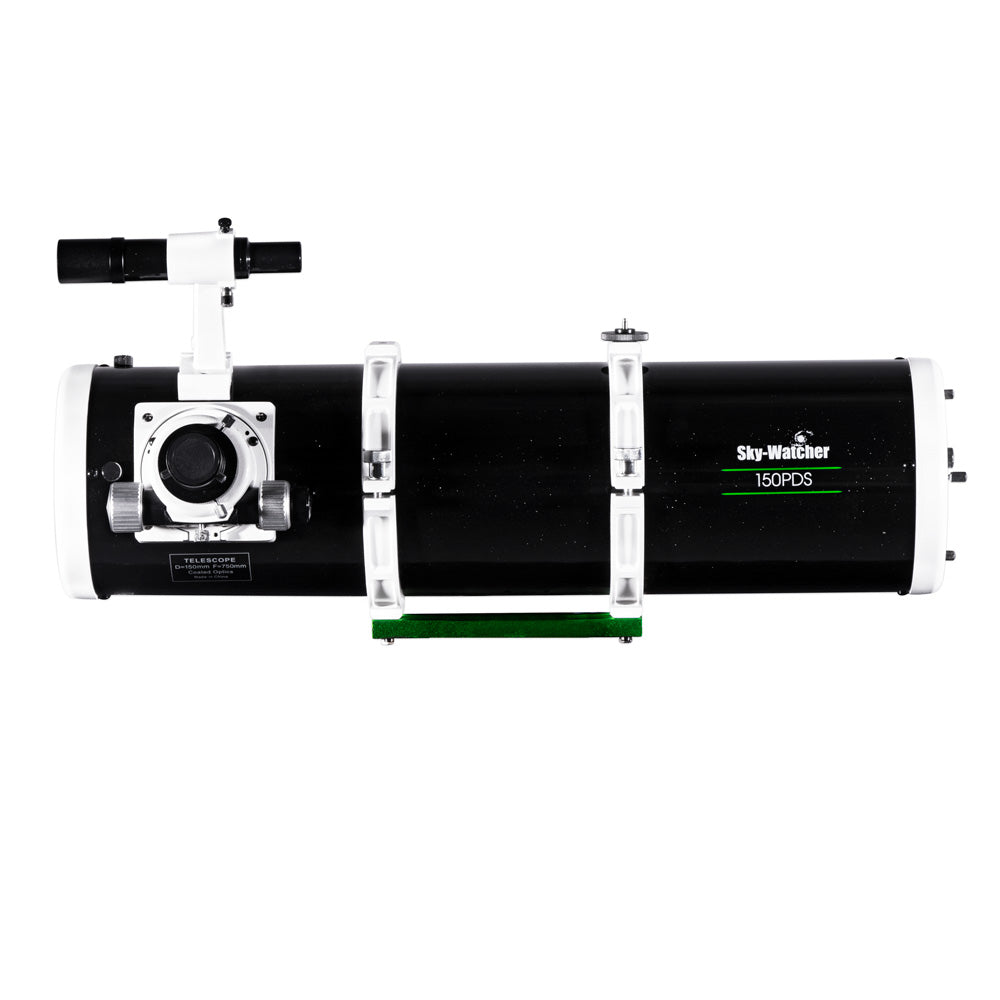

SKYWATCHER PHOTOGRAPHIC NEWTONIAN 150 F/5
SKYWATCHER PHOTOGRAPHIC NEWTONIAN 150 F/5 is backordered and will ship as soon as it is back in stock.
The Sky-Watcher 150mm f/5 Newtonian is a compact telescope optimised for astrophotography. Its oversized secondary mirror provides a wide illuminated field, making it well-suited for cameras with large sensors.
The optional Sky-Watcher f/5 coma corrector effectively eliminates coma, delivering a wide, corrected field ideal for astrophotography.
The 2" Crayford focuser features a dual-speed (10:1) reduction for precise, backlash-free focusing—essential for both imaging and detailed visual work.
The collimatable secondary mirror is adjustable via three grub screws and a central spring-loaded screw for offset alignment. The primary mirror uses three pairs of push-pull screws for accurate collimation.
The aluminium optical tube is internally blackened to suppress stray light, reduce reflections, and improve contrast.
Specifications
| Optical design |
Newtonian reflector |
|
Objective diameter |
150 mm |
|
Focal length |
750 mm |
|
Focal ratio |
f/5 |
|
Secondary mirror |
52 mm (minor axis) |
|
Linear obstruction |
35 % |
|
Resolving power |
0.80 arc second |
|
Stellar limiting magnitude |
12.9 |
|
Max. magnification |
300 x |
|
Light gathering power |
459 times the human eye |
|
Mount attachment |
Tube rings on Vixen style bar |
|
Focuser |
Crayford dual speed (10:1) |
|
Tube weight |
6 kg |
|
Tube length |
690 mm |
|
Tube diameter |
182 mm |
|
SKU |
SW15075AP-OTA |

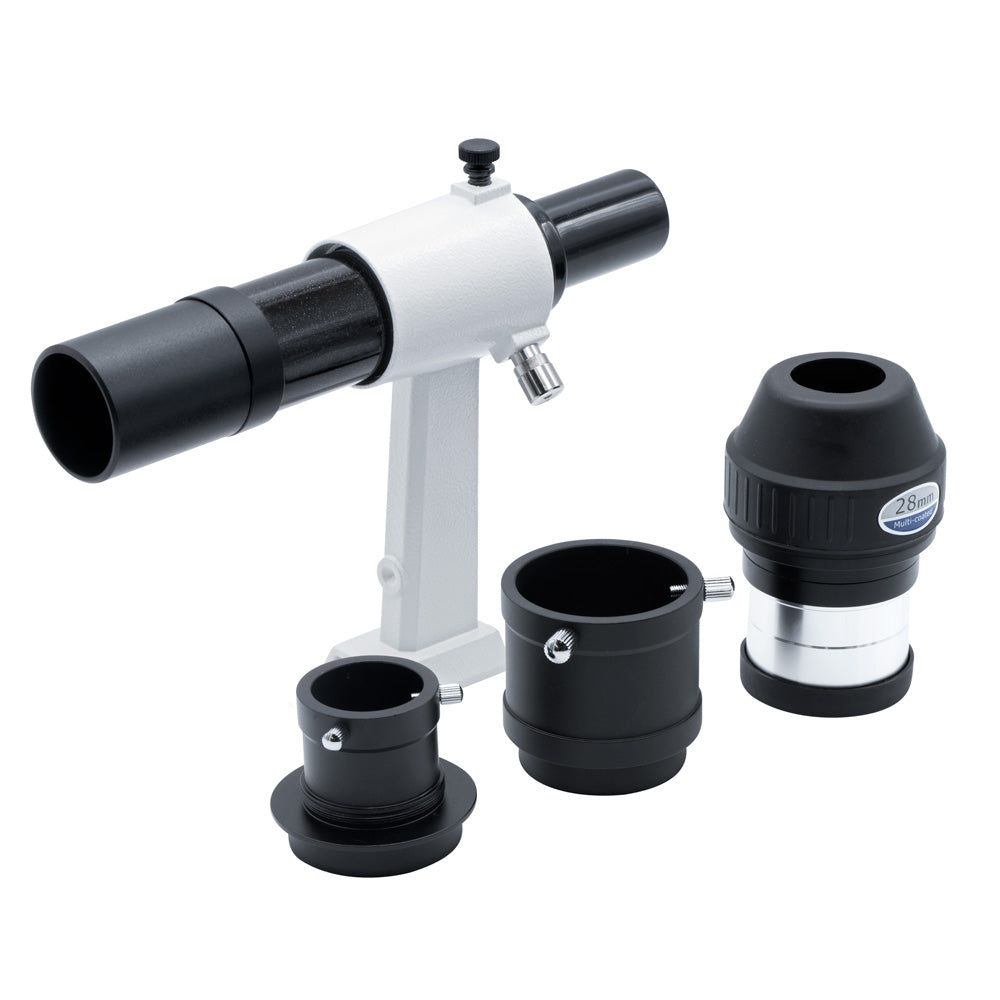

In the box
- Newtonian 150 f/5
- Tube rings on Vixen style bar
- 6x30 finderscope
- Eyepiece LET 28
- 2" to M42 and 2" to 1.25" all in one adapter
- Piggyback 1/4" screw with camera locking nut
