PLANEWAVE SERIES-5 ROTATOR

$3,812.00 USD
SKU: PW-6021001
0

PlaneWave

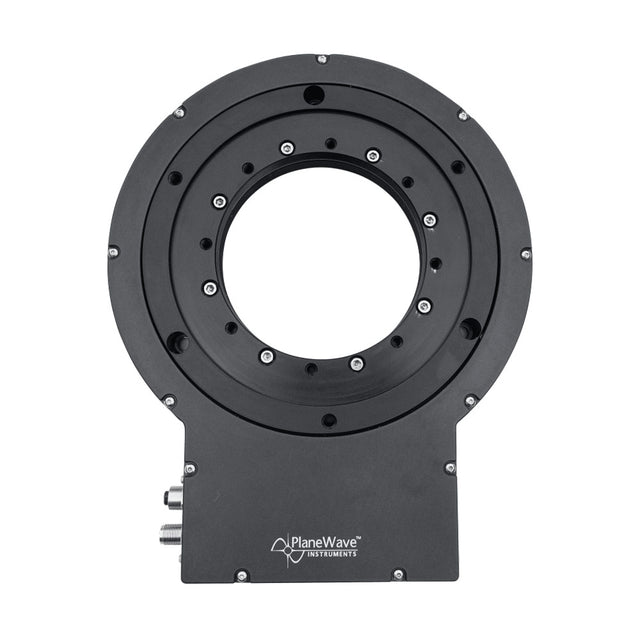

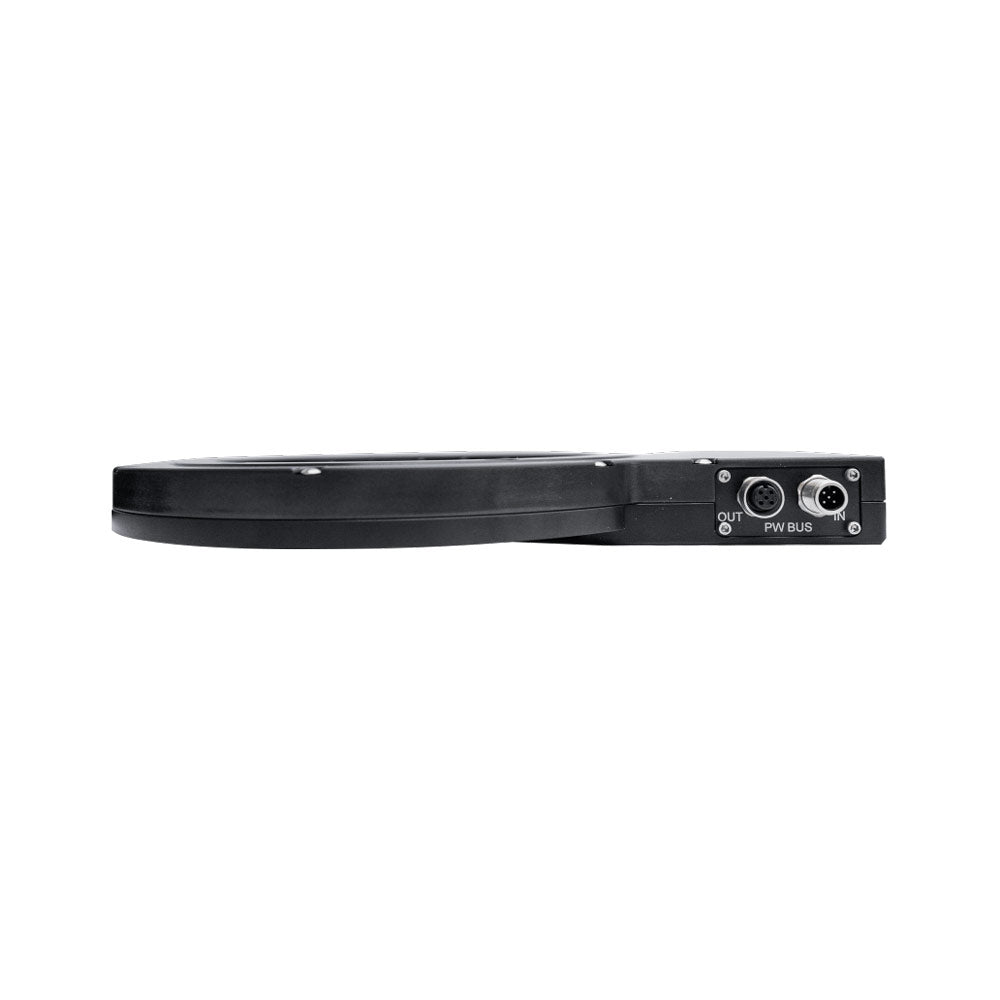

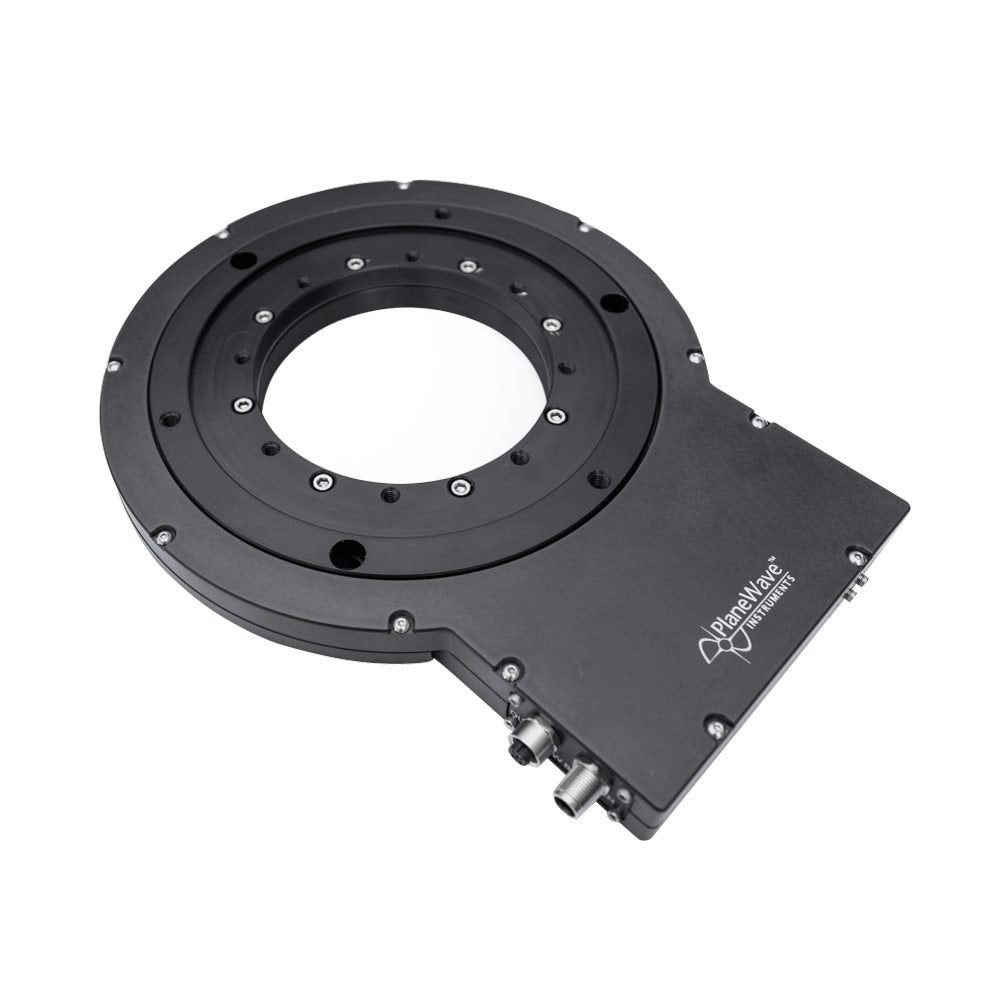

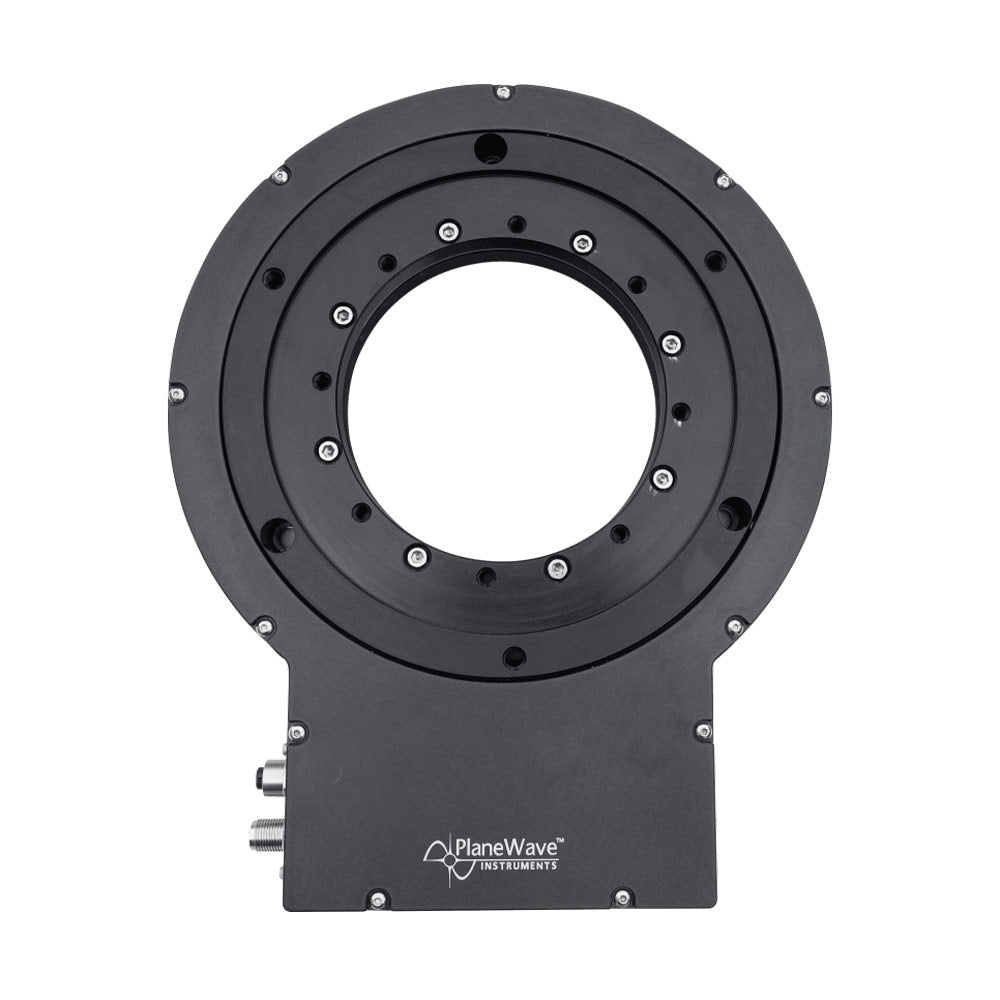

The new low-profile PlaneWave Series-5 Rotator is a large capacity, stackable field derotator for use with Alt-Az or equatorially mounted systems. The rotator is capable of lifting 40 lbs (18 kg) with a travel range of 700 degrees between mechanical hardstops.

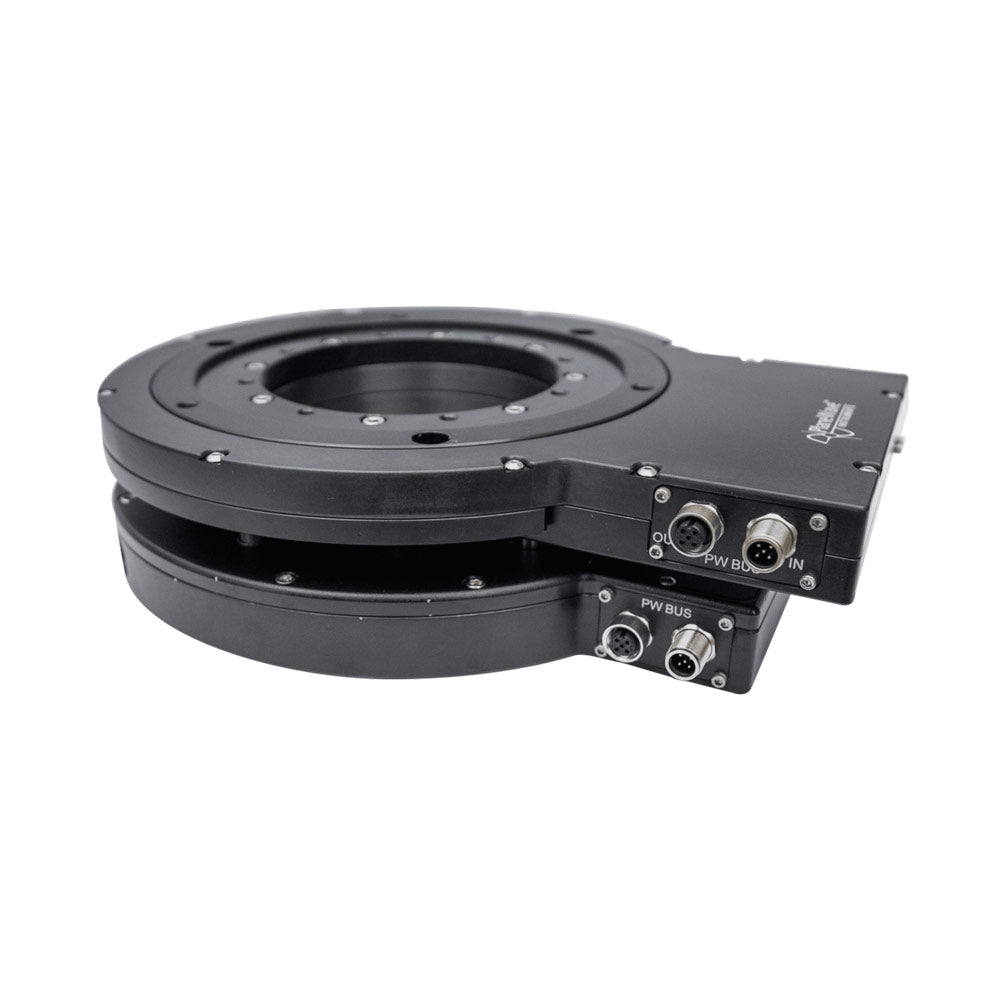

It has a large clear aperture of 5" (127mm) and an optical thickness of 1.105" (28mm). The Series-5 Rotator can be stacked with the Series-5 Focuser for a complete focuser/rotator solution.

Initially designed for the Delta Rho 350, the Series-5 Rotator is also compatible with the CDK12.5, CDK14, CDK17, CDK20, CDK24, and the CDK700. Controlled via PWI4 software for autofocusing and optional field de-rotation (if using an Alt/Az mounted system).

The Series-5 Rotator requires the Series-5 Controller in order to function.



Backfocus occupied
28 mm
Rotator travel range
700 degrees between mechanical hardstops
Clear aperture
127 mm
Weight capacity
18 kg
Rotator weight
2.5 kg
SKU
PW-6021001
