PLANEWAVE CDK 14" OTA

$26,499.00 AUD
SKU: PW-140101Q

PlaneWave

Corrected Dall-Kirkham

356 mm

f/7.2

2563 mm

22 kg




Prices do not include shipping costs. Contact us for exact shipping prices before purchasing.

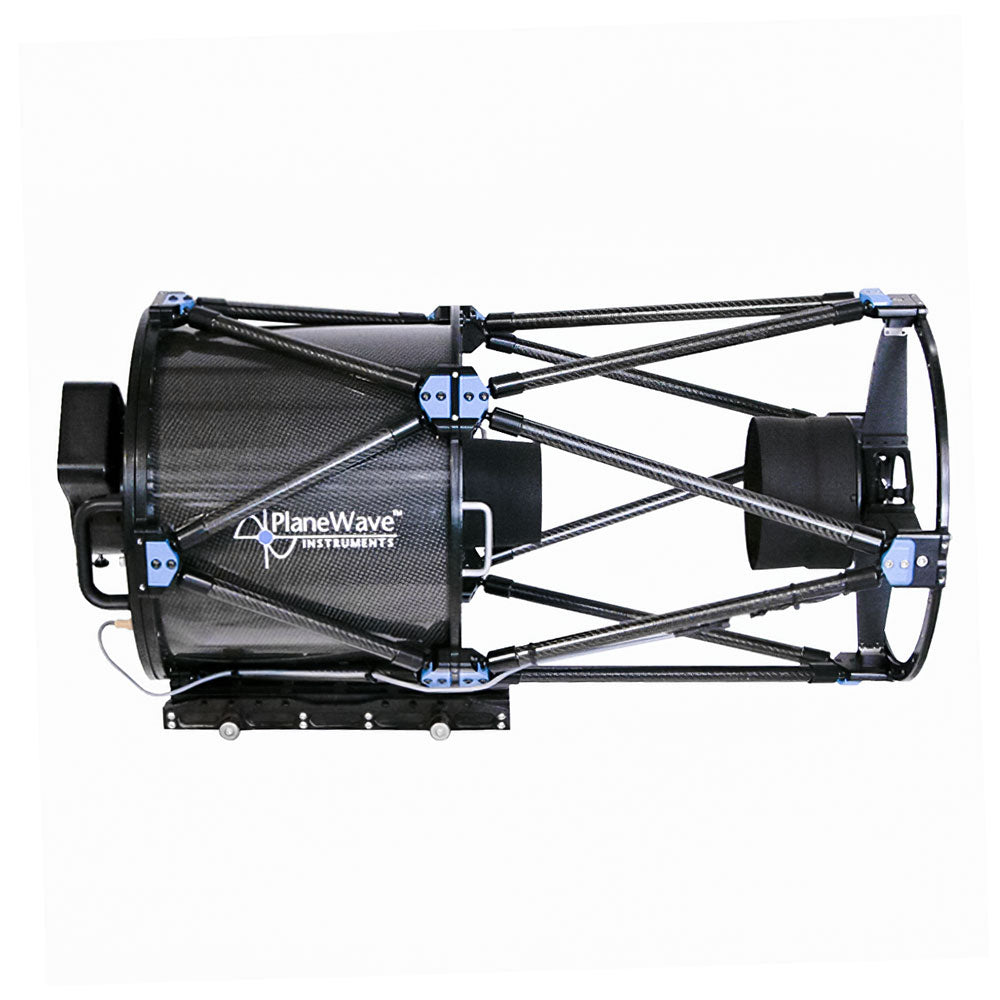

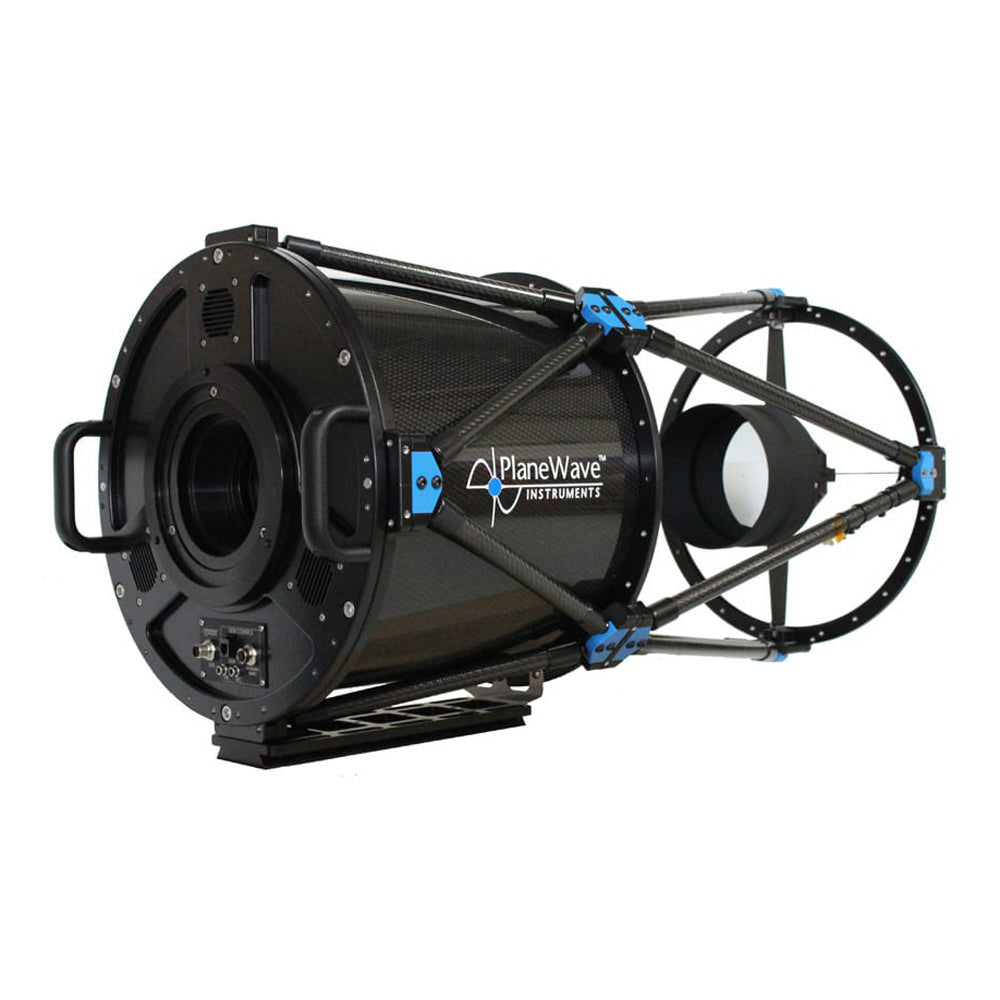

The PlaneWave Instruments CDK14 Corrected Dall-Kirkham is an innovative telescope for unsurpassed astroimaging, research, or satellite tracking. With rock-solid fused silica mirrors, carbon fibre construction and pinpoint stars across a 70mm image circle, the CDK14 is the capable of capturing the most stunning astrophotographs possible.

The CDK14 is an incredible breakthrough in telescope technology and produces no off-axis coma and no off-axis astigmatism. Additionally, the CDK14 provides a perfectly flat field so your astrophotographs will have stunning clarity from corner to corner of the image without field curvature degrading the photos.

Offering the simplicity of single-mirror collimation, the stray light control of advanced baffles, structural performance created through finite element analysis (FEA), and decades of telescope design experience, the CDK14 is an exceptional diffraction-limited telescope.

CDK14 users can experience pinpoint stars edge-to-edge and a 70 x 70 arcminute field of view when using large 16803 size camera sensors. When equipment fades into the background and simply performs, the astrophotography experience becomes even more fun and rewarding!



Features

  • Carbon fibre tube minimizes thermal expansion, which causes focus shift as temperature changes during an imaging session. Carbon fibre also reaches ambient temperatures quickly and is extremely lightweight and rigid to help ensure excellent imaging data is produced.
  • Dovetail Expansion Joint allows for the difference in thermal expansion between carbon fiber and aluminium. The expansion joint allows the aluminium dovetail to expand and contract without stressing the carbon fiber lower truss.
  • 3D-printed precision positioned, lightweight baffle tubes to minimize vignetting and maximize image contrast.
  • Delta-T ready - For added dew prevention, the CDK14 is internally wired with polyimide film heater pads and temperature sensor, which is ready to be controlled with the Delta-T via PlaneWave Interface 3 software.
  • Three cooling fans blow out of the optical tube pulling air through the telescope and by the primary mirror. This helps the telescope to reach thermal equilibrium quickly. The fans are controlled by a switch on the optical tube, or can be controlled by via PWI3 software.



All PlaneWave telescopes feature the following ports for dew heater and fan management:

  • Two RCA connectors to power the dew heater (from the Delta T or from a 12V source)
  • One RJ connector for the Delta T to the telescope to transmit temperature data
  • One EFA connector to power the fans (EFA to 5.5-2.1 jack included)
  • One auxiliary output port

The built-in dew heaters can be powered by any 12V DC source which has an RCA connector, but the Delta T is required to keep the mirror just above the dew point to avoid overheating and the resulting internal turbulences.

The EFA connector can be powered by the separate EFA controller, any 12V DC source using the supplied EFA to 5.5 x 2.1 jack, or by the Series-5 controller.



Optical system

Aperture 14" (356 mm)
Focal length
2563 mm
Focal ratio
f/7.2
Central obstruction
23.5% by surface area; 48.5% by diameter
Backfocus from mounting surface
282 mm
Optical performance
3.1μ RMS at 13 mm off-axis; 6.0μ RMS at 35 mm off-axis
OTA length
889 mm
Optimal field of view 70 mm image circle
Construction
Carbon fibre truss and light shroud
Weight 22 kg


Primary mirror

Optical diameter
355.6 mm
Outer diameter 468.3 mm
Material
Fused silica (quartz)
Shape
Prolate ellipsoid
Coating
Enhanced aluminium - 96%



Secondary mirror

Diameter
165 mm
Material
Fused silica (quartz)
Shape
Spherical
Coating
Enhanced aluminium - 96%



Lens group

Diameter
95 mm
Number of lenses
2
Coating
Broadband AR coatings (less than .5% reflected from 400 to 700nm)







  • CDK14 OTA
  • OTA cover to protect primary mirror
  • PlaneWave thumb drive with software and collimation instructions

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Manuel Marquez
Planewave CDK14

This scope comes very well packed in a wooden crate and feet for a forklift if you have one . The box can be handled by a two man lift no problem. Inside the scope is well packed and when you remove from the box, all you can see is the fantastic carbon look and finish. It’s a very well made telescope and mirrors were super clean from the long travel . Set up of this scope was dead easy and I when with the Essacto 4 focuser and the Eagle 4S to control everything . The Eagle runs fans and dew heaters for mirrors wonderfull and has no problems . All I can say it’s a fantastic made scope and very light in weight but solid would recommend to everyone . I have added some pics and my first test picture with it if the helix.
