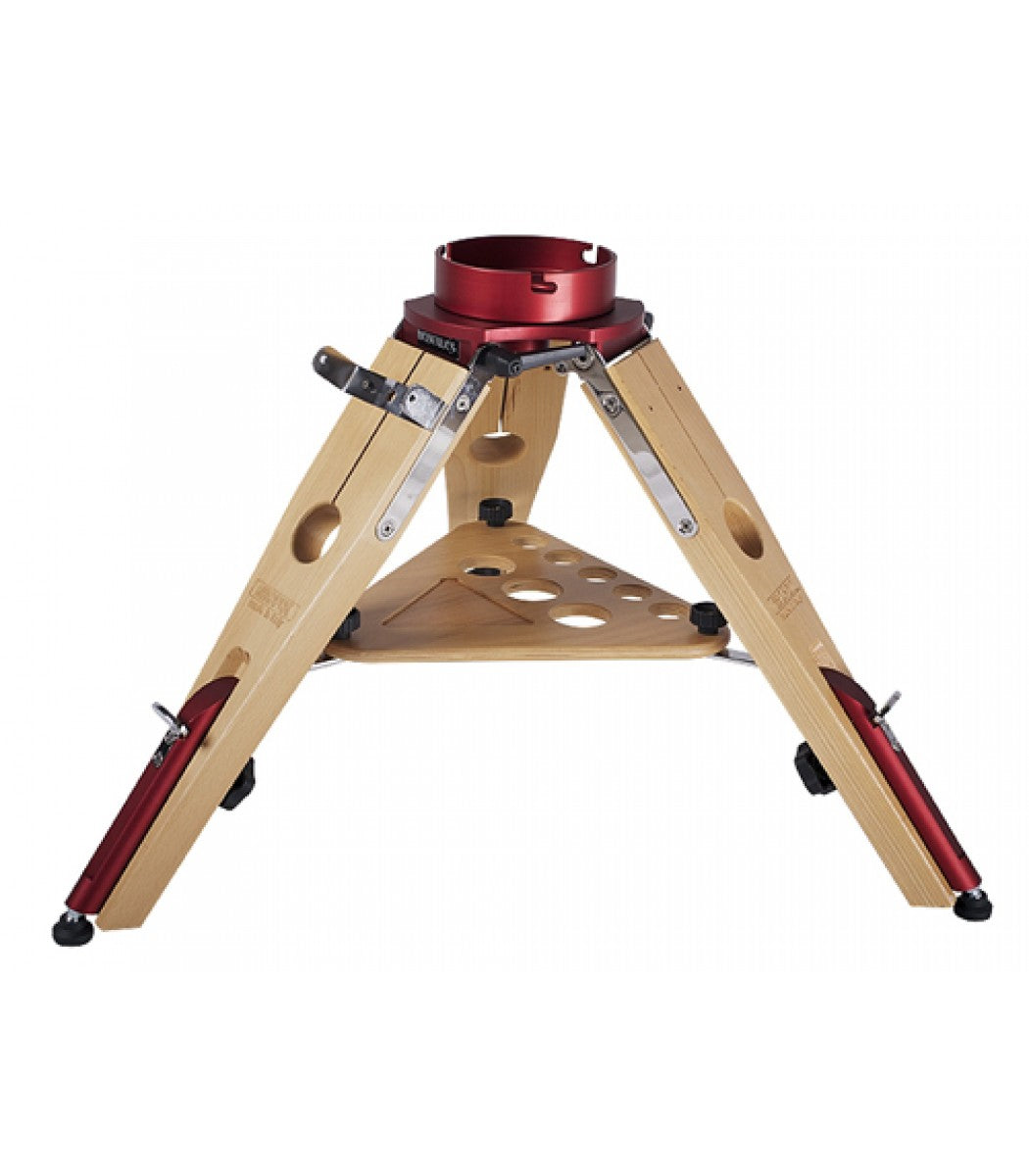

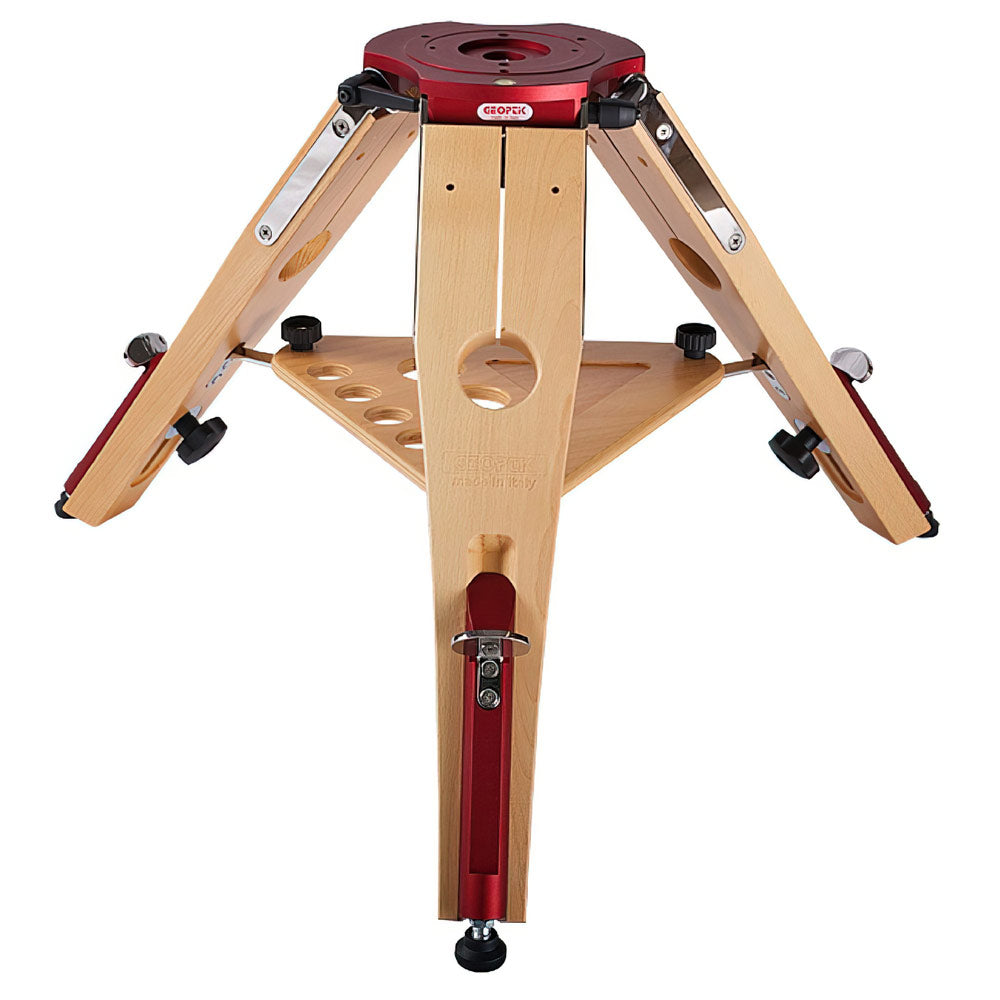

GEOPTIK HERCULES WOOD TRIPOD 47 - SHORT
Geoptik
Payload: 100 kg
8 kg
GEOPTIK HERCULES WOOD TRIPOD 47 - SHORT is backordered and will ship as soon as it is back in stock.

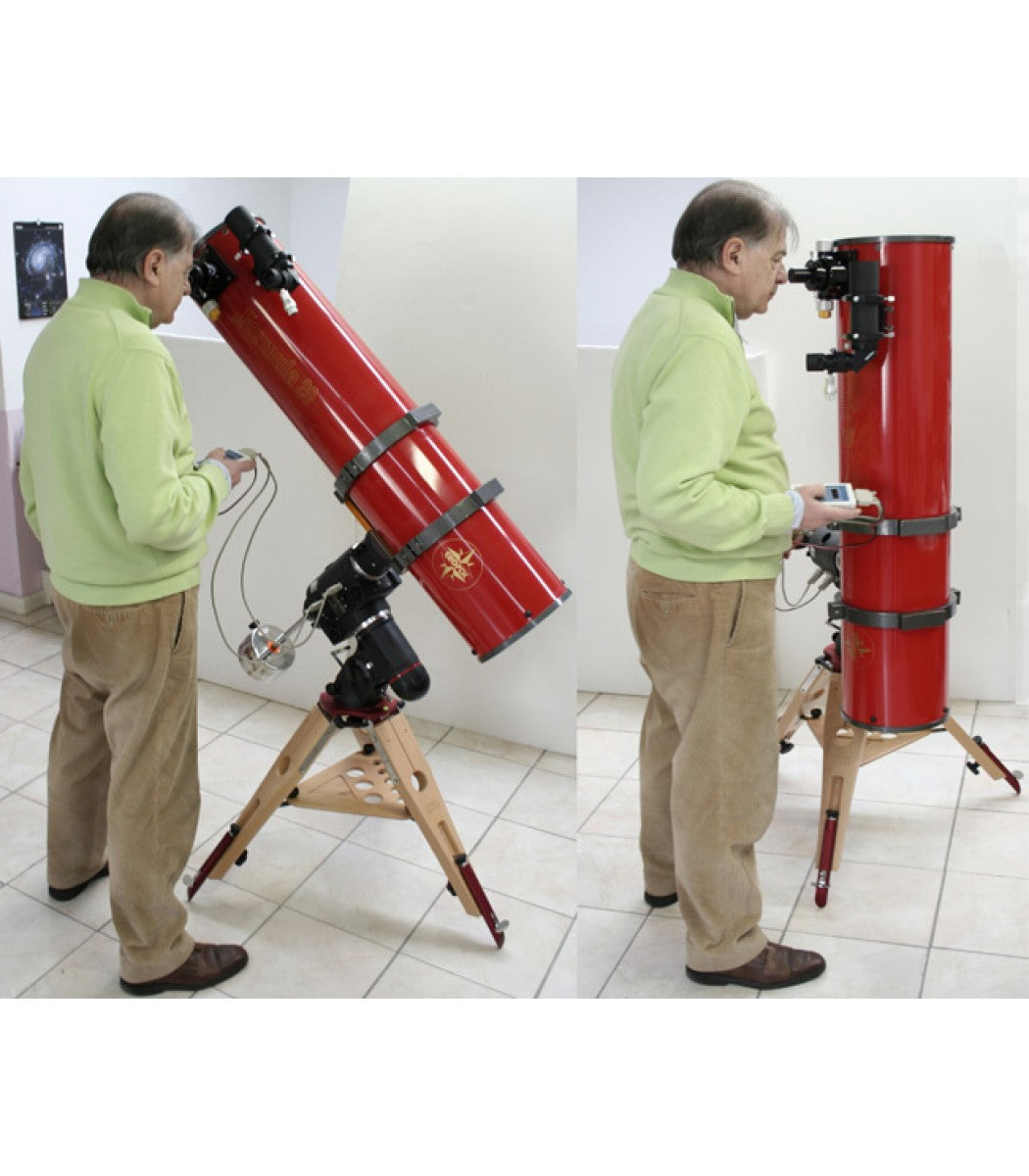

The low version of the Hercules tripod is the perfect option astrophotography with a Newtonian telescope! The low centre of gravity makes it an exceptionally stable platform for imaging and is particularly resistant to wind.

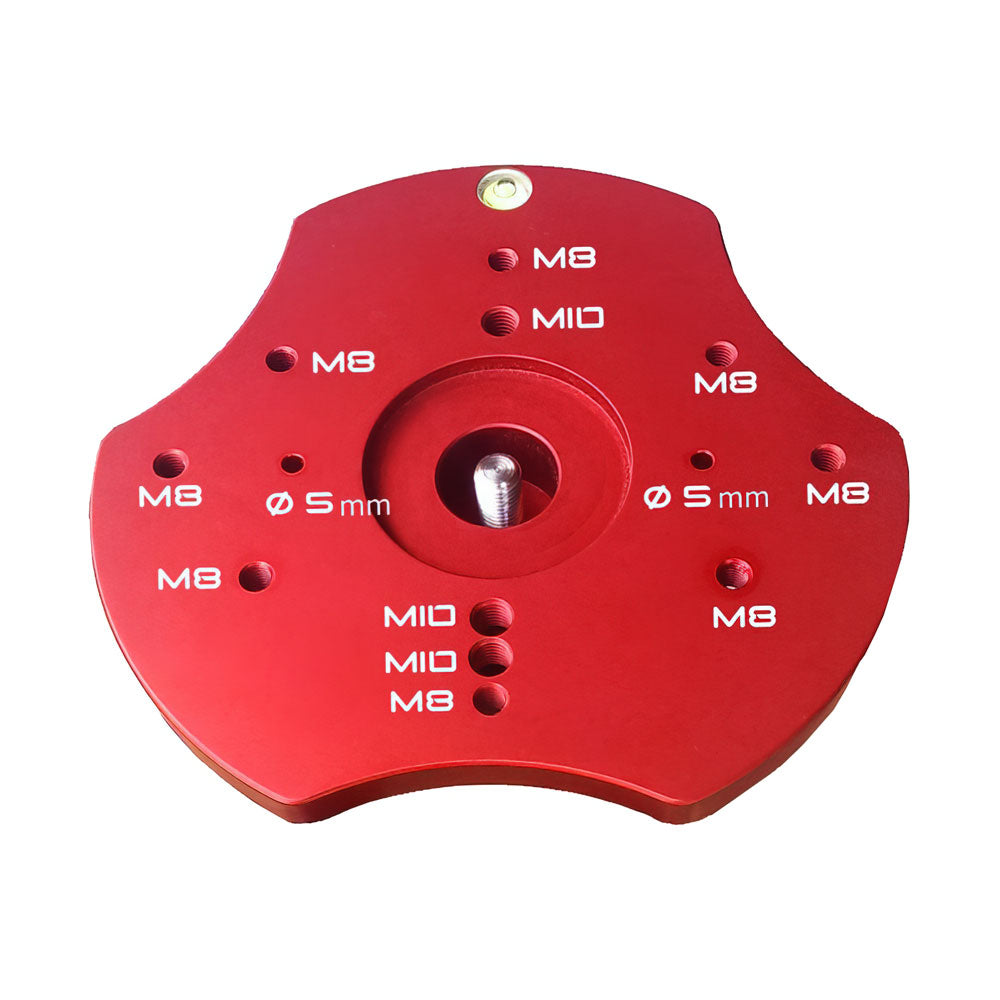

Made of the finest beech wood treated for outdoor use, the Hercules offers excellent stability, vibration damping and heavy load capability. The base plate is finely CNC machined and anodized.

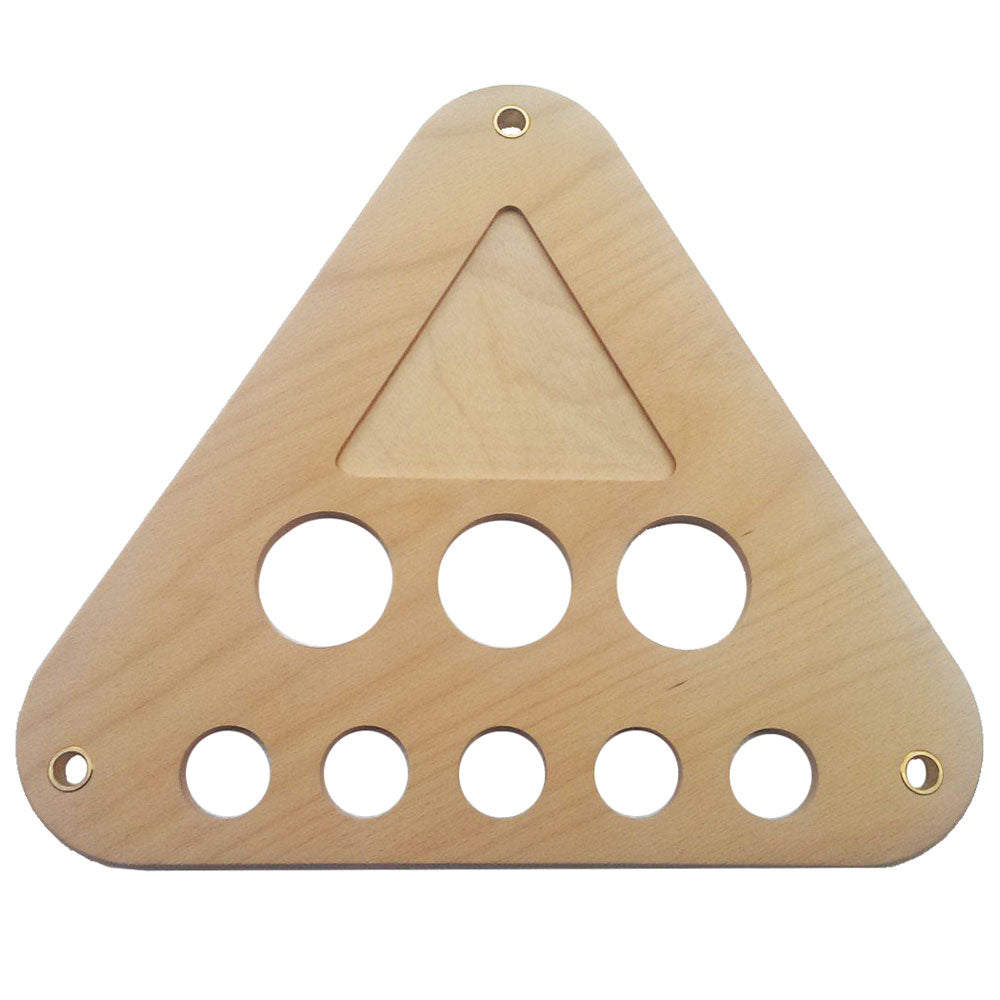

The height of the tripod can range from 470 mm to 520 mm via aluminium extenders. The extenders are reversible, offering the possibility of a rubber or metal tip. The triangle support is laminated beech and has five holes for 1.25" eyepieces and three holes for 2" eyepieces, as well as a section to hold small parts such as screws, filters, etc. The tripod legs also feature three holes each for 1.25" & 2" eyepieces.
Geoptik Hercules wood tripods are an excellent choice for mounts such as the SkyWatcher HEQ5 (with adapter #30A230), NEQ6 Pro, AZ-EQ6 GT, EQ6-R Pro, CQ350 and EQ8 Pro, Losmandy GM8 and G11 (with adapter #30H150), iOptron iEQ30, iEQ45, CEM40, CEM60, CEM70, CEM120, GEM45 (with adapters #30H151 and #30H153), and Avalon M-uno, M-zero and Linear mounts, and more!
The Hercules can also be connected directly to the ZWO PE200 pier extension for AM-series mounts using the following parts:
- 2 x M5 socket cap head screws - 35 - 40mm thread length
- 4 x regular washers - 10mm outer diameter
- 2 x spring washers - 5mm internal diameter
- 2 x M5 hex nuts
Specifications
| Max load |
100 Kg |
|---|---|
| Height | 470 mm to 520 mm |
| Weight |
8 Kg |
| SKU |
30H106 |
Compatible Mounts
SkyWatcher:
Avalon:
10 Micron:
Losmandy:
iOptron:
