Astronomy Specialist

GEOPTIK 16" NADIRUS DOBSONIAN KIT

$3,199.00 AUD
SKU: 10A005

Geoptik

Dobsonian

Dobsonian

402 mm

f/4.5

1800 mm

27.3 kg



Note: This kit does not include the primary and secondary mirror, the focuser or the finderscope.



The Geoptik Nadirus 16" kit is a high quality Italian-designed and manufactured Dobsonian telescope made from lamellar beech and birch, resulting in a lightweight and stable structure. The entire structure is coated for outdoor use.

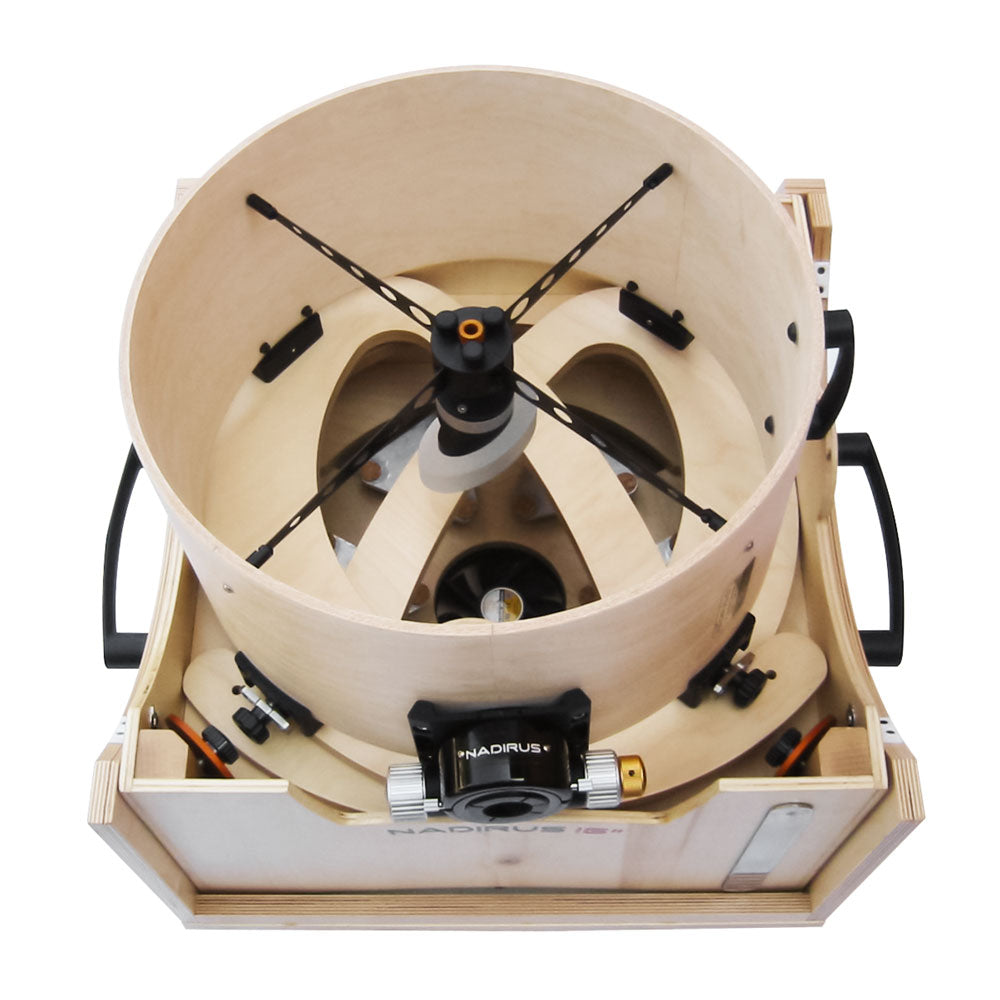

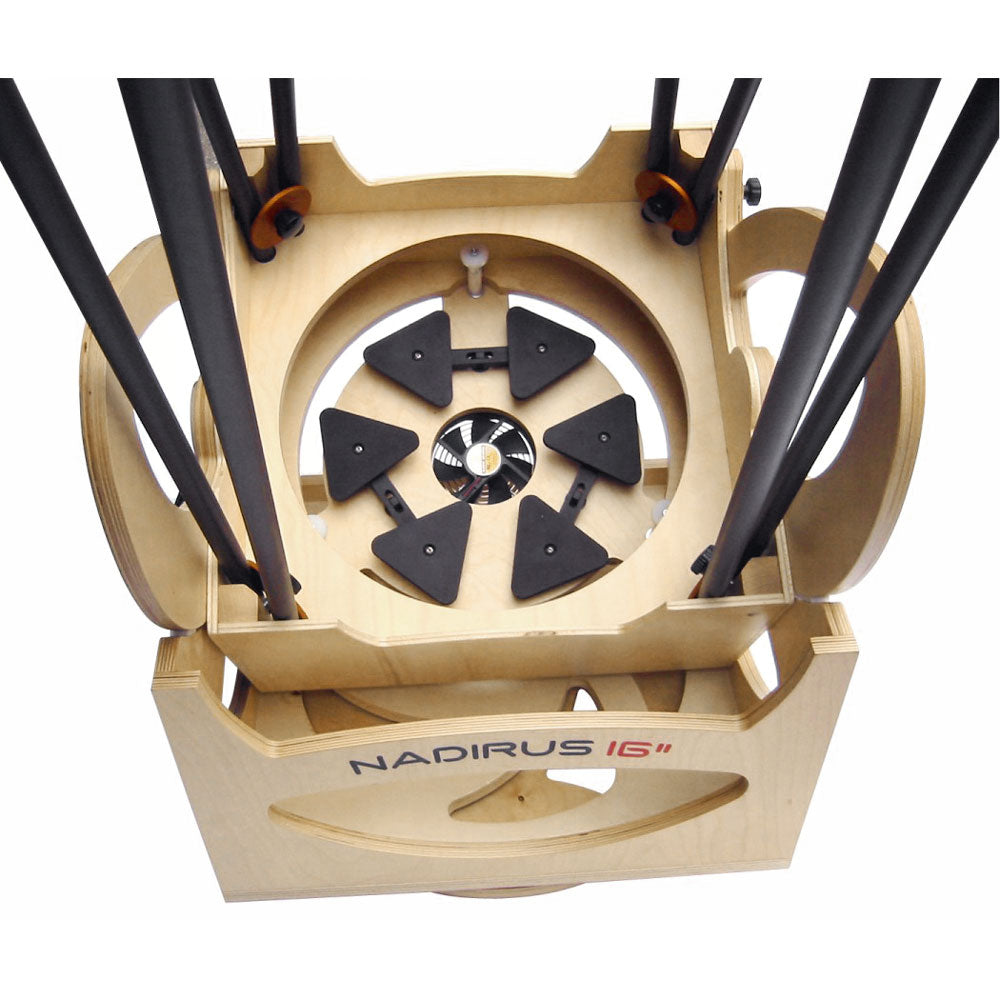

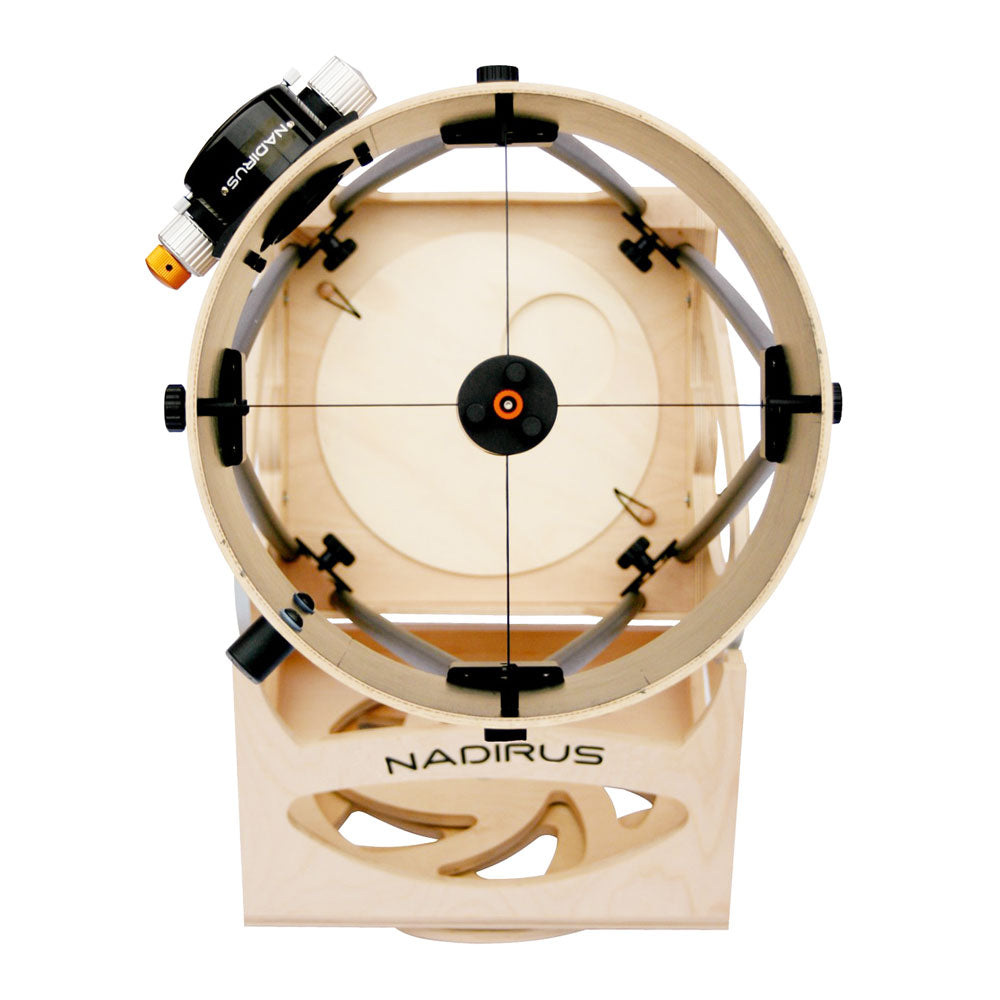

The upper tube housing is made of birch plywood giving unique strength and stability to the secondary mirror spider. The primary mirror cell is made of birch plywood with a support system where the 9-point floating mirror rests on discs of natural cork foam. Teflon strips on both altitude and azimuth make for incredibly smooth operation.

Every part of the telescope has been designed and engineered taking into account a variety of technical and practical aspects. The Italian style, quality of materials and engineering considerations makes it absolutely unique and one of the best Dobsonian kits on the market.


Note: As the Nadirus is a handmade object using real wood (not cheap chipboard), there may be inconsistencies in the finish, colour and grain pattern of the wooden parts. Consequently, such minor imperfections are normal and will not affect the longevity or function of the telescope.



Type Truss tube Dobsonian
Optical design
Newtonian
Clear aperture
402 mm (16")
Focal length
1800 mm
Focal ratio
f/4.5
Mount type
Dobsonian
Primary cell
Floating 18-point machined aluminium
Secondary holder High precision aluminium assembly
Alignment Manual
Altitude bearing radius
540 mm
Eyepiece height (at zenith) 1720 mm
Total assembled weight 27.3 kg
Heaviest part
10.6 kg
SKU 10A005





  • Rocker box
  • Circular base plate
  • Mirror box
  • Primary mirror cell
  • Altitude bearing x 2
  • Knobs for altitude bearing x 4
  • 22mm trusses x 8
  • Bolts & washers for tubes x 4 + 4
  • Bag for tubes
  • Secondary cage
  • Secondary mirror holder & spider
