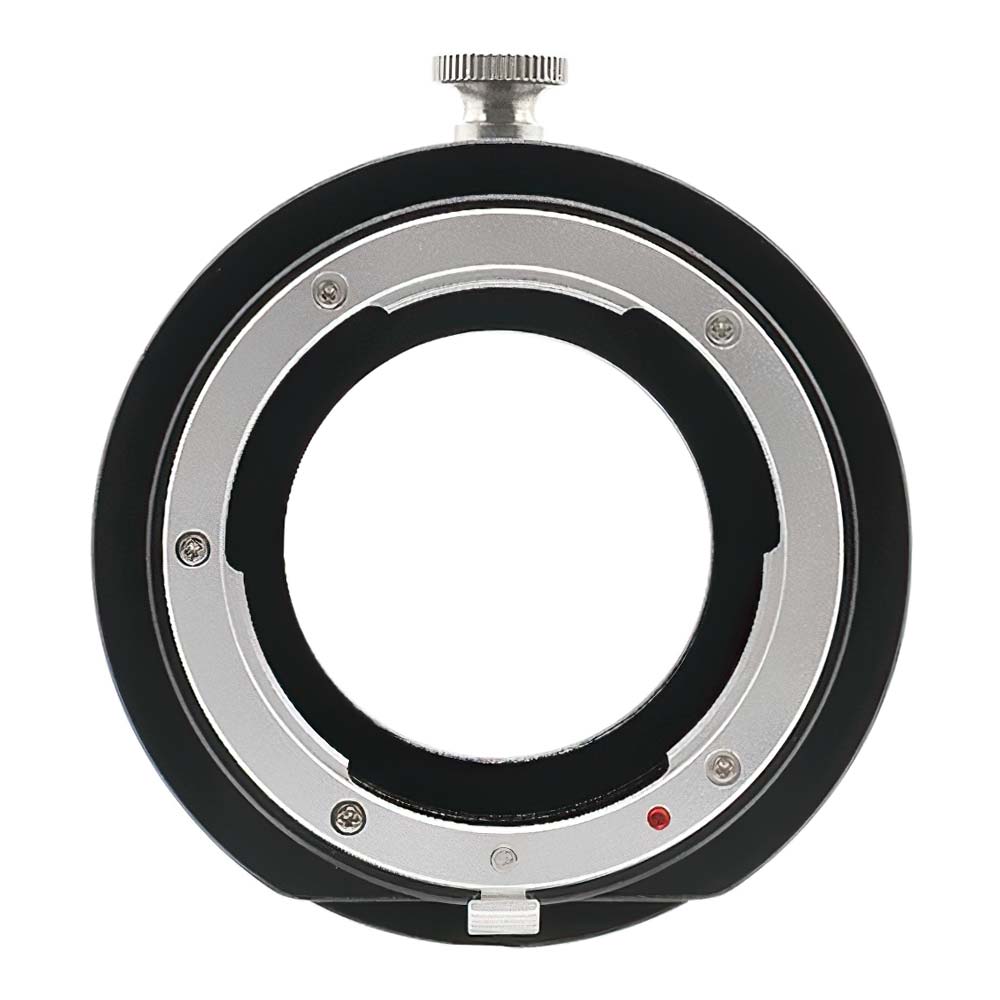

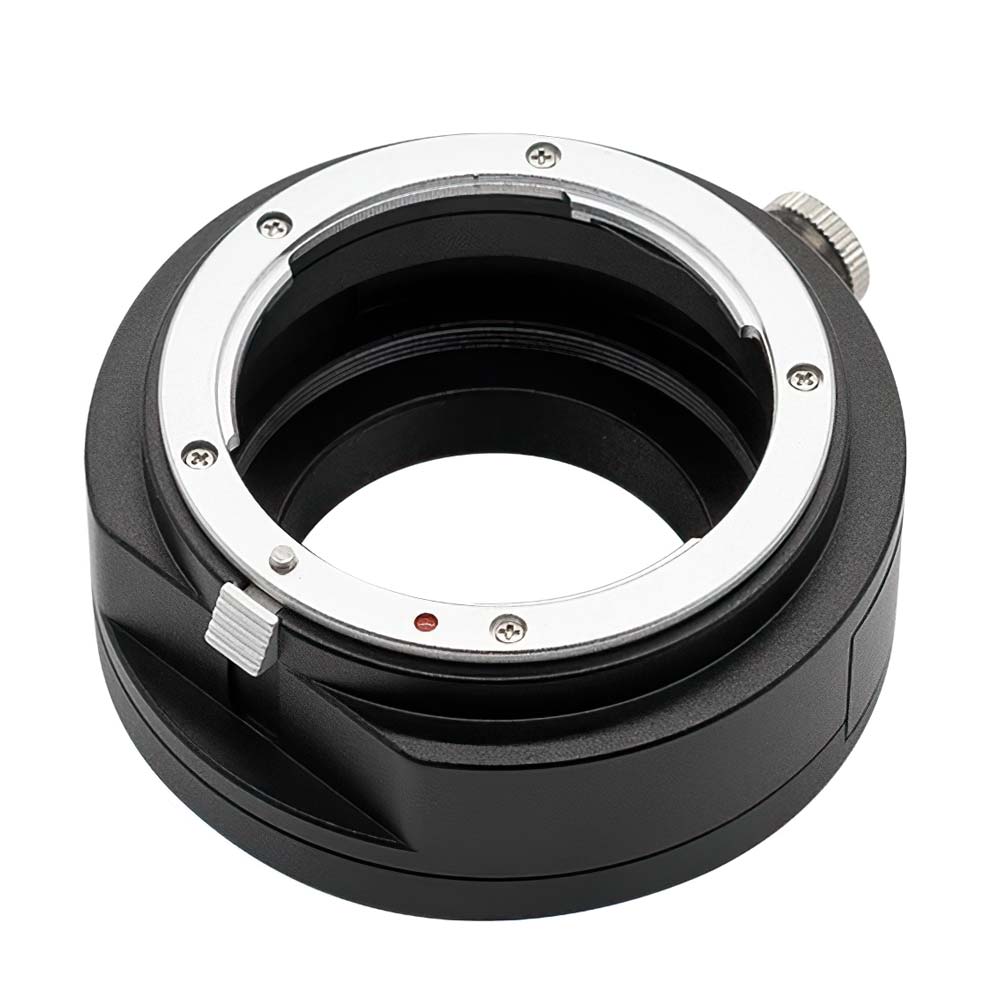

ZWO FILTER DRAWER FOR NIKON LENS

$149.00AUD $179.00
SKU: ZWO-FD-Nikon

ZWO

  • Optical thickness: 29 mm

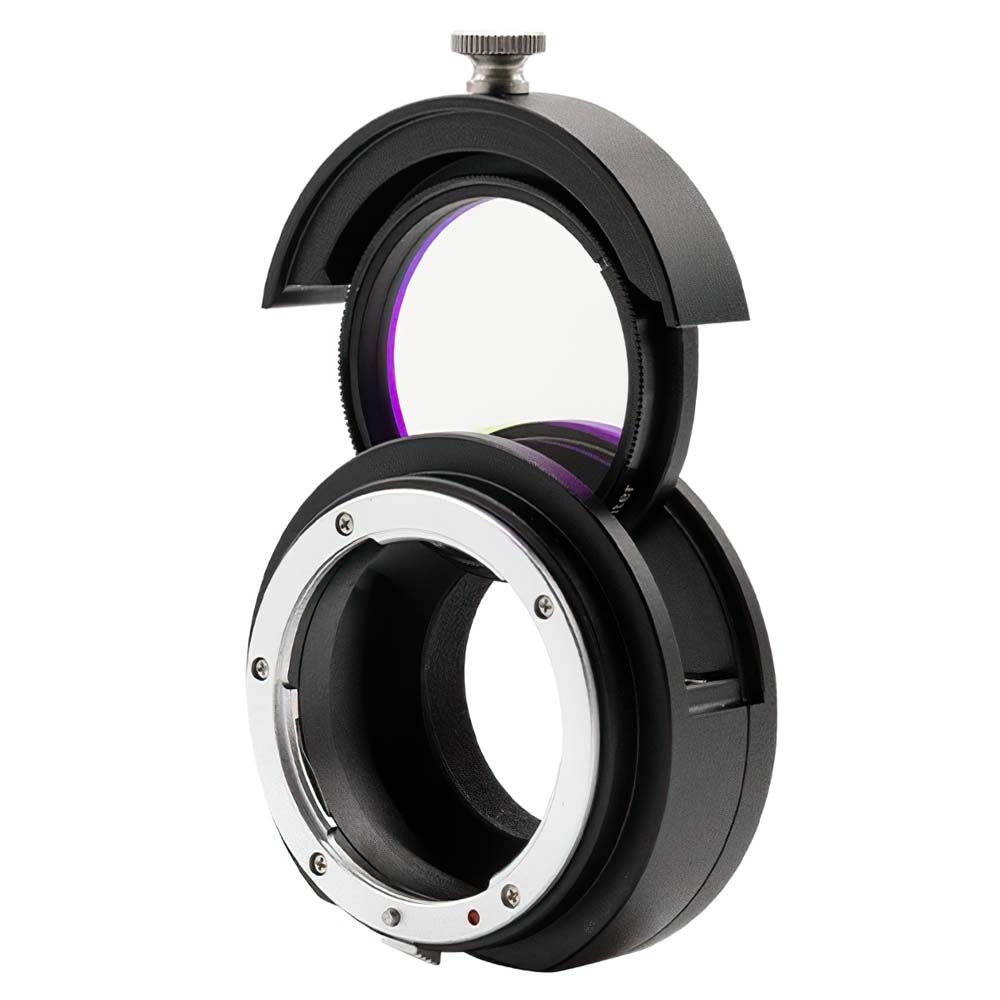

The ZWO Nikon filter drawer allows you to easily connect ASI cooled cameras to Nikon F-mount lenses and has a built-in 2" filter holder

It is compatible with all ASI cooled cameras with 17.5mm back focus distance (except ASI GT series): 1600/294/183/071/533/2600 (excluding Duo series cameras).

Note: Thread interface is M42 x 0.75 - While the included M54 male to M42 female adapter will in theory allow you to use the filter drawer with full-frame cameras such as the ASI2400/ASI6200, this is not recommended as the free aperture is smaller than the sensor diagonal of 43.3mm. Additionally, the free aperture will cover the guide sensor of ASI2600 Duo series cameras.

The spare filter holders for the new V2 M42/M54 filter drawers are compatible with the EOS/Nikon filter drawers.

If using non-ZWO filters, make sure they fit the measurements below:



ZWO filter drawer for Nikon camera lenses

Specifications



Connection lens side Nikon F-mount
Connection camera side
M42 x 0.75
Diameter 70mm
Optical thickness
29mm
Compatible filters
2"
SKU
ZWO-FD-Nikon



ZWO 2" filter drawer for Nikon camera lenses schematic



ZWO 2" filter drawer for Nikon camera lenses connection to ASI cameras



Items included



ZWO filter drawer for Nikon camera lens items included
