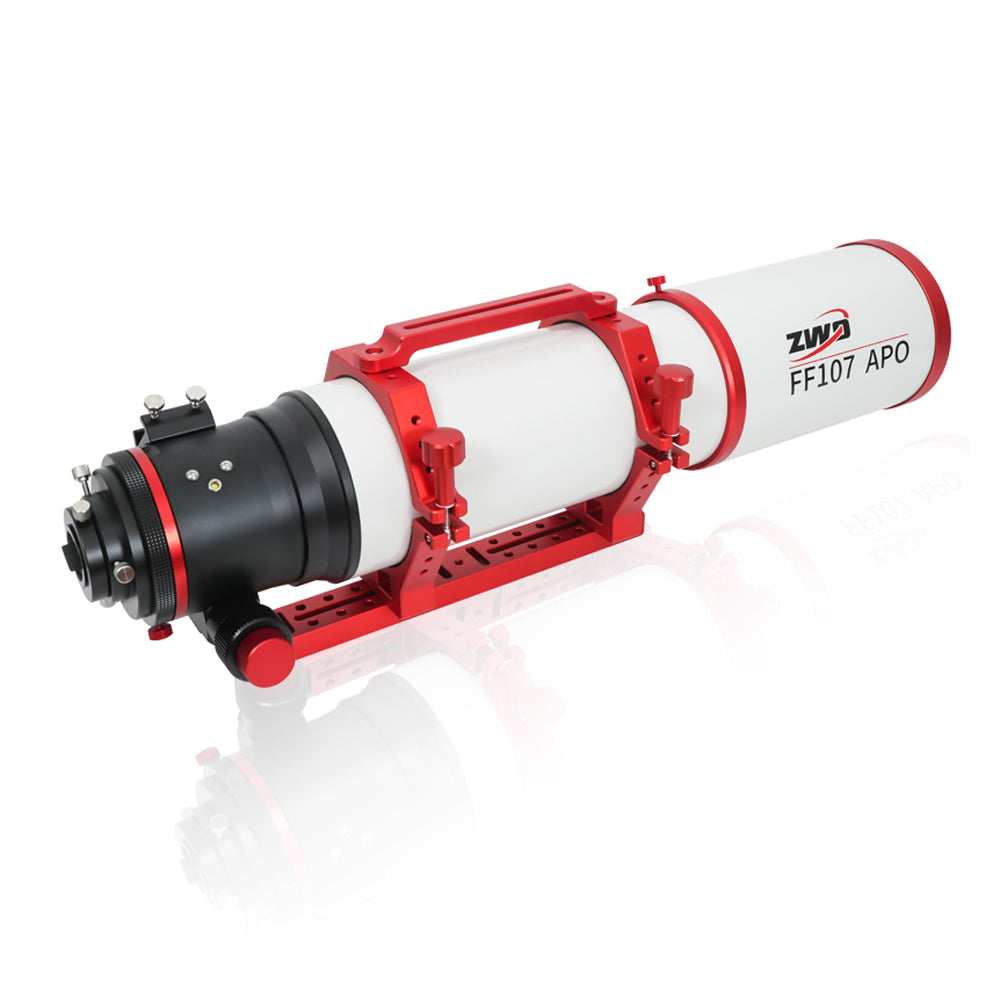

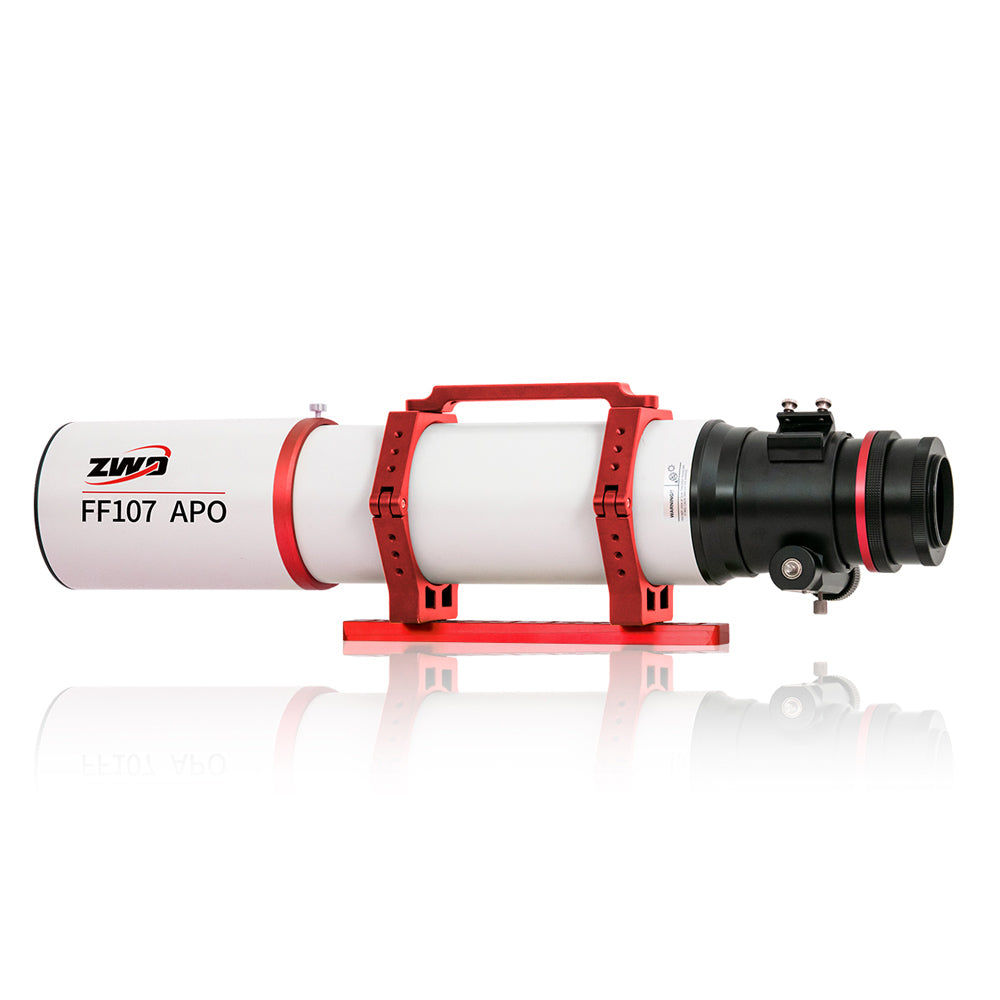

ZWO FF107 APO QUADRUPLET f/7

$3,799.00
SKU: ZWO-FF107-APO

ZWO

Apochromatic Petzval quadruplet

6.9 kg


Style





 The ZWO FF107 is a professional apochromatic flatfield Petzval quadruplet with a focal ratio of f/7 and an image circle of 44mm in diameter. The FF107 includes two Extra Low Dispersion glass elements for superb correction of chromatic aberration. The FF107 supports full frame cameras such as the ASI6200, with a central RMS radius of only 3 microns





Differently from standard ED refractors, the FF107 features a Petzval design that does not require to set the sensor to a specific distance to the last lens. That leaves the freedom to use any filter wheel, any off-axis guider or accessory without any worry to calculate the correct distance from the flattener.





With a large 44mm image circle and a focal ratio of f/7, this is the perfect astrograph for the advanced astrophotographer. The large rack and pinion 3.4" focuser is natively compatible with the ZWO EAF without additional adapters, and can be rotated 360° to perfectly frame the subject and has a reduction gear of 10:1 for precise focusing.

All the lenses are fully multi-coated and the tube is internally flocked to reduce reflections and absorb stray light. The tube is made of CNC-machined aluminium, the rack and pinion focusing mechanism of brass and the mechanical components are engineered to provide the best rigidity, performance and durability.





Specifications



Optical design Apochromatic Quadruplet air-spaced
Objective diameter 107 mm
Focal length 749 mm
Focal ratio f/7
Resolving power 1.29 arc seconds
Stellar limiting magnitude 12.85
Max. magnification 267 x
Light gathering power 234 times the human eye
Mount attachment Vixen style dovetail plate (300 mm long)
Focuser Rack & pinion dual speed (10:1) 34" diameter
Included connection adapters M86 x 1, M68 x 1, M54 x 0.75, M48 x 0.75 (with 2" filter thread)
Backfocus 168.5 mm from M86 thread, 155 mm from M68 thread, 135 mm from M54 thread, 115 mm from M48 thread
Tube weight 6.9 kg (including tube rings and dovetail bar)
Tube diameter 123 mm
Dew shield diameter 138 mm
SKU ZWO-FF107-APO


Included Items



  • ZWO FF107
  • Pair of tube rings
  • Vixen style dovetail bar
  • Carrying handle
  • Adapter M86 x 1 to M68 x 1
  • Adapter M68 x 1 to M54 x 0.75
  • Adapter M54 x 0.75 to M52 x 0.75
  • Adapter M52 x 0.75 to M48 x 0.75 with 2" filter thread
  • Manual
