ZWO EFW 8 x 1.25" / 31mm

$321.00 USD
SKU: ZWO-EFW-8x1.25

ZWO


Options

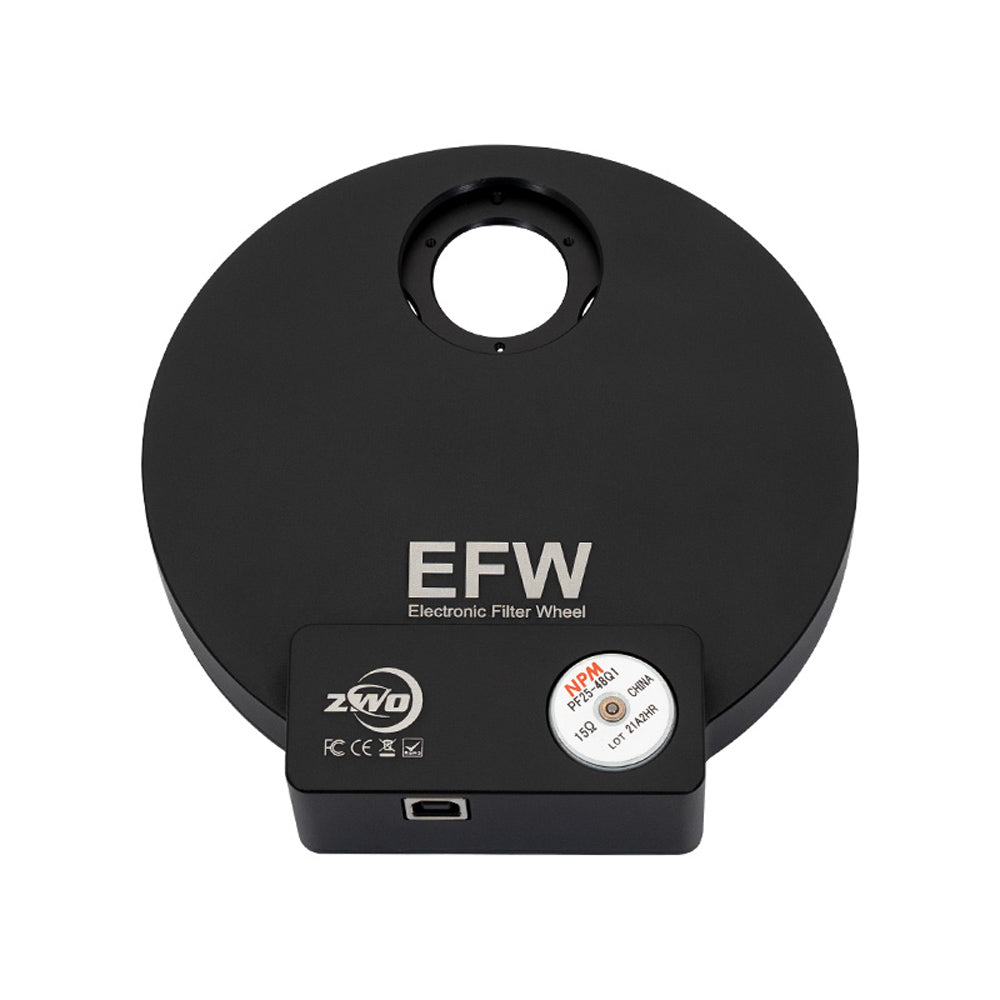

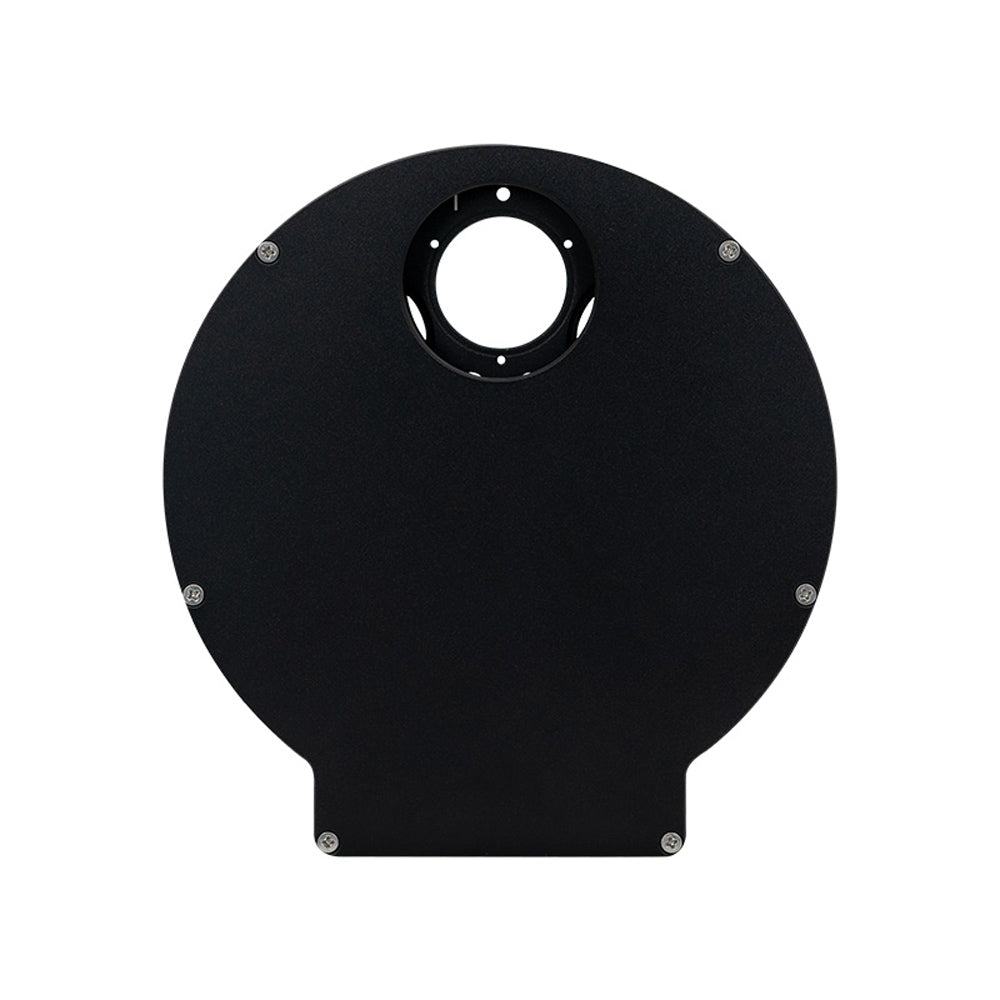

The ZWO Electronic Filter Wheel weighs only 400 grams, it is CNC machined and the optical thickness is only 20mm. This model can take 8 x 1.25″ mounted or 31mm unmounted filters.


The power absorption of the EFW is only 120mAh @ 5V so any USB cable can power it up.

The distance between the filter and sensor of the Pro cameras like the ASI1600 is circa 10mm. This close distance prevents any vignetting with 1.25″ filters for telescopes up to f/5. For f/2 lenses/telescopes it is necessary to use 31mm filters.






The EFW fits 1.25″ filters with a maximum thickness of 7mm + 3mm for the thread. To install 1.25" filters:

  1. Take the back cover off
  2. Lay the wheel down flat
  3. Screw on the filters
  4. Put the back cover on

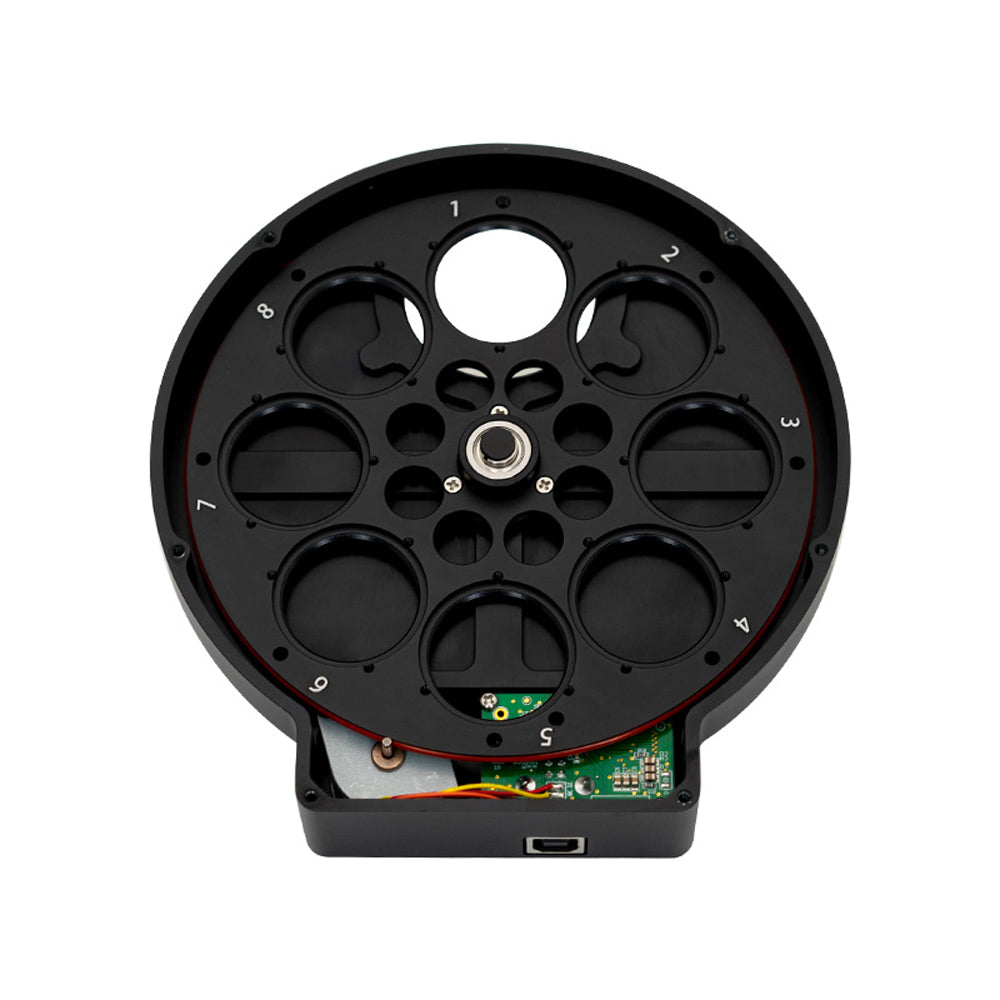

To install 31mm and 36mm filters:

  1. Take the back cover off
  2. Lay the wheel down flat
  3. Hold the filters by the very edges and lay them on the filter wheel slots
  4. Lock each filter with a "mask" and a set of M2 screws
  5. Put the cover back on

To use the filter wheel:

  1. Install the ASCOM driver on your computer
  2. Plug in the USB2.0 cable
  3. On the Ascom options, select ZWO filter wheel (1) or ZWO Filter Wheel (2). There are two options to allow 2 filter wheels at the same time.

How to connect with the camera and telescope?



Compatible filters 8 x 1.25" / 8 x 31mm unmounted
Ports

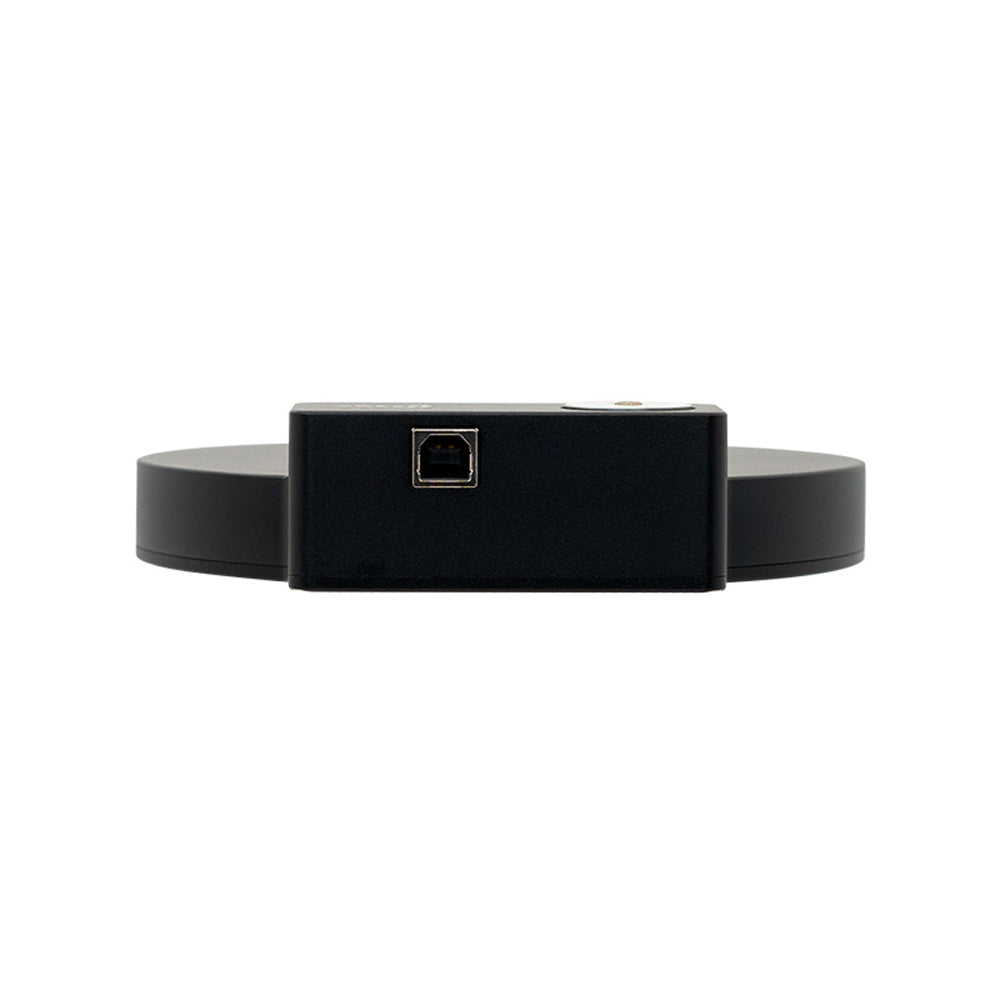

USB
Power draw 120 mA @ 5A
Power supply USB cable
Maximum thickness of the filter 7 mm (not including threads which must be less than 2.7 mm)

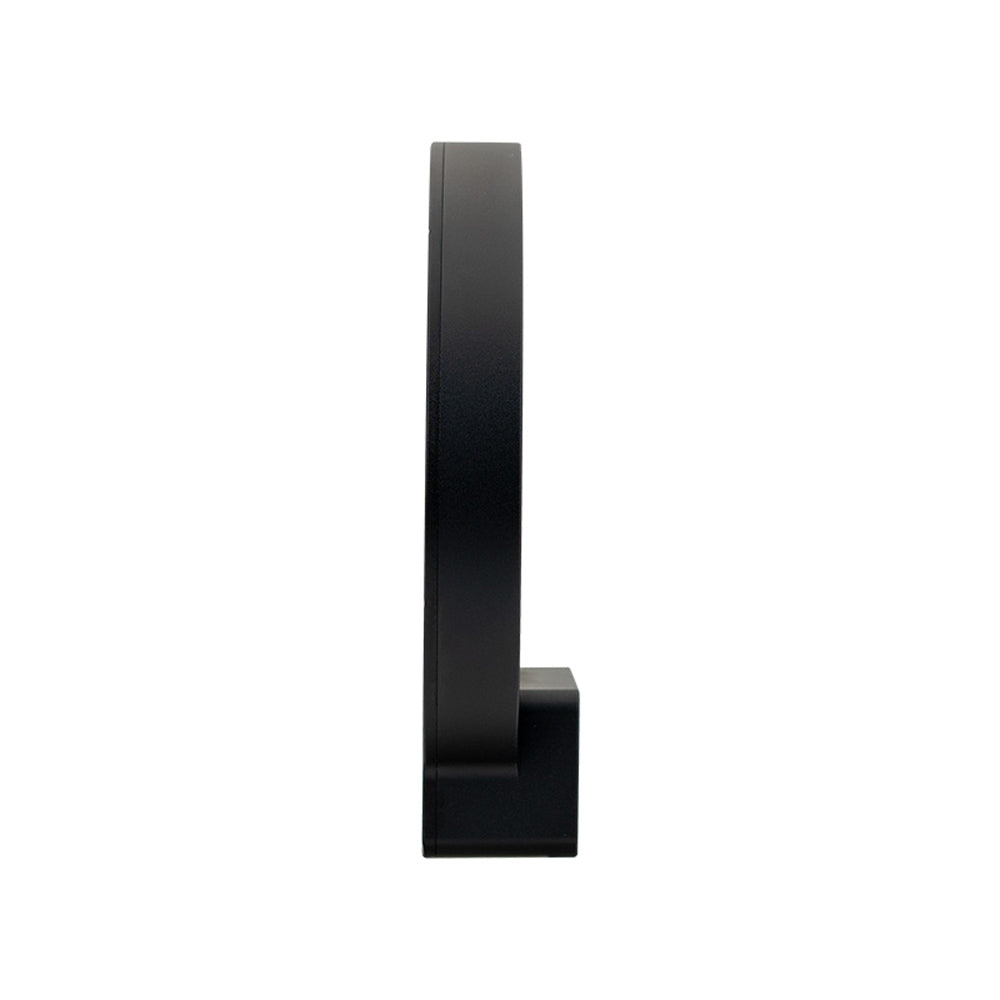

Optical thickness 20 mm
Camera connection
M42 x 0.75 female
Telescope connection M42 x 0.75 female
Camera compatibility 4/3" and smaller ASI cooled cameras or cameras with a male M42 x 0.75 thread
SKU ZWO-EFW-8x1.25








    1. 8 x 1.25" / 31mm EFW body
    2. 1.25″ cover
    3. T2 nosepiece
    4. 1.25″ holder (with cover and 2 screws)
    5. T2-T2 adapter (male)
    6. Filter masks
    7. USB 2.0 cable (2m)
    8. Phillips head screwdriver
    9. M2 screws







    55mm backfocus with 4/3" or 1" cooled cameras







    55mm backfocus with 4/3" or 1" cooled cameras and OAG
