The ZWO ASI 6200MC PRO is the first ZWO camera with a full frame 16bit sensor. It installs the latest back-illuminated Sony IMX455 featuring a QE up to 80% (in the monochrome version).ZWO ASI 6200 Technical specifications

ZWO engineers worked to minimize the weight of this camera to only 700 grams! The full frame sensor has the same size of the old film which is 36mm x 24mm and the diagonal is 43.3mm.

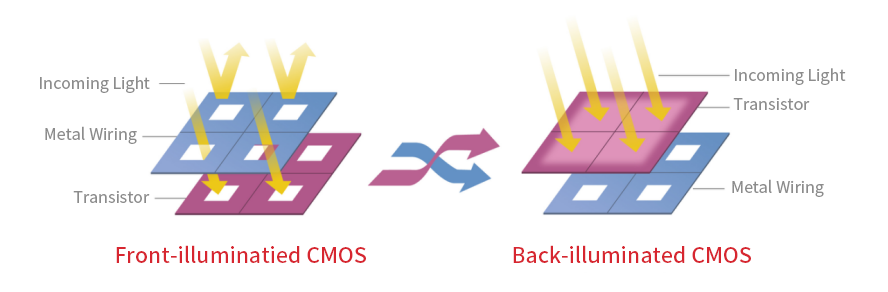

Sony’s back-illuminated CMOS technology improves sensitivity, minimizes noise, reduces power consumption and increases data download speed. In a conventional front-illumination structure, the interconnection of metal wiring and transistors are above the photosensitive silicon surface (photo diode), reducing the overall sensitivity and therefore the quantum efficiency. In back-illuminated sensors, the photosensitive surface is placed on top of the wiring so the incoming light is not obstructed, resulting in a greater quantum efficiency. Sony has developed a new and unique photo-diode structure and an on-chip lens that is optimized for back-illuminated structures, achieving a higher sensitivity and a lower random noise.

ASI 6200MC

The ASI6200MM Pro is the first ZWO with 16bit ADC that can achieve a dynamic range output of 14 stops. This improves the image sharpness and contrast significantly and the color shades are smoother and more natural.

ASI 6200MC

When the gain value is 100, the HCG high gain mode is automatically activated and the readout noise is greatly reduced while the dynamic range basically remains unchanged.   ASI 6200MC

The ZWO PRO cameras incorporate a 256MB DDR3 memory buffer that improves data transfer reliability and it minimizes amp-glow caused by slow data transfer speeds.

The USB 3.0 Port provides 5Gbps bandwidth and lets the camera run at 9fps at full resolution.

ASI 6200MC

The USB 2.0 Hub allows to connect 2 USB controlled accessories such as a filter wheel, a guiding camera or an electronic focuser, reducing the amount of cables that run directly from your computer.

The 2 stages TEC cooling system allows a ΔT of 35°C below air temperature. The cooling system requires an external power supply of 12V at 3-5A with a 2.1×5.5 mm connector (positive tip). The ASI 6200MC can be powered with a standard lead battery or a DC source between 9-15V.

ASI 6200MC

The dew heater avoids the problem of dew condensation on the optical window of the sensor. The heater can be turned off via software.

ASI 6200MC

Traditional CMOS sensors produce a weak infrared light source that is often seen in the corner of uncalibrated images as bright glow. The ASI 6200 uses the zero amp glow circuits that avert this artefact in your images.

ASI 6200MC

Amp glow artefact– exposure 300 seconds

ASI 6200MC

ASI 6200 frame with no amp glow – Exposure 300 seconds



Sony IMX 455 - colour


61 Megapixels 9576 x 6388

Pixel size

3.76 µm

Sensor size

24 mm x 36 mm (43.2 mm diagonal)

Quantum efficiency


Exposure range


Read noise

1.0e  - 3.3e

Full well capacity

51,000 e

Bit rate

16 bit


9 fps

Shutter type

Rolling shutter


ΔT of 35°C

Memory buffer





Mac, Windows, Linux

Protecting window

AR coated


USB 3.0 / USB 2.0


17.5 mm


M54 x 0.75


Ø 90 mm; ↨ 97 mm


700 g

Power supply

9-15V 3-5 A  (2.1×5.5 mm connector)




ASI 6200MC

ASI 6200MC The best solution to achieve a back focus of 55mm ASI 6200MC
