ZWO 0.76x REDUCER FOR FF80
ZWO
ZWO 0.76x REDUCER FOR FF80 is backordered and will ship as soon as it is back in stock.

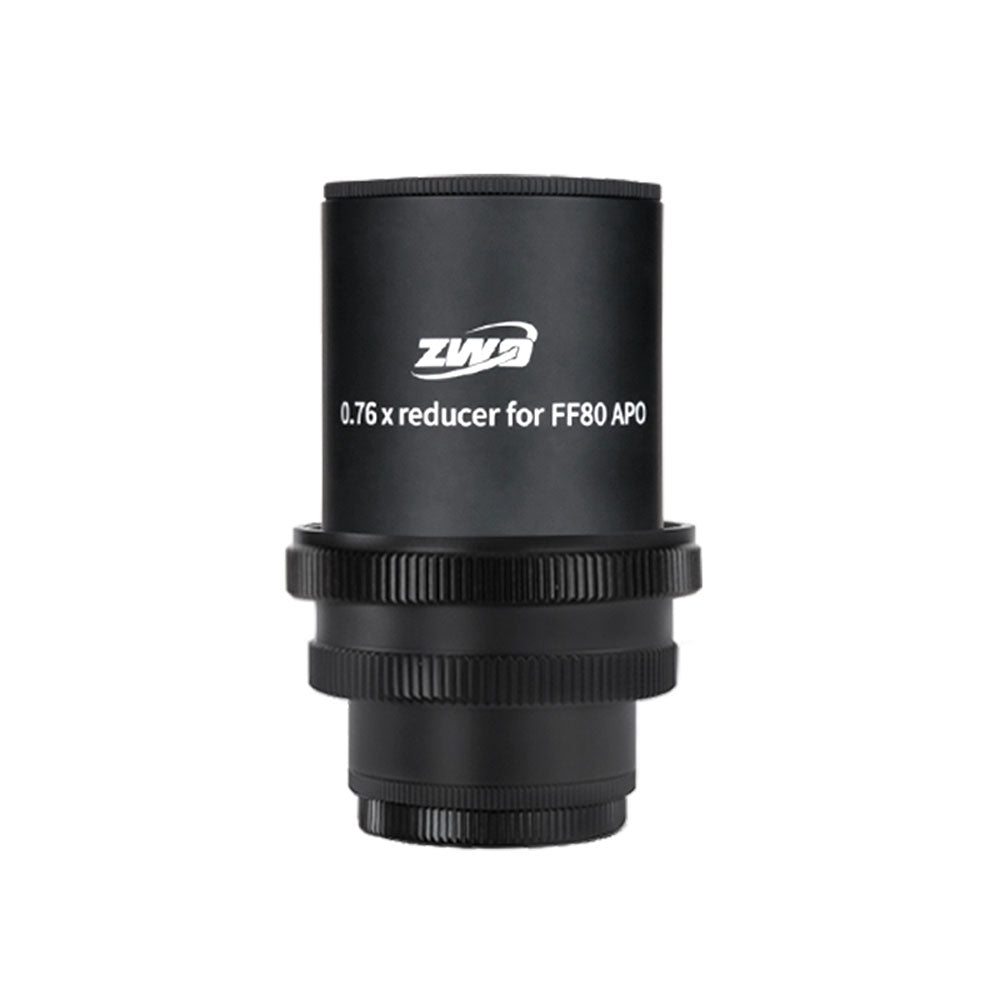

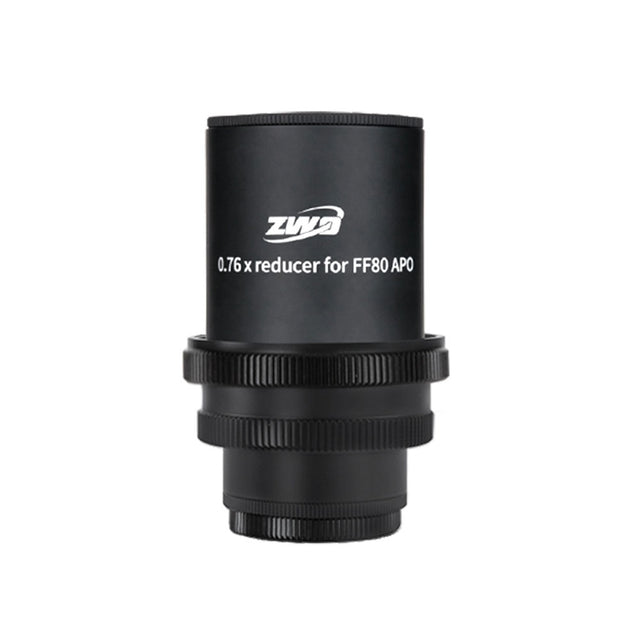

The ZWO 0.76x Flattener/Reducer for the FF80 is a 3" corrector for full frame sensors. The flattener/reducer is a triplet design with one element of ED (Extra-low Dispersion) glass. The 0.76x reduction factor shortens the focal ratio of the FF80 to f/5.7, shortening the exposure time and increasing the field of view.
When paired with this flattener/reducer, the focal length of the FF80 becomes 456mm, transforming it into an extremely capable widefield astrograph. The flattener/reducer has a backfocus requirement of 55mm, making it straightforward to connect common imaging trains.
Specifications
| Reduction factor | 0.76 x |
|---|---|
| Telescope connection | M68 x 1, M64 x 0.75 |
| Camera connection | M68 x 1, M54 x 0.75, M48 x 0.75 |
| Image circle | Full frame |
| Backfocus distance | 55 mm |
| Weight | TBD |
| SKU | ZWO-F80RE |
Instructions
1. Remove the reducer from its packaging.
2. Unscrew the eyepiece holder from the end of the FF80 telescope tube.
3. Unscrew the dust cap from the front of the reducer.
4. Insert the reducer into the focuser and screw in to the rear threads on the drawtube.
