Astronomy Specialist

WANDERER WHITE DWARF FLAT PANEL 200mm

Regular price $259.00AUD
SKU: WA-WWD-200

Wanderer Astro

0.34 kg

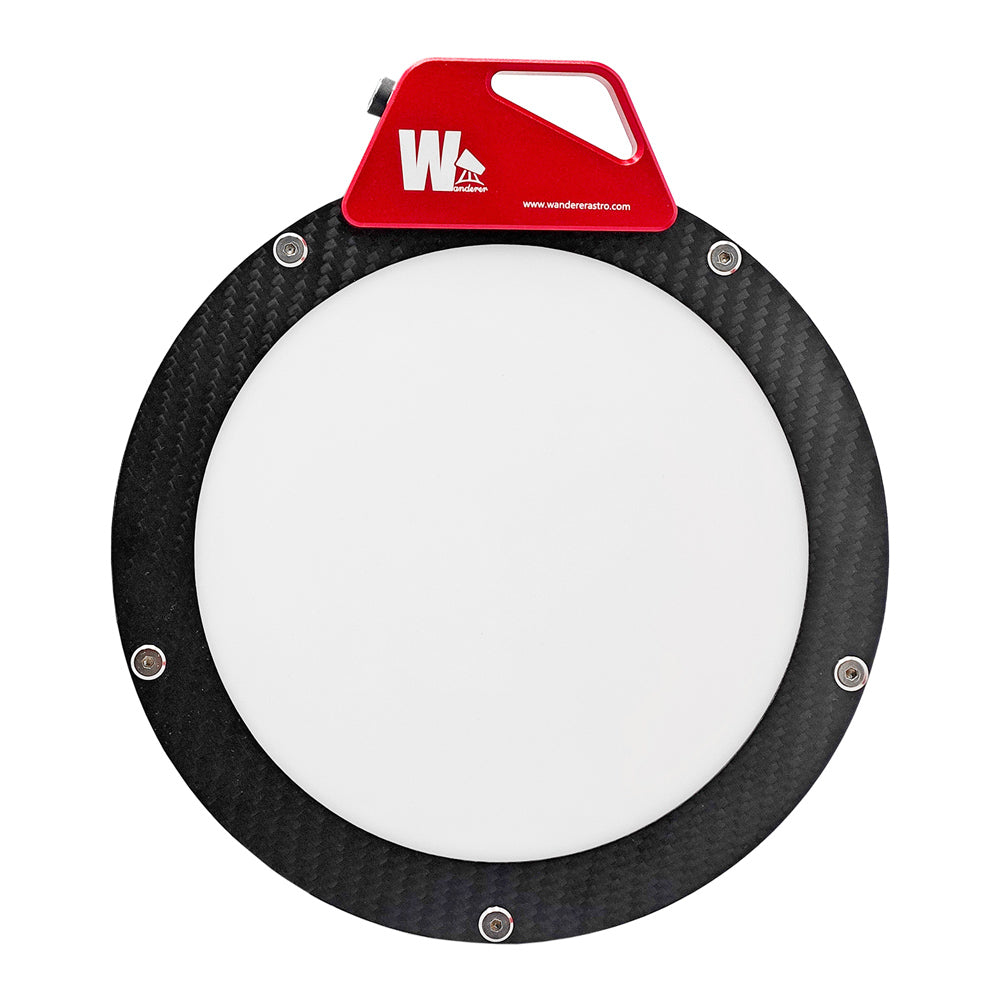

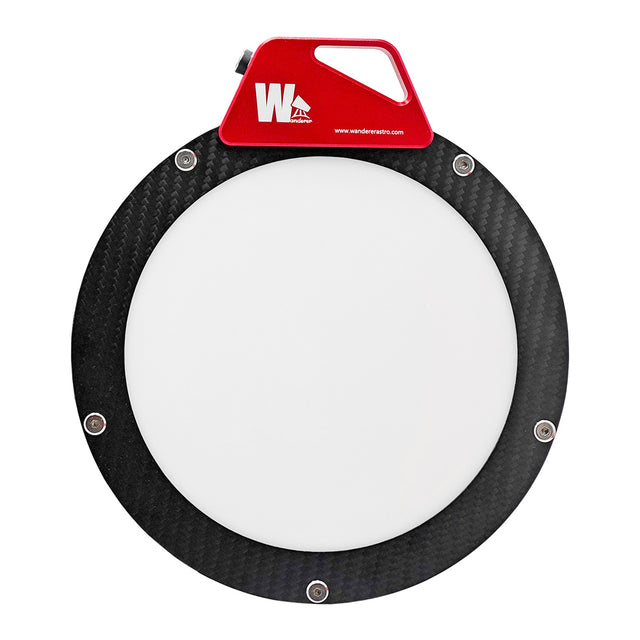

The WandererAstro White Dwarf Flat Panel 200mm is a flat field generator with variable control over its brightness. Unlike Wanderer's motorized flat panel caps, this is just a standard panel with hand controller. With a uniformly bright panel with 255 steps of adjustable brightness, the WandererAstro flat panel makes taking calibration frames simple.

The luminous diameter of this panel is 200mm, but it is recommended to size up. For example, a telescope with a dew shield diameter of 200mm should purchase the 250mm version.





Inspired by racing brake calipers, the White Dwarf features an anodized red aluminium handle with carbon fibre retaining ring. The panel can be powered by a standard 12V DC source with a 5.5 x 2.1 jack. A 5.5 x 2.1 male to male cable is included for use with power distribution units like the WandererBox series.

Specifications



Luminous diameter 200 mm
Outer diameter 240 mm
Connectivity
12V 5.5 x 2.1mm DC barrel jack
Light source
LED with light guide plate and diffuser panel
Weight
341 g
SKU
WA-WWD-200
Items included





  • White Dwarf 200mm flat panel
  • DC 5.5 x 2.1 male to male cable 1m
  • Dimmer



Downloads



ZWO camera software Manual and drivers
