WANDERER FETA ADAPTER FOR MORAVIAN C3/ C4

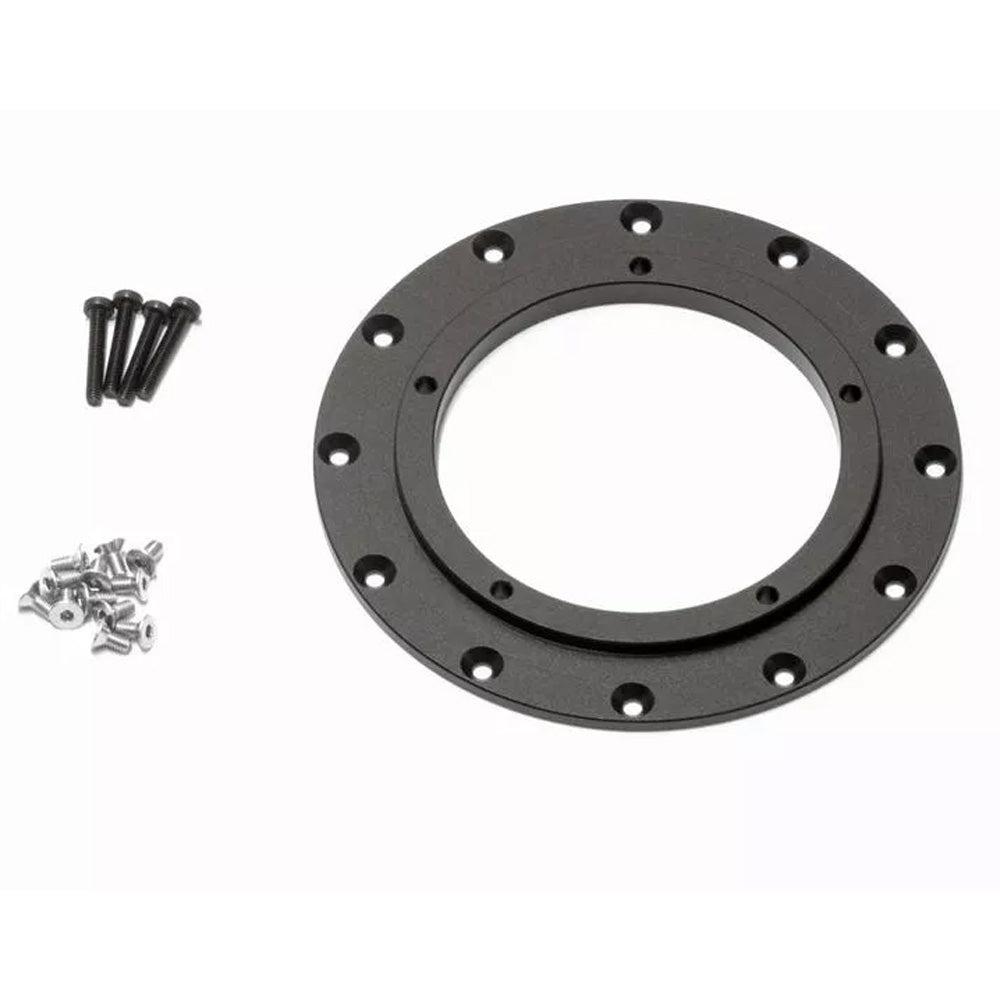

The WandererAstro FETA M92 adapter for Moravian C3 /  C4 cameras allows you to connect the focuser/tilter directly to the M68 adapter found on C3 & C4 systems.

It is compatible with all Moravian M68 adapters which feature five M3 screw holes, such as the C3/C4/G3/G4 camera, filter wheel, and off-axis guider (M68 OAG MKII).

Please note that this adapter is not compatible with the Moravian M68 OAG MKIII, as it does not have any usable screw holes for mounting. You need to purchase our bolted M68 female adapter for FETA M92 and connect to your Moravian M68 OAG MKII with an M68 male to male adapter.

Installation

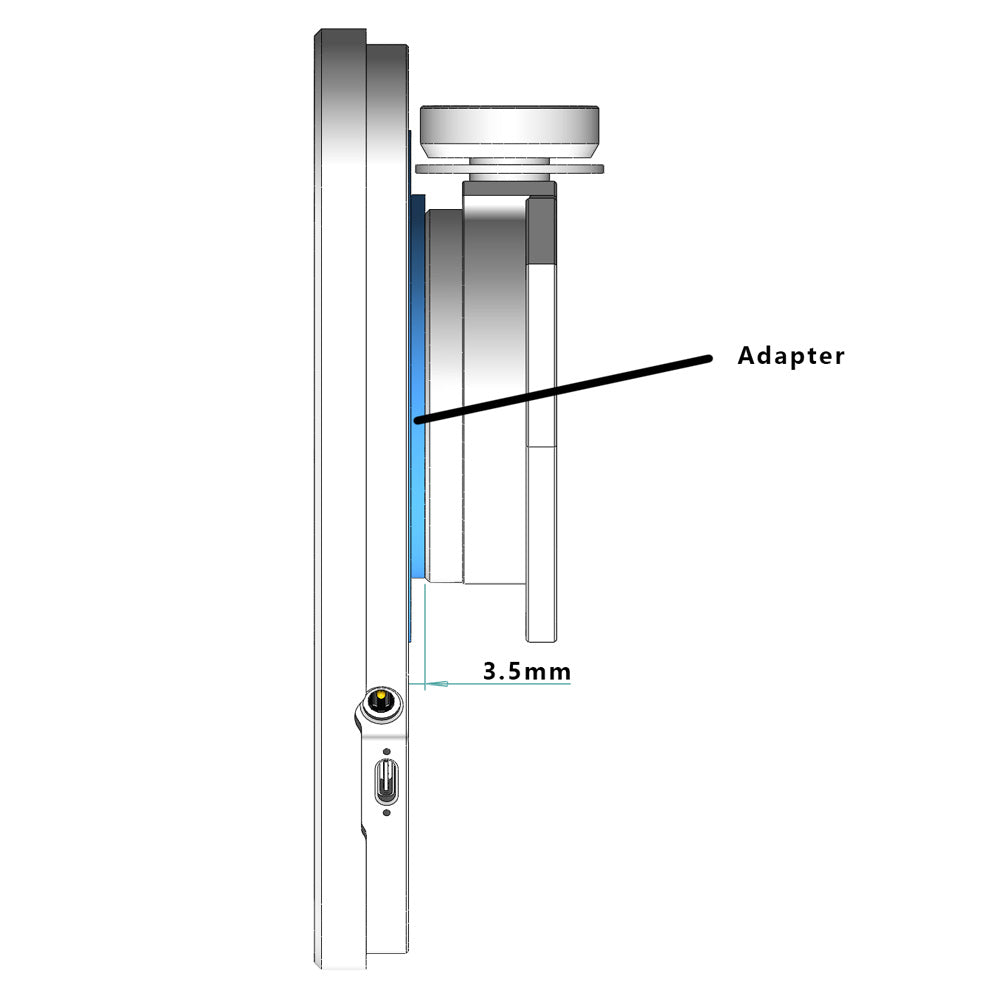

First, secure the adapter to the Camera Side of the FETA M92 using the silver M3 screws provided in the package. Then, use the longer black M3 screws to secure the adapter to your Moravian M68 adapter from the back of our adapter (the Telescope Side of the FETA M92), passing the screws through the through-holes on the adapter highlighted in red. Before doing this, you need to remove the screws on the Moravian adapter highlighted in green.
