WANDERER ASTRO ROTATOR PRO M92
Wanderer Astro
WANDERER ASTRO ROTATOR PRO M92 is backordered and will ship as soon as it is back in stock.

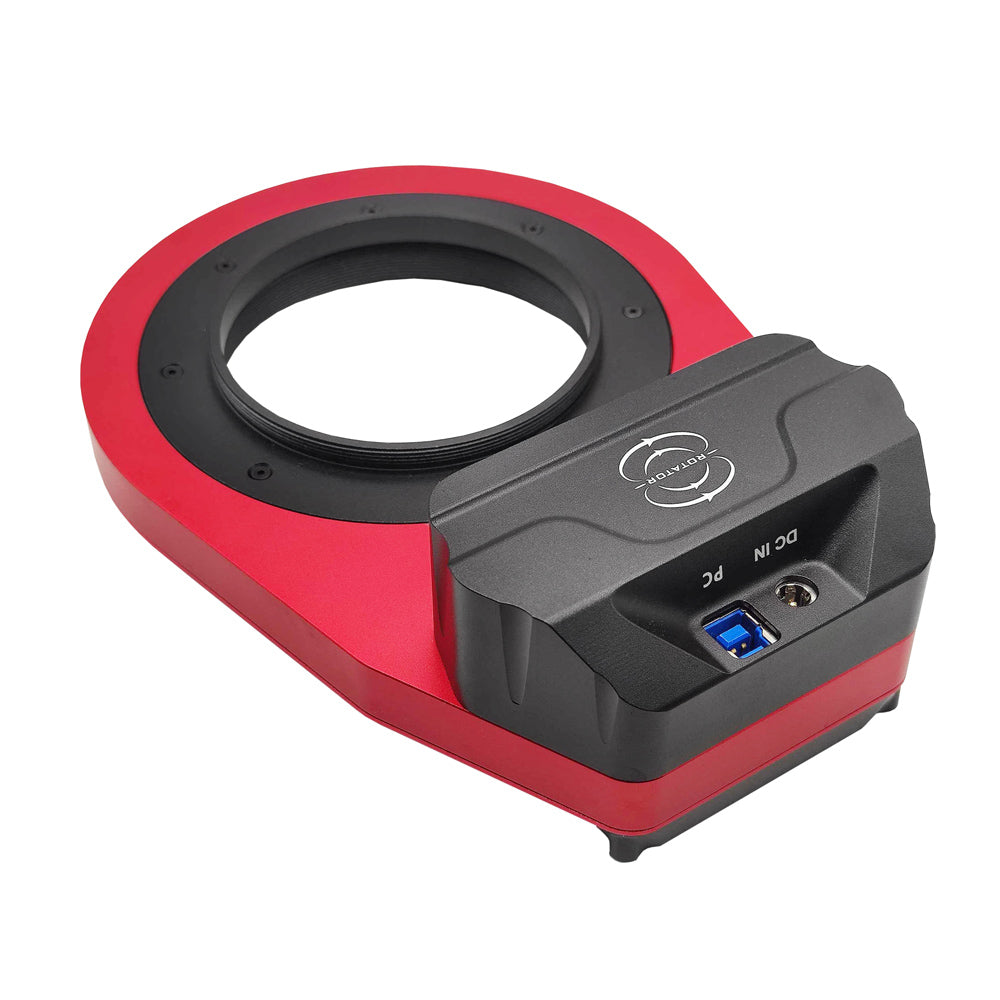

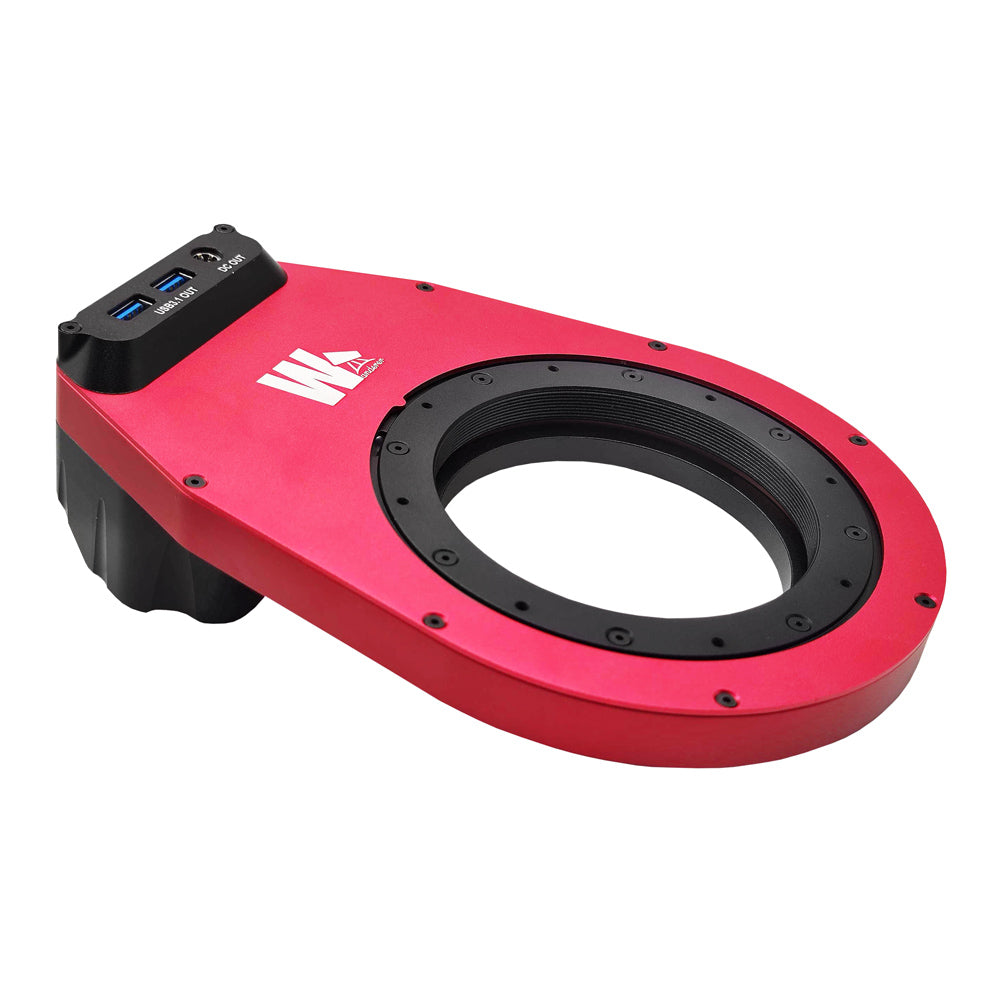

The WandererAstro WandererRotator Pro is a lightweight and ultra low-profile M92 motorized rotator. It is capable of high speed and precision, at up to 7 degrees/second with better than 0.1 degree accuracy*. At only 16mm thick, the Pro rotator is ideal for setups where backfocus is limited.
The Pro rotator is capable of holding a payload of up to 8Kg with a centre of gravity 15cm away from the rotator. WandererAstro's patented magnetic structure design guarantees zero flexure at any altitude. For users of alt-azimuth mounts and Dobsonians, field de-rotation is supported.
The Pro rotator is powered from a 12V DC source and controlled from a USB 3.1 port. It includes a 12V DC passthrough (5A max) plus a dual USB 3.1 hub. The Prorotator is ASCOM compatible and can be controlled by modern astrophotography software such as N.I.N.A.
*Accuracy can reach a maximum of 0.1 degrees after two attempts and after backlash compensation has been correctly set.
Specifications
| Clear aperture |
M92 |
|---|---|
| Connectivity |
USB 3.1 type B |
| Optical thickness | 16 mm |
| Rotation rate |
Approx. 7 degrees/second |
| Steps per degree | 133 steps |
| Payload |
Torque generated by imaging train to rotator must be less than 12 Nm |
| Equipment connections |
M92 x 1 female, M92 x 1 male |
| Weight | 900 g |
| SKU | WA-ROT92 |
Downloads
 Manual and drivers
|
