Astronomy Specialist

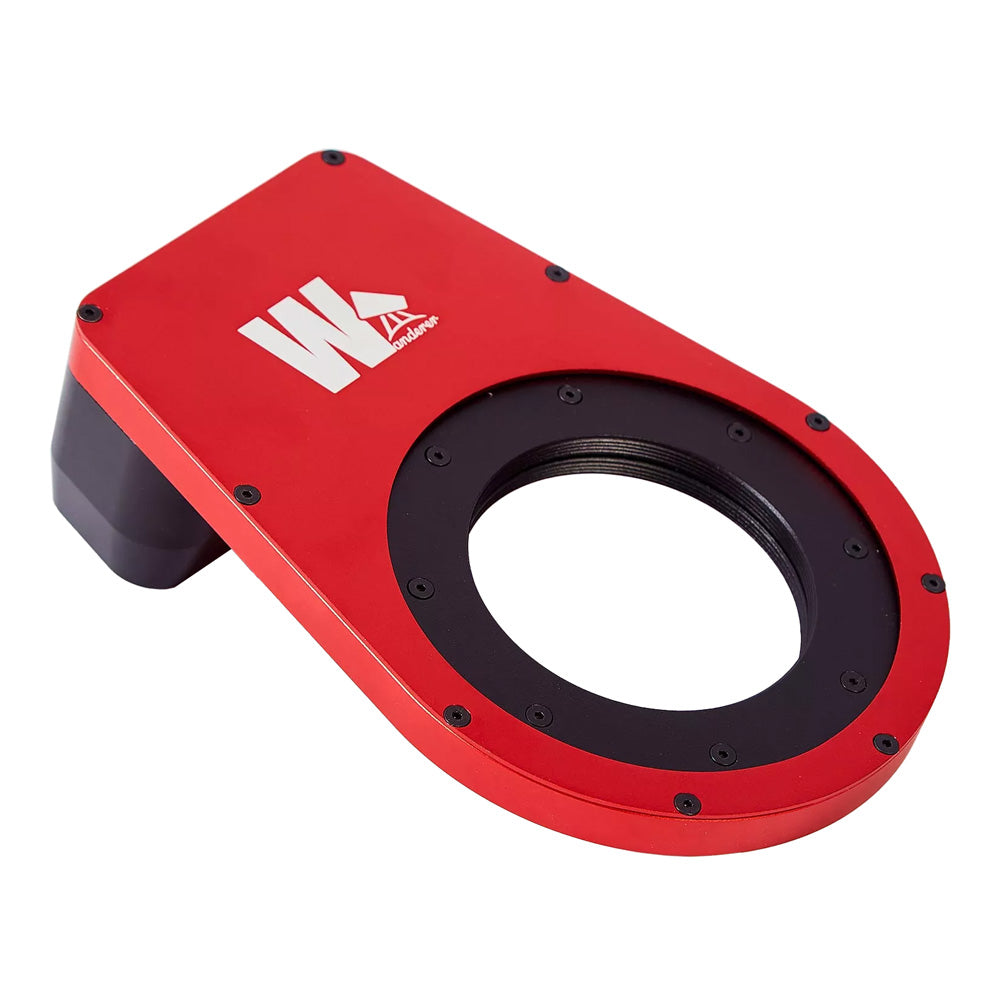

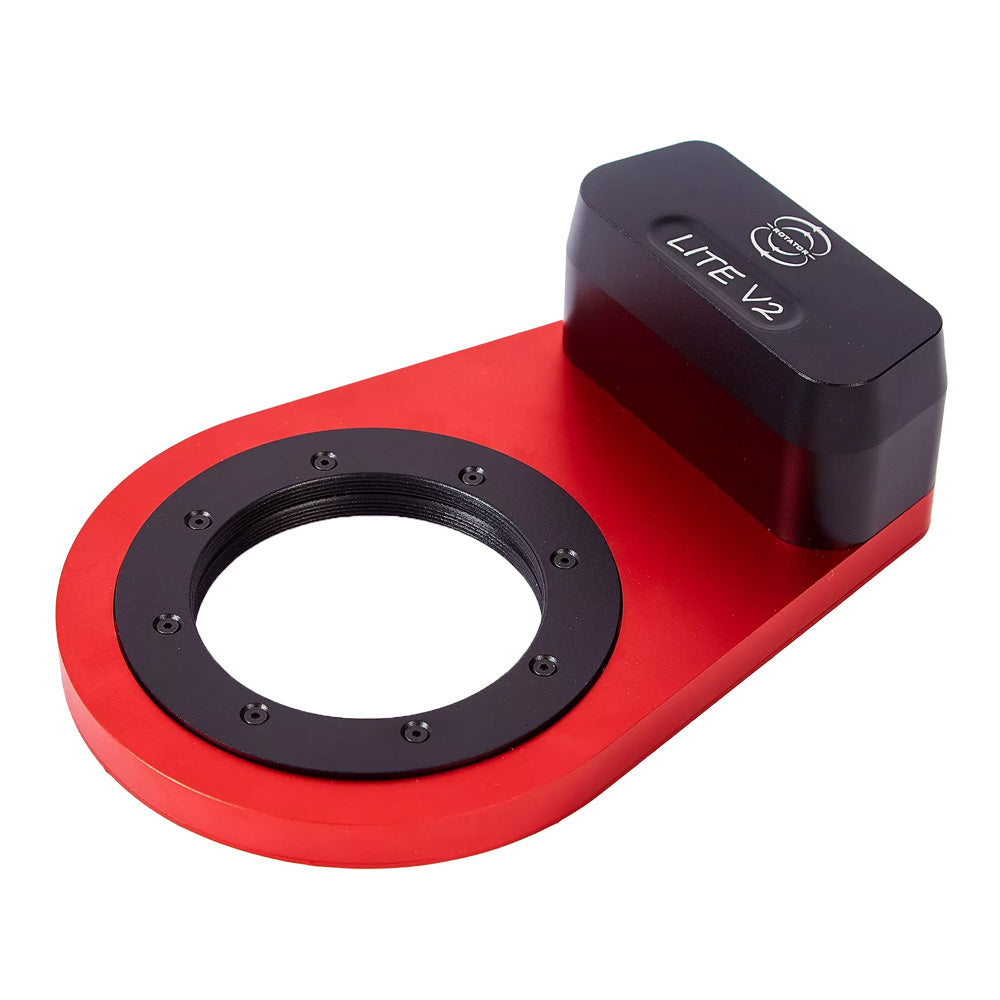

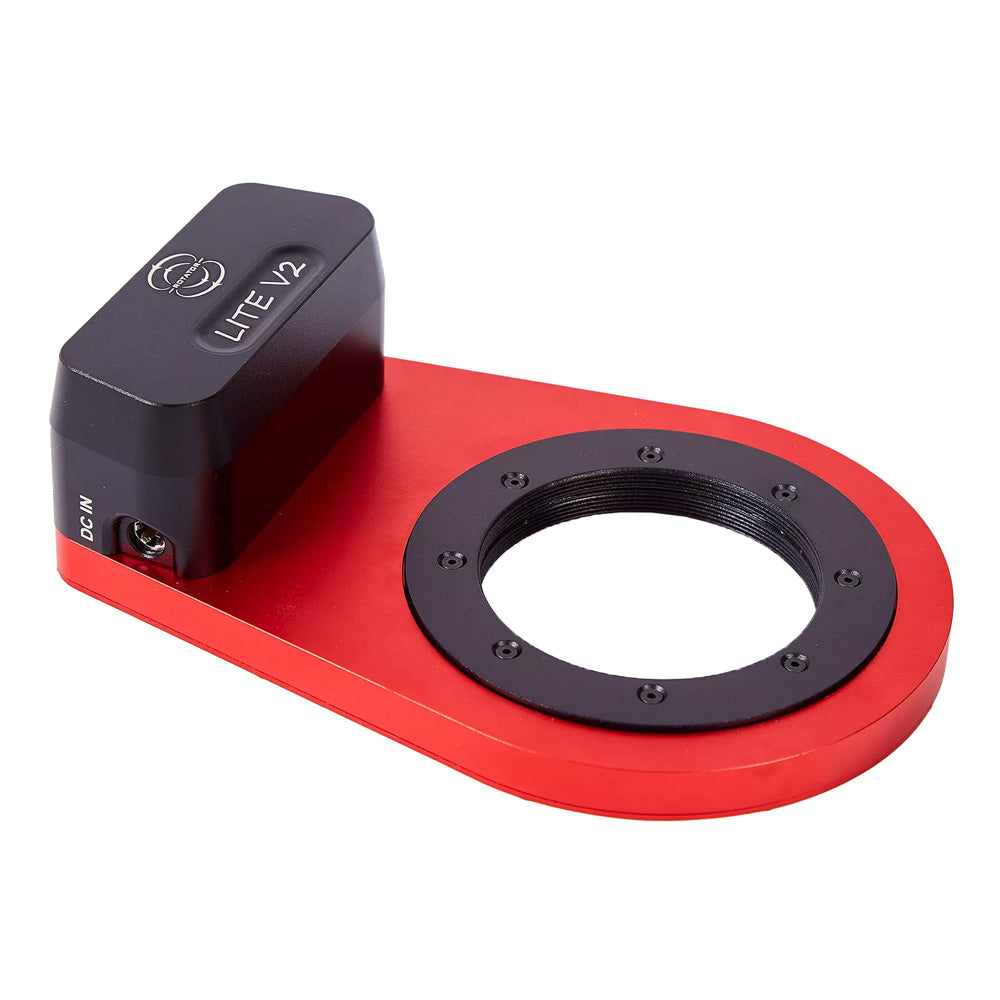

WANDERER ASTRO ROTATOR LITE M68 V2

$634.00 USD
SKU: WA-WR2-M68

Wanderer Astro




The WandererAstro WandererRotator Lite V2 is a lightweight and ultra low-profile M68 motorized rotator. It is capable of high speed and precision, at up to 3.5 degrees/second with better than 0.1 degree accuracy*. At only 12mm thick, the Lite rotator is ideal for setups where backfocus is limited.

The V2 version has a higher-torque motor and a more compact design.





The Lite rotator is capable of holding a payload of up to 5Kg with a centre of gravity 15cm away from the rotator.  WandererAstro's patented magnetic structure design guarantees zero flexure at any altitude. For users of alt-azimuth mounts and Dobsonians, field de-rotation is supported.

The Lite rotator is powered from a 12V 1A DC source and controlled from a USB type C port. The Lite rotator is ASCOM compatible and can be controlled by modern astrophotography software such as N.I.N.A.





*Accuracy can reach a maximum of 0.1 degrees after two attempts and after backlash compensation has been correctly set.



Clear aperture
M68
Connectivity
USB type C
Optical thickness 12 mm when used with male telescope-side adapter, 15 mm with female thread adapter
Rotation rate
Approx. 8 degrees/second
Payload
Torque generated by imaging train to rotator must be less than 5 Nm
Equipment connections
M68 x 1 female on both ends
Weight 550 g
SKU WA-ROT68
