Astronomy Specialist

TOUPTEK IMX290M GUIDE CAMERA [MONO]

$299.00 AUD
SKU: TT-GPCMOS02000KMA

ToupTek

18 FPS

12-bit

5.57 x 3.13 mm

2.9 µm

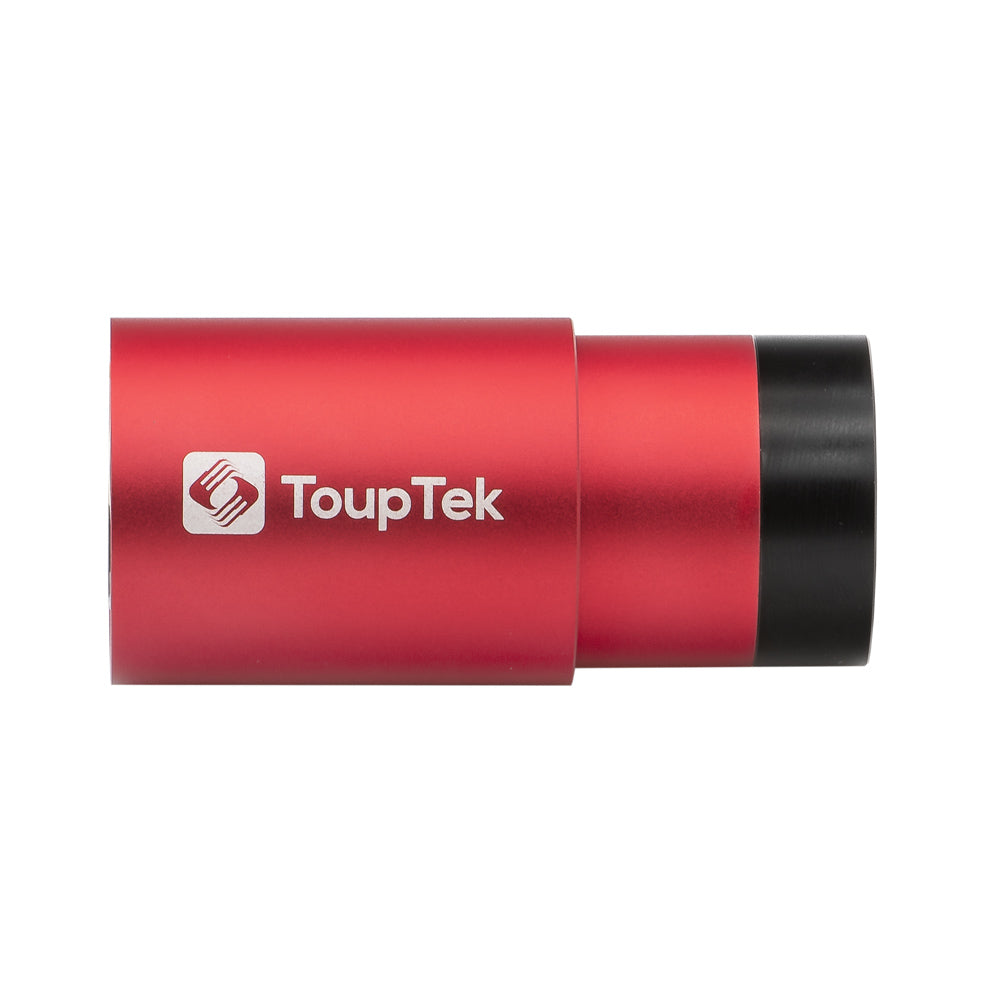

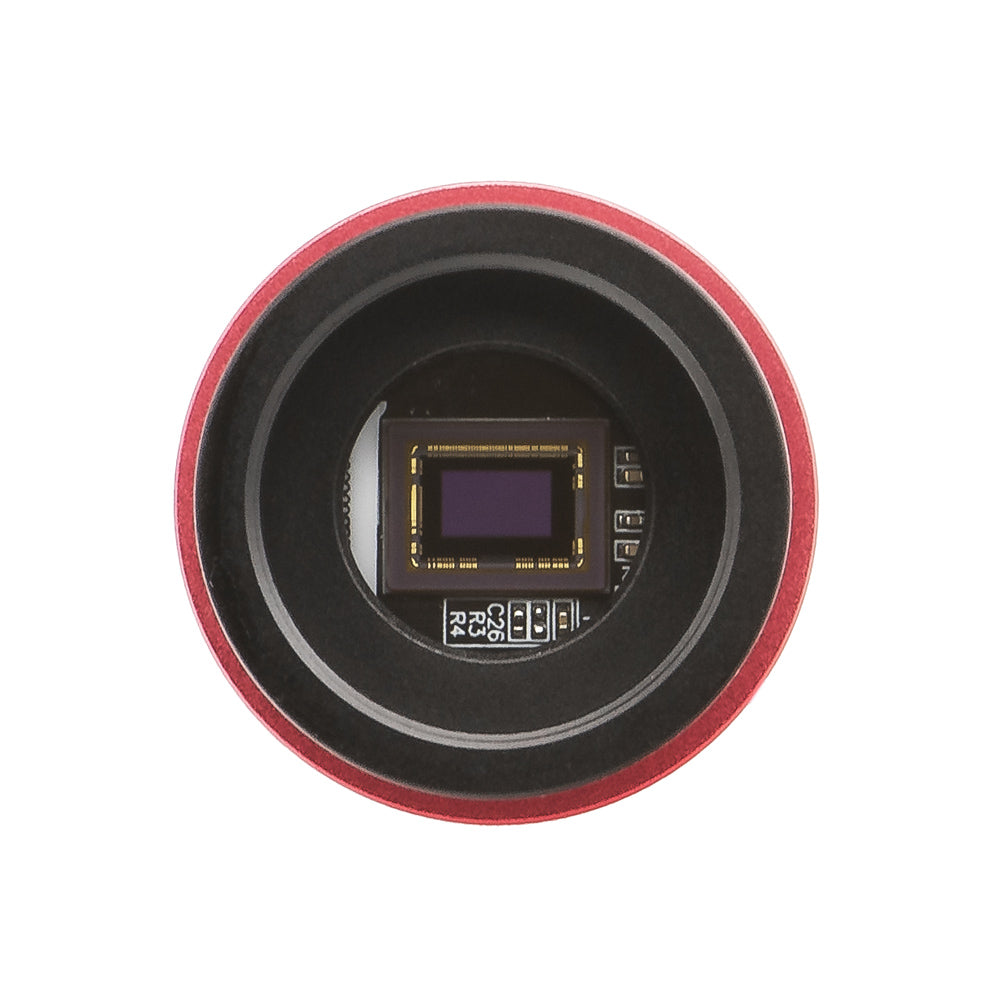

The ToupTek IMX 290M Guide Mono is a 1.25" barrel size guide camera using the Sony IMX290 CMOS sensor. With a quantum efficiency of >81%, read noise as low as 0.53e- and 2.9µm pixels, the IMX290M is an excellent guide camera for both short guide scopes and off-axis guiders.





The IMX290M is equipped with USB 2.0 connectivity as well as a traditional ST-4 autoguiding interface. Its 1.25" barrel design makes it straightforward to use with most off-axis guiders (OAG not included).




Sensor

CMOS Sony IMX290 monochrome

Resolution

2 megapixels 1920 x 1080

Pixel size

2.9 µm

Sensor size

5.57 mm x 3.13 mm (6.39 mm diagonal)

Quantum efficiency

>81%

Exposure range

0.105 ms - 1000 s

Read noise

0.53 e-

Full well capacity

11,200 e-

Bit rate

12 bit

Speed

18 fps

Shutter type

Rolling shutter

ROI

Supported

Compatibility

Windows, Mac, Linux

Protecting window

AR coated

Ports

USB 2.0 + ST-4

Back focus

TBD

Connections

C-mount

Dimensions

Ø 35 mm; ↨ 62 mm

Weight

TBD

Power supply

USB 2.0

SKU

TT-GPCMOS02000KMA







  • Camera body
  • USB 2.0 cable
  • ST-4 cable (2 metres)
  • 1.25" extender
