TOUPTEK GP CMOS 120M GUIDE CAMERA [MONO]

Regular price $169.00AUD
SKU: TT-GPCMOS01200KMB

Touptek

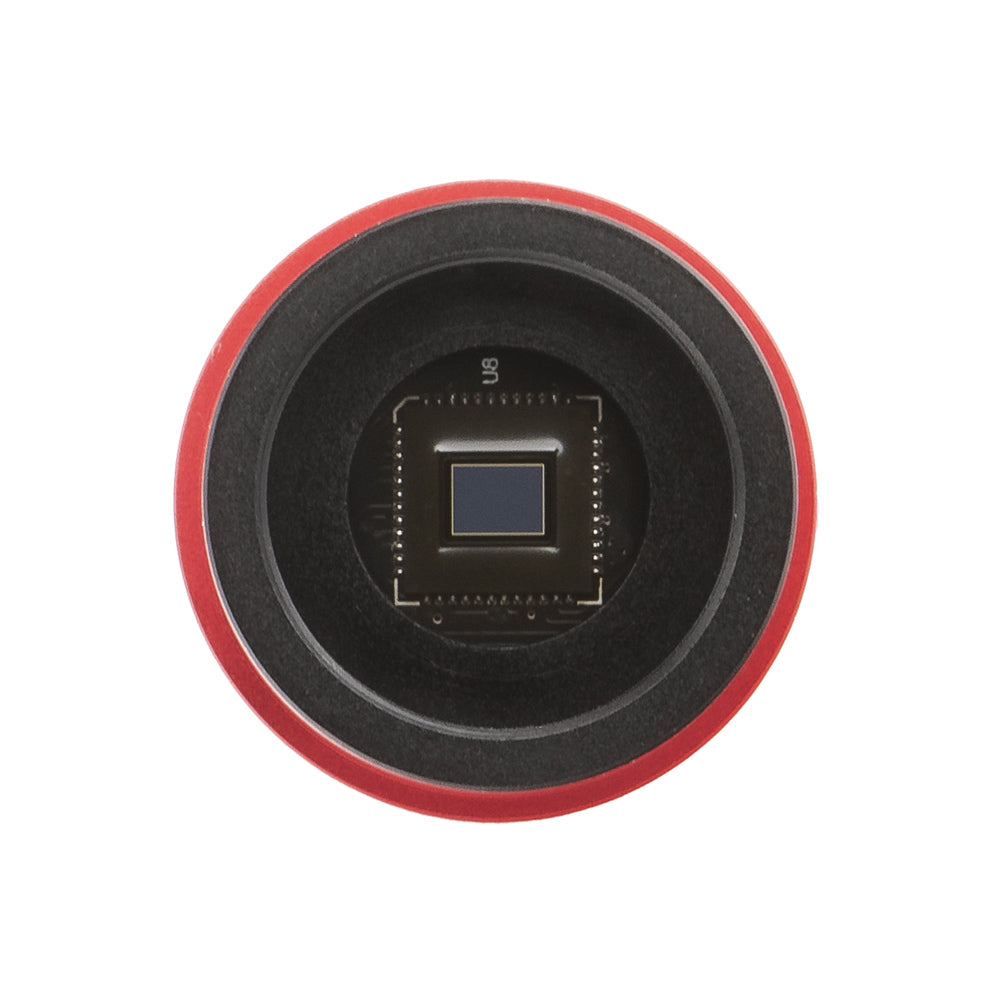

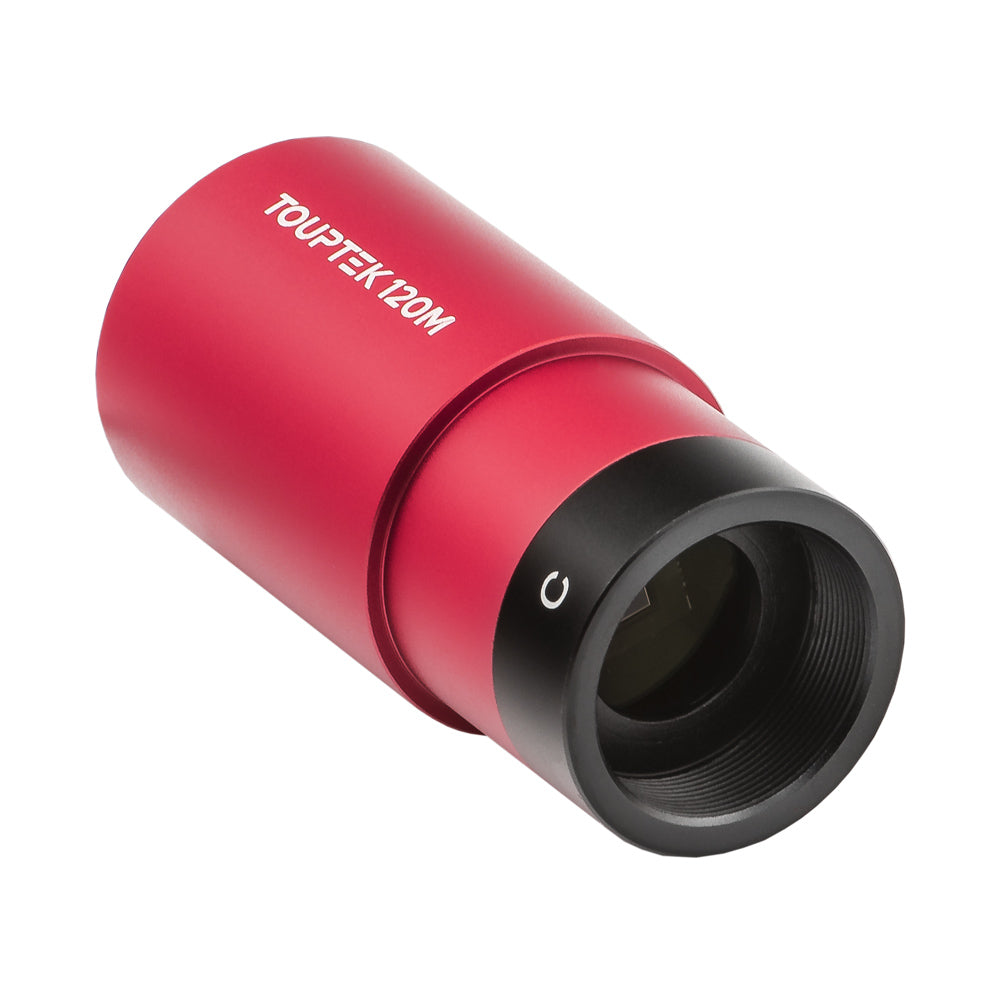

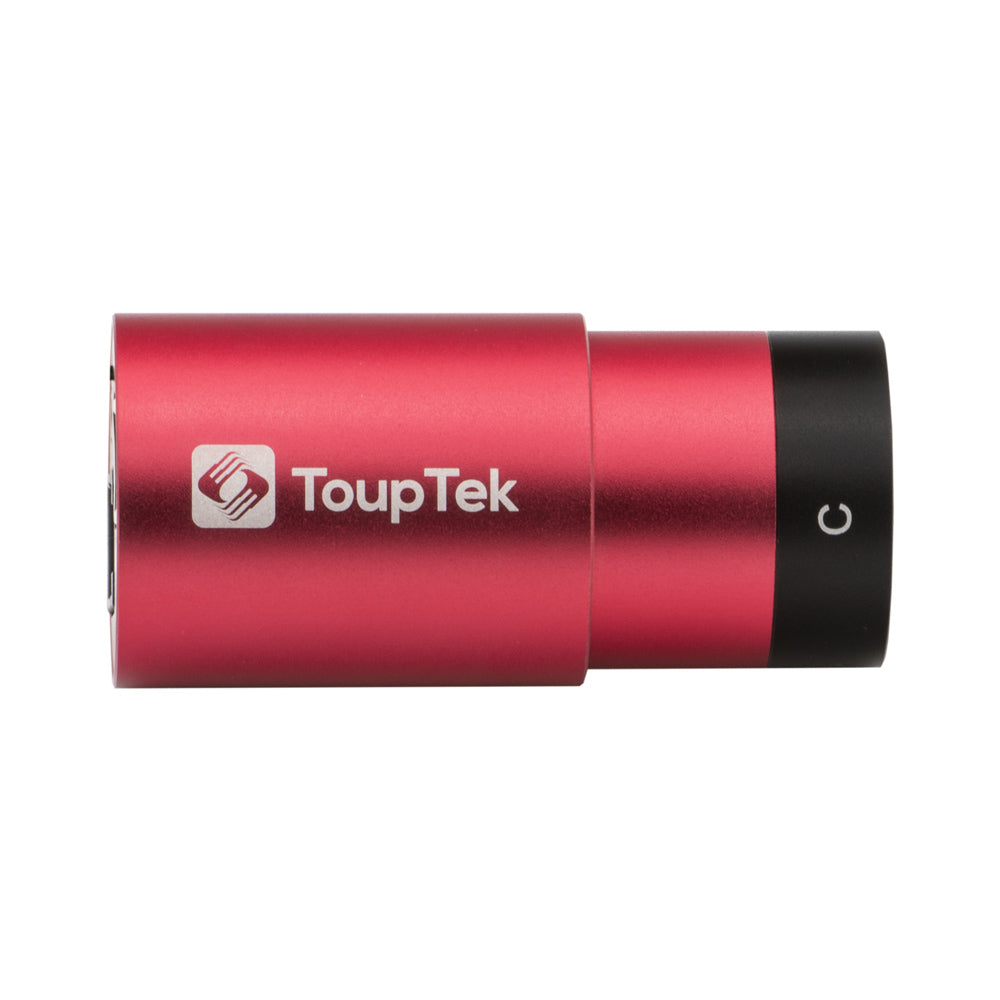

The ToupTek GPCMOS 120M Guide Mono is a 1.25" barrel size planetary and guiding camera using the OnSemi AR0130CS CMOS sensor. With a quantum efficiency of >80%, read noise as low as 4e- and 3.75µm pixels, the GPCMOS 120M is an excellent entry-level guide camera at an attractive price.

Note: The Touptek GPCMOS 120M guide camera is not compatible with ZWO or QHY off-axis guiders.



The GPCMOS 120M is equipped with USB 2.0 connectivity as well as a traditional ST-4 autoguiding interface. It can reach a frame rate of 30FPS at full resolution. Its 1.25" barrel design makes it straightforward to be used with most off-axis guiders, although being a colour sensor it may struggle with slow focal ratio telescopes (OAG not included).

Available in anodized Red.

Specifications

Sensor

CMOS OnSemi AR0130CS monochrome

Resolution

1.2 megapixels 1280 x 960

Pixel size

3.75 µm

Sensor size

4.8 mm x 3.6 mm (6.14 mm diagonal)

Quantum efficiency

>80%

Exposure range

0.135 ms - 1000 s

Read noise

4.0 e-

Full well capacity

18,200 e-

Bit rate

12 bit

Speed

30 fps

Shutter type

Rolling shutter

ROI

Supported

Compatibility

Windows, Mac, Linux

Protecting window

AR coated

Ports

USB 2.0 + ST-4

Back focus

12.5 mm with CS adapter, 17.5 mm with C adapter

Connections

C/CS-mount, 1.25" barrel

Dimensions

Ø 35 mm; ↨ 62 mm

Weight

TBD

Power supply

USB 2.0

SKU

TT-GPCMOS01200KPF





Items included





  • Camera body
  • USB 2.0 cable
  • ST-4 cable (2 metres)
  • 1.25" extender

Downloads


 ToupTek software and drivers

User manual (coming soon)
