TOUPTEK GPM CMOS 662M GUIDE CAMERA [MONO]

Name: TOUPTEK GPM CMOS 662M GUIDE CAMERA [MONO]
Brand: Testar Australia
SKU: TT-GPM662M
Price: 229.00 AUD
Availability: InStock

$229^00AUD $289⁰⁰

SKU: TT-GPM662M

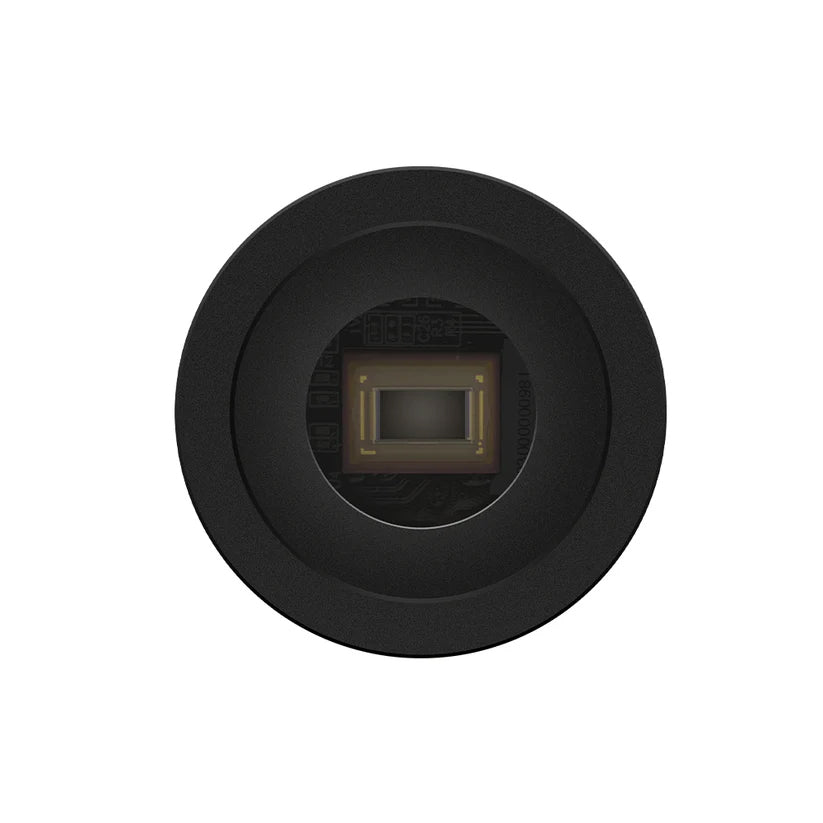

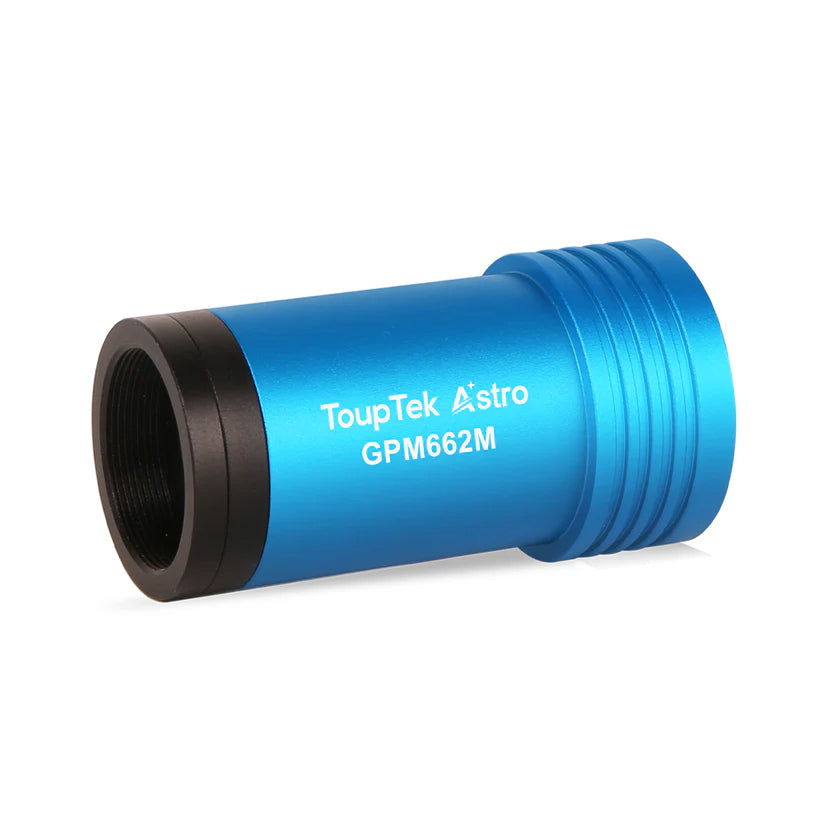

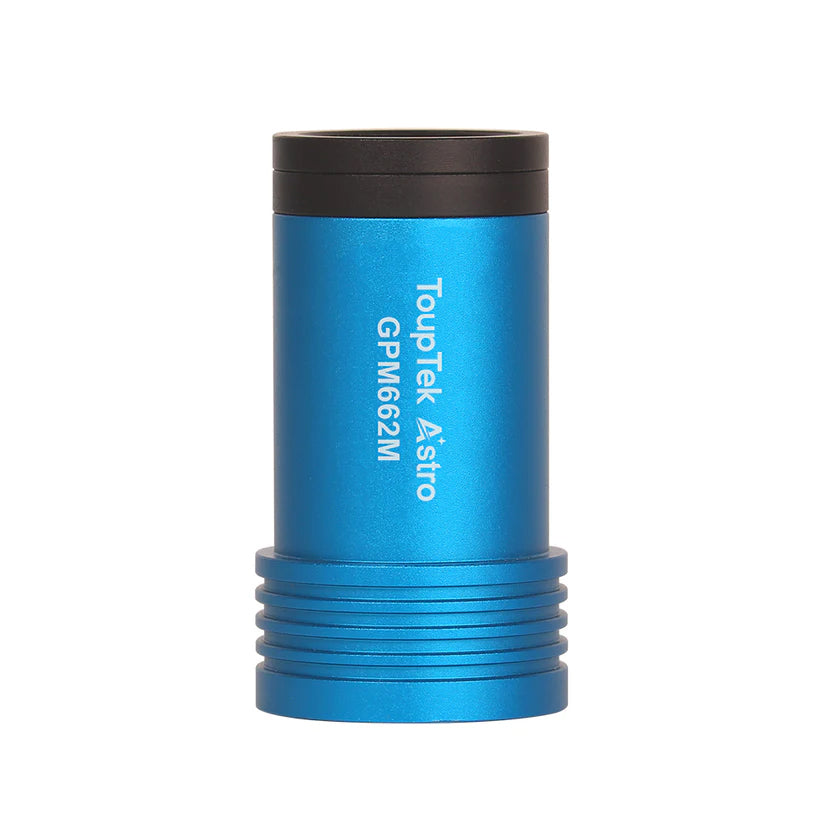

The ToupTek GPM 662M Guide Mono is a 1.25" barrel size planetary and guiding camera using the Sony IMX662 Monochrome CMOS sensor.

With a quantum efficiency of >91%, read noise as low as 0.4e- and 2.9µm pixels, the IMX662 is an excellent guide camera at an attractive price.

The GPM662M is equipped with USB 2.0 Type-C connectivity as well as a traditional ST-4 autoguiding interface.

It can reach a frame rate of 17.8FPS at full resolution. Its 1.25" barrel design makes it straightforward to be used with most off-axis guiders.

The GPM 662M has a digital binning from 1x1 to 8x8 in both stacking and averaging modes.

Specifications

Sensor	CMOS Sony IMX662 mono
Resolution	1920 x 1080 pixels
Pixel size	2.9 µm
Sensor size	5.57 mm x 3.31 mm (6.45mm diagonal)
Quantum efficiency	>91%
Exposure range	0.1 ms - 1000 s
Read noise	0.4 e- in HCG Mode
Full well capacity	33,800 e- in LCG Mode
Bit rate	12 bit
Speed	17.8 fps
Shutter type	Rolling shutter
ROI	Supported
Compatibility	Windows, Mac, Linux
Protecting window	AR coated
Ports	USB 2.0 Type-C + ST-4
Back focus	12.5 mm with CS adapter, 17.5 mm with C adapter
Connections	C/CS-mount, 1.25" barrel
Dimensions	Ø 36 mm; ↨ 66 mm
Weight	TBD
Power supply	USB 2.0 Type-C
SKU	TT-GPM174M
