TOUPTEK AFW ELECTRONIC FILTER WHEEL 7 x 36mm
Regular price
$449.00AUD
Unit price
/
Unavailable
SKU:
TT-FilterWheel7x36
ToupTek
TOUPTEK AFW ELECTRONIC FILTER WHEEL 7 x 36mm is backordered and will ship as soon as it is back in stock.

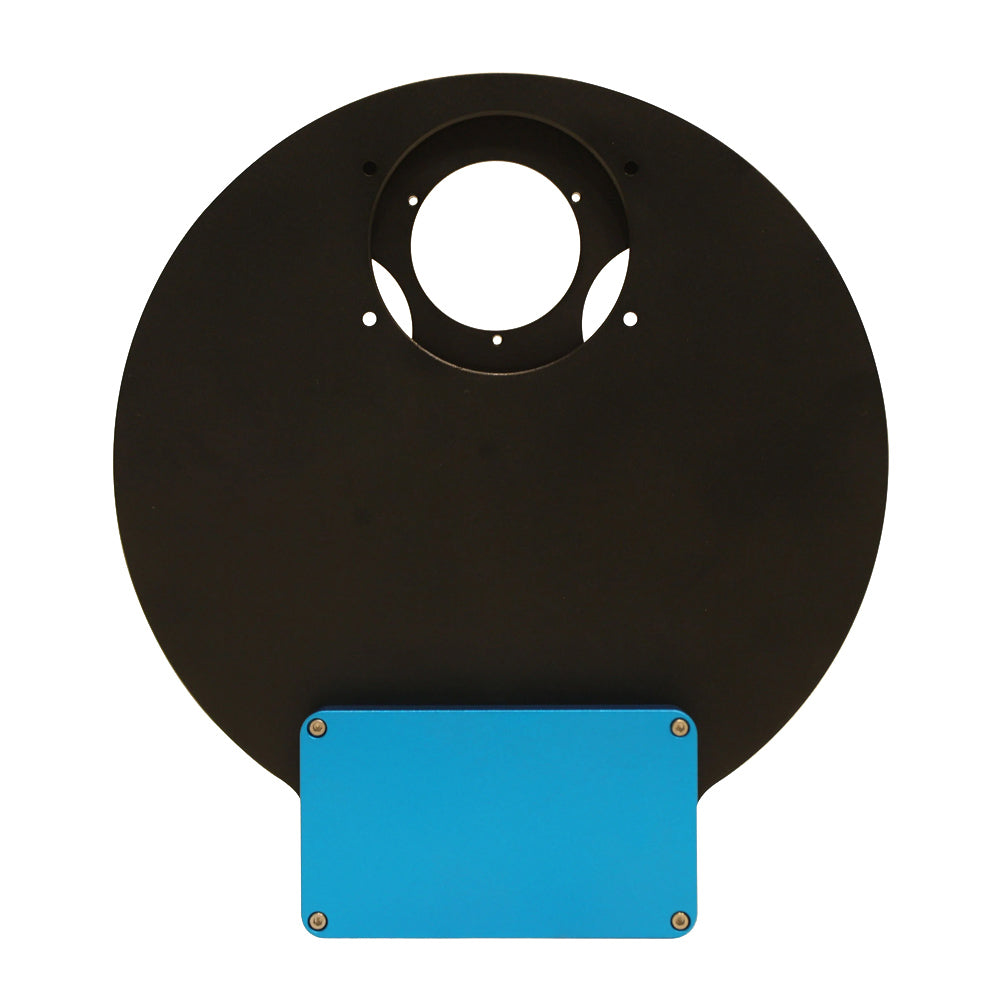

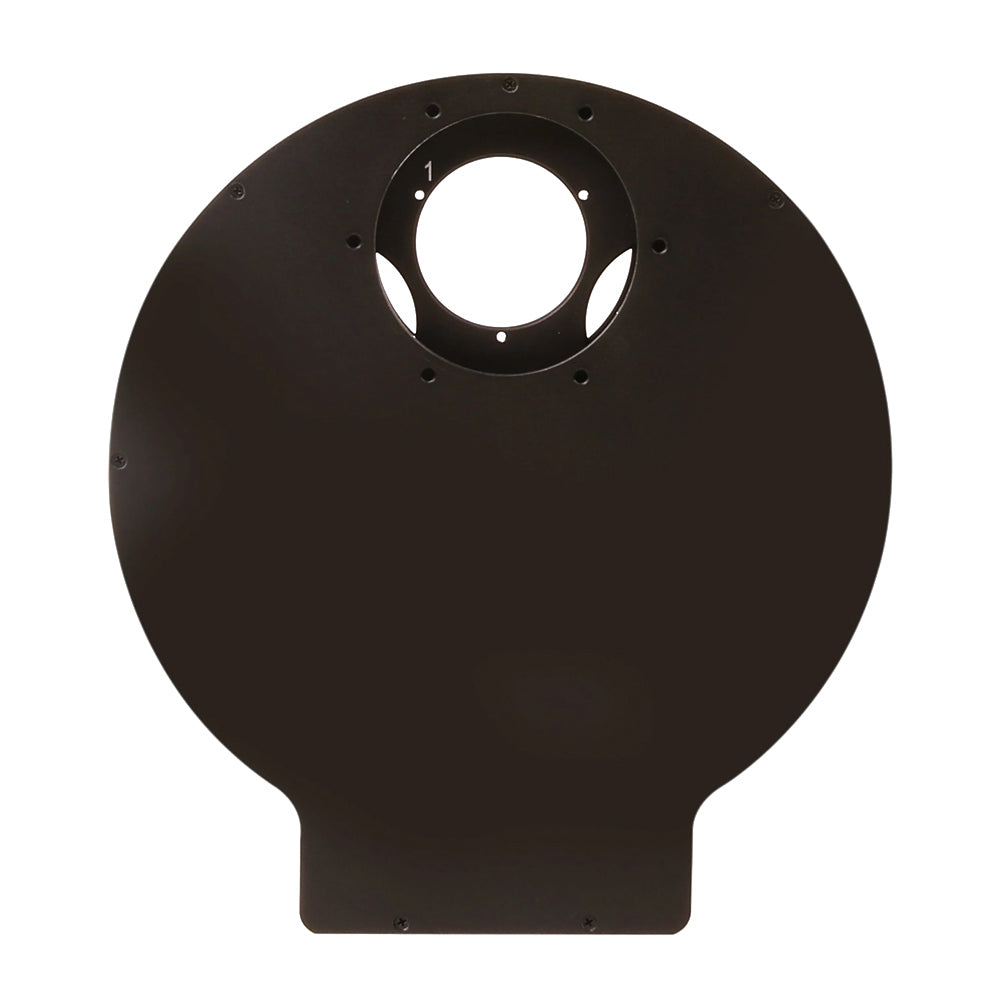

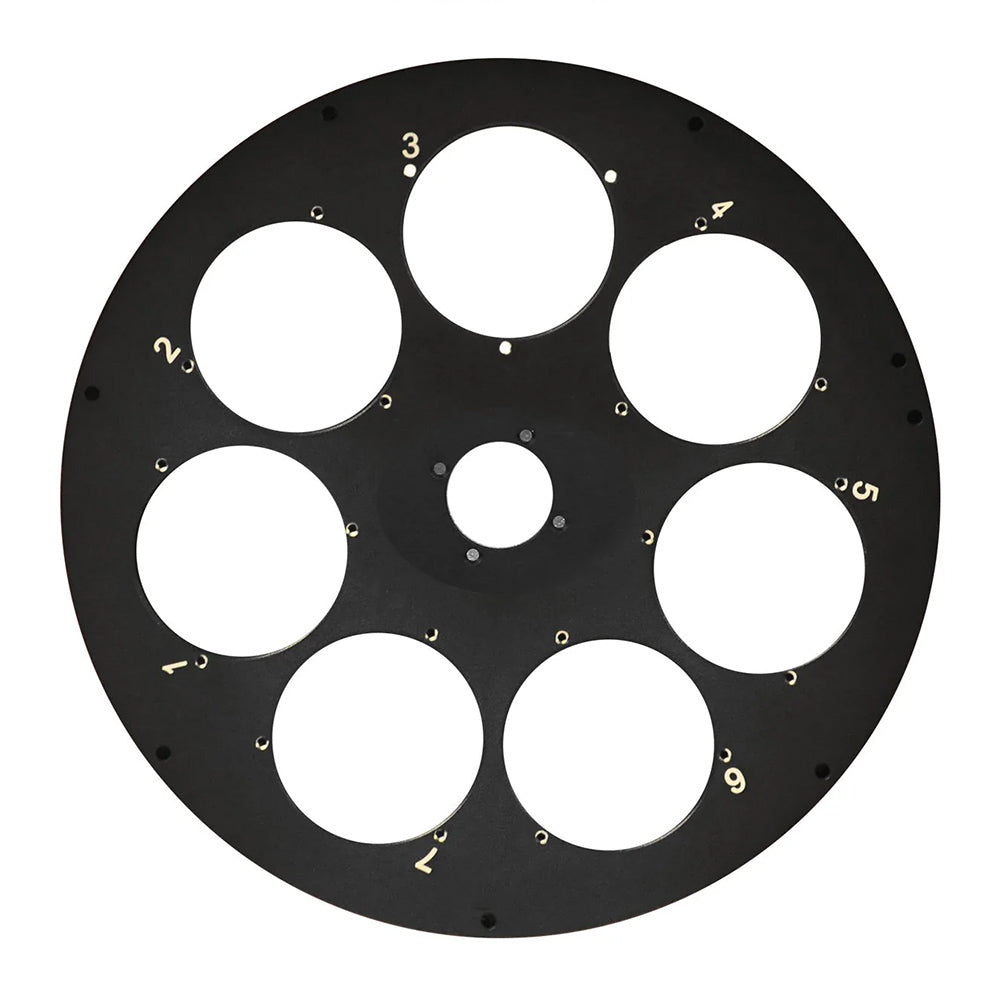

The ToupTek AFW is a motorized filter wheel for 7 x 36mm unmounted filters.
The AFW has M54 x 0.75 female threads on either side to minimize vignetting with large sensors. The main body of the filter wheel is CNC machined from a single piece of aircraft aluminium, sandblasted and anodized for a high quality finish. With a thickness of 20mm, the AFW is easy to fit in most common imaging trains.
The AFW is powered and controlled via a single USB 2.0 port. This can be connected either to your imaging computer or through the USB 2.0 hub found on ToupTek's ATR3 series cooled CMOS cameras.
Specifications
| Compatible filters | 8 x 1.25" & 31mm, 7 x 36mm or 5 x 2" & 50mm round (depending on model) |
|---|---|
| Ports |
USB 2.0 |
| Power supply | USB 2.0 |
| Optical thickness | 20 mm |
| Camera connection |
M54 x 0.75 female |
| Telescope connection | M54 x 0.75 female |
| Weight | 510g |
Items Included
- Filter Wheel body
- USB 2.0 cable 2m
- Screws and screwdriver
- M42 male - M54 male 1mm adapter
- M48 male - M42 female adapter
- M54 male - M48 female 16.5mm adapter
