SKU: TT-FilterWheel8x1.25

TOUPTEK AFW ELECTRONIC FILTER WHEEL 8 X 1.25"

Name: TOUPTEK AFW ELECTRONIC FILTER WHEEL 8 X 1.25"
Brand: Testar Australia
SKU: TT-FilterWheel8x1.25
Price: 449.00 AUD
Availability: InStock

$449.00AUD

ToupTek

TOUPTEK AFW ELECTRONIC FILTER WHEEL 8 X 1.25" is backordered and will ship as soon as it is back in stock.

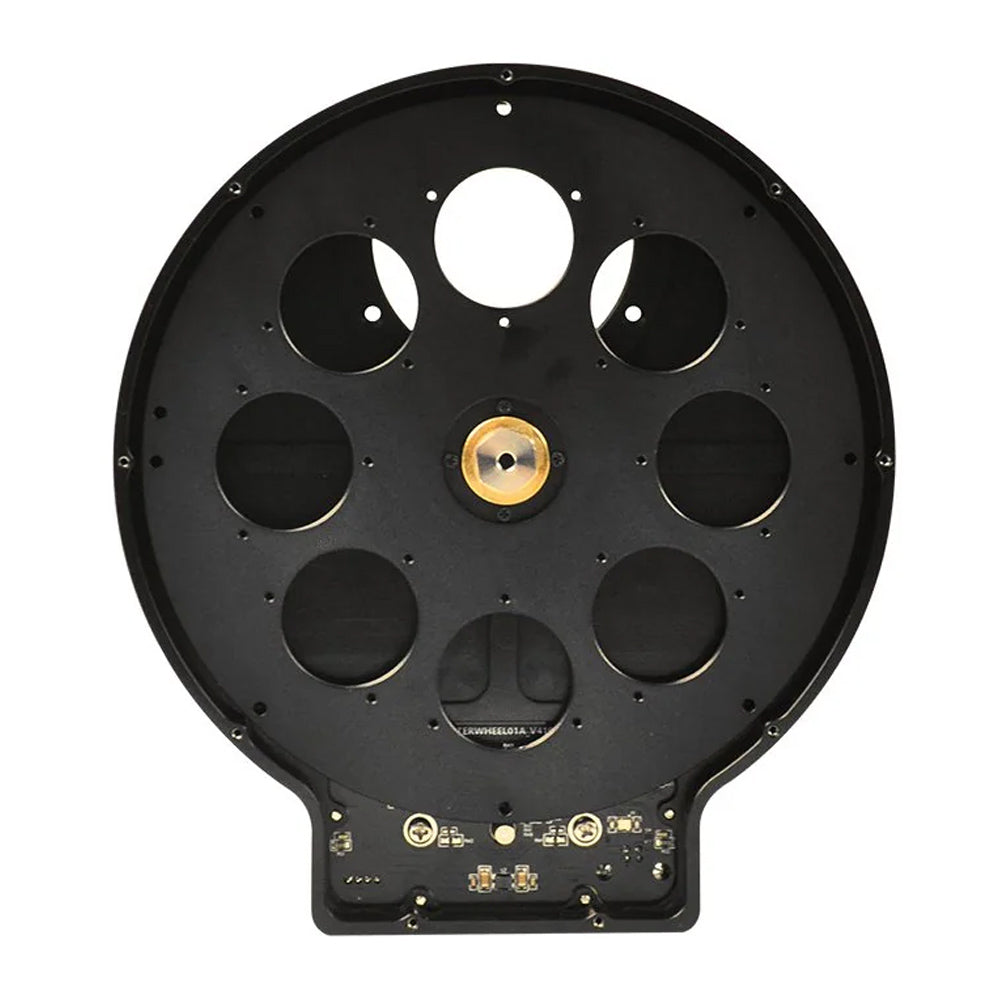

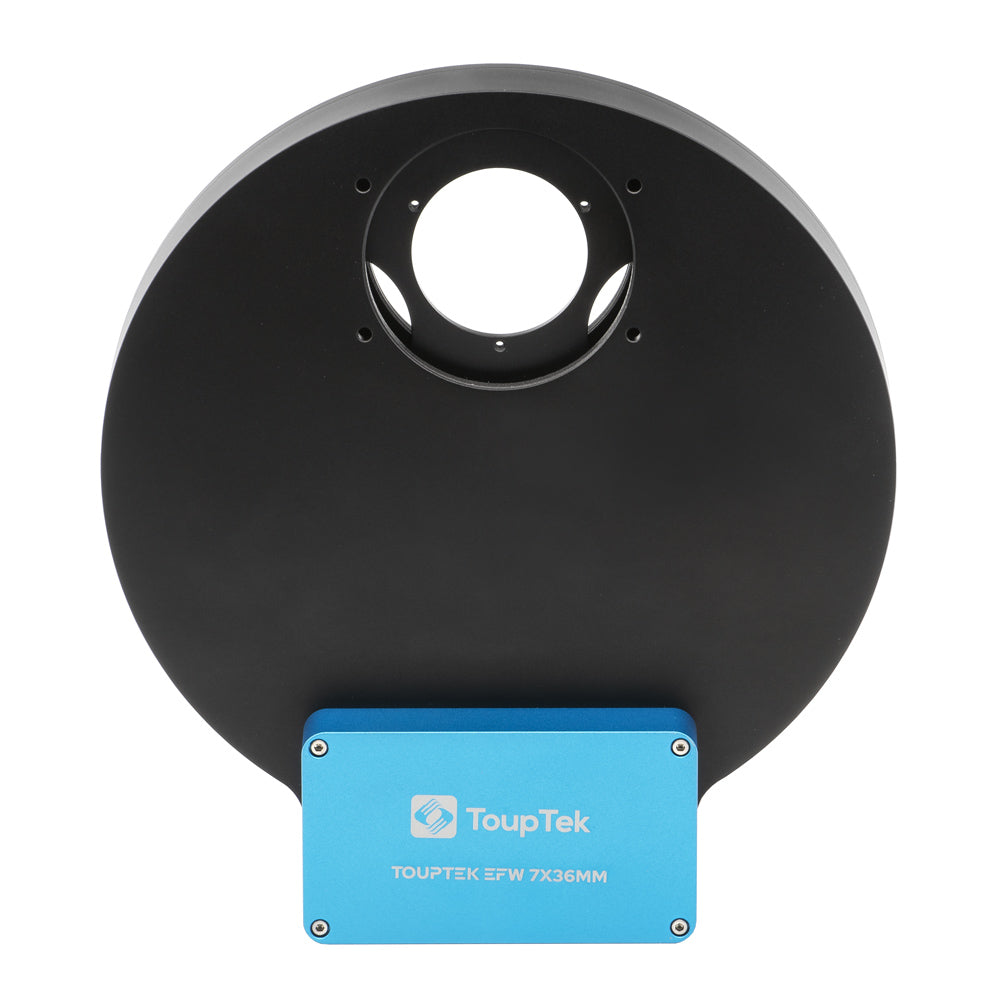

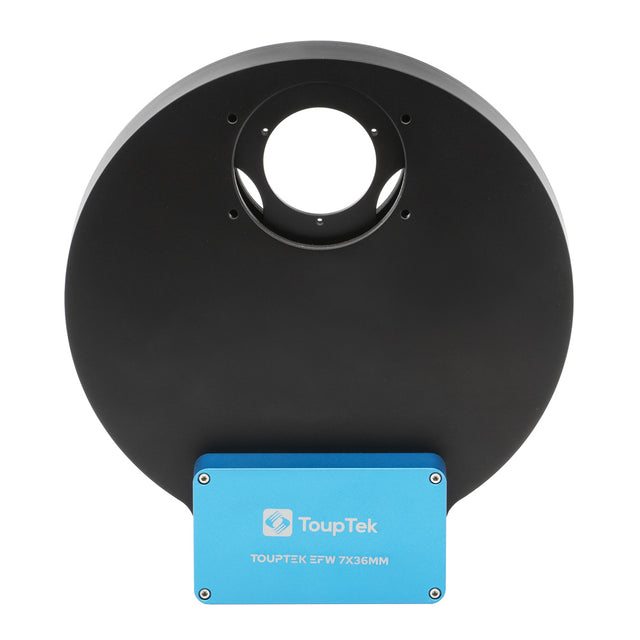

The ToupTek AFW is a motorized filter wheel for 8 x 1.25" & 31mm filters.

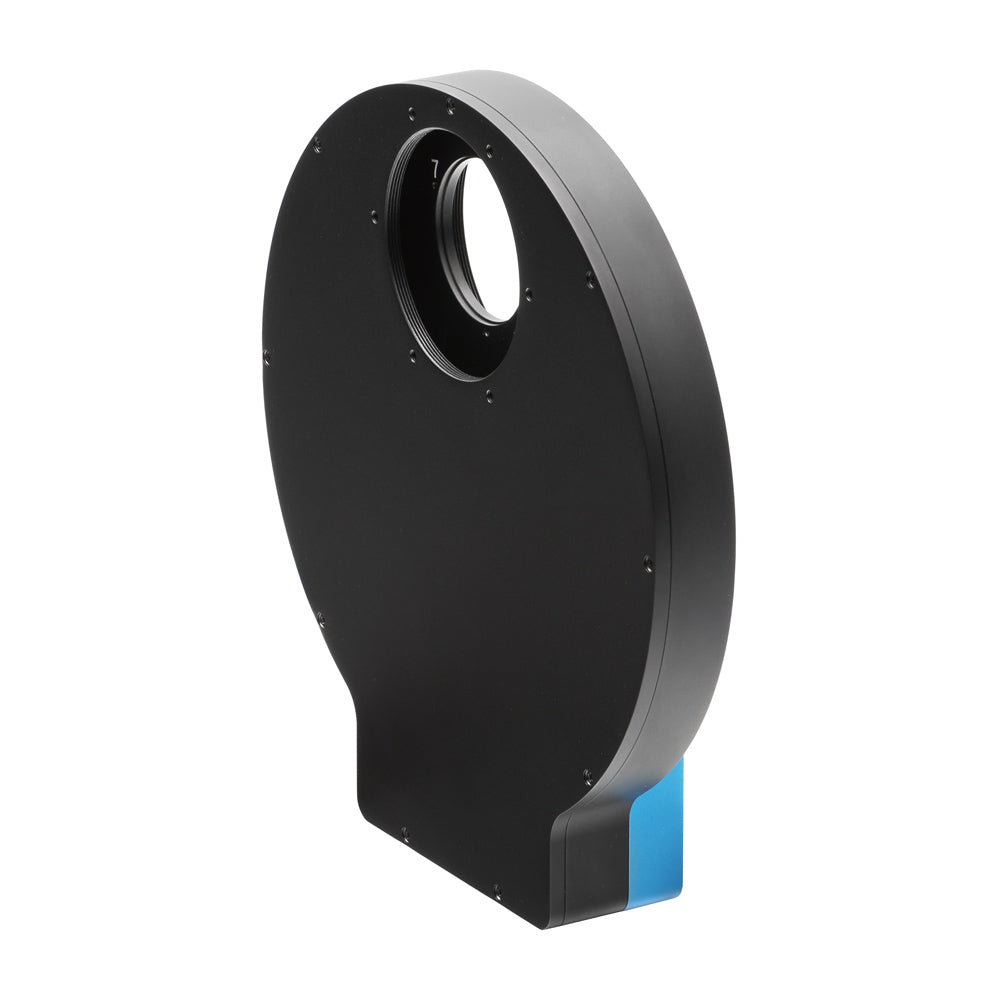

The AFW has M54 x 0.75 female threads on either side to minimize vignetting with large sensors. The main body of the filter wheel is CNC machined from a single piece of aircraft aluminium, sandblasted and anodized for a high quality finish. With a thickness of 20mm, the AFW is easy to fit in most common imaging trains.

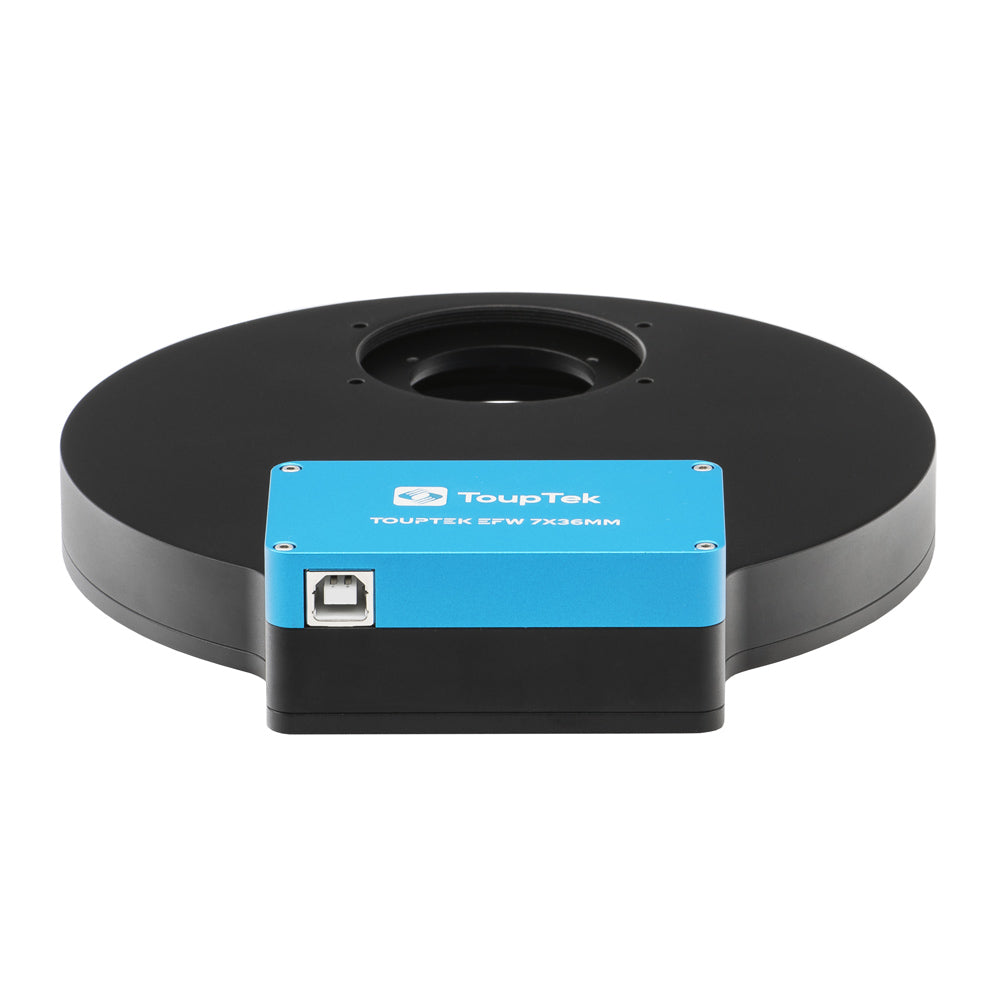

The AFW is powered and controlled via a single USB 2.0 port. This can be connected either to your imaging computer or through the USB 2.0 hub found on ToupTek's ATR3 series cooled CMOS cameras.

Specifications

Compatible filters	8 x 1.25" & 31mm, 7 x 36mm or 5 x 2" & 50mm round (depending on model)
Ports	USB 2.0
Power supply	USB 2.0
Optical thickness	20 mm
Camera connection	M54 x 0.75 female
Telescope connection	M54 x 0.75 female
Weight	510g
