TESTAR PIER ADAPTER FLANGE FOR ZWO & WARPASTRON MOUNTS

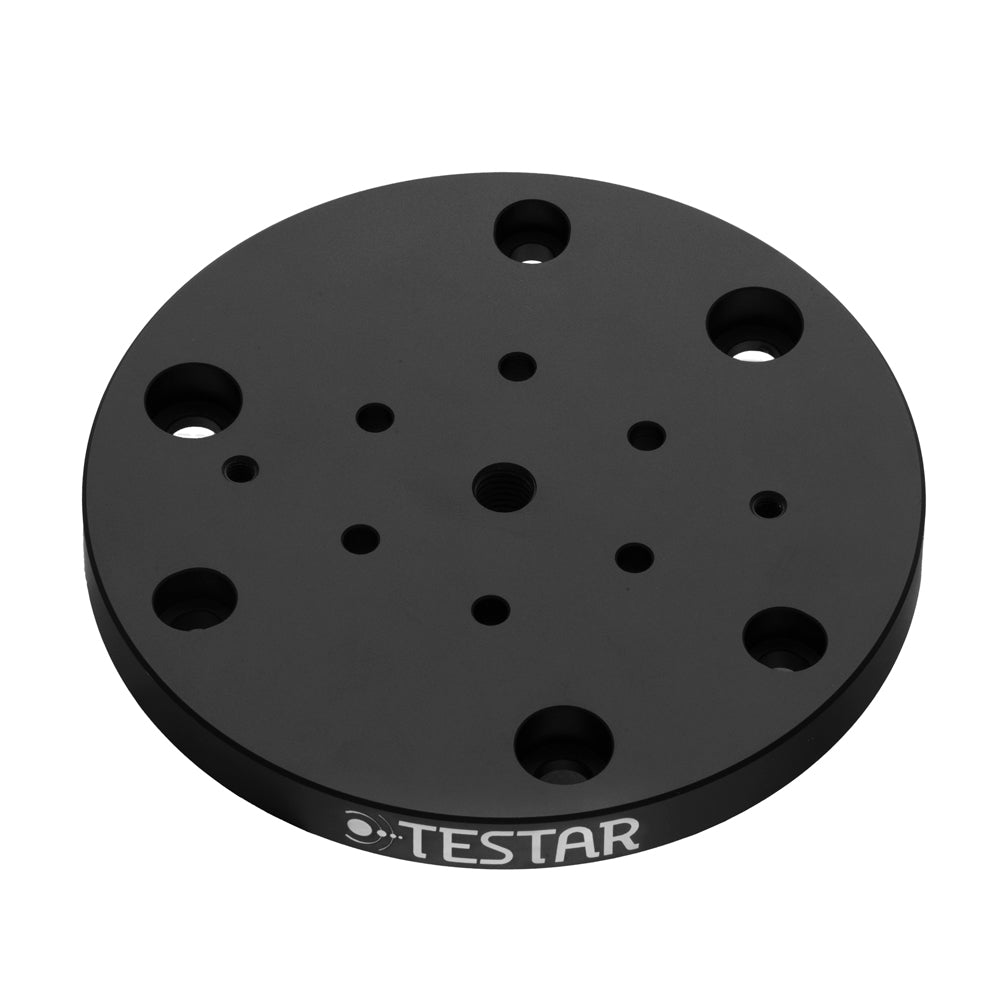

Engineered in-house by us, this pier flange adapter is made of CNC-machined anodized 6061-T6 aluminium and is designed to accommodate:

• ZWO AM3N and AM5N

• ZWO Pier Extensions
• Warp Astron WD17, WD 20 and WD 20P

This adapter flange  can be in stalled on:

• Testar Pier 2000
• Geoptik Hercules tripod
• 10Micron Aries Tripod
• iOptron Tri-Pier tripod.

The flange offer several connection options To bolt the mount directly to the flange:

1. Use 3 our of the 6 x M6 holes to connect the ZWO or WarpAstron mount to the flange.
2. Then use the M8 or M10 bolts to connect the flange and the mount to the Pier 2000, Hercules tripod, 10Micron Aries tripod or iOptron Tri-Pier.

If you are plan to use the ZWO Pier extension

1. Firstly connect the flange to the Pier2000 or compatible tripod
2. Remove the silver flange from the bottom of the ZWO pier extension.
3. Connect the pier extension to the flange using the central M12 bolt and the 2 longer M6 bolts.

Specifications

• CNC-machined and hard-anodized 6061-T6 aluminium

• Specifically designed for the ZWO AM5N, AM3N; Warp Astron
• Fits on the Testar Pier 2000

• Multiple mounting angles

Included Items

• Testar Pier Adapter Flange for AM5N
• 1 x M12 bolt to connect the ZWO AM5N Pier extension to the pier extension.
• 1 x M12 washer for the bolt
• 2 x M6 x 30mm bolts to connect the ZWO Pier extension to the flange
• 2 x M6 washer for the bolts
• 3 x M6 bolt to connect ZWO and WarpAstron mounts to the flange
• 3 x M8 bolts to connect the flange on the Pier 2000, Hercules tripod, 10Micron Aries
• M10 bolts to connect the flange to the iOptron tri-pier are not included
