Astronomy Specialist

TAKAHASHI TPL EYEPIECE 25mm

$399.00
SKU: TK-TKA00623

Takahashi

TPL

0.14 kg

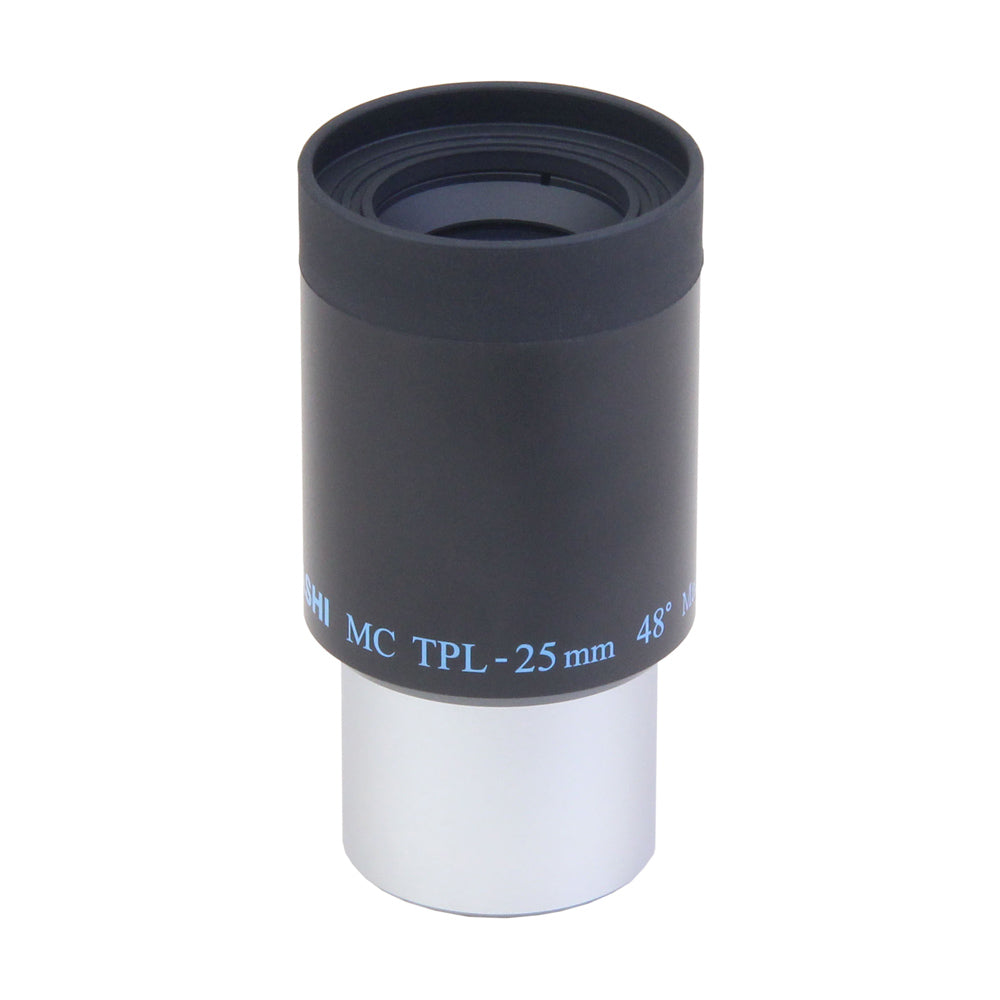

The Takahashi TPL 25mm eyepiece provides a 48 degree apparent field of view and extremely sharp on-axis performance.

Takahashi's TPL series are the definitive standard eyepieces, made in Japan and designed for use with high performance telescope systems where optical clarity is paramount. Stars are very sharp up to half the field of view, gradually swelling to the edge of the field. When combined with a short Barlow, the field is flat to the edge. Chromatic aberration at the centre is half that of the previous Abbe eyepieces and two-thirds that of the LE eyepeices.





Eye relief is about 70% of the focal length of the eyepiece. All TPL eyepieces are parfocal with the previous Takahashi 1.25" eyepiece series. The rubber eyecaps can be folded back for glasses wearers.





Comparison between TPL, Abbe and LE series eyepieces. Note: this is a geometric spot diagram when attached to an aberration correction objective lens, so it differs from the actual image.



Specifications



Focal length
25 mm
Barrel
1.25"
Lens elements / groups
4 / 2
Apparent field of view 48°
Eye relief 18 mm
Height
71 mm
Diameter 39 mm
Weight 140 g
SKU TK-TKA00623
TAKAHASHI TPL EYEPIECE 25mm.

TAKAHASHI TPL EYEPIECE 25mm

$399.00

Optical design

TPL

Image circle

Focal ratio

Aperture

Focal length

25 mm

Optical thickness

Threads

1.25" Barrel

Cooled

Colour or Mono

Pixel size

Sensor dimensions

Resolution

Sensor diagonal

Quantum efficiency

Read noise

Fullwell capacity

Bit depth

FPS

Camera backfocus

Filter size

Filter size

Bandpass (FWHM)

Bandpass (FWHM)

Glass thickness

Mount type

Payload capacity

Latitude range

Dovetail saddle

Slew speed

Encoders

Periodic error correction

Counterweight shaft

Azimuth adjustment range

Internal diameter

Illuminated diameter

Compatible telescope external diameter

Weight

0.14 kg

Length

Width

Height

View product
