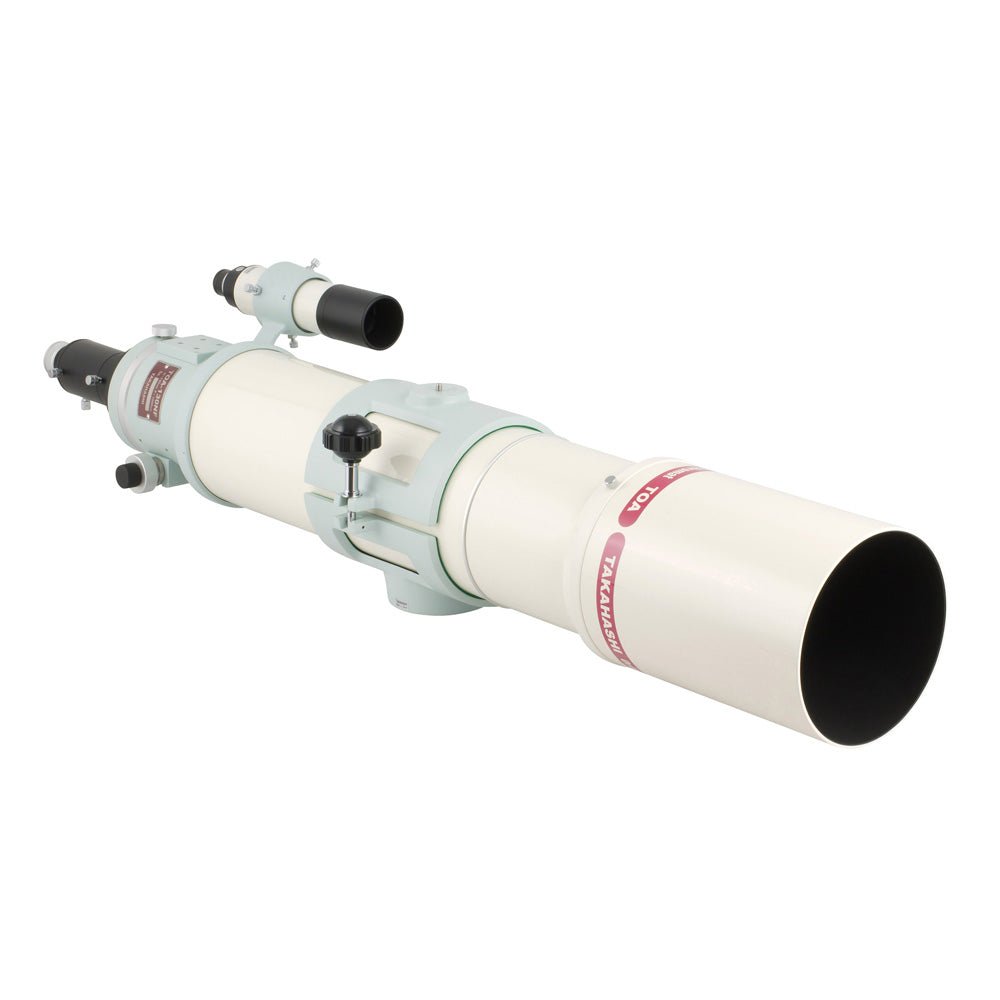

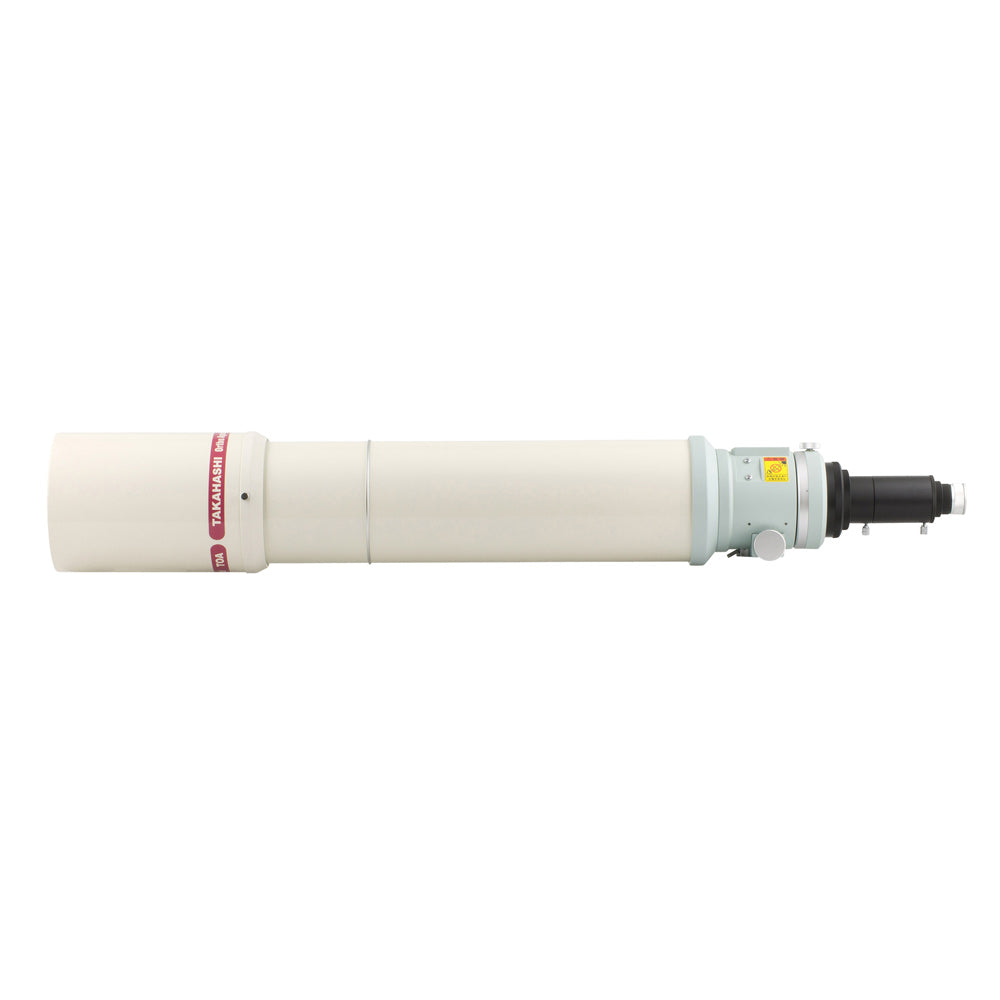

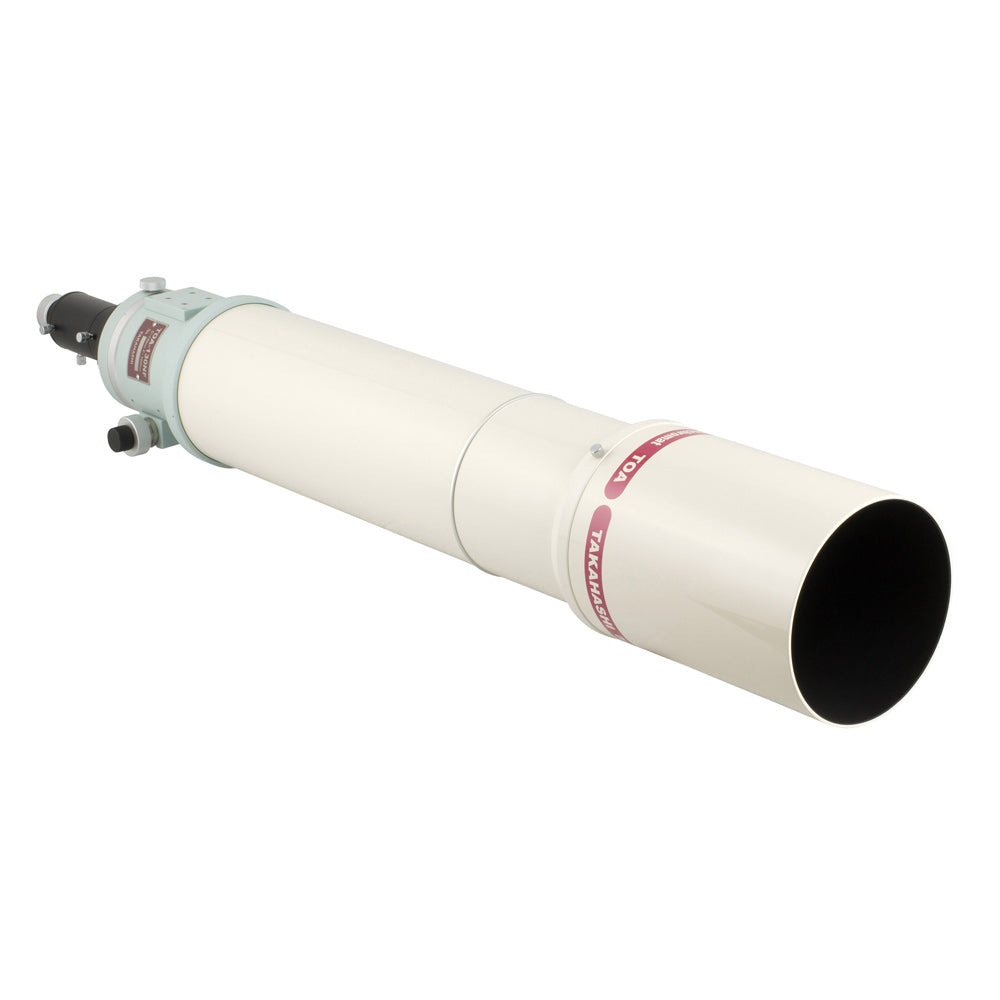

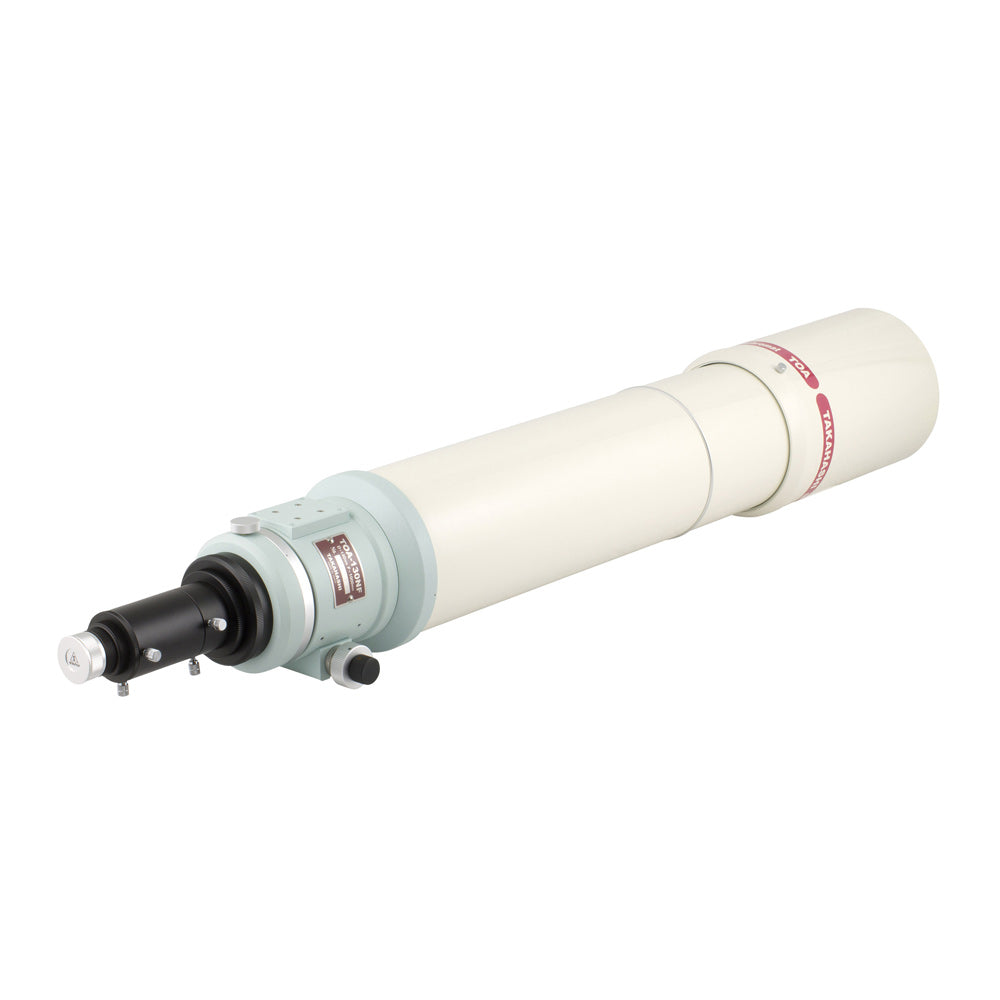

TAKAHASHI TOA-130NFB ORTHO-APO TRIPLET

$13,999.00
SKU: TK-TOK13210

Takahashi

Ortho-Apochromatic triplet

12.3 kg


Style



The Takahashi TOA-130NFB is an Ortho-Apochromatic triplet refractor with the highest possible correction of any refractor on the market. The unique optical configuration based on a highly air-spaced triplet completely eliminates spherical aberration while having the best chromatic correction in the Takahashi range. With two S-FPL53 ED elements, the air-spaced triplet lens cell has a Strehl ratio of 99.8% at the optimal wavelengths of human vision.

The TOA-130NFB is equipped with an oversized 4" rack and pinion focuser with a precise 1:7 microfocuser, CAA camera angle adjuster for photographic framing, FQR-1 base for 7 x 50 finderscope (finder not included) and a retractable dew shield.

The TOA-130 has a native focal length of 1000mm and a focal ratio of f/7.7, making it the ideal instrument for capturing a wide range of deep sky objects such as planetary nebulae and galaxies. Due to its extraordinary correction, the TOA-130 also excels at high resolution planetary imaging.

Typical apochromatic refractors are corrected for chromatic aberration at the expense of increasing spherical aberration at certain wavelengths. The TOA's unique design eliminates this problem, with less than 0.01mm focal shift across the visible spectrum - 1/100th less aberration than typical apochromatic designs!

A selection of three different field correctors are available to suit different applications (sold separately). With the optional TOA-35FL field flattener, the telescope is transformed into a full-frame capable with a large 40mm image circle. For even larger sensors, the TOA-645 field flattener provides a corrected image circle of 60mm, making it suitable for use with medium-format sensors.

In addition, a 1.5x focal extender is available, also corrected for full-frame sensors with a 44mm image circle.

For serious imaging, the Prima Luce Lab Esatto 3" robotic microfocuser is compatible with the additional PL3600245 adapterNOTE: Use of the optional focal reducers will likely require a custom adapter for the Esatto. Please contact us for more information.

Note: The OTA ONLY variant does not include tube rings or a dovetail bar. For the TOA-130NFB, you can use the PrimaLuceLab 155mm PLUS tube rings in combination with the PrimaLuceLab 350mm Losmandy bar.





Spot diagram of Takahashi TOA-130 at prime focus.





Spot diagram of Takahashi TOA-130 with TOA-35 FL field flattener.





Spot diagram of Takahashi TOA-130 with TOA-645 field flattener.





Spot diagram of Takahashi TOA-130 with TOA-35 RD 0.7x focal reducer.




Specifications



Optical design Ortho-apochromatic triplet with ED glass
Lens cell
Highly air-spaced triplet with 3 lenses in 3 groups, 2 x S-FPL53 lenses
Coatings
Hard multicoatings
Objective diameter
130 mm
Focal length at prime focus
1000 mm
Focal ratio at prime focus
F/7.7
Backfocus distance at prime focus
274.5 mm
Dew shield diameter 180 mm
Tube diameter 156 mm
Tube length 1145 mm with dew shield extended, 1012 mm with dew shield retracted
Tube weight 12.3 kg
SKU TOK13210
Measurements



Prime focus focal length 1000 mm
Prime focus focal ratio
F/7.7
Prime focus backfocus distance
274.5 mm
TOA-35FL flattener focal length
980 mm
TOA-35FL flattener focal ratio
F/7.5
TOA-35FL flattener backfocus distance
117.5 mm
TOA-35FL flattener image circle
40 mm
TOA-645 flattener focal length 990 mm
TOA-645 flattener focal ratio F/7.6
TOA-645 flattener backfocus distance 83.7 mm (from M72 x 1 thread), 56.2 mm (from CA35 ring with M54 x 0.75)
TOA-645 flattener image circle 60 mm
TOA-35RD 0.7x reducer focal length
698 mm
TOA-35RD 0.7x reducer focal ratio
F/5.4
TOA-35RD 0.7x reducer backfocus distance
62.5 mm
TOA-35RD 0.7x reducer image circle
44 mm
EXT-ED 1.5x extender focal length 1500 mm
EXT-ED 1.5x extender focal ratio F/11.5
EXT-ED 1.5x extender backfocus distance 117.5 mm
EXT-ED 1.5x extender image circle 44 mm



Downloads



PDF Icon Small TOA-130NFB instruction manual

PDF Icon Small TOA-130NFB system chart

PDF Icon Small TOA-130NFB system chart with TOA-35FL field flattener

PDF Icon Small TOA-130 system chart with TOA-35RD focal reducer

PDF Icon Small TOA-130 system chart with TOA-645 field flattener

PDF Icon Small TOA-130 system chart with ED1.5x focal extender
