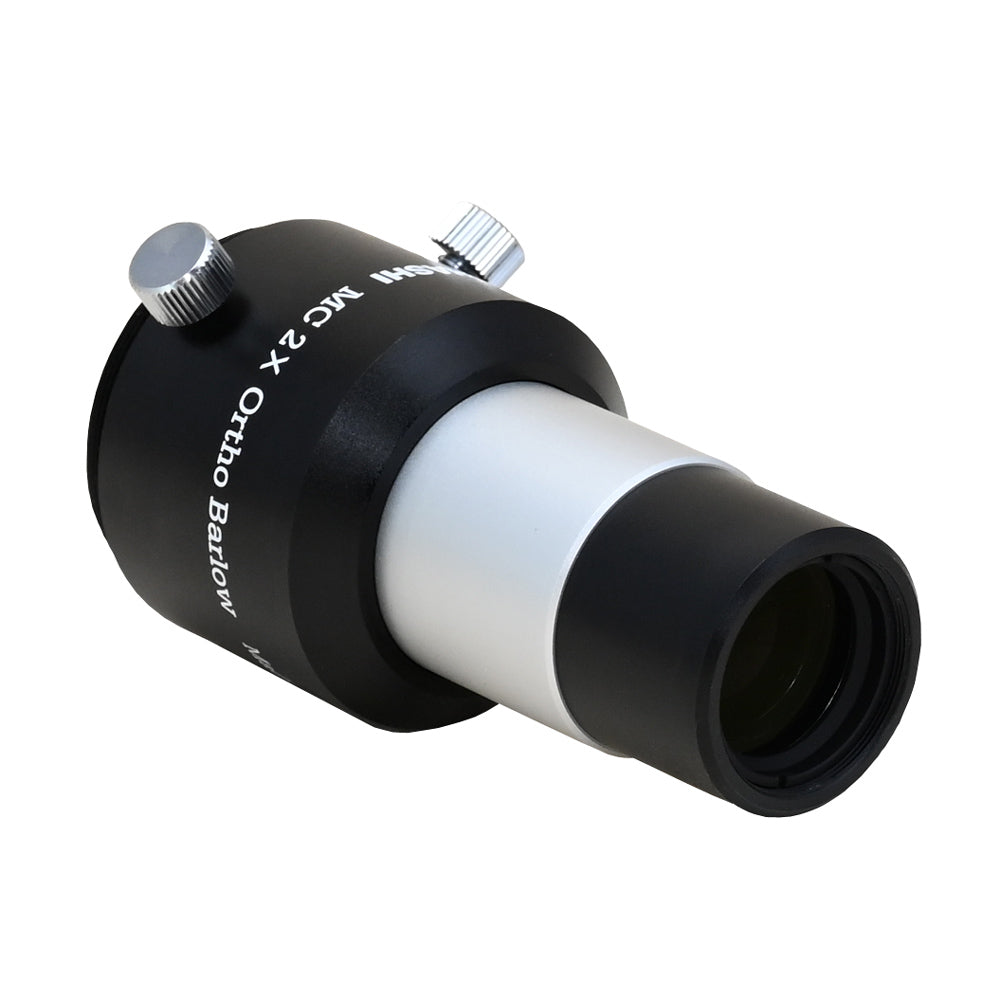

TAKAHASHI ORTHO-BARLOW 2x

$249.00
SKU: TK-TKA00598

Takahashi




The Takahashi 2x Ortho-Barlow is a focal extender that does not degrade image quality, unlike many traditional Barlow lenses.

Like all Takahashi eyepieces and Barlows, the Ortho-Barlow was developed in combination with an aberration-free optical system (in this case, the true reference-grade TOA-series refractors) to ensure that no additional aberrations were introduced by the Barlow. In fact, by pairing the Ortho-Barlow with Takahashi TPL eyepieces, a better quality image at both the centre of the field and the edge is produced than without the Ortho-Barlow. Additionally, any residual extremely minor chromatic aberration of the TOA objective is cancelled out completely.





The Ortho-Barlow's 2x magnification can be varied by changing the distance between the eyepiece or camera sensor according to this formula: [magnification] = 2 + 0.0121 x D, where D is the distance between the end of the Barlow's T-thread to the sensor surface or entrance diaphragm of the eyepeice.


Specifications



Magnification factor
2 x
Optical design
Ortho-Barlow
Connection telescope side
1.25" barrel
Connection eyepiece side
1.25" nosepiece, T2 (M42 x 0.75) thread
Weight 130 g
SKU TK-TKA00598



TAKAHASHI ORTHO-BARLOW 2x

$249.00

Optical design

Image circle

Focal ratio

Aperture

Focal length

Optical thickness

Threads

1.25" Barrel, M42 x 0.75 Male
