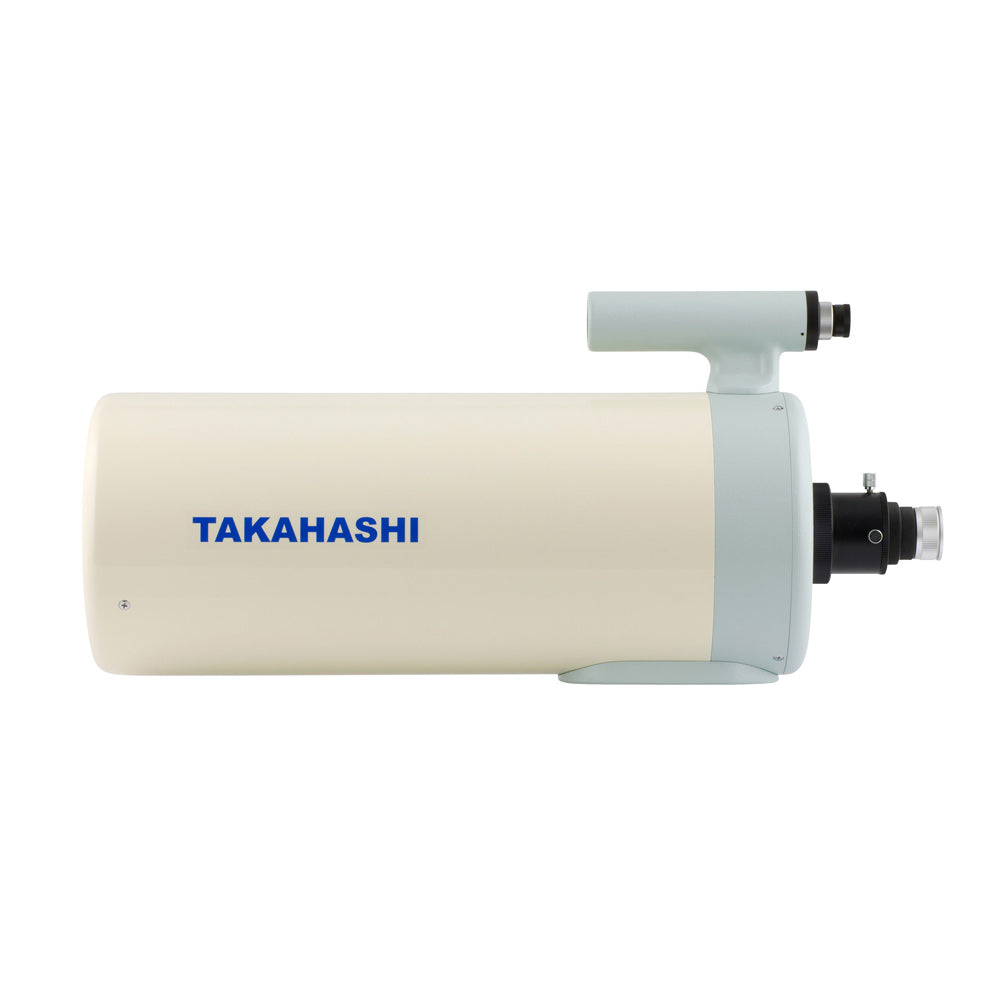

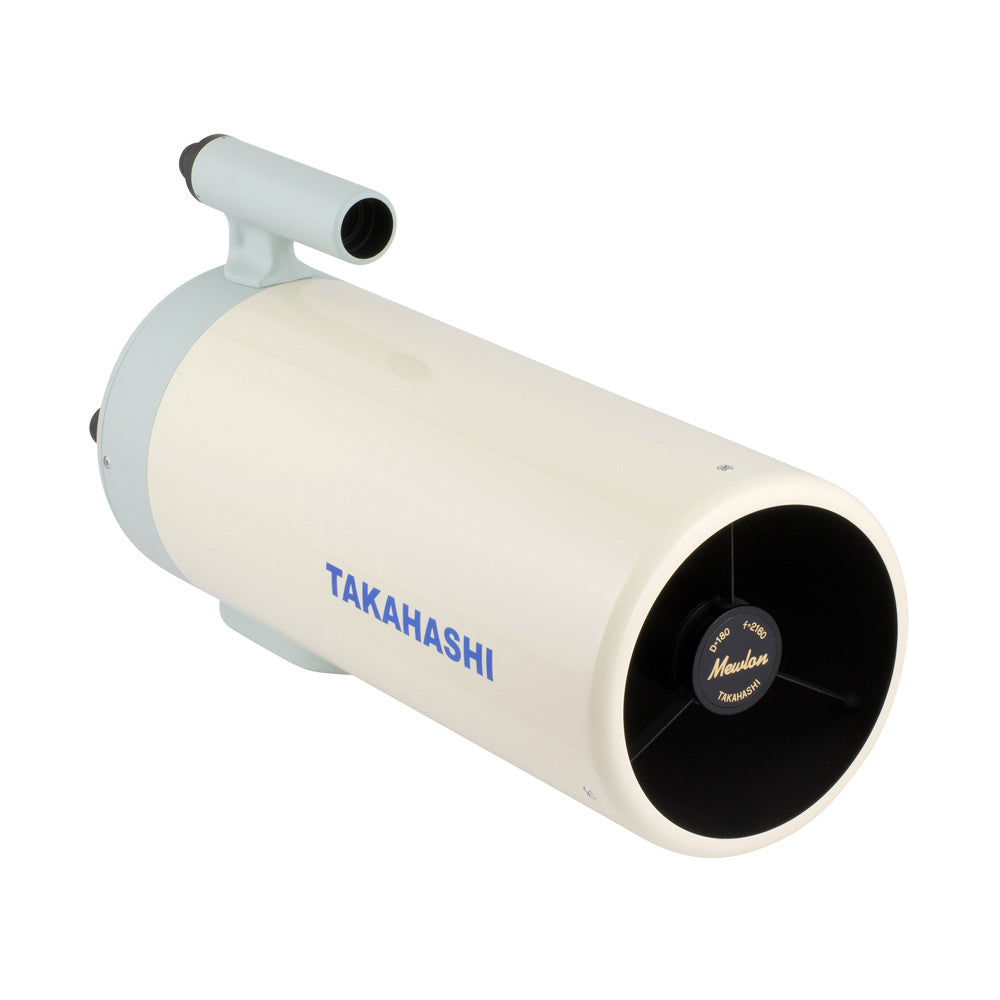

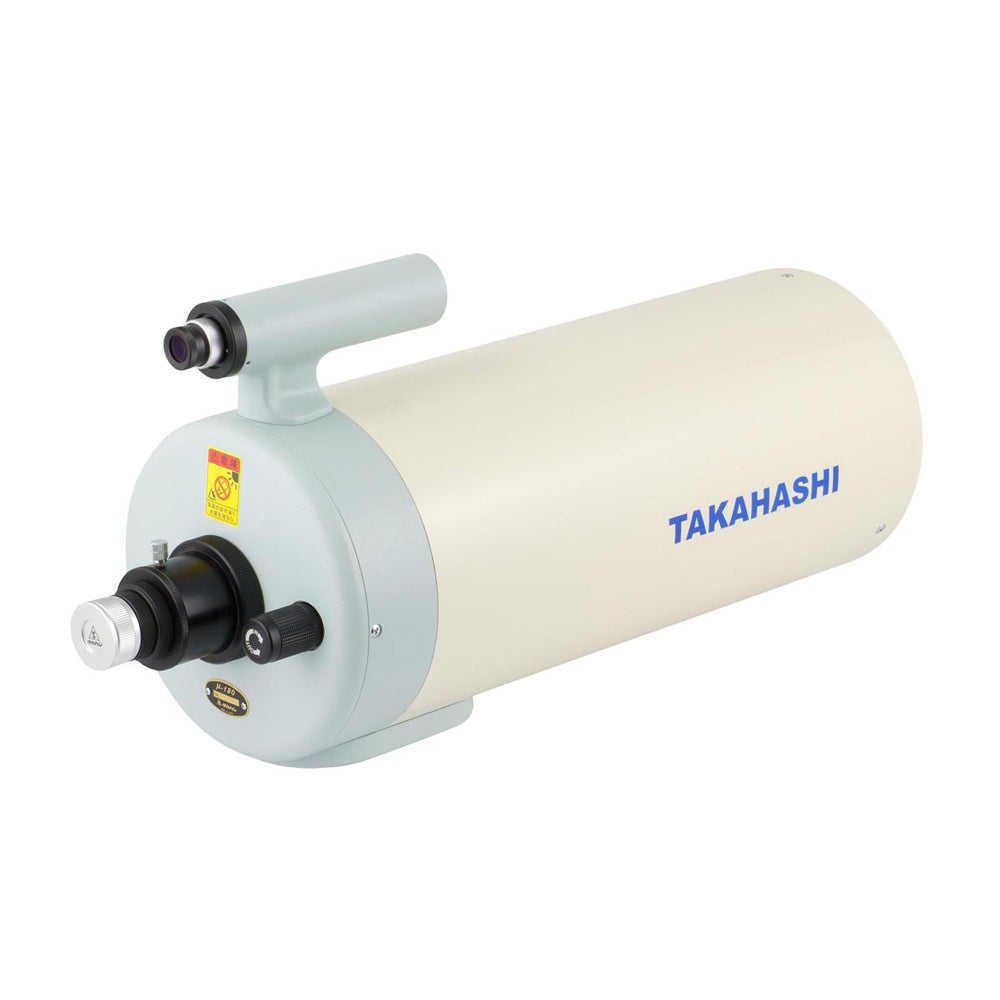

TAKAHASHI MEWLON 180C
Takahashi
Dall-Kirkham
6.2 kg
TAKAHASHI MEWLON 180C - Complete Assembly is backordered and will ship as soon as it is back in stock.
Contact us for availability!
The Takahashi Mewlon 180C is a compact Dall-Kirkham reflector designed for planetary imaging and observation. The optical design combines an ellipsoidal primary mirror and spherical secondary mirror, with the surface quality of the optics being extremely accurate at λ/20.

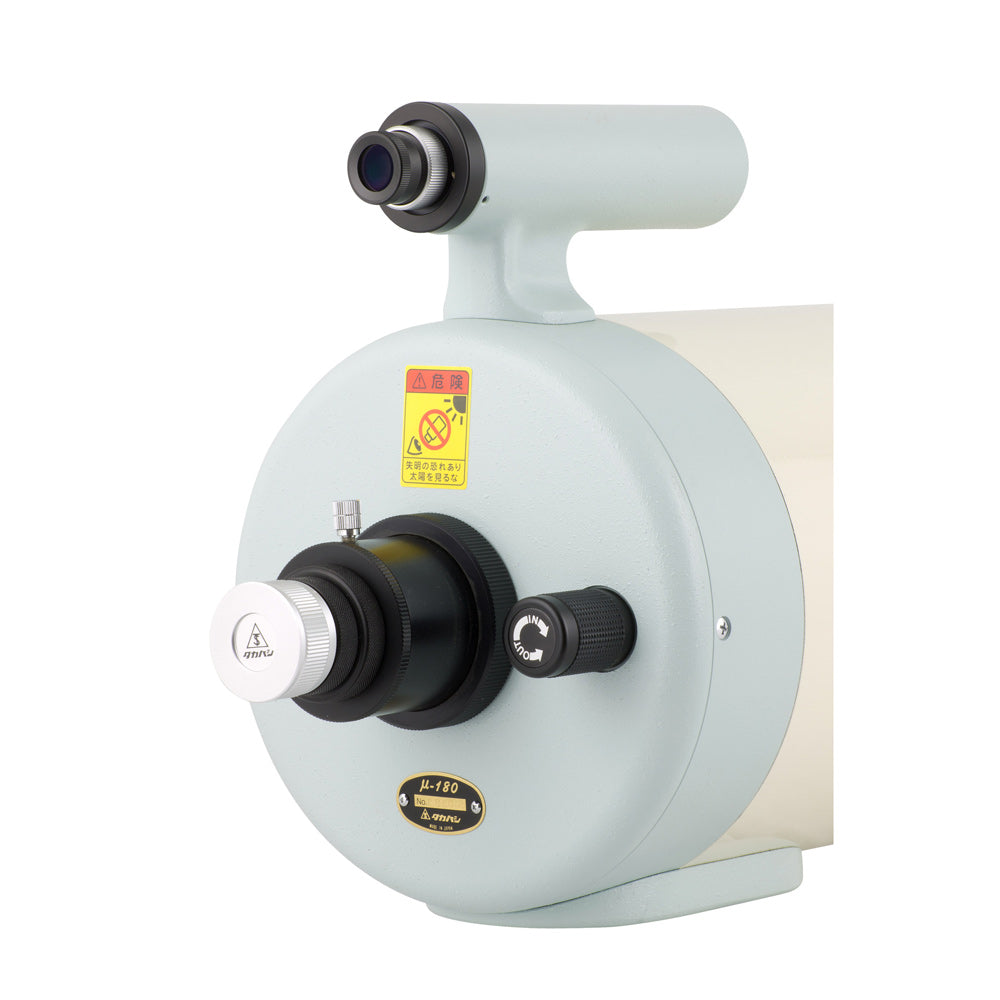

The Mewlon 180C has a native focal length of 2160mm and a focal ratio of f/12, making it the ideal instrument for planetary use. The compact design with a tube weight of only 6.2kg makes it easy to transport to locations where the seeing conditions are more favourable. The integrated 7 x 30 finder scope is adjustable and can also be used as a carrying handle.
A 0.8x focal reducer is available (sold separately), transforming the scope into 1760mm f/9.8 for wider views and with an image circle of 30mm. Note: The Mewlon 180C is not designed for deep sky imaging with pinpoint stars across a large sensor, however it excels at planetary and lunar imaging.
Specifications
| Optical design | Dall-Kirkham reflector |
|---|---|
| Mirror configuration |
Concave elliptical primary + convex spherical secondary |
| Focuser |
Primary mirror adjustment |
| Primary mirror diameter |
180 mm |
| Focal length at prime focus |
2160 mm |
| Focal ratio at prime focus |
F/12 |
| Backfocus distance at prime focus |
67.2 mm |
| Tube diameter | 210 mm |
| Tube length | 625 mm |
| Tube weight | 6.2 kg |
| SKU | TLK18100 |
Measurements
| Prime focus focal length | 2160 mm |
|---|---|
| Prime focus focal ratio |
F/12 |
| Prime focus backfocus distance |
67.2 mm |
| Mewlon M-FLRD 0.8x reducer focal length |
1760 mm |
|
Mewlon M-FLRD 0.8x focal ratio |
F/9.8 |
|
Mewlon M-FLRD 0.8x backfocus distance |
56.2 mm |
|
Mewlon M-FLRD 0.8x image circle |
30 mm |
Downloads
 Mewlon 180C instruction manual
|
