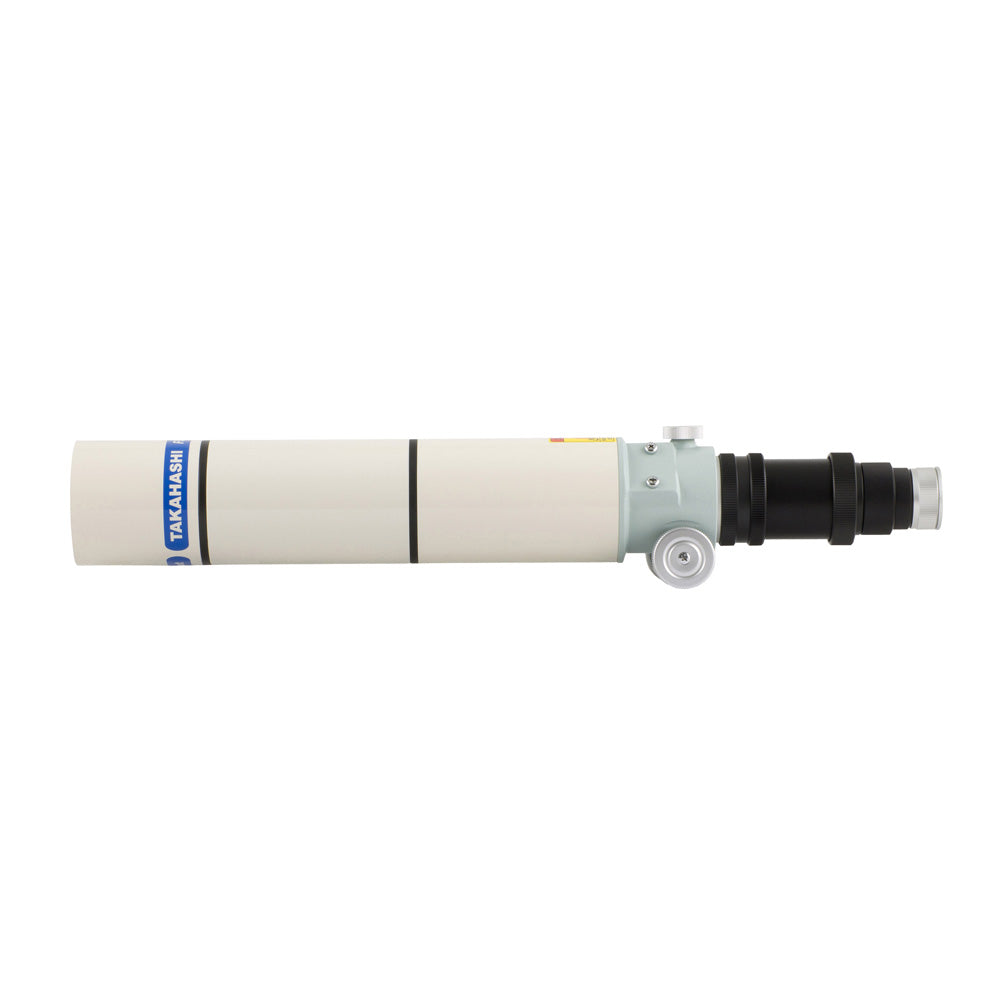

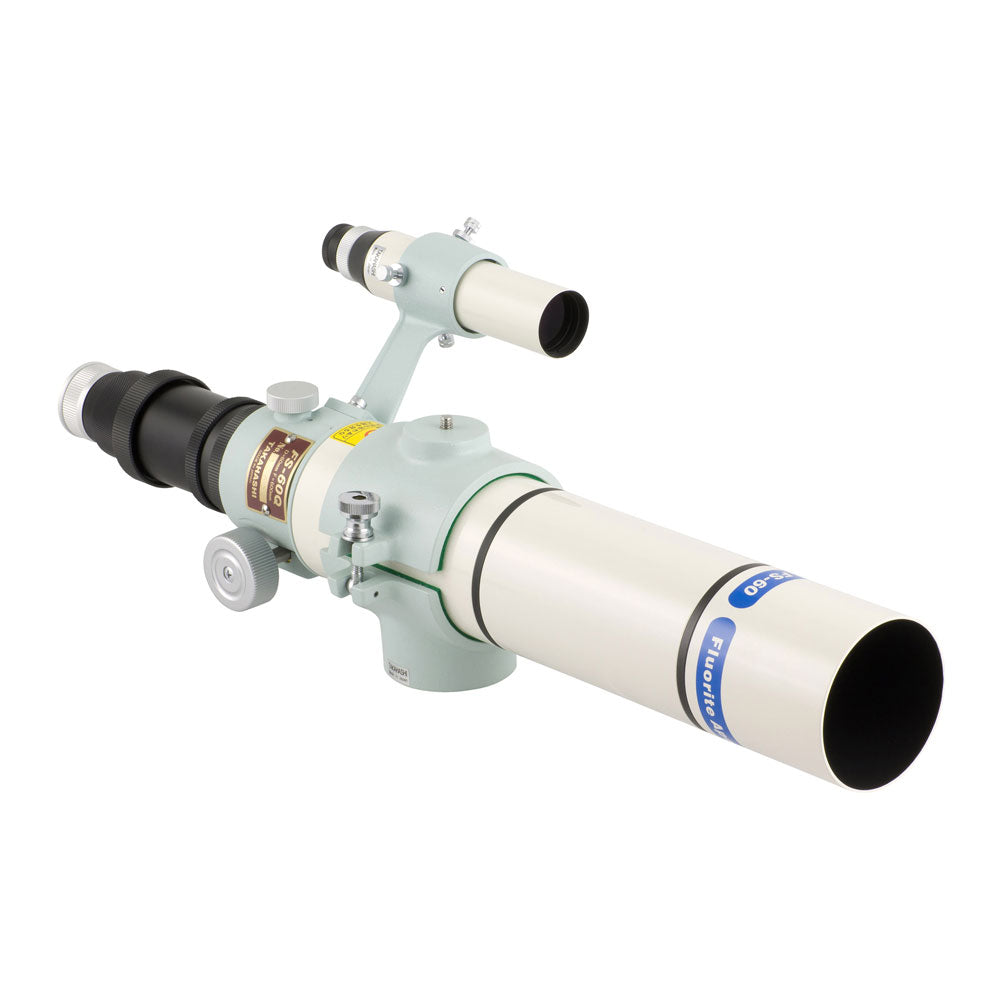

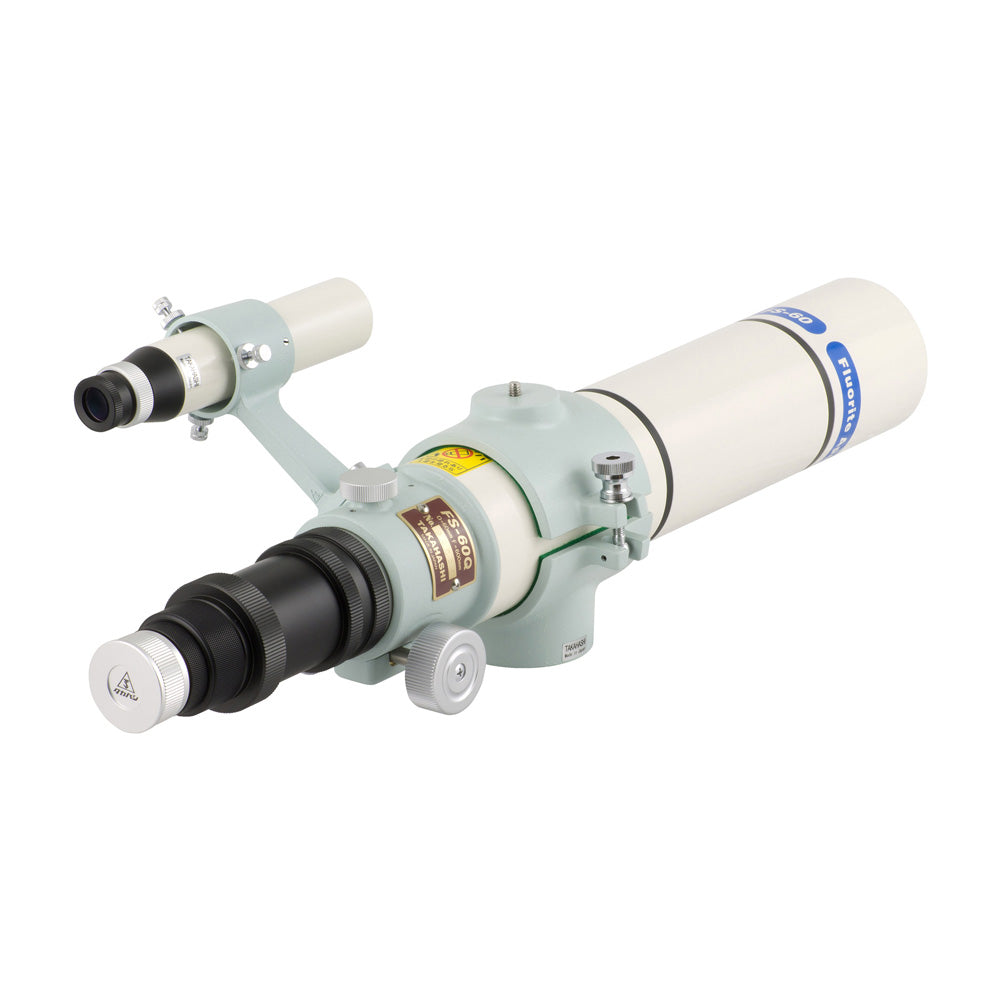

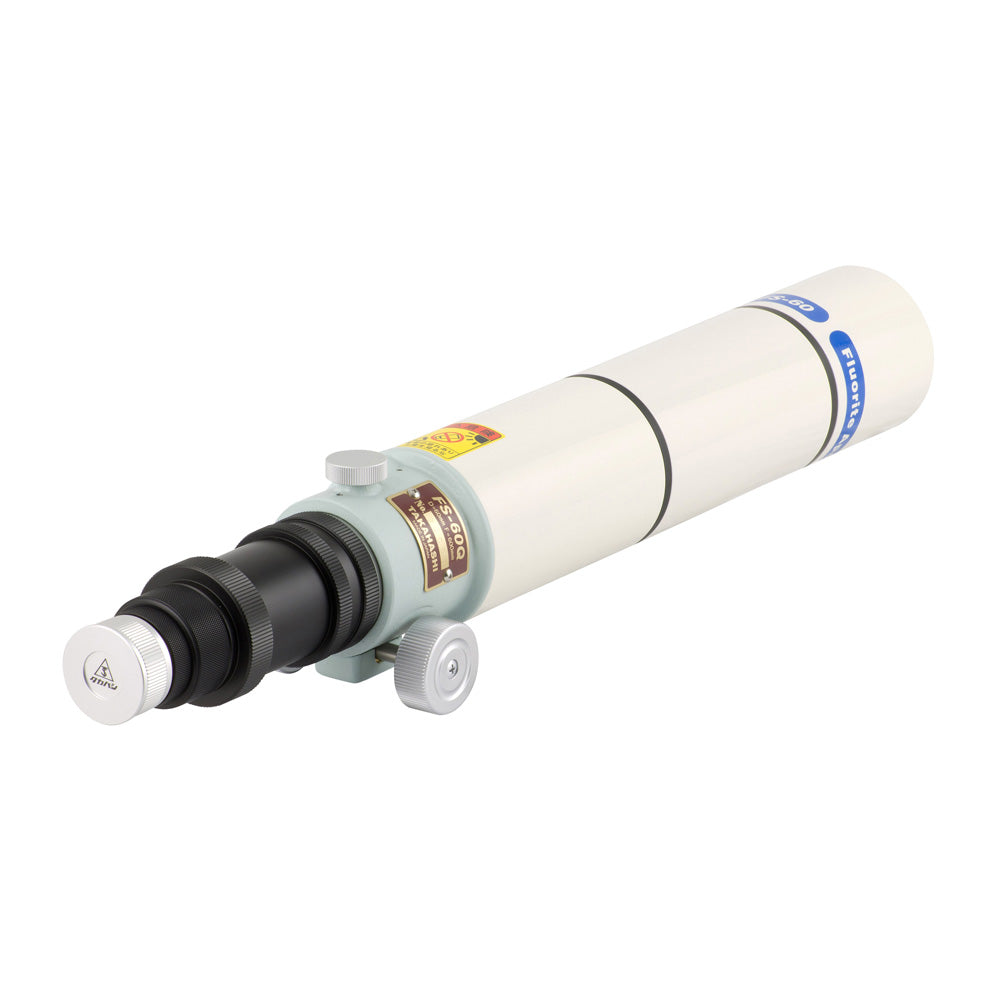

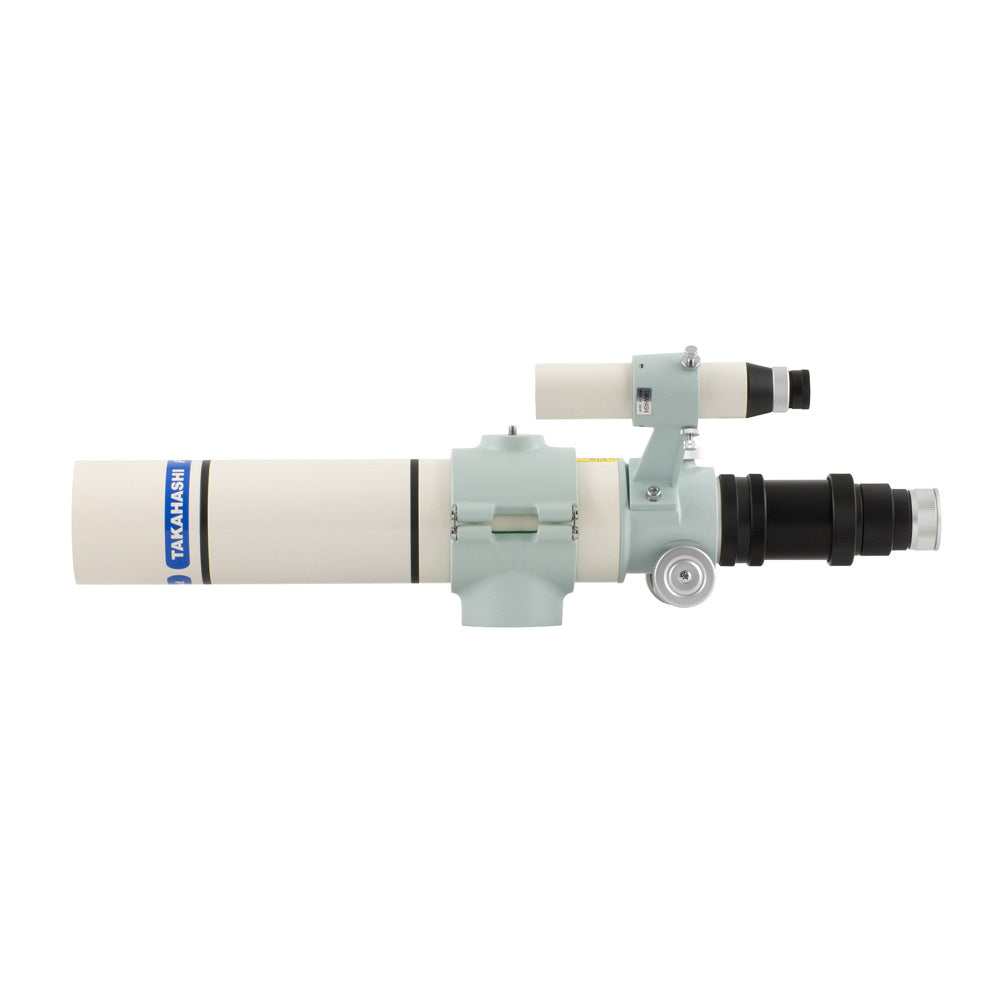

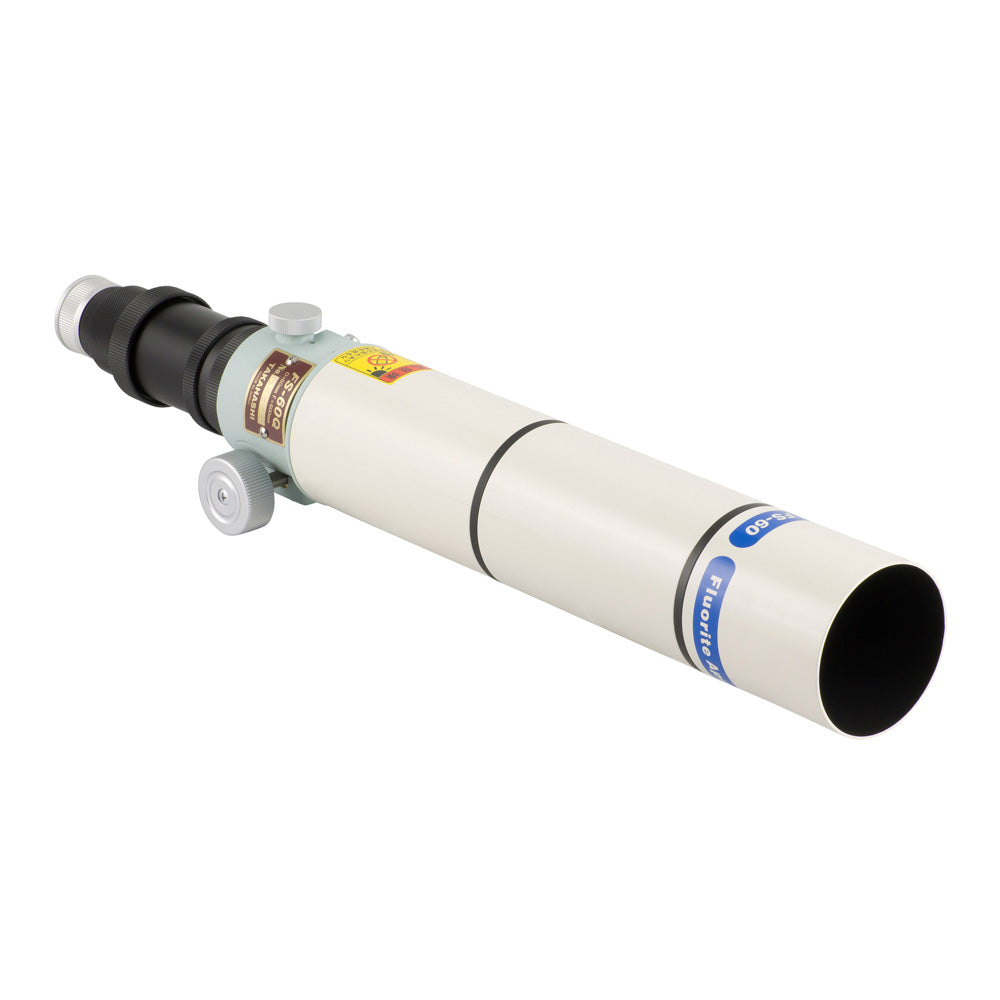

TAKAHASHI FS-60Q DOUBLET OTA
Takahashi
Apochromatic doublet
1.6 kg
TAKAHASHI FS-60Q DOUBLET OTA - OTA Only is backordered and will ship as soon as it is back in stock.
The Takahashi FS-60Q is a Fluorite apochromatic doublet refractor with an included 1.7x extender, making it a long focal length version of the FS-60CB. The air-spaced fluorite doublet has excellent chromatic correction across the visual spectrum.
With the 1.7x extender connected, the result is a quadruplet 600mm f/10 planetary scope with a large flat field. The extender can be removed, transforming the telescope into the standard FS-60CB 355mm f/5.9 configuration.
The FS-60Q is equipped with a precise rack and pinion focuser designed with imaging in mind.
Note: The OTA ONLY variant does not include tube rings or a dovetail bar. For the FS-60Q, you can use the PrimaLuceLab 80mm PLUS tube rings in combination with the PrimaLuceLab 240mm Vixen bar.
Specifications
| Optical design | Fluorite doublet apochromat with two-element extender |
|---|---|
| Lens cell |
Air-spaced doublet, 1 x fluorite lens |
| Coatings |
Hard multicoatings |
| Objective diameter |
60 mm |
| Focal length at prime focus |
600 mm (with extender) |
| Focal ratio at prime focus |
F/10 (with extender) |
| Backfocus distance at prime focus |
158.4 mm |
| Dew shield diameter | 80 mm |
| Tube diameter | 80 mm |
| Tube length | 550 mm |
| Tube weight | 1.6 kg |
| SKU | TK-TSK06310 (OTA only), TK-TSK06300 (Complete assembly) |
Downloads
 FS-60Q instruction manual
|
