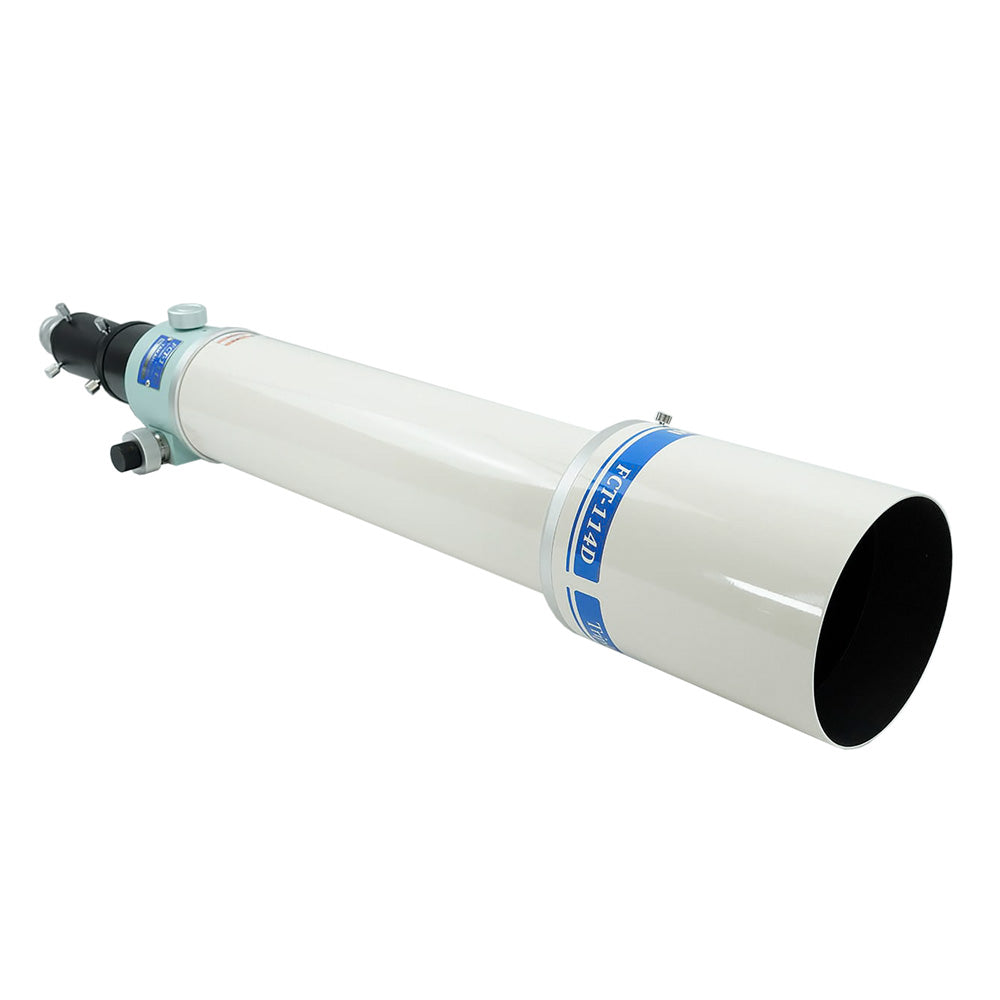

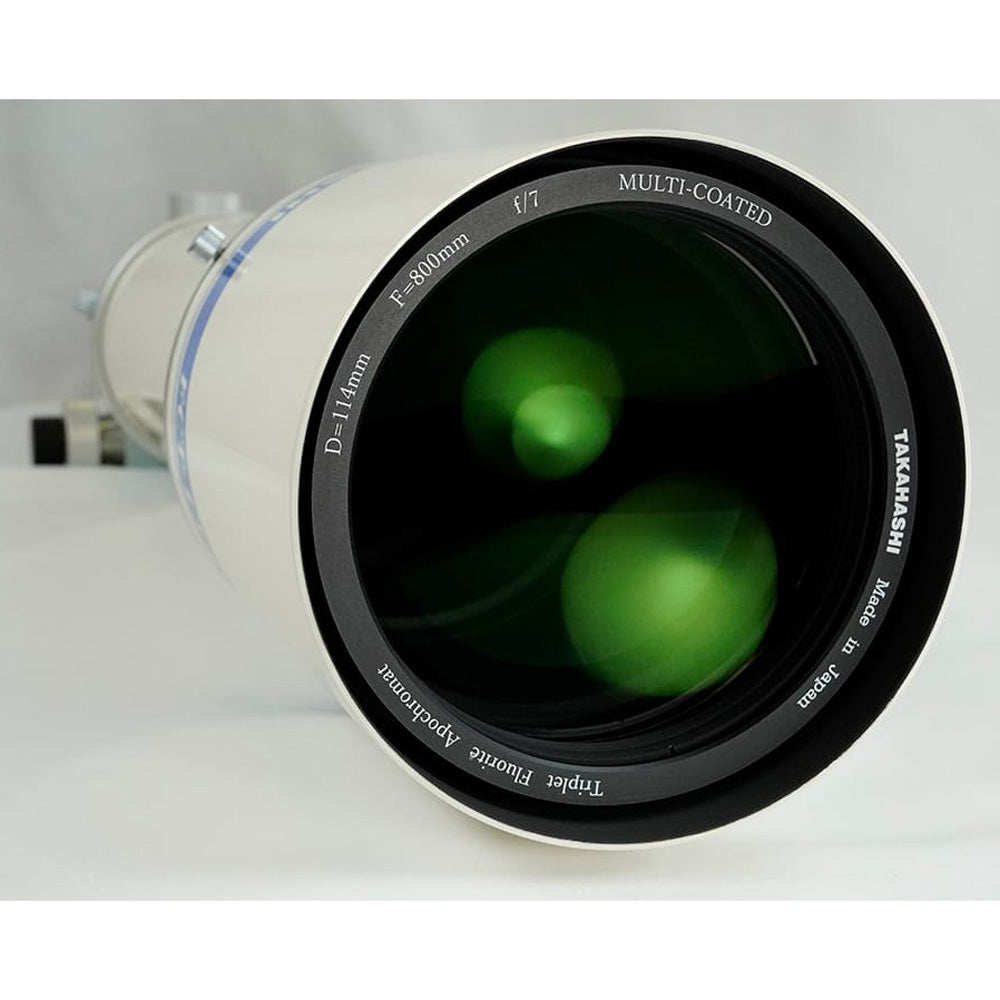

TAKAHASHI FCT-114D TRIPLET OTA
The Takahashi FCT-114D is a Fluorite apochromatic triplet refractor which excels visual and photographic use. With a Strehl ratio of 97.5% and virtually zero chromatic aberration, the FCT-114D offers crisp, high-contrast views at high magnifications.
The optional field flattener and focal reducer transform the FCT-114D into a versatile astrograph with ≤ 6μm RMS spot diameters at the edge of a full-frame image circle, making it an excellent choice for modern sensors.
The FCT-114D is available in two different configurations:
- FCT-114DS using the same focuser as the TOA-130NS, optimized for visual observation.
- FCT-114DF using the 1:8 fine-focuser as found on the FSQ-85EDX to support heavy camera setups.
Note: Does not include tube rings or a dovetail bar. Optional 114WB Tube Holder is available to order. Additionally, you can use the PrimaLuceLab 115mm PLUS tube rings in combination with the PrimaLuceLab 240mm Losmandy bar.
Specifications
| Optical design | Fluorite triplet apochromat |
|---|---|
| Lens cell |
Air-spaced triplet, 1 x fluorite lens |
| Coatings |
Hard multicoatings |
| Objective diameter |
114 mm |
| Focal length at prime focus |
800 mm |
| Focal ratio at prime focus |
F/7 |
| Threads | TBD |
| Dew shield diameter | 145 mm |
| Tube diameter | 114 mm |
| Tube length | DS: 824 - 913 mm; DF: 826 - 915 mm |
| Tube weight | DS: 5.3 kg; DF: 5.5 kg |
Items included
- FCT-114DS/DF OTA
- User manual
- TKP19001 - M64 x 0.75 male to M72 x 1 female adapter
- TKP27110 - M72 x 1 male to 2" barrel adapter
- TKP31112 - 2" extension tube 73mm
- TKP00113 - 2" to M43 x 0.75 female adapter
- TKP00103 - M43 x 0.75 male to M36.4 x 1 female adapter
- TKP00101 - M36.4 x 1 female to 1.25" adapter
Downloads
 FCT-114D instruction manual (Japanese)
|
