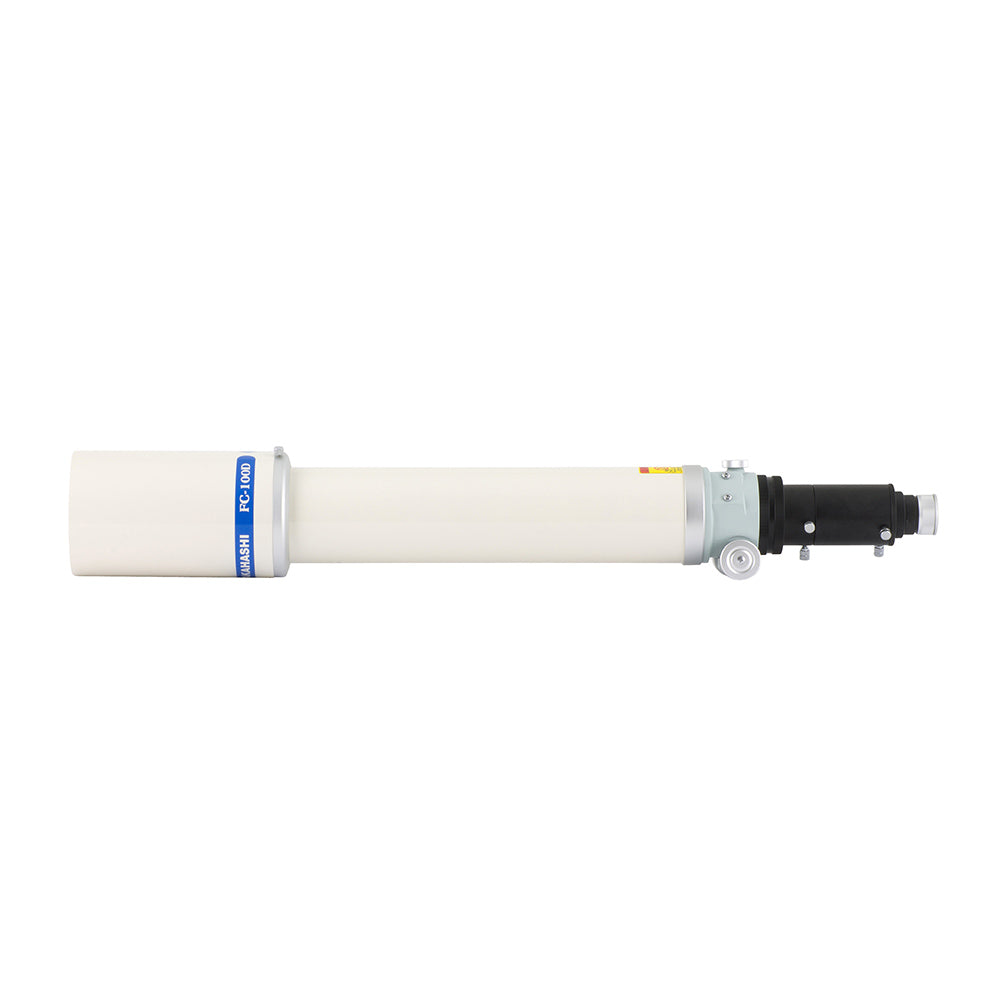

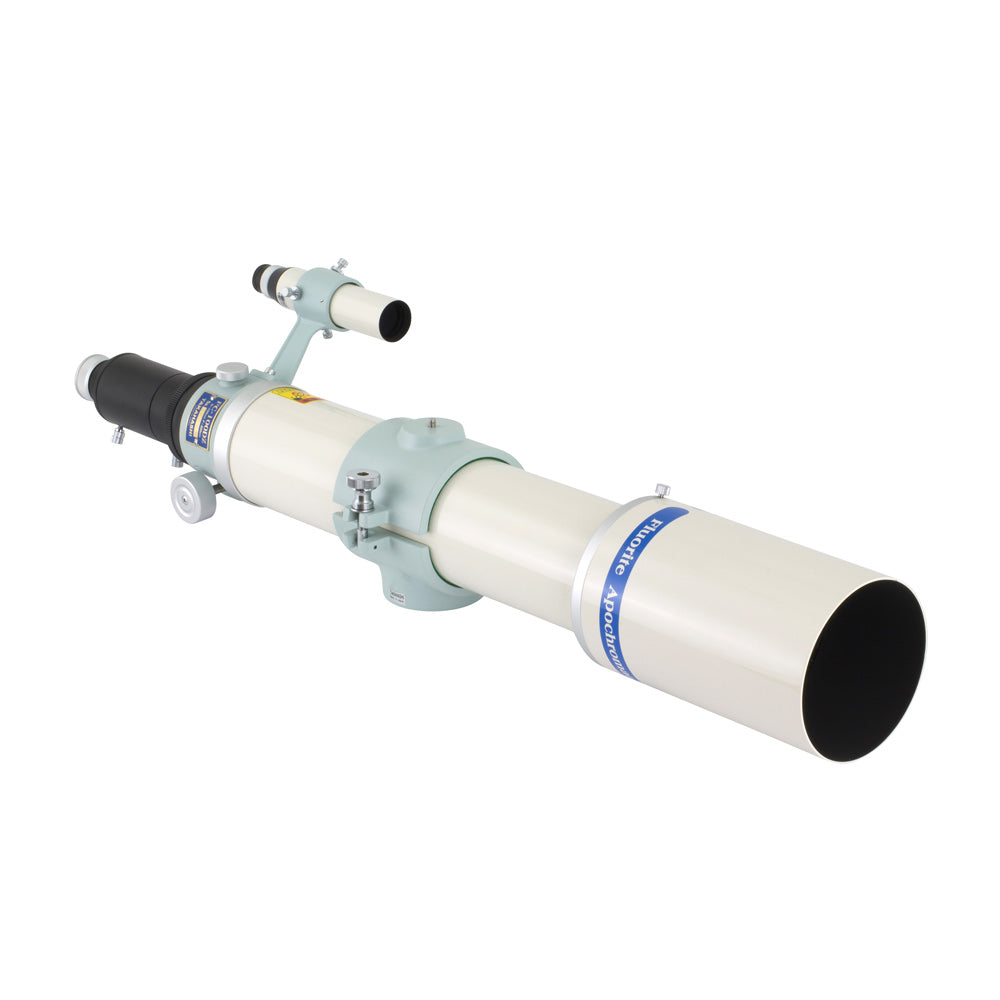

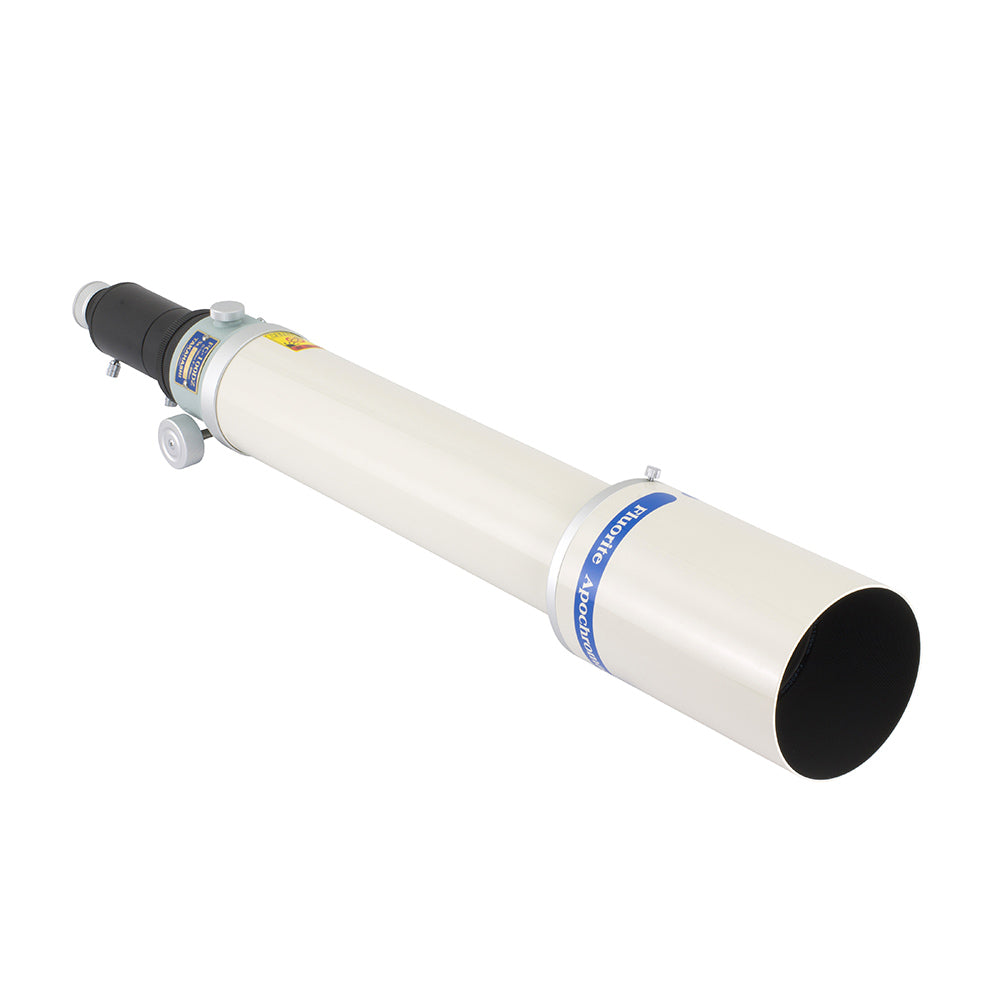

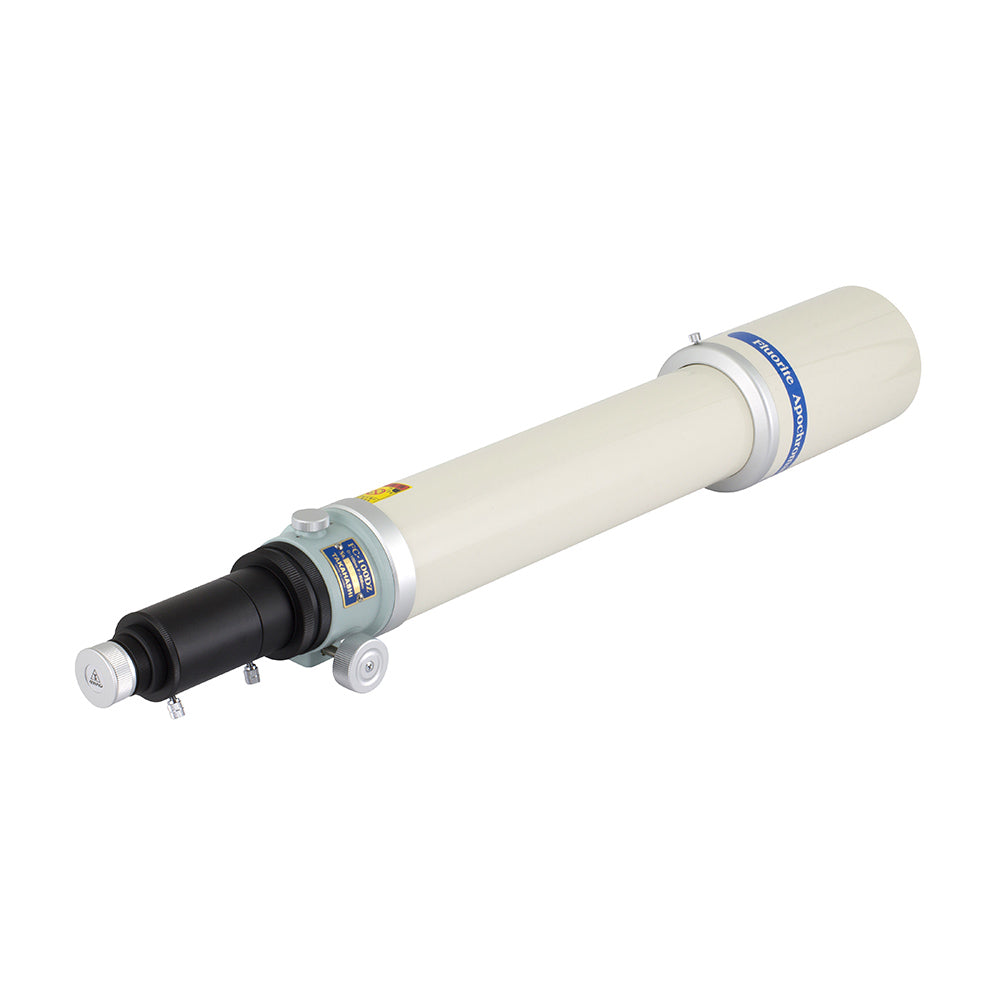

TAKAHASHI FC-100DZ DOUBLET OTA
Takahashi
Apochromatic doublet
3.9 kg
TAKAHASHI FC-100DZ DOUBLET OTA - OTA Only is backordered and will ship as soon as it is back in stock.
The Takahashi FC-100DZ is a Fluorite apochromatic doublet refractor which excels visual and photographic use. The updated design from the FC-100DC/DF has better colour correction, with an air-spaced fluorite doublet. The optional field flatteners and focal reducers transform the FC-100DZ into a versatile astrograph.
The FC-100DZ is equipped with a precise rack and pinion focuser designed with imaging in mind. The FC-100DZ has a native focal length of 800mm and a focal ratio of f/8, making it a versatile instrument for both terrestrial and astronomical use.
A selection of different field correctors are available to suit different applications (sold separately).
Note: The OTA ONLY variant does not include tube rings or a dovetail bar. For the FC-100DZ, you can use the PrimaLuceLab 95mm PLUS tube rings in combination with the PrimaLuceLab 240mm Losmandy bar.
Specifications
| Optical design | Fluorite doublet apochromat |
|---|---|
| Lens cell |
Air-spaced doublet, 1 x fluorite lens |
| Coatings |
Hard multicoatings |
| Objective diameter |
100 mm |
| Focal length at prime focus |
800 mm |
| Focal ratio at prime focus |
F/8 |
| Backfocus distance at prime focus |
223 mm |
| Drawtube extension | 62 mm |
| Threads | M64 x 0.75 female, additional adapters (see Items Included) |
| Dew shield diameter | 125 mm |
| Tube diameter | 95 mm |
| Tube length | 840 mm with dew shield extended, 770 mm with dew shield retracted |
| Tube weight | 3.9 kg |
| SKU | TFK10310 |
Measurements
| Prime focus focal length | 800 mm |
|---|---|
| Prime focus focal ratio |
F/8 |
| Prime focus backfocus distance |
223 mm |
| FC/FS MFL 1.04x flattener focal length |
820 mm |
|
FC/FS MFL 1.04x flattener focal ratio |
F/8.2 |
| FC/FS MFL 1.04x flattener backfocus distance |
71.2 mm |
| FC/FS MFL 1.04x flattener image circle |
44 mm |
| 76D-RD reducer focal length | 580 mm |
| 76D-RD reducer focal ratio | F/5.8 |
| 76D-RD reducer backfocus distance | 56.2 mm |
| 76D-RD reducer image circle | 30 mm |
| FC-35RD reducer focal length |
530 mm |
|
FC-35RD reducer focal ratio |
F/5.3 |
|
FC-35RD reducer backfocus distance |
68.8 mm |
|
FC-35RD reducer image circle |
44 mm |
| EX-Q 1.6x extender focal length | 1185 mm |
| EX-Q 1.6x extender focal ratio | F/11.9 |
| EX-Q 1.6x extender backfocus distance | 157 mm |
Items included
- FC-100DZ OTA
- User manual
- TKP19001 - M64 x 0.75 male to M72 x 1 female adapter
- TKP27110 - M72 x 1 male to 2" barrel adapter
- TKP31112 - 2" extension tube 73mm
- TKP00113 - 2" to M43 x 0.75 female adapter
- TKP00103 - M43 x 0.75 male to M36.4 x 1 female adapter
- TKP00101 - M36.4 x 1 female to 1.25" adapter
Downloads
 FC-100DZ instruction manual
|
