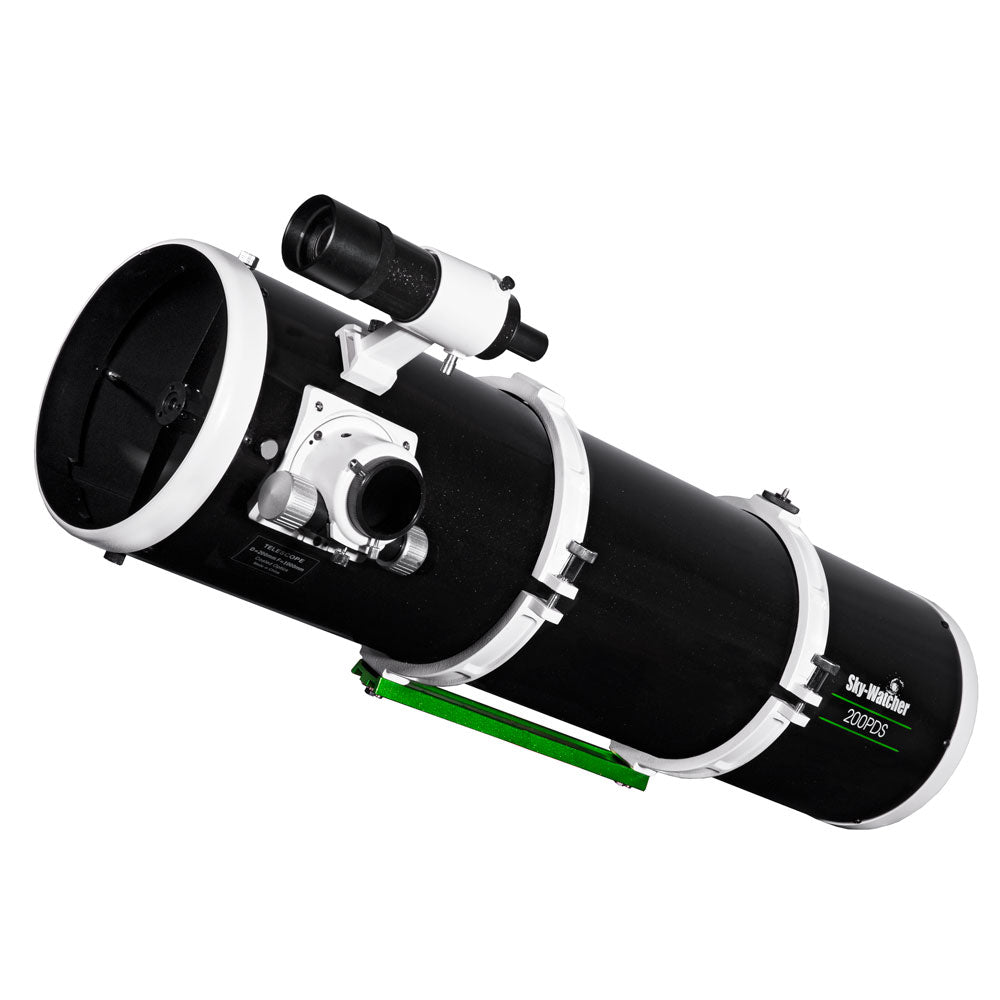

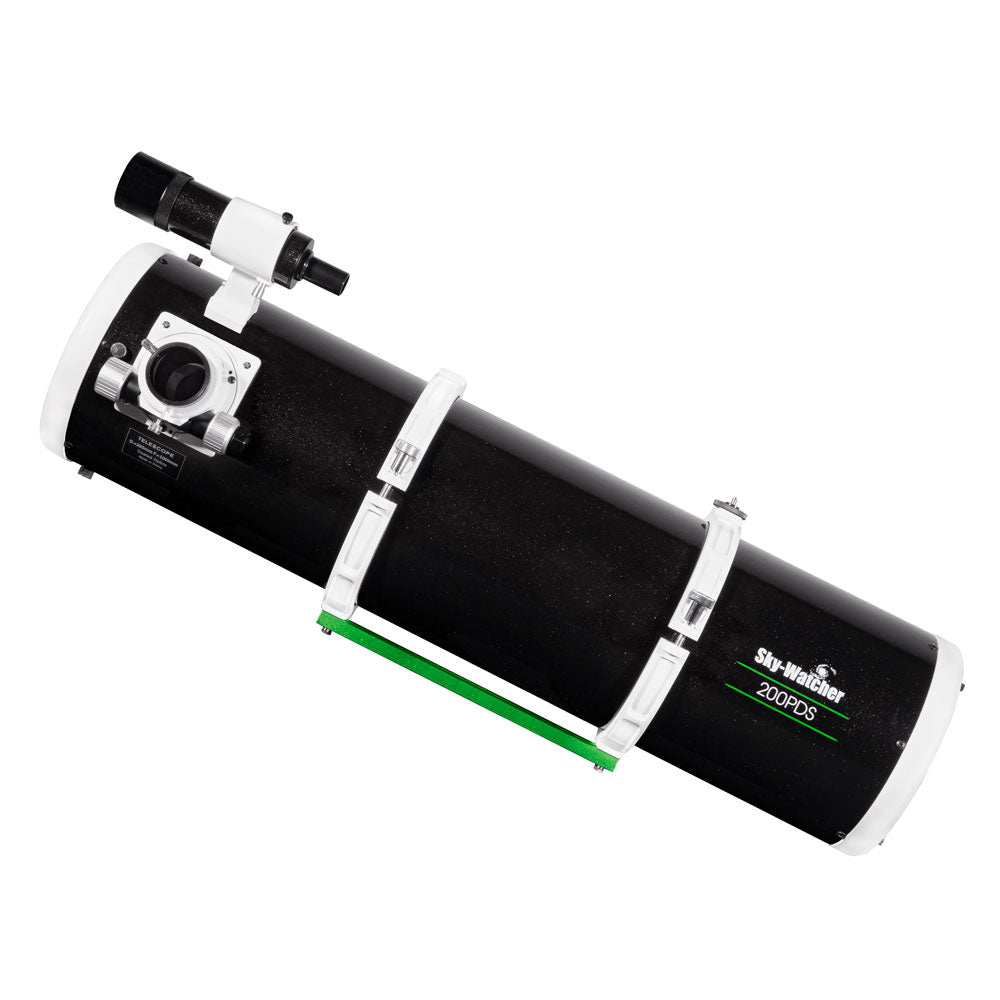

SKYWATCHER PHOTOGRAPHIC NEWTONIAN 200 F/5

$799.00 AUD
SKU: SW2001AP-OTA

Sky-Watcher

Newtonian

200 mm

f/5

1000 mm

8.75 kg




The SkyWatcher 200 f/5 photographic Newtonian telescope is optimized for astrophotography. In fact, its oversized secondary mirror provides a large illuminated field that is ideal for large camera sensors.

This telescope has a fast f/5 focal ratio and while the coma is still visible, it is 36% lower than the coma in an f/4 Newtonian. This allows for the use of the photographic reflector on visual observations and high resolution imaging of planets and the moon.

The optional SkyWatcher coma corrector for f/5 Newtonians corrects the coma superbly, offering a large corrected field for astrophotography.

The 2" Crayford focuser is solid, precise and backlash free. It operates at two speeds due to the 10:1 reduction mechanism for an extra fine focusing adjustment, which is paramount for astrophotography and high resolution observations.

The oversized secondary mirror can be collimated by using 3 grub screws and the offset can be adjusted by using the central spring loaded screw.

The primary mirror is likewise collimateable with 3 pairs of push & pull screws.

The aluminium tube is internally blackened to avoid internal reflection, enhance contrast and to absorb stray light.



SkyWatcher 200 f/5
NGC 4945 - Taken with the Skywatcher 200 F/5 Newtonian by Vijay Ladwa





Optical design

Newtonian reflector

Objective diameter

200 mm

Focal length

1000 mm

Focal ratio

f/5

Resolving power

0.60 arc second

Stellar limiting magnitude

13.5

Max. magnification

400 x

Light gathering power

816 times the human eye

Mount attachment

Tube rings on Vixen style bar

Focuser

Crayford dual speed (10:1)

Tube weight

8.75 kg

Tube length

920 mm

Tube diameter

240 mm

SKU

SW2001AP-OTA





  • Newtonian 200 f/5
  • Tube rings on Vixen style bar
  • 8x50 finderscope
  • Eyepiece LET 28
  • 2" to M42 and 2" to 1.25" all in one adapter
  • Piggyback 1/4" screw with camera locking nut
