SKYWATCHER EQ6-R PRO MOUNT + BAG + POWER SUPPLY

$1,876.00 USD
SKU: SWEQ6-R+BAG+POWER

Sky-Watcher

Equatorial

Payload: 20 kg

Encoders: None

Vixen/Losmandy

17.3 kg


Style

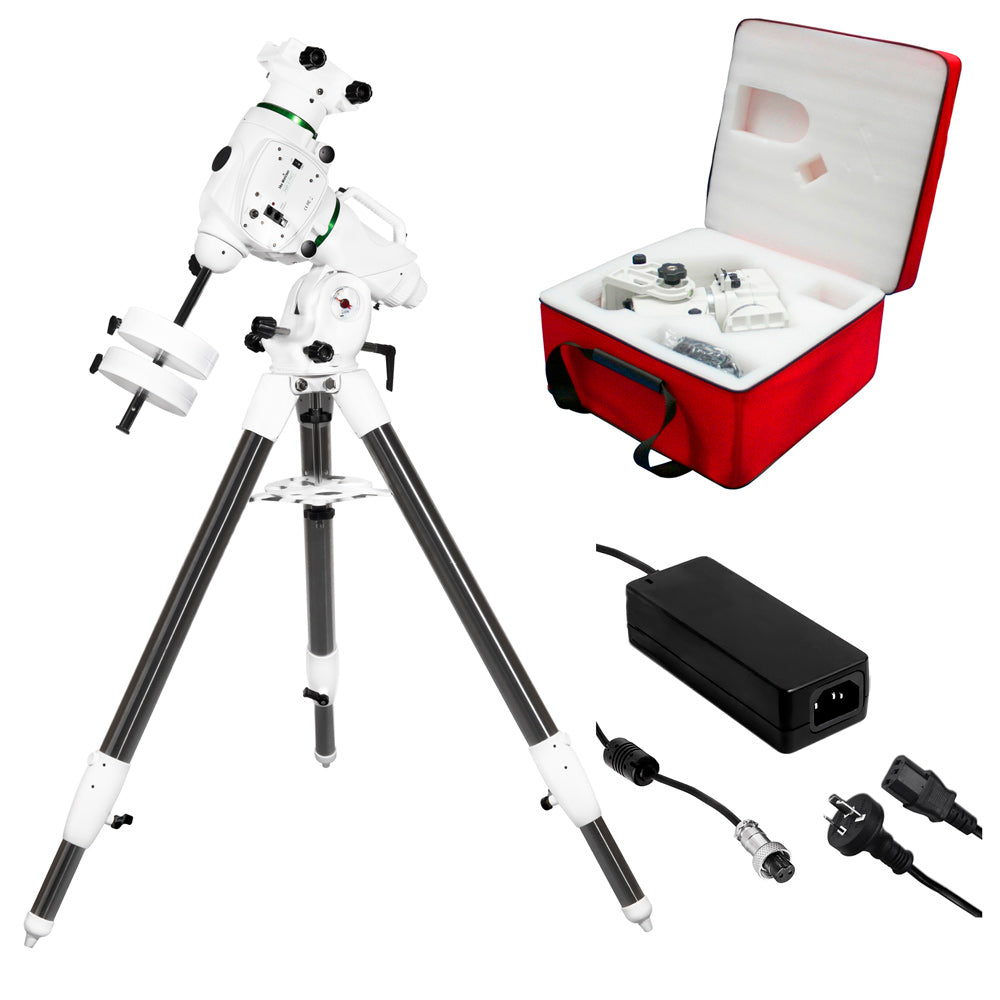

The Sky-Watcher EQ6-R Pro bundle contains the mount with tripod, high quality Geoptik pack-in bag to protect the mount while travelling and our fully Australian-certified 12V 5A power supply.



The Sky-Watcher EQ6-R Pro is the result of years of improving the EQ6 design and includes your choice of hand controller or Wi-Fi adapter instead of the hand controller. The new transmission belts between the motors and worm gears reduce the backlash for improved guiding accuracy. The integrated bubble level and the adjustable tripod legs make the levelling easy, the azimuth and altitude axis can be fine adjusted for a precise polar alignment.




The Geoptik "pack in bag" for the SkyWatcher EQ6-R offers an easy and effective solution to transport your mount.

The bag fits the original packaging foam of your EQ6-R mount. All you need to do is remove the original packaging foam from the mount cardboard box and fit it in the Geoptik pack in bag.





Testar's 12V DC 5A power supply has a screw lockable output plug and IEC AC input cable for the Saxon Az-Eq6Skywatcher AZ-EQ5, AZ-EQ6, EQ8-R, EQ8-Rh, EQ6-R Pro and the new NEQ6 mount. Fully Australian certified - unlike many generic power supplies that come with overseas products, this is fully compliant with all safety certifications!


Testar 12V 5A Camera Power Supply Certifications



Mount type

German equatorial

Payload capacity

20 kg

Latitude range

5° to 65°

Azimuth adjustment

± 9°

Dovetail saddle

Accepts Vixen and Losmandy bars

Weight

17.3 kg (head) + 7.5 kg (tripod)

Counterweight rod

Ø 18 mm, length 242 mm + 180 mm extension

Power requirement

DC 11~16 V  4 Amp

Motors

1.8 º Hybrid Stepper Motor

Tracking rate

Sidereal rate, solar rate, lunar rate

Auto guiding speed

0.125 x, 0.25 x, 0.5 x, 0.75 x, 1 x

Pointing accuracy

Up to 5 arc-minutes (RMS)

SKU

SWEQ6-RI+BAG





  • SkyWatcher EQ6-Ri Pro mount
  • Geoptik Pack-in Bag for EQ6-R
  • Testar 12V 5A Power Supply for EQ6-R
  • Steel tripod
  • Counterweights (2 x 5 kg)
  • Counterweight extension bar
  • Polar scope (Southern and Northern Hemisphere)
  • Wi-Fi adapter OR hand controller
  • Power cord (lighter plug)
  • Mount and SynScan user manual
