SKYWATCHER 0.77x REDUCER FOR ESPRIT 120ED

$699.00AUD
SKU: SWA-ESPRIT120FRF

Sky-Watcher

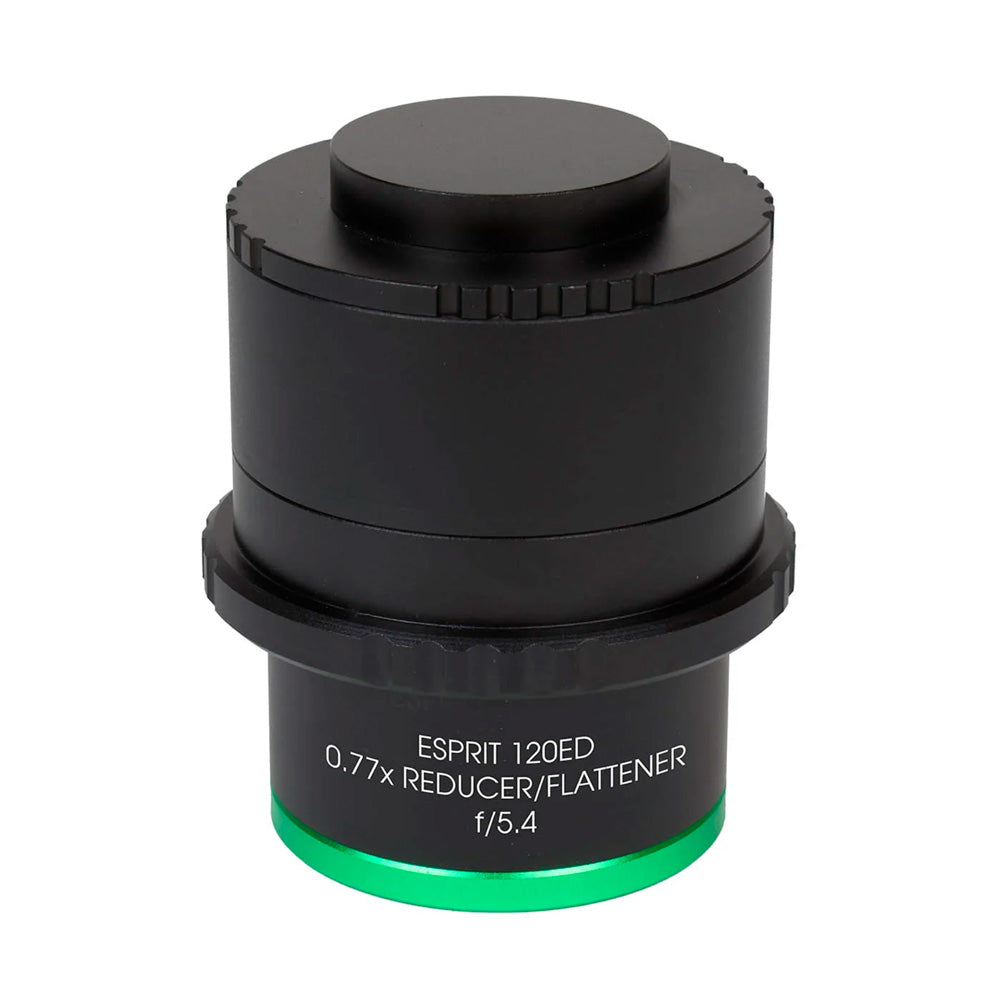

The Sky-Watcher 0.77x Flattener/Reducer for Esprit 120ED telescopes shortens the focal ratio of the 120ED to f/5.4 and focal length to 647mm. Exposure time is reduced by 68% when compared to the native f/7 configuration.

The illuminated and corrected image circle is 34mm, making it suitable for use with APS-C sensors and smaller.

The flattener/reducer has a back focus requirement of 95mm (55mm when paired with the included spacer and M48 adapter), making it possible to connect a wide range of imaging trains. Built-in 2" filter threads allow you to add light pollution filters with ease.

Specifications



Reduction factor 0.77 x
Optical design Triplet
Telescope connection M86 x 1, M78 x 1
Camera connection M78 x 1, M48 x 0.75
Image circle 34 mm
Back focus distance 95 mm, 55 mm from extension tube
Weight TBD
SKU SWA-ESPRIT120FRF
