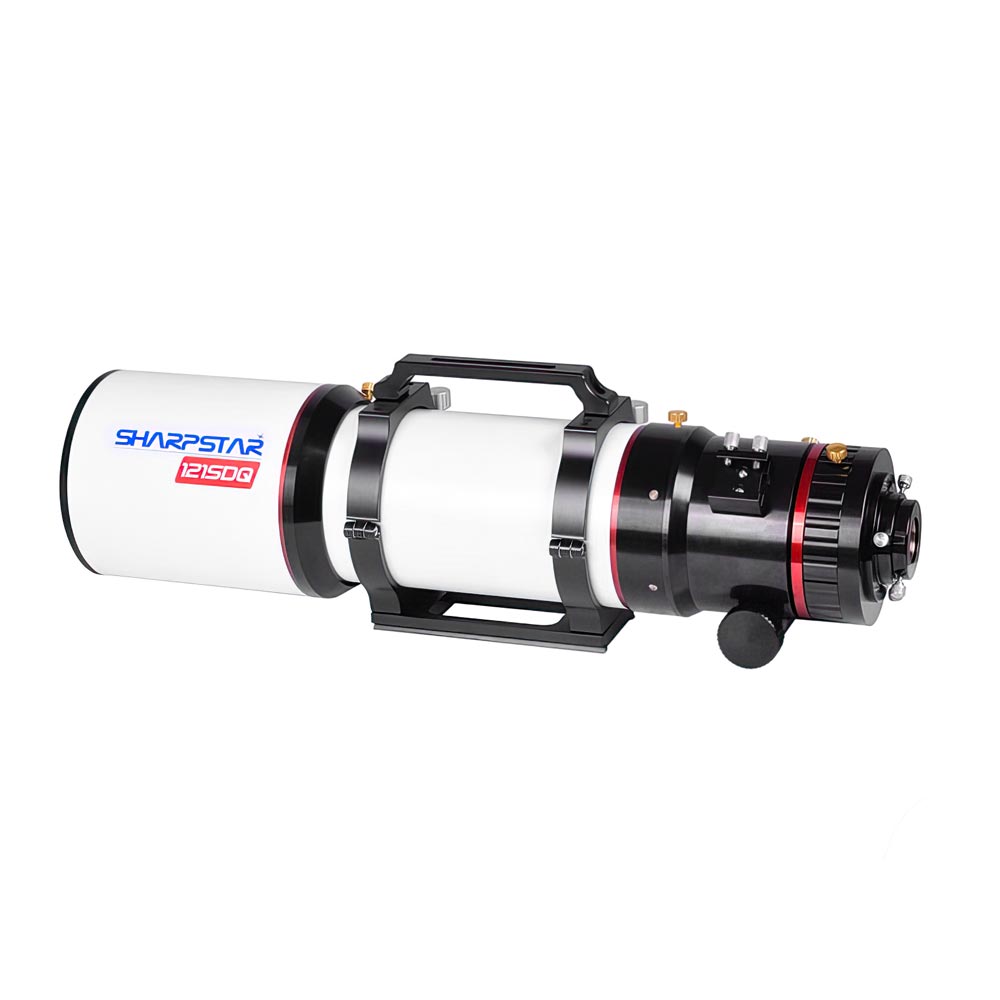

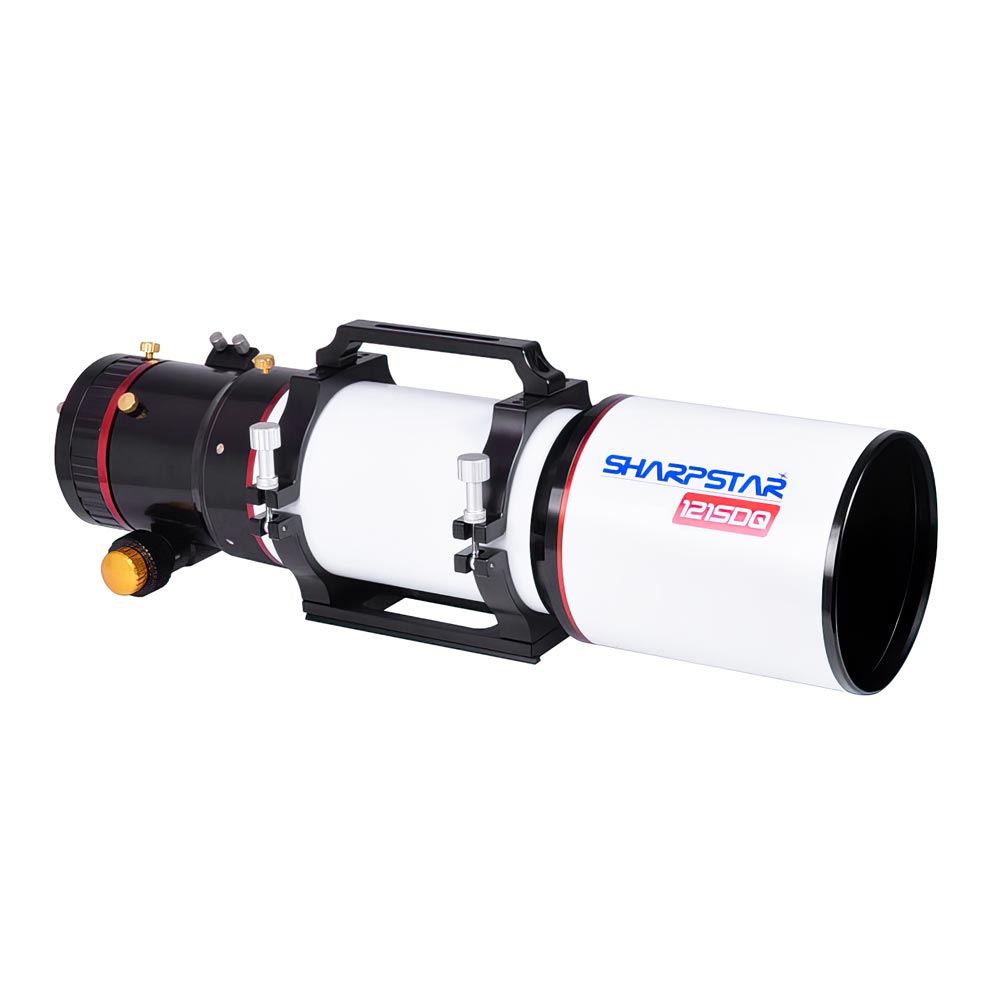

SHARPSTAR 121SDQ APO QUINTUPLET f/5.6

$5,999.00

Quantity
- +



The Sharpstar 121 SDQ is a professional apochromatic Petzval quintuplet with a focal ratio of f/5.6 and a corrected field of 60mm in diameter.

The lenses are assembled in two groups: an air-spaced triplet on the front and a doublet towards the focus. The objective lens includes one Extra Low Dispersion glass for a superb chromatic correction.

Differently from standard ED refractors, the SharpStar 121-SDQ II features a Petzval design that does not require to set the sensor to a specific distance to the last lens. That leaves the freedom to use any filter wheel, any off-axis guider or accessory without any worry to calculate the correct distance from the flattener.

With a large 60mm fully corrected image circle and a focal ratio of f/5.6, this is the perfect astrograph for the advanced astrophotographer. The large rack and pinion 4" focuser can be rotated 360° to perfectly frame the subject and it has a reduction gear of 10:1 for precise focusing and a massive 7.5kg payload. The focuser is compatible with the ZWO EAF electronic focuser bracket.

All the lenses are fully multi-coated and the tube is internally flocked to reduce reflections and absorb stray light. The tube is made of aluminium, the rack and pinion focusing mechanism of brass and the mechanical components are engineered to provide the best rigidity, performance and durability.

Every Sharpstar telescope is inspected on the optical bench by Testar and is guaranteed against defects. To ensure optimal performance, we test every single telescope on an optical bench, using an artificial star in autocollimation. This test can easily reveal the presence of optical defects such as spherical aberration, astigmatism, zonal errors, coma or optical elements out of collimation. The light from the artificial star travels from the eyepiece holder through the lenses and it gets reflected by a high quality Zerodur flat mirror with a correction peak-to-valley of λ/20. Then, the light travels back through the lenses, gets divided by a beam splitter, then is magnified by a high quality Barlow and finally analysed with an eyepiece and a camera. This is a test in double pass and any optical aberration gets magnified twice and therefore optical errors can be easily detected.

This telescope works at its best with its own focal reducer and corrector delivering a fully corrected field of view for the full frame sensors. The CCD inspector results shows that across the entire full frame this telescope produces a "curvature" of only 11.2%. That means at the corner of a full frame sensor, stars are only 11.2% larger than in the centre. For more information about CCD Inspector, please read this article in the Testar blog.

      CCD Inspector results with SharpStar 121 SDQ.

      SharpStar 21 SDQ

      The field is truly fully illuminated for the entire full frame format. The maximum vignetting is less than 3 at the corner of the sensor.



      Optical design

      Apochromatic Quintuplet (Triplet objective + doublet corrector) air spaced

      Objective diameter

      121 mm

      Focal length

      678 mm

      Focal ratio

      f/5.6

      Resolving power

      0.99 arc second

      Stellar limiting magnitude

      12.4

      Max. magnification

      242 x

      Light gathering power

      329 times the human eye

      Mount attachment

      Losmandy style bar (200 mm long)

      Focuser

      Rack & pinion dual speed (10:1) 4" diameter

      Camera connection

      M68 female, M48 x 0.75 male, 2", 1.25"

      Backfocus

      145 mm

      Tube weight

      8.92 kg (including tube rings and dovetail bar)

      Tube length

      588 mm

      Tube diameter

      130 mm

      Dew shield diameter

      160 mm

      SKU

      SS-121SDQ





      • SharpStar 121SDQ f/5.6
      • 132mm tube rings
      • 200mm Losmandy style dovetail bar
      • Handle on the rings
      • Foam-lined aluminium case

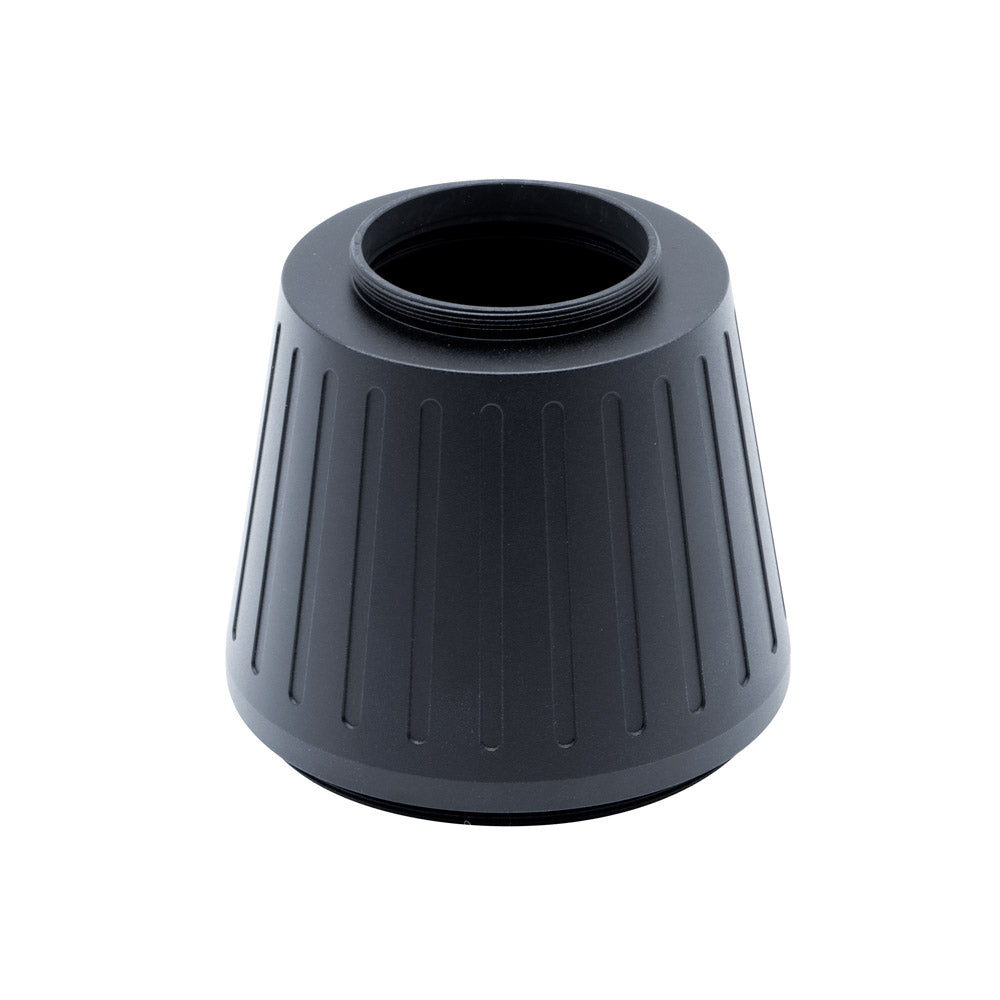

      • Adapter from M82 female to M68 female
      • Adapter from M82 female to M48 x 0.75 male
      • Adapter from M68 male to 2"
      • Adapter from 2" and 1.25"



      M42 by Martin Pugh - Sharpstar 121SDQ, SkyWatcher EQ8, QHY600 Colour, Optolong L-eXtreme



      M42 by Martin Pugh - Sharpstar 121SDQ, SkyWatcher EQ8, QHY600 Colour, Optolong L-eXtreme.




       NGC2516 by Martin Pugh - Sharpstar 121SDQ, SkyWatcher EQ8, QHY600 Colour



      NGC2516 by Martin Pugh - Sharpstar 121SDQ, SkyWatcher EQ8, QHY600 Colour.



         NGC2070 by Martin Pugh - Sharpstar 121SDQ, SkyWatcher EQ8, QHY600 Colour, Optolong L-eXtreme.



      NGC2070 by Martin Pugh - Sharpstar 121SDQ, SkyWatcher EQ8, QHY600 Colour, Optolong L-eXtreme.
      ×
