GEOPTIK SADDLE FOR VIXEN BARS

$79.00

Colour
Orange
Black
Quantity
- +
Description

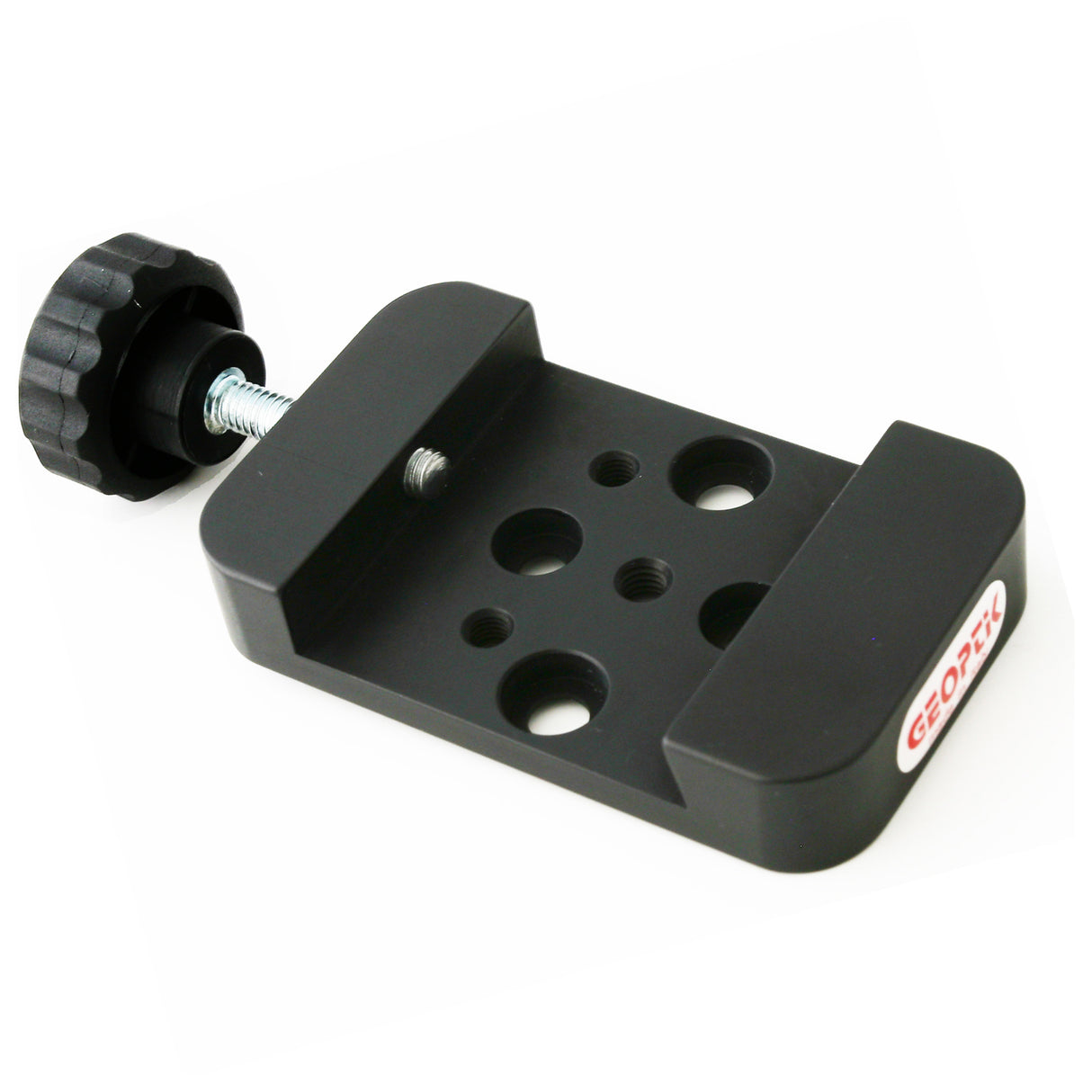

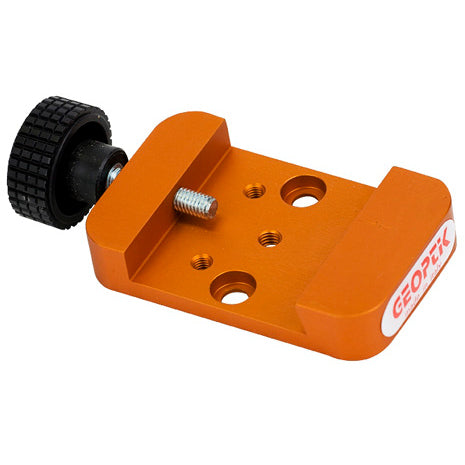

This Vixen saddle plate is a simple accessory to connect a telescope equipped with a Vixen bar to your telescope. All the Geoptik Losmandy saddles are CNC machined and fully anodized.



Top quality made in Italy.



Technical Specifications



Width

80 mm

Thickness

15 mm

Length

50 mm

Weight

TBA

Material

Aluminium Anticorodal 6082-T6

Distance between holes

35mm

SKU

30A072 (orange); 30A072BK (black)
Alloy Composition

Chemical Composition Aluminium Anticorodal AW-6082 - T6

SiFeCuMnMgCrNiZnTiPbBi

Min

0.46%

0.134%

0.010%0.406%0.480%0.020%0.000%0.020%0.001%0.000%0.000%

Max

1.34%

0.525%

0.101%1.000%1.250%0.250%0.000%0.200%0.020%0.011%0.000%
×
