QHY991 SCIENTIFIC SWIR CAMERA

$20,000.00AUD
SKU: QHY991

QHYCCD

0.52 kg

Contact us

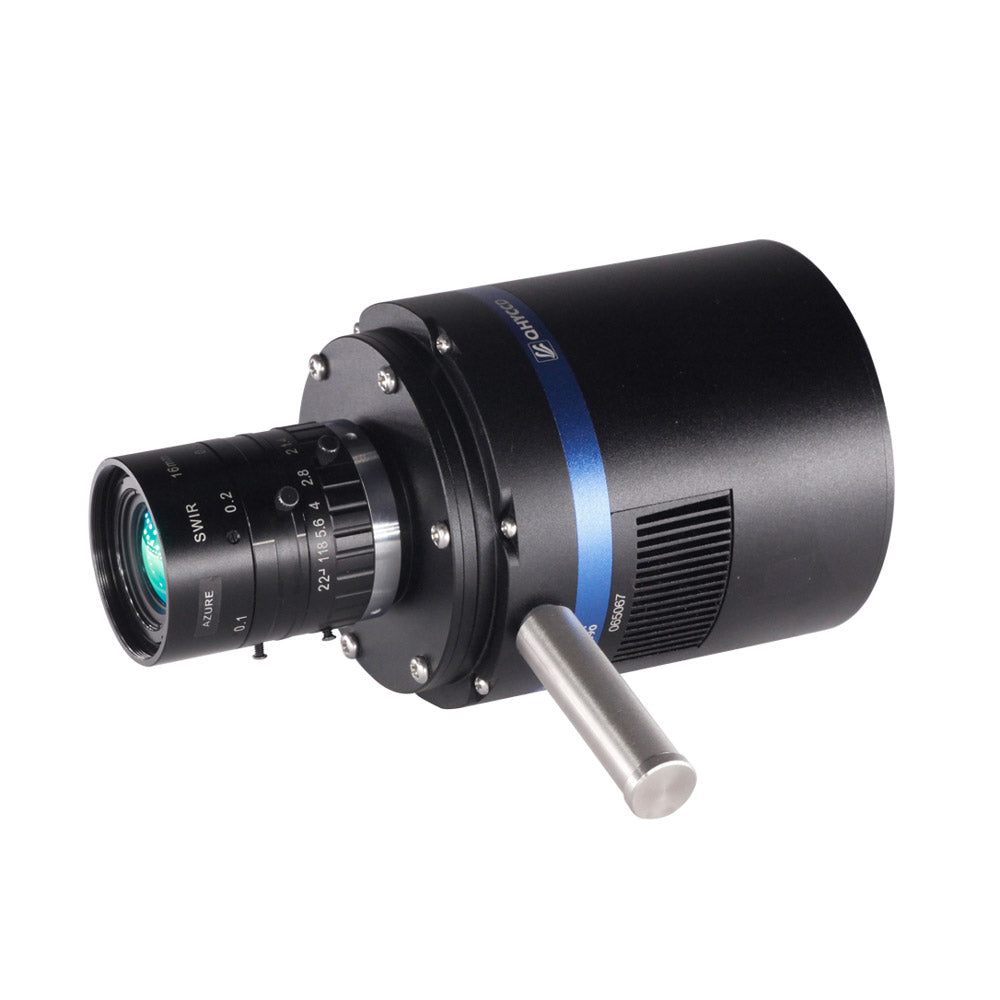

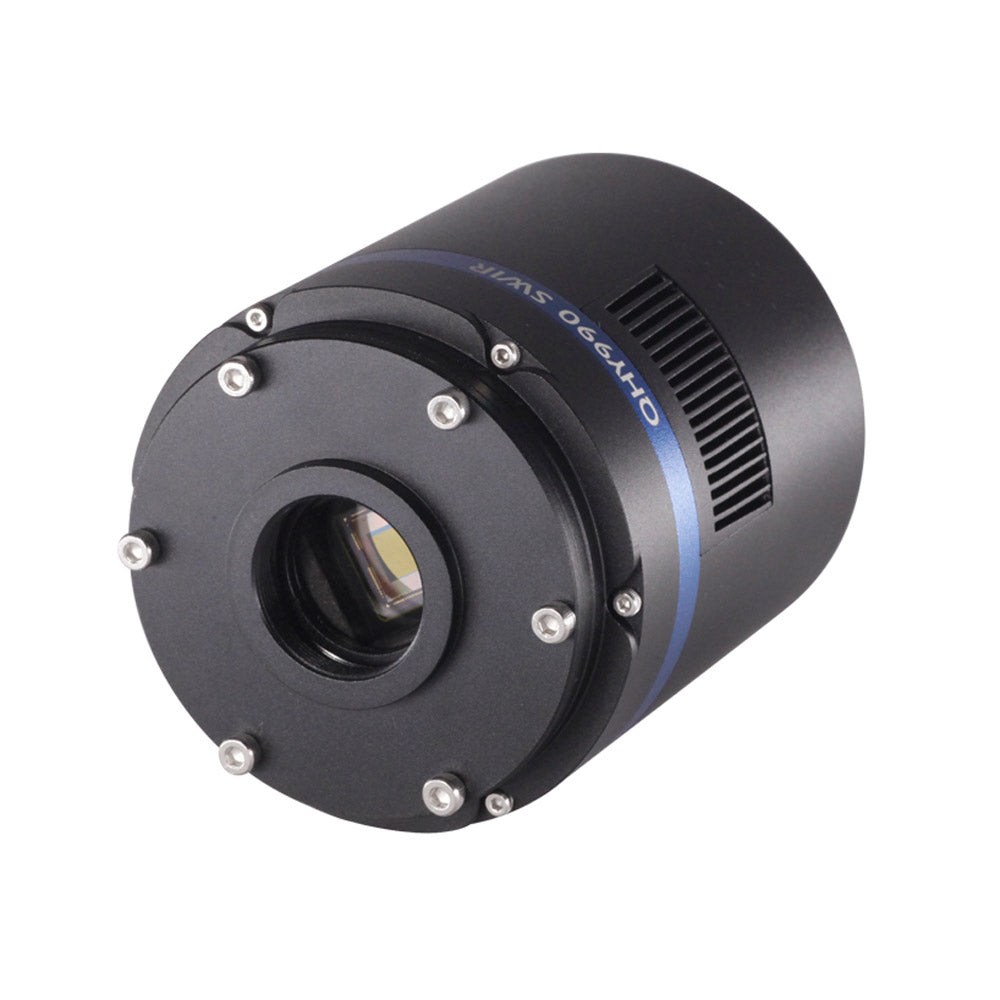

The QHY 991 is a scientific cooled short wavelength infrared (SWIR) camera featuring the Sony IMX991 InGaAs sensor with a square 5µm x 5µm pixel array and 0.4 million effective pixels. This chip has a wide waveband (0.4um-1.7um) with high sensitivity. QE is up to 77% at 1200nm. By using Cu-Cu interconnect technology, the sensor has very low fixed pattern noise and a low pixel defect ratio.

Both QHY990 and QHY991 include a 25mm filter holder. The 25mm filter standard is common for lab applications. SWIR filters can easily be installed inside the camera with the included adapter, keeping the C-mount 17.5mm backfocus requirement.

Both the QHY990 and QHY991 can be specified with air cooling or liquid cooling to suit your requirements. The air cooling can reach -35C below ambient. With liquid cooling you can get to -45C below ambient with normal temperature liquid, or up to -60 to -80C below ambient with chilled liquid.

Typically the InGaAs sensor has a higher dark current than Silicon-based material. If you are doing long exposure imaging with this camera (eg. exposure >5 sec), QHYCCD recommends selecting the liquid cooling version.


Sony's SWIR image sensor technology is used to make the top InP layer, which absorbs visible light, thinner, making it possible to transmit light to the InGaAs layer underneath, delivering high quantum efficiency even in the visible range. This design enables imaging in a broad range of wavelengths from 0.4μm to 1.7μm, enabling the use of a single camera instead of the conventional multiple that were required to capture visible light and SWIR.





Applications: SWIR Astronomy Imaging and Photometry, Daytime Star Observing, Optical Communication, Optic Labs.

Specifications



Sensor Sony IMX991 SWIR sensor
Resolution 0.4 Megapixels 752 x 520 (with optic black area)
Pixel size 5.0 x 5.0 µm
Sensor size 1/4 inch
Quantum efficiency >77% @ 1200 nm
Read noise 150 e- at lowest gain ; 20 e- at low gain
Full well capacity 120,000 e-
Bit rate 12 bit ADC
Frame rate 133 fps at full resolution (12 bits)
Shutter type Electronic global shutter
Cooling ΔT of 35°C (air cooled), 45 - 80°C (liquid cooled), Dual Stage TEC cooler
Ports USB 3.0
Back focus 17.5 mm (with filter adapter), 14.5 mm (without filter adapter), 12.5 mm (with basic interface)
Connections C-mount, 1.25" adapter, flange with 6 x M3 screws
Trig function Hardware Trig-In socket (RCA type), opto-isolated
SKU QHY991





    Downloads



    Guide to installing QHY and ASCOM drivers for QHYCCD cameras.


    ZWO camera software QHY camera drivers (TBD)

    ZWO camera software QHY 990 manual (TBD)


    Gallery



    QHY990 Sample Image in daytime. 16mm F1.4 SWIR lens @F2.8, 1200-1800nm filter.  Gain=0, exposure time = 1.3ms.
    QHY990 Sample image under sky (at night). 16mm F1.4 SWIR lens @F1.4, 1200-1800nm filter. Exposure = 2sec, stack of 29 frames, -11C sensor temperature. Dark frame calibrated.
