QHY268M PRO IMAGING KIT

$4,949.00 AUD
SKU: QHY268M-PH-KIT1

QHYCCD

6 FPS

16-bit

23.61 x 15.83 mm

3.76 µm


KIT

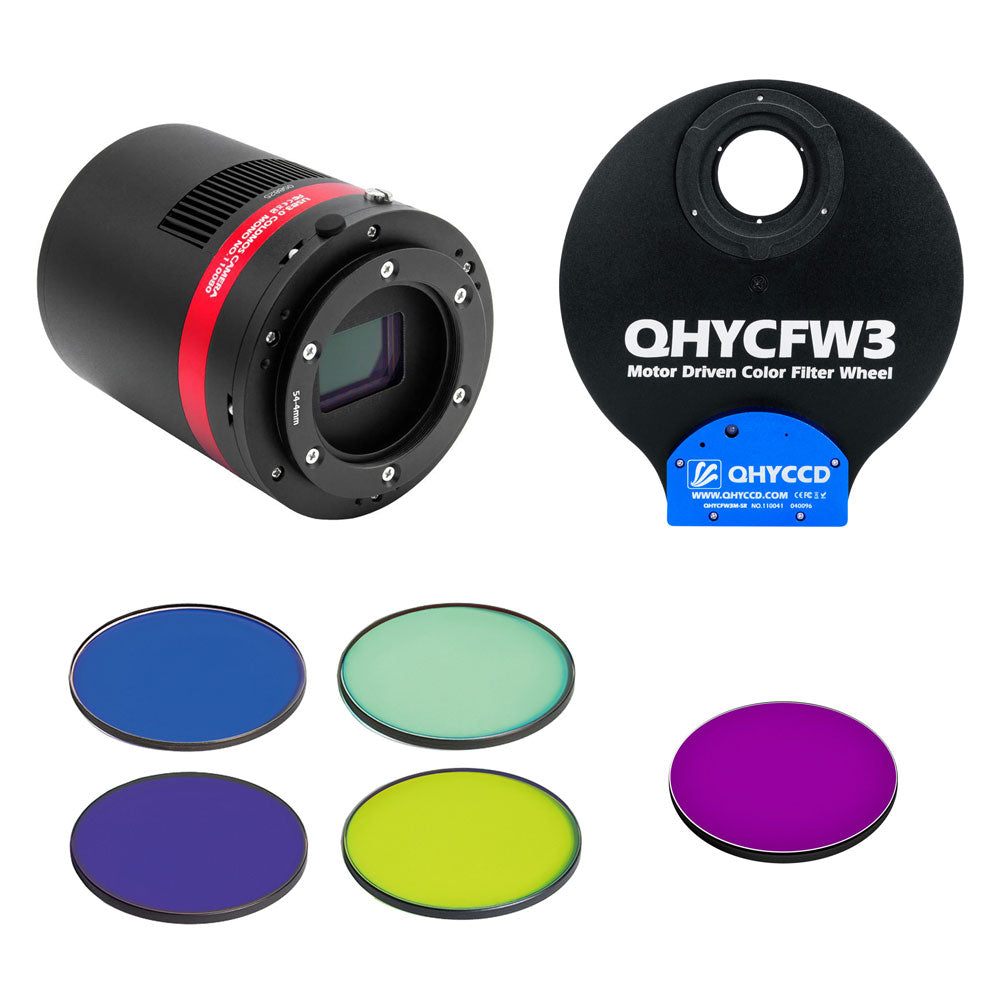

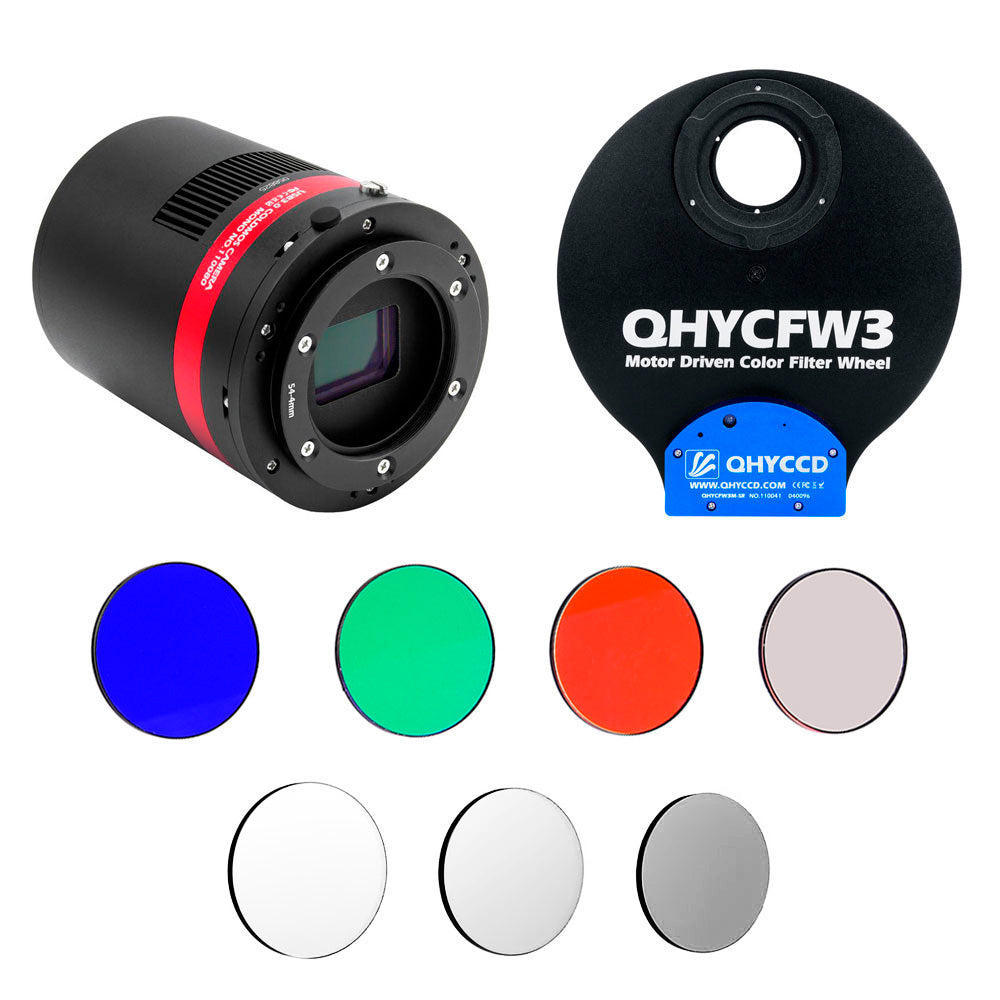

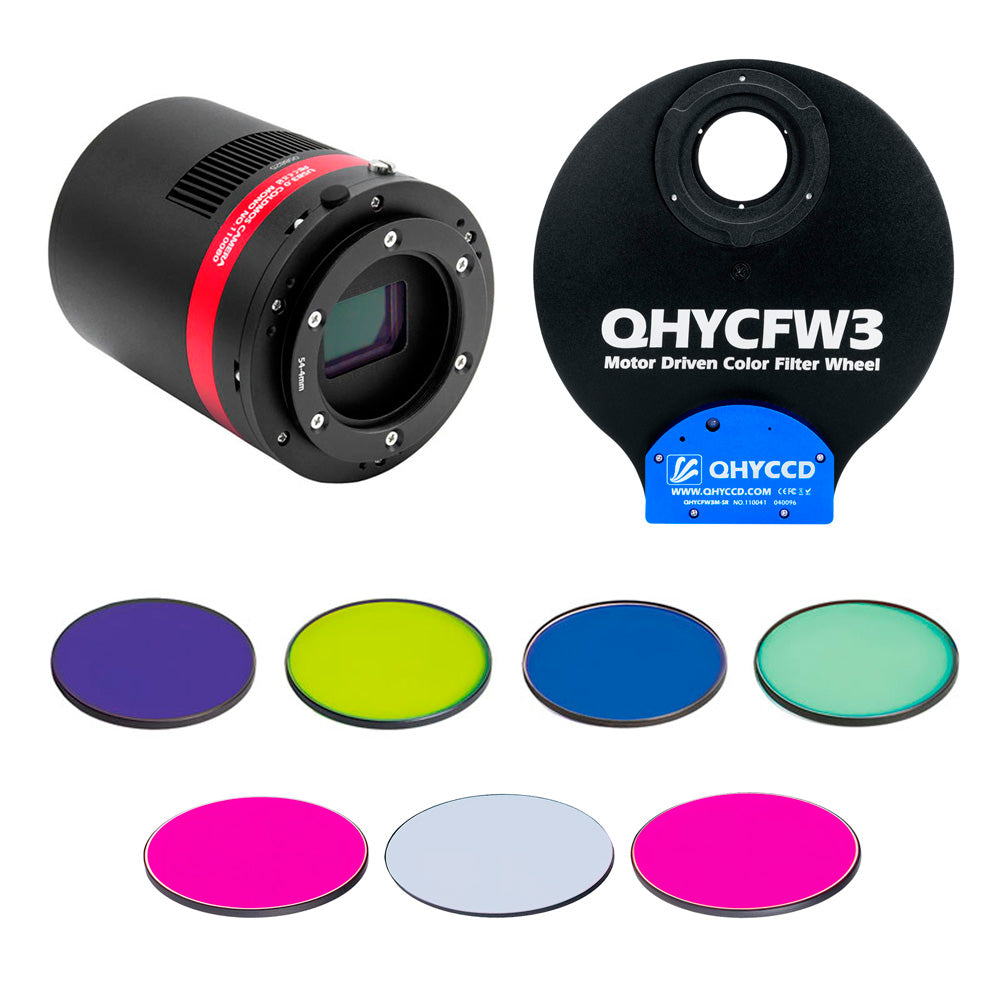

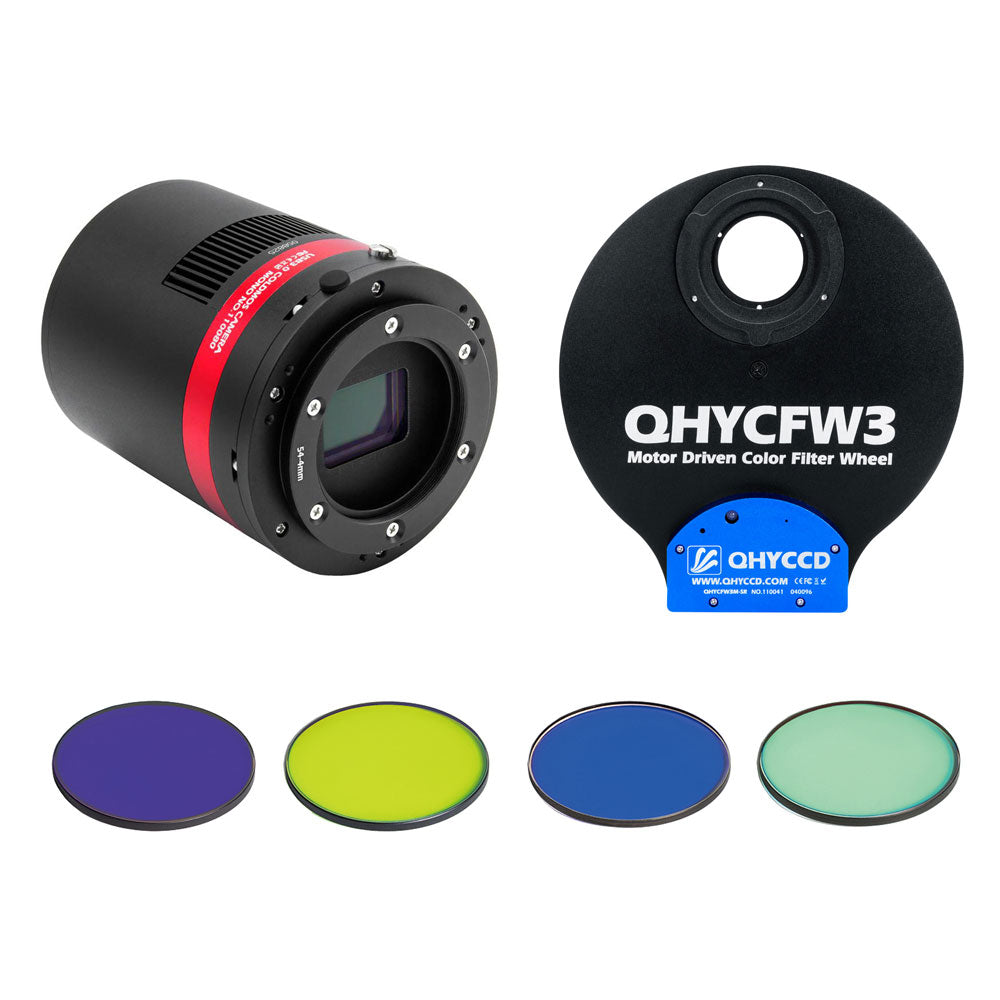

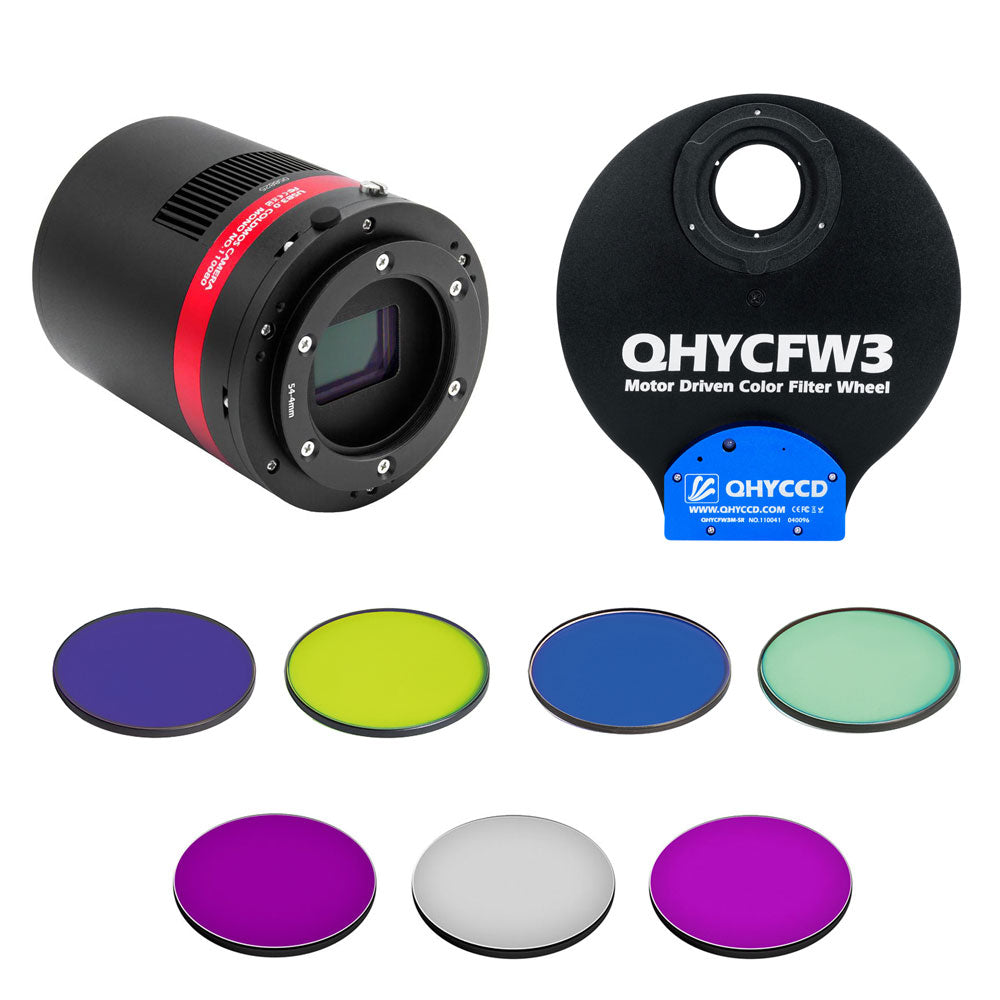

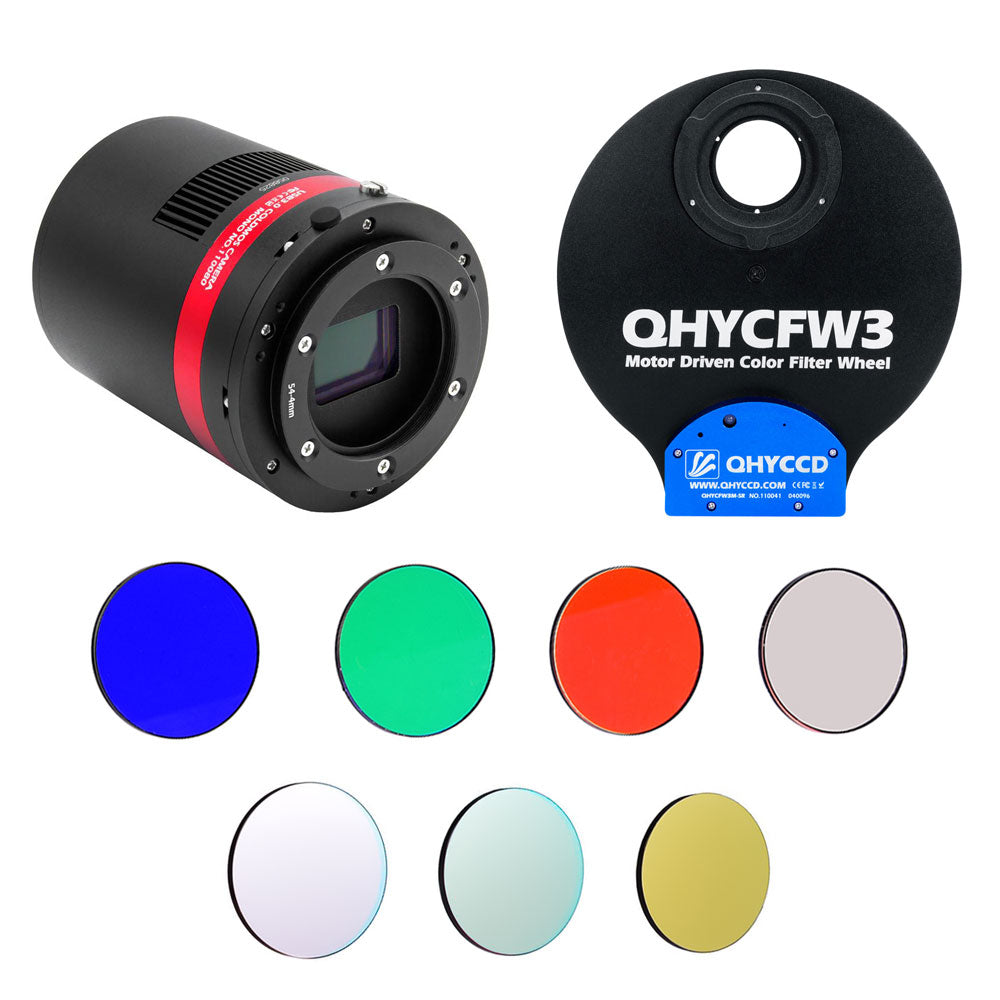

The QHY268M Pro Imaging Kits include the following items:



The QHY268M PRO uses the back-illuminated Sony ExMor IMX571 APS-C sensor. It features a QE up to 91%, a native bit rate of 16 bits, an ultra-high 14 stops dynamic range and ultra-low 1.0e readout noise.

The APS-C sensor has the size of 23.5mm x 15.7mm for a diagonal of 28.3mm. Sony’s back-illuminated CMOS technology improves sensitivity, minimizes noise, reduces power consumption and increases data download speed.

The QHY CFW3 Medium is a motorized filter wheel designed for 7 unmounted filters with a diameter of 36mm. It uses a high quality ultra-thin hybrid stepper motor that compared to standard electrical motors, is more precise as it has a smaller stepper angle.

Optolong LRGB & 7nm SHO filters provide excellent transmission over 80% and off-band blocking, making them a great choice for an affordable price. Their new 3nm SHO filters are a better choice for areas with high light pollution.

Antlia LRGB & 3nm SHO filters give professional, high contrast results even under very light-polluted skies. The maximum transmission is between 88-90% with transmission off-band only 0.1%.

Chroma LRGB & 3nm SHO filters are the finest astrophotography filters on the market. For applications where the highest image quality is required, these are simply unbeatable.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

QHY268M PRO IMAGING KIT

From $4,949.00 AUD

KIT

  • OPTOLONG LRGB 36mm
  • OPTOLONG LRGB + Ha 7nm 36mm
  • OPTOLONG LRGB + SHO 7nm 36mm
  • OPTOLONG LRGB + SHO 3nm 36mm
  • ANTLIA LRGB + SHO 3nm 36mm
  • CHROMA LRGB + SHO 3nm 36mm

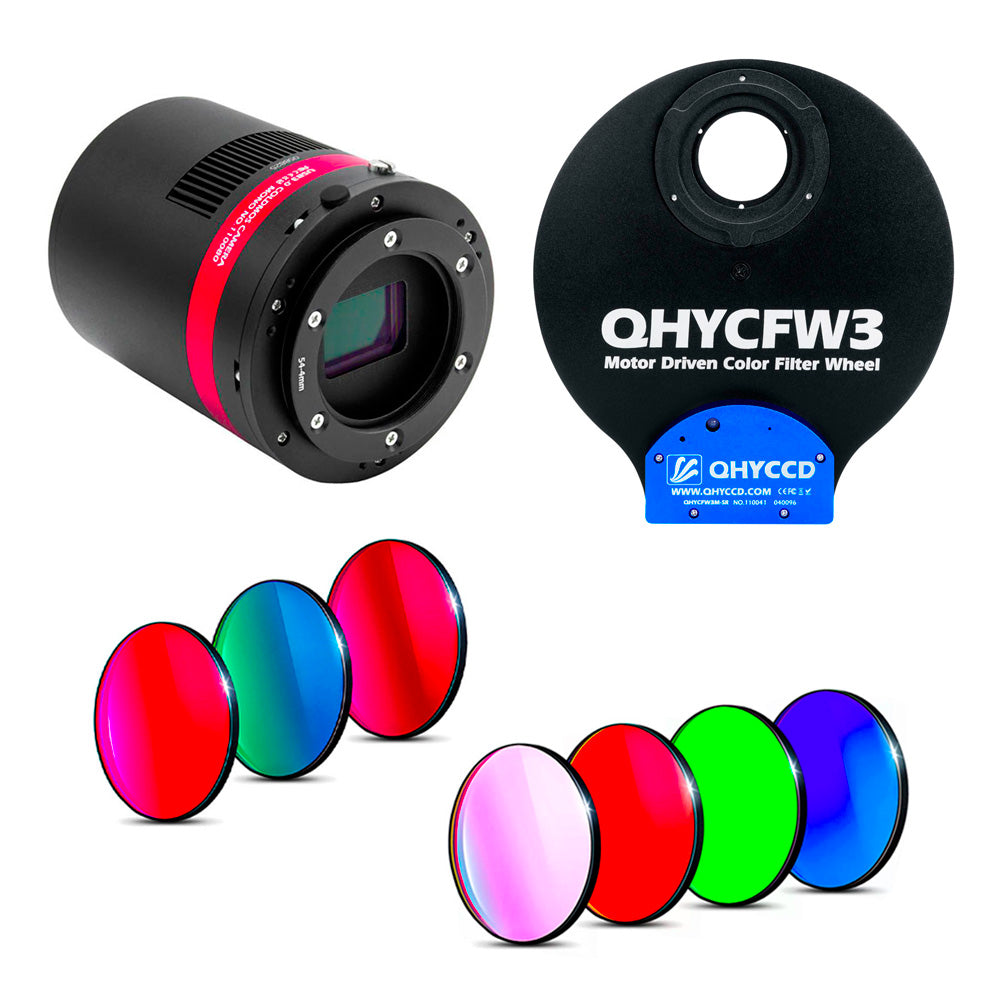

  • BAADER LRGB + SHO 6.5nm 36mm

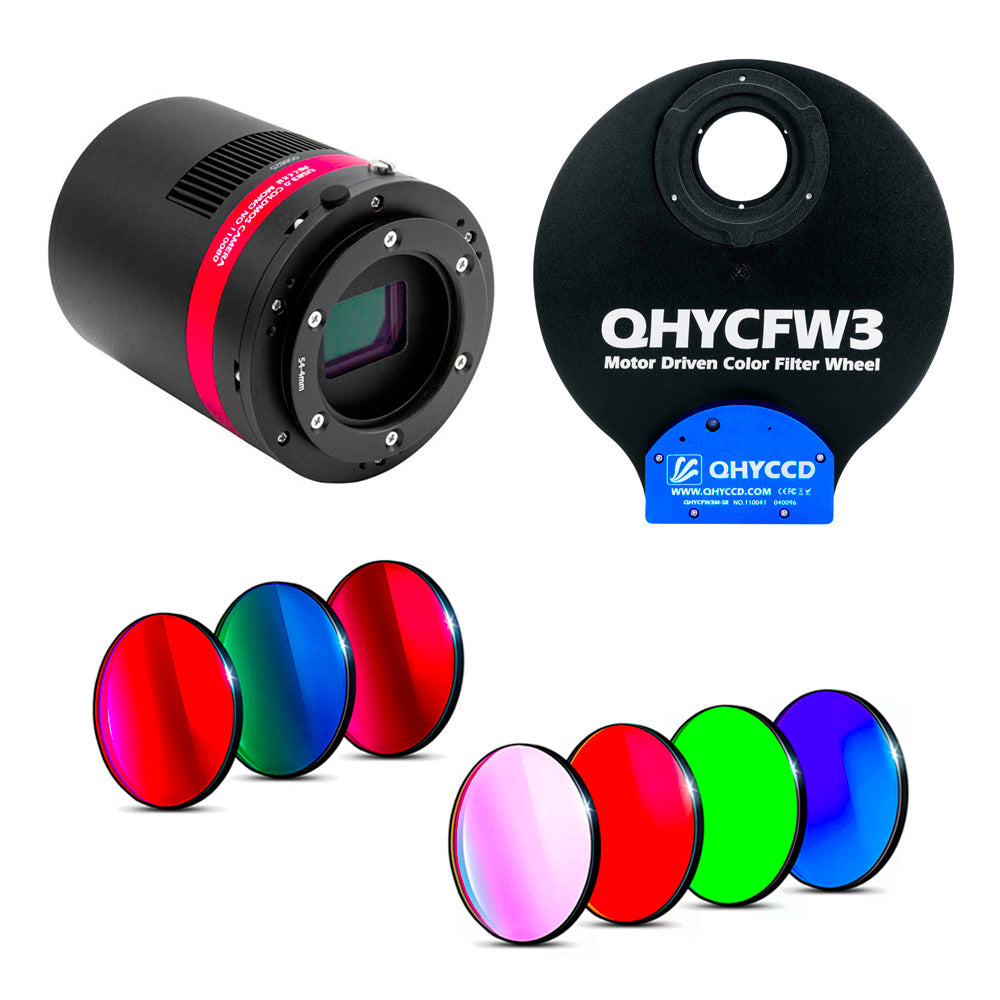

  • BAADER LRGB + SHO 3.5-4nm 36mm

Optical design

Image circle

Focal ratio

Aperture

Focal length

Optical thickness

Threads

Cooled

Cooled

Colour or Mono

Monochrome

Pixel size

3.76 µm

Sensor dimensions

23.61 x 15.83 mm

Resolution

6280 x 4210

Sensor diagonal

28.43 mm

Quantum efficiency

80%

Read noise

1.1 e-

Fullwell capacity

51,000 e-

Bit depth

16-bit

FPS

6 FPS

Camera backfocus

14.5 mm
