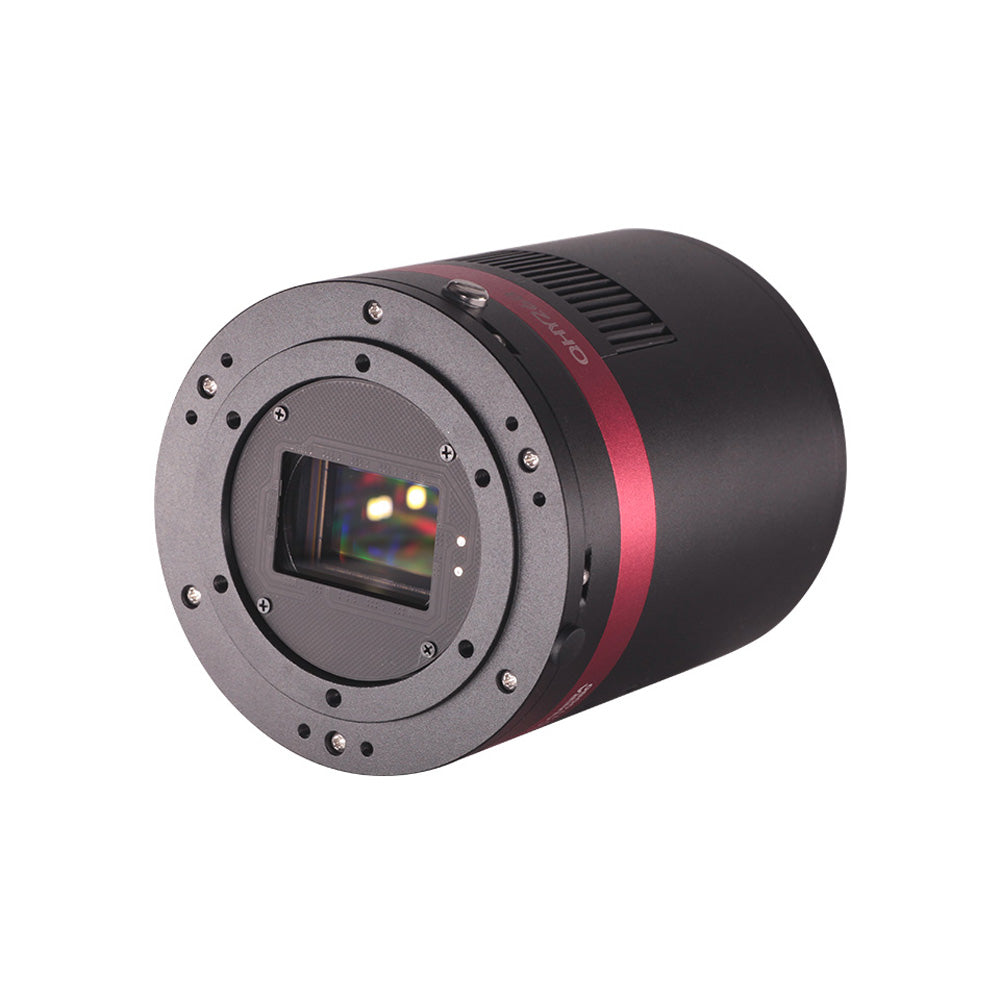

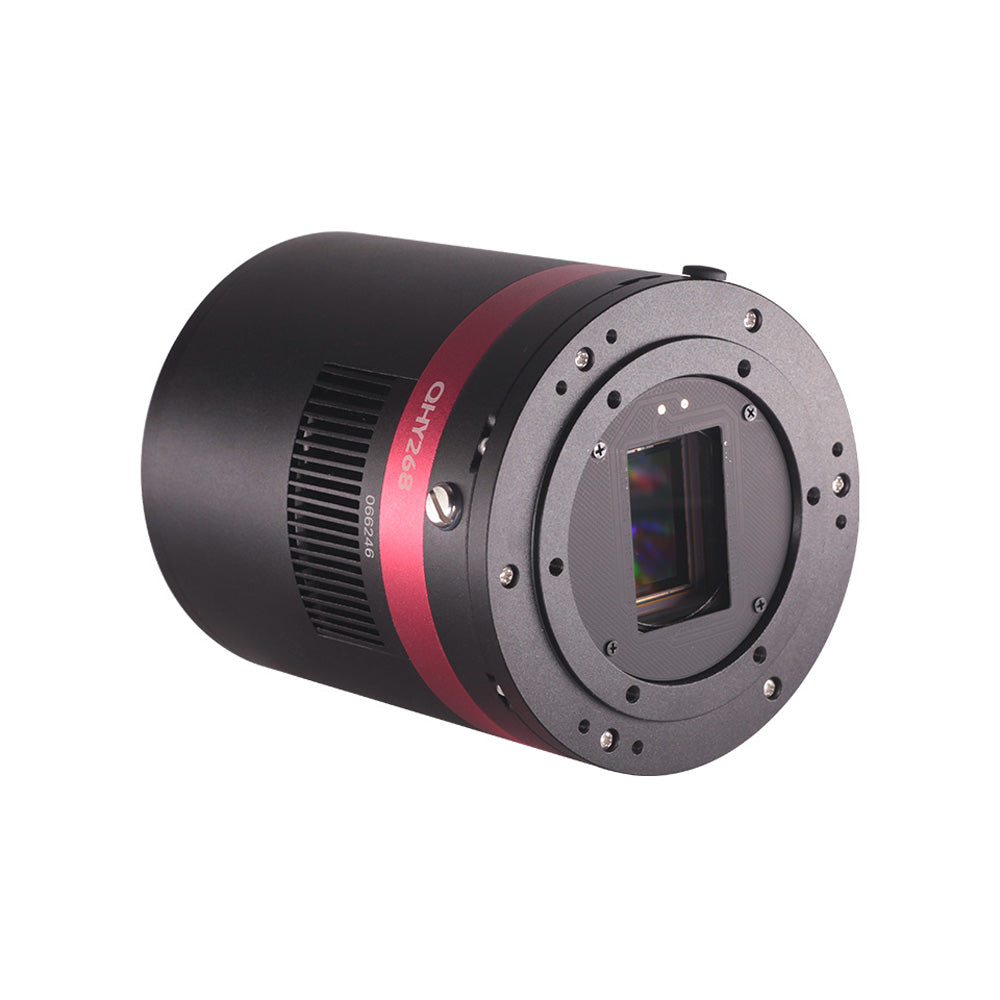

The QHY 268C - Photographic version is one of the most advanced colour camera for astrophotography. It installs the Sony IMX571, a high performance back illuminated cooled colour sensor with true 16-bit A/D. This translates to a dynamic range of 14 stops for vibrant and natural colours, even in faint or dark nebulae. The pixels have a size of 3.8 µm, ideal for telescopes with different focal lengths.
The QHY268C comes with all adapters necessary to reach 55mm backfocus, required by most correctors/reducers.
The 268C has three different capture modes:
- #0 Photographic Mode: this is the standard mode for general astrophotography. The read noise rapidly drops between 25-26 (2.7e- at gain 26), ideal for longer exposures. The trade-off at gain 26is lower full well capacity at 27,000 e-, but this can be increased with lower gain settings.
- #1 High Gain Mode: above gain 55 the camera switches to HGC mode with readout noise at 3e-. This mode is ideal for narrowband imaging where long exposures are generally required.
- #2 Extended Full Well: ideal for objects with bright stars or strong contrast. Full well capacity is highest along the entire gain range.
- #3 2CMS mode: with correlated multiple sampling, readout noise can be better decreased. this mode can effectively raise the dynamic range under Extended Fullwell Mode.
Unlike DSLRs, the QHY 268C offers true RAW image output that only records the signal without artefacts. Standard DSLRs have the RAW output option but the file is altered with noise reduction and hot pixel removal, undermining the maximum post processing capabilities and final quality of the image.
The camera has a two-stage TEC cooling system that brings the temperature of the sensor 35C° below ambient for low noise imaging, even in warm climates. The dark current at -20°C is only 0.0005 electron/pixels. In addition, QHYCCD employs a unique thermal noise control technology to reduce CMOS sensor noise to a very low value without affecting the integrity of the raw image. The QHYCCD proprietary technology produces a much better noise reduction than any other astronomy camera in the market. The QHY 268C employs a full anti-dew technology for both CMOS sensor cover glass and the optical window to avoid condensation or ice crystal in the camera.
The 1GB DDR II memory buffer facilitates the download of images to the computer, especially when USB traffic is high, the writing speed of your computer is slow or occupied with other processes.
In order to avoid halos around bright stars, the QHY 268C has an AR coated optical window on both sides rather than the common IR/UV cut coating. Also, the protection glass of the sensor is AR coated to maximize light transmission and minimize internal reflections. For a better RGB colour balance, it is recommended to use a UV/IR cut filter.
Every QHY 268C camera is carefully calibrated with a high-precision axis measurement device. Orthogonal sensor placement in the camera body is guaranteed to be flat to the image plane with a precision better than +/-20µm across the sensor edge to edge. This is an enormous advantage especially in fast telescopes such as F/2.8-F/4 astrographs which are very sensitive to tilted sensors.
The QHY 268C has zero amplifier glow no matter how long the exposure is.
QHY has designed a number of adapter kits for the 268C:
Connection to coma corrector requiring 55mm backfocus and M48 interface
Connection to Canon EF lens
Connection to Nikon F lens
|Sensor||Sony IMX571 back illuminated APS-C CMOS - COLOUR|
|Resolution||26 Megapixels 6280 x 4210|
|Pixel size||3.76 µm|
|Sensor size||23.61 mm x 15.83 mm (28.43 mm diagonal)|
|Read noise||1.1e- at high gain; 3.5e- at lowest gain (5.3e- at high gain ; 7.4e- at lowest gain in extended full well mode)|
|Dark current||0.0005e-/pixel/sec @ -20C|
|Full well capacity||51,000 e- (more than 75ke- in extended full mode)|
|Bit rate||Native 16 bit ADC|
|Frame rate||6 fps at full resolution (16 bits)|
|Shutter type||Rolling shutter|
|Cooling||ΔT of 35°C Dual Stage TEC cooler|
|Memory buffer||1 GByte DDR3|
|Compatibility||Mac, Windows, Linux|
|Optical window||AR coated (both sides)|
|AR coating on sensor||YES|

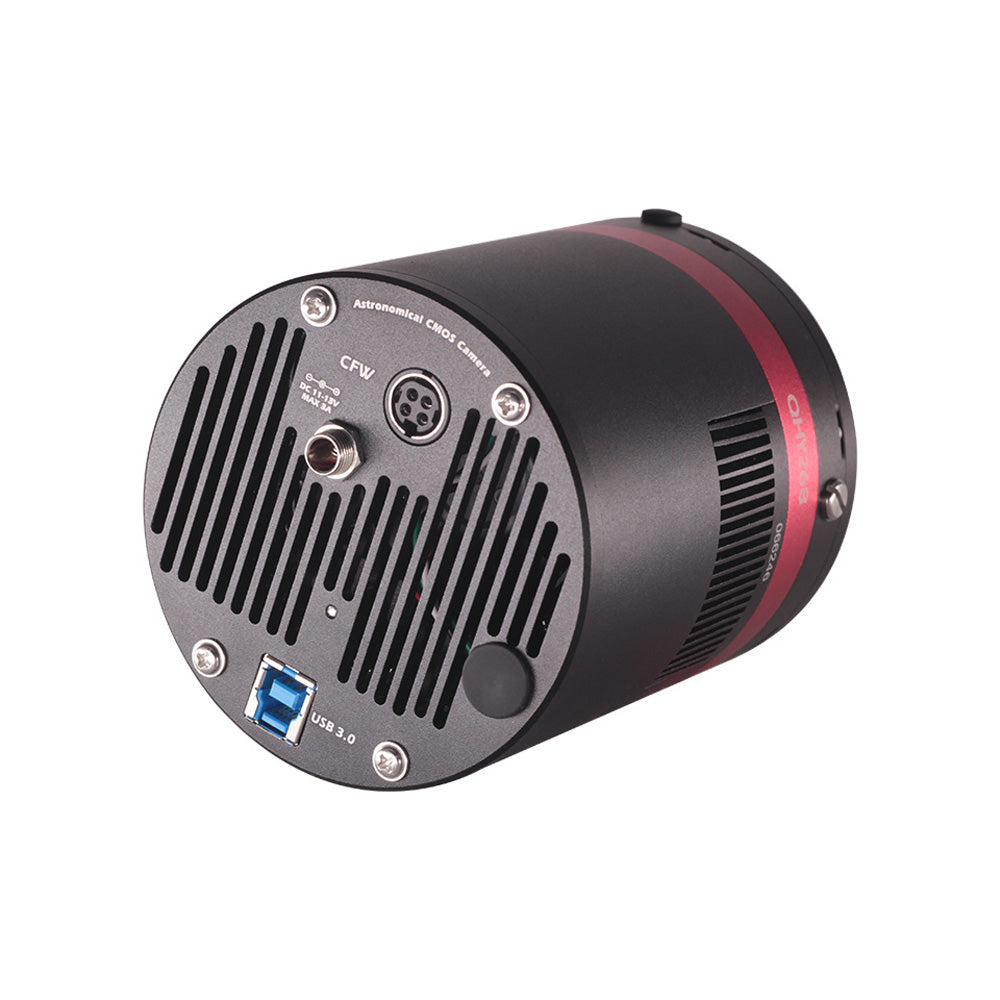

|Ports||USB 3.0, CFW|
|Compatibility||Mac, Windows, Linux|
|Back focus||17.5 mm ±0.3mm|
|Connections||M54 x 0.75 female thread (embedded in camera dovetail adapter)|
|Dimensions||Ø 90 mm; ↨ 112.80 mm|
|Power supply||12V 3A (2.1×5.5 mm connector)|
- QHY 268C PH
- USB 3.0 cable 1.5m
- Power cable (5.5-2.1mm male jack with locking nut to 5.5-2.1mm female jack)
- Lighter plug adapter to 5.5-2.1mm power jack
- Desiccant Tube (desiccant not included)
- Camera dovetail to M54 x 0.75 adapter with thumb screws
- M48 x 0.75 female filter adapter for 2" filters - 2.5mm optical thickness
- M48 adapter - 5mm optical thickness
- M54 spacers - 10mm & 14mm optical thickness
- M48 x 0.75 to 2" barrel
- 8 x 36mm M3 screws
- Australian power supply 240 - 12V 5A with 5.5-2.1 power jack
Customer ReviewsWrite a review
The camera arrived a few weeks ago and despite Melbourne’s fickle weather I’ve managed a couple of hours with it.
Am I happy with it so far, Yes.
I chose the QHY over other brands primarily as I’ve had 2 of them before, with only minor issues occurring.
Out of the box, I had previously installed QHYs package for capture etc, all I had to do was plug it in and it worked flawlessly.
The 268c has multiple modes, going by the graphs, high gain mode at 0 and 30 is my go to.
The download speed with usb3 is phenomenal compared to my old cameras, one second and it’s ready to go.
The longest subs I have done so far is 5 minutes, and your brightest stars will definitely fill up the wells in my chosen mode,
Every frame will have the green cast commonly seen with OSC cameras, but easily removed in processing.
With modern processing programs I could almost say that flats, and dark frames are a thing of the past if your chip and train is clean, but out of habit I still do them.
The CMOS chips seem to be very clean, but aside from hot pixels, noise seems much more random, again processing techniques take care of this. There is ZERO amp glow, even when stretched to the extreme.
I found that Beta Centauri did cause a minor reflection from the interaction with a uv/ir filter, this was during testing phase to get back focus sorted. I’m assuming a reflection from the cover to filter and back. I haven’t seen anything on dimmer stars.
A few short exposures, 8x5min, clearly resolved M83 with a decent amount of color, I’m looking forward to doing some serious projects with this camera.
I have purchased a filter drawer, with this setup, as my flattener only allows 46mm backfocus, there is no room for an off axis guider, I already have other filters which I will try in due course. I have yet to see any light leakage through anything.
The three screws with the adapter allow rotation for framing, even though my scope has a rotating ring, I may well use this instead, as it always pays to give the camera a wiggle before you start imaging in case something has come loose.
My limited use so far is proving promising, the resolution is superb, I have yet to see any banding on dark frames, just a speckling of random noise mostly.
I had been waiting for some years for CMOS to come of age, I have had the opportunity to process some images from high end mono CCD cameras, whilst it’s not quite there yet, it’s very close, and for considerably less money.
Color vs Mono, mono will always win in a comparison test of the same chip, but with the increase of sensitivity from older cameras, plus small pixel size ( I get 4 pixels in the same space as my old qhy8) an upgrade from an old camera is likely to be some improvement.
Melbourne is notorious for cloudy skies, the convenience of a OSC is hard to argue if you’re time limited, plus objects like comets really don’t lend themselves to mono.
Finally.... happy with the purchase, the communication from Testar was good, with prompt delivery, I will no doubt be making other purchases in the future.
