QHY ADAPTER COMBO KIT A2 - CANON LENS

$89.00
SKU: QHY-020101

QHYCCD




The QHY Adapter Combo Kit A2 contains all the adapters necessary to easily connect the QHY163M / QHY294M + CFW3-M to a Canon EF lens with a backfocus of 44.1mm

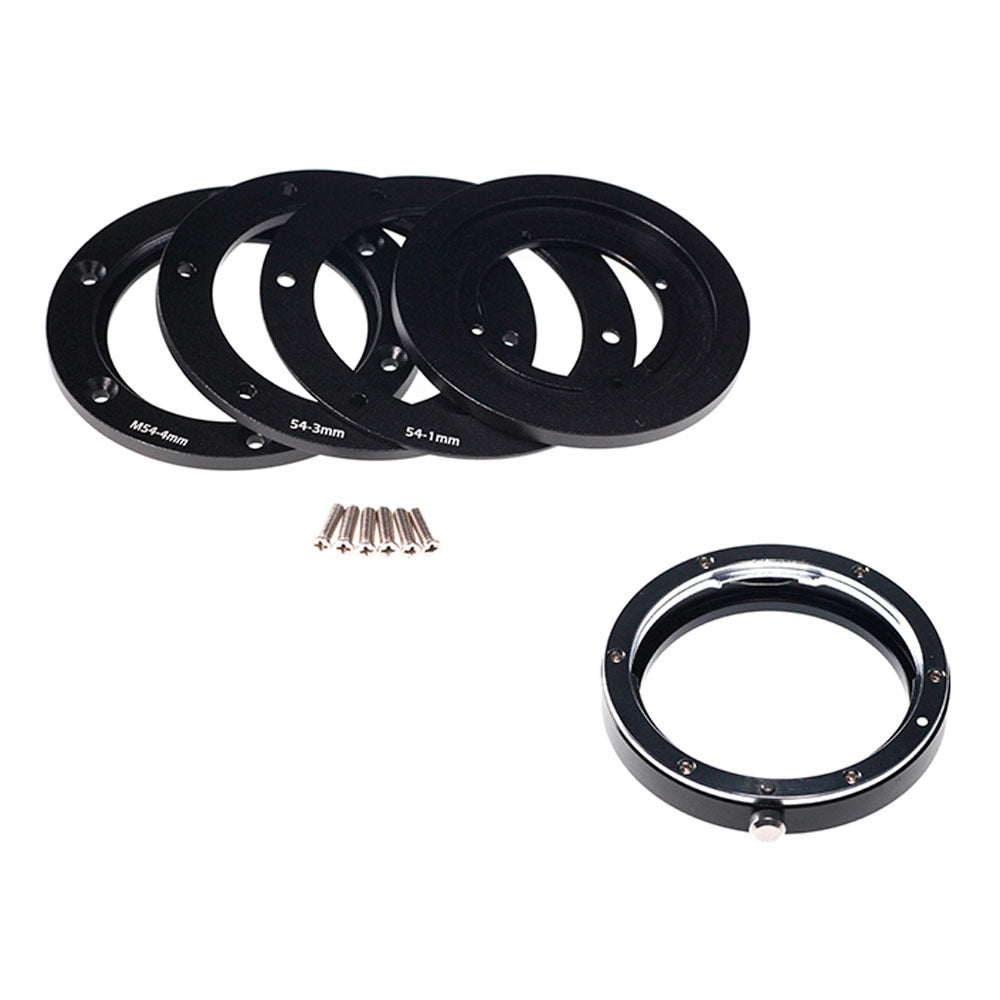

Includes the following items:

  • 1 x 10mm M54 Canon EF lens adapter
  • 1 x 4mm M54 screwed adapter
  • 1 x 3mm spacer
  • 1 x 1mm spacer
  • 1 x Camera top adapter (original name 020063)
  • 8 x 10mm M3 screws


Note: You need to remove the filter wheel and the original connection interface of the camera and replace it with a new adapter.

Specifications



Connection side A Canon EF mount
Connection side B M54 x 0.75
Optical thickness 10 mm
SKU QHY-020101
