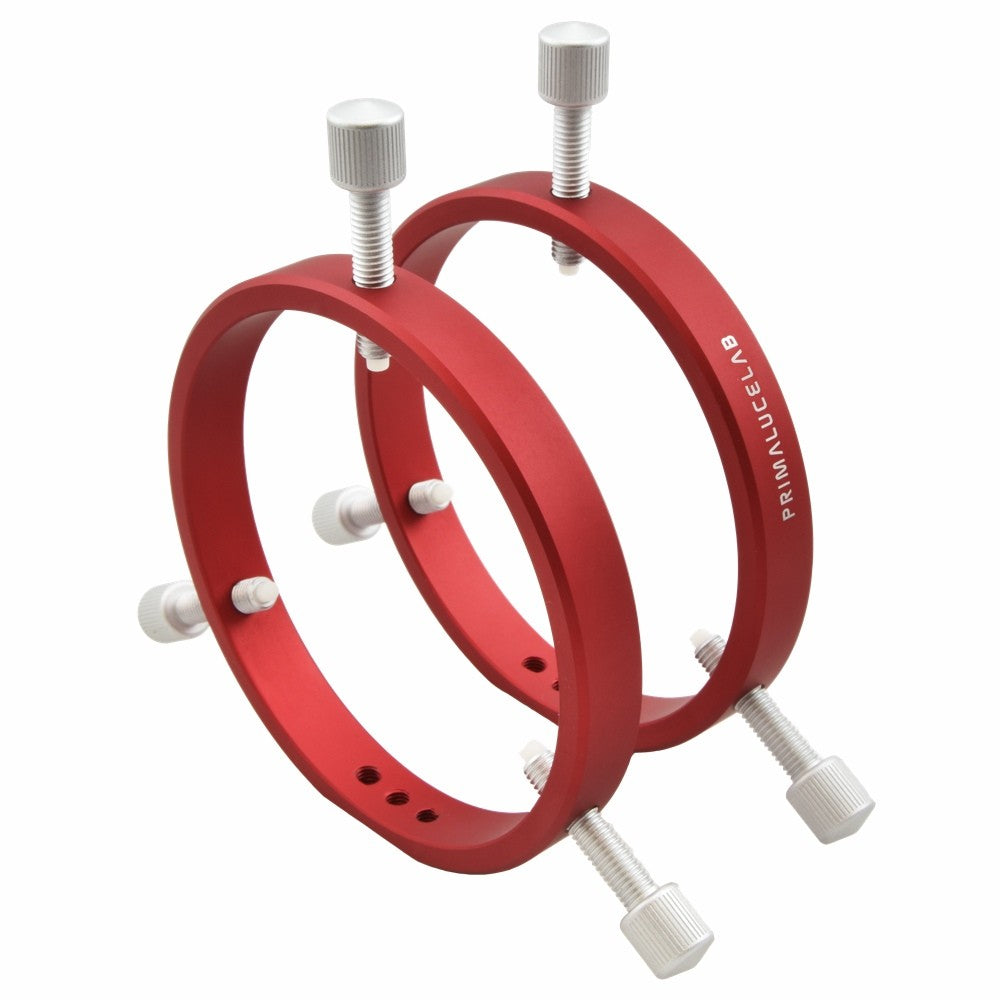

PRIMA LUCE LAB GUIDE RINGS PLUS 115mm

$169.00AUD
SKU: PLLANGU115P

Prima Luce Lab



The Prima Luce Lab PLUS 115mm guide rings are the easiest solution to install a guide telescope in parallel with your main telescope. The 115mm rings will fit guide scopes with an outer diameter of between 53mm - 110mm.

These rings belong to the PLUS system (Prima Luce Universal System) that includes a large variety of telescope rings, bars, guide rings and dovetail clamps. The rings have a system of drilled and threaded holes that maximize the compatibility between parts, allowing several mechanical combinations and assembly solutions.

Each component of the PLUS system is carved from aluminium blocks that are CNC machined. Then, the aluminium is sandblasted to achieve a very smooth surface finish and is anodized (hard anodizing) to increase the hardness of the material and to protect it from oxidation.


The 115mm guide rings PLUS can be:

  1. connected directly to all the PLUS compatible components using 2 screws or to support rings of other brands.
  2. screwed on the PLUS dovetail bars (Vixen or Losmandy).

If you have mechanical accessories from other brands, you can still use all the elements of the PLUS system through the central hole of the ring.


    Specifications



    External Diameter: 130 mm
    For telescopes 53 - 110 mm outer diameter
    Material: Anodized aluminium
    Rings screws: Aluminium screws with nylon tips
    Total weight: 330 gr
    SKU
    		 PLLANGU115P
