PRIMA LUCE LAB 9mm T2 (M42) EXTENSION

$28.00 USD
SKU: PL3304209

Prima Luce Lab

  • M42 x 0.75 Male
  • M42 x 0.75 Female
  • Optical thickness: 9 mm

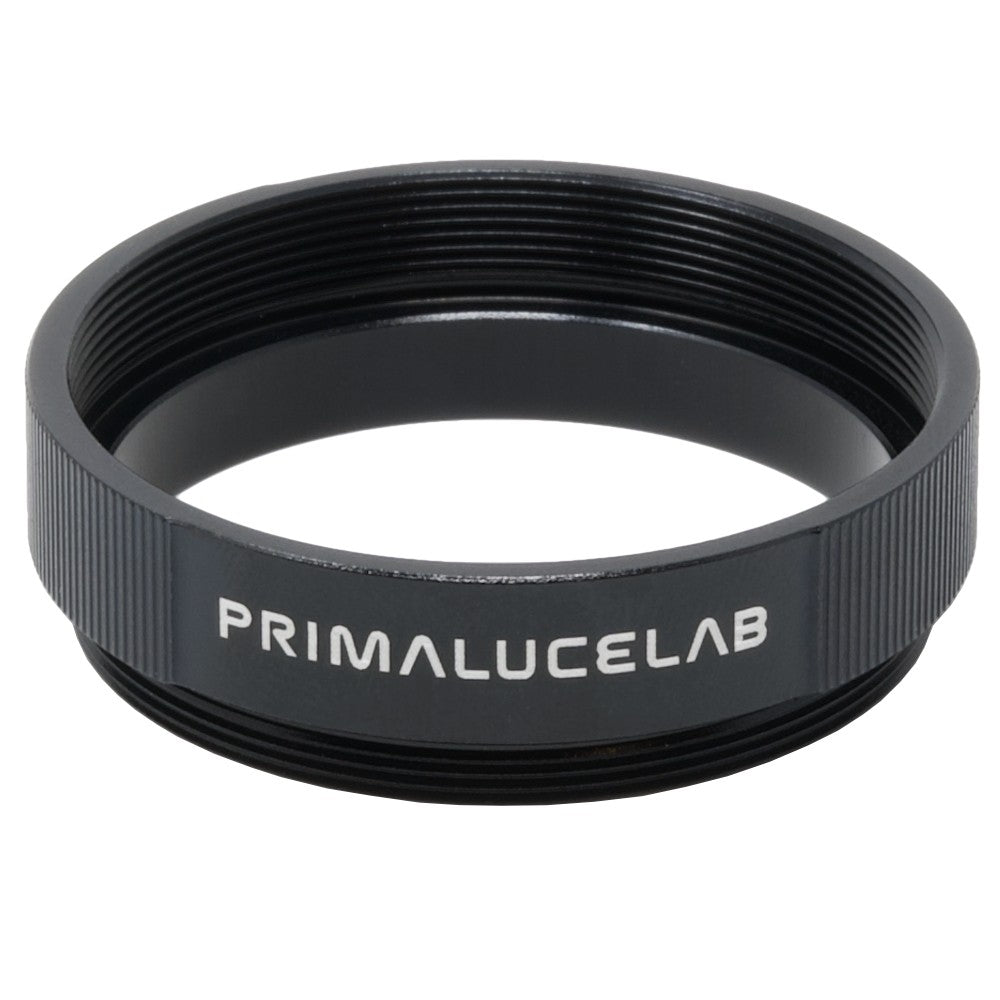

This Prima Luce Lab T2 (M42) extension has an optical thickness of 9mm. On one side there is a T2 (M42) male thread and on the other side a T2 (M42) female thread. The extension is made of anodized aluminium and it has an external knurling for a better grip to screw and unscrew it.

M42 extension rings can be used with optical accessories such as field flatteners or focal reducers to position the camera sensor at the right distance from the corrector/reducer. The flange-sensor distance is often equal to 55mm and it must be precisely calculated in order to maximize the optical performance of the corrector/reducer.

M48 spacer 0,5mm

T2 extensions can be screwed together. In order to set the perfect thickness you need, you can also add the T2 1mm and 0.5mm spacers in between.



Prima Luce Lab offer a large variety of extension rings and spacers to match the right distance:



Thickness (mm) Combination Codes
5
5mm T2 extension PL3304205
5.5 5mm T2 extension + T2 spacer 0.5mm PL3304205 + PL3304200
6 5mm T2 extension + T2 spacer 1mm PL3304205 + PL3304201
6.5 5mm T2 extension + T2 spacer 1mm + T2  spacer 0.5mm PL3304205 + PL3304201 + PL3304200
7 7mm T2 extension PL3304207
7.5 7mm T2 extension + T2 spacer 0.5mm PL3304207 + PL3304200
8 7mm T2 extension + T2 spacer 1mm PL3304207 + PL3304201
9 9mm T2 extension PL3304209
9.5 9mm T2 extension + T2 spacer 0,5mm
PL3304209 + PL3304200
10 5mm T2 extension + 5mm T2 extension PL3304205 + PL3304205
10.5 5mm T2 extension + 5mm T2 extension + T2 spacer 0.5mm
PL3304205 + PL3304205 + PL3304200
11 5mm T2 extension + 5mm T2 extension + T2 spacer 1mm PL3304205 + PL3304205 + PL3304201
11.5 5mm T2 extension + 5mm T2 extension + T2 spacer 1mm + T2 spacer 0.5mm PL3304205 + PL3304205 + PL3304201 + PL3304200
12 5mm T2 extension + 7mm T2 extension PL3304205 + PL3304207
12.5 5mm T2 extension + 7mm T2 extension + T2 spacer 0.5mm PL3304205 + PL3304207 + PL3304200
13 5mm T2 extension + 7mm T2 extension + T2 spacer 1mm PL3304205 + PL3304207 + PL330420
13.5 5mm T2 extension + 7mm T2 extension + T2 spacer 1mm + T2 spacer 0.5mm PL3304205 + PL3304207 + PL3304201 + PL3304200
14 7mm T2 extension + 7mm T2 extension PL3304207 + PL3304207
14.5 7mm T2 extension + 7mm T2 extension + T2 spacer 0.5mm
PL3304205 + PL3304207 + PL3304200
15 7mm T2 extension + 7mm T2 extension + T2 spacer 1mm PL3304207 + PL3304207 + PL3304201
15.5 7mm T2 extension + 7mm T2 extension + T2 spacer 1mm + T2 spacer 0.5mm
PL3304207 + PL3304207 + PL3304201 + PL3304200
16 7mm T2 extension + 9mm T2 extension PL3304207 + PL3304209
16.5 7mm T2 extension + 9mm T2 extension + T2 spacer 0.5mm
PL3304207 + PL3304209 + PL3304200
17 7mm T2 extension + 9mm T2 extension + T2 spacer 1mm PL3304207 + PL3304209 + PL3304201
17.5 7mm T2 extension + 9mm T2 extension + T2 spacer 1mm + T2 spacer 0.5mm PL3304207 + PL3304209 + PL3304201 + PL3304200
18 9mm T2 extension + 9mm T2 extension
PL3304209 + PL3304209

18.5

9mm T2 extension + 9mm T2 extension + T2 spacer 0.5mm PL3304209 + PL3304209 + PL3304200
19 9mm T2 extension + 9mm T2 extension + T2 spacer 1mm PL3304209 + PL3304209 + PL3304201
19.5 9mm T2 extension + 9mm T2 extension + T2 spacer 1mm + T2 spacer 0.5mm
PL3304209 + PL3304209 + PL3304201 + PL3304200





Prima Luce Lab adapter and extension installed between camera.









Thread

M42 x 0.75

Optical thickness

9 mm (male thread not taken into account)

Length of the male thread

3.90 mm

Clear aperture

38.5 mm

Material

Aluminium

SKU

PL3304209



PRIMA LUCE LAB 9mm T2 (M42) EXTENSION.
