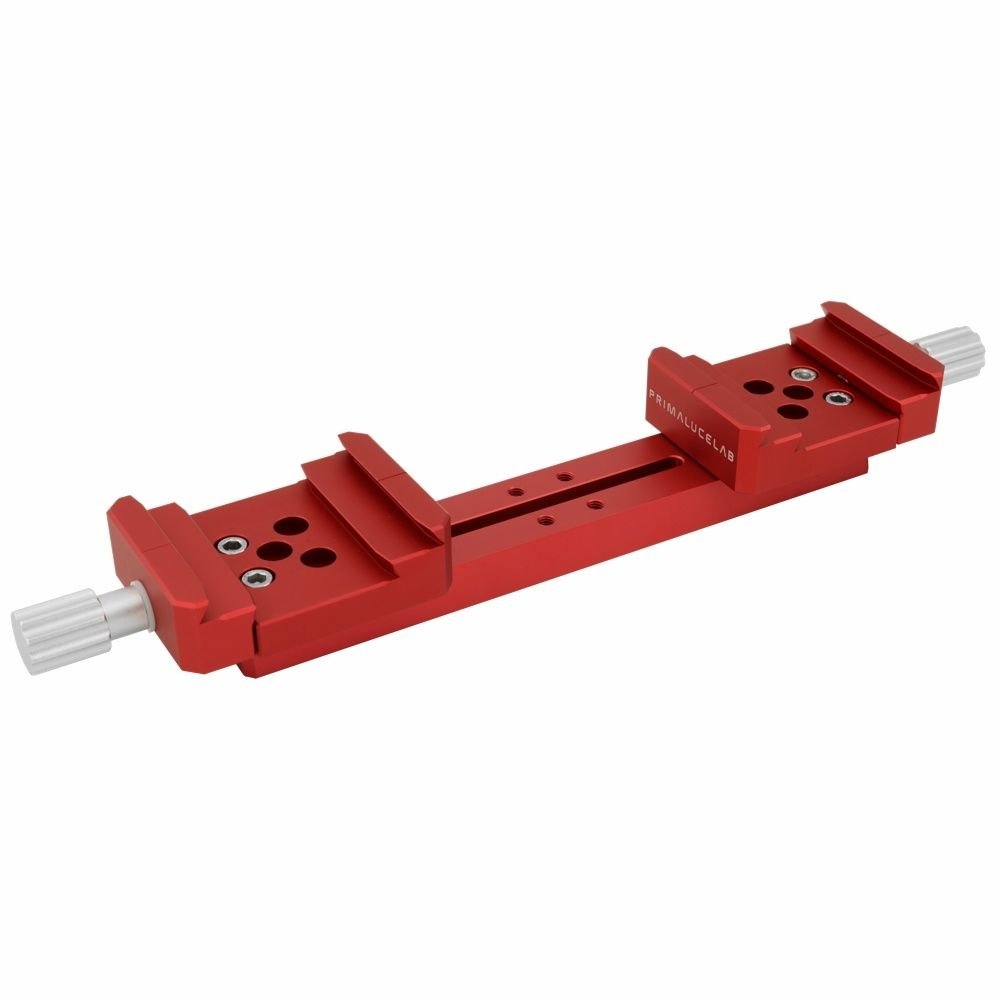

PLUS SIDE BY SIDE VIXEN PLATE 240mm

$169.00 USD
SKU: PLLPDVIX240P_

Prima Luce Lab




The Prima Luce Lab Side by Side Vixen Plate 240mm belongs to the PLUS system (Prima Luce Universal System) and allows you to mount two telescopes in parallel on the same mount. You can also install a DSLR or mirrorless camera in parallel to the main telescope for widefield astrophotography. Includes 1x Vixen 240mm Dovetail Bar and 2x Small Dual Dovetail Clamps.





The Vixen bar has a system of slots, drilled and threaded holes that maximize the compatibility between parts, allowing several mechanical combinations and assembly solutions. For side by side mounting, attach the dovetail clamps the furthest holes from the centre, spaced approx. 202mm apart.

Each component of the PLUS system is carved from aluminium blocks that are CNC machined. Then, the aluminium is sandblasted to achieve a very smooth surface finish and is anodized (hard anodizing) to increase the hardness of the material and to protect it from oxidation.





Length

285 mm

Width

65 mm

Material

Aluminium

Weight

880 g

SKU

PLLPDVIX240P_





  • 1x PLUS Vixen 240mm dovetail bar
  • 2x PLUS Dual dovetail clamps (small-sized)
  • Screws for connecting clamps to the bar
