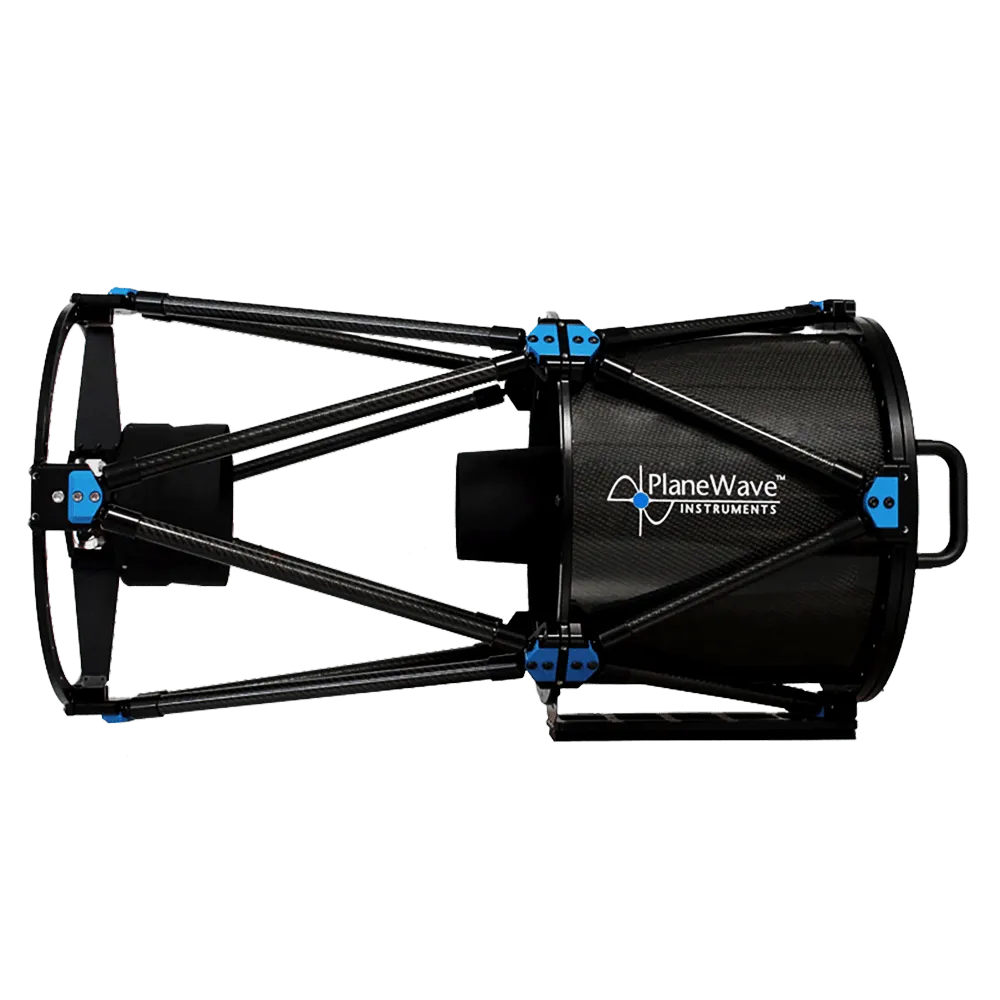

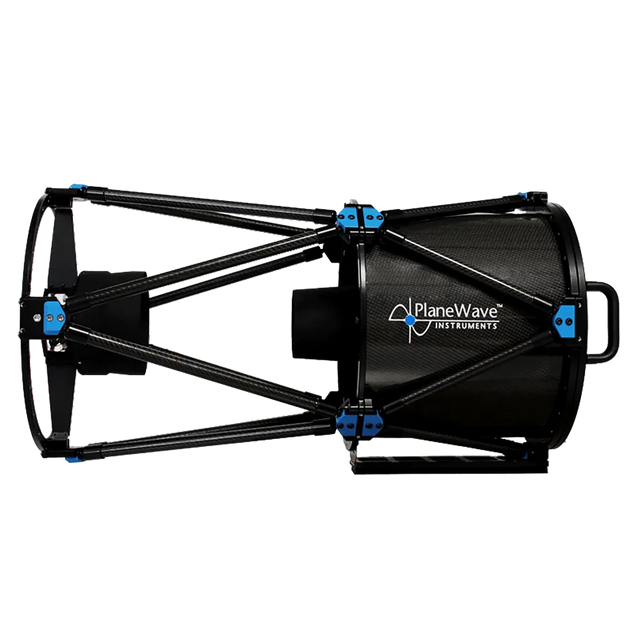

PLANEWAVE IRDK 14" OTA

Prices do not include shipping costs. Contact us for exact shipping prices before purchasing.

The PlaneWave Instruments IRDK14 is an infrared-optimized Dall-Kirkham telescope for advanced astronomical research and environmental LIDAR applications. With gold-plated fused silica mirrors with no refractive lenses, the IRDK14 averages 94% reflectivity across 0.7 - 2.5 microns (700 - 2500nm).

The IRDK14 excels in infrared astronomy thanks to its large aperture and IR-optimized optics. In addition to studying astrophysical phenomena in the infrared, the IRDK series offer a robust platform for LIDAR and remote sensing operations.

Features

• Carbon fibre tube minimizes thermal expansion, which causes focus shift as temperature changes during an imaging session. Carbon fibre also reaches ambient temperatures quickly and is extremely lightweight and rigid to help ensure excellent imaging data is produced.


• Dovetail expansion joint allows for the difference in thermal expansion between carbon fiber and aluminium. The expansion joint allows the aluminium dovetail to expand and contract without stressing the carbon fiber lower truss.

• Integrated dew control including heater pads controllable via PlaneWave's software and the Delta-T controller (sold separately) keep the optical surfaces clear of dew, ensuring consistent and clear imaging performance.

• Three cooling fans blow out of the optical tube pulling air through the telescope and by the primary mirror. This helps the telescope to reach thermal equilibrium quickly. The fans are controlled by a switch on the optical tube, or can be controlled by via PWI3 software.

All PlaneWave telescopes feature the following ports for dew heater and fan management:

• Two RCA connectors to power the dew heater (from the Delta T or from a 12V source)
• One RJ connector for the Delta T to the telescope to transmit temperature data
• One EFA connector to power the fans (EFA to 5.5-2.1 jack included)
• One auxiliary output port

The built-in dew heaters can be powered by any 12V DC source which has an RCA connector, but the Delta T is required to keep the mirror just above the dew point to avoid overheating and the resulting internal turbulences.

The EFA connector can be powered by the separate EFA controller, any 12V DC source using the supplied EFA to 5.5 x 2.1 jack, or by the Series-5 controller.

Specifications

Primary mirror

Secondary mirror

Included items

• IRDK14 OTA
• OTA cover to protect primary mirror
• Printed instructions
