PLANEWAVE DELTA RHO 500 f/3.03

Regular price $127,299.00AUD
SKU: PW-200128Q

PlaneWave

Corrected Cassegrain astrograph

75 kg


Prices do not include shipping costs. Contact us for exact shipping prices before purchasing.

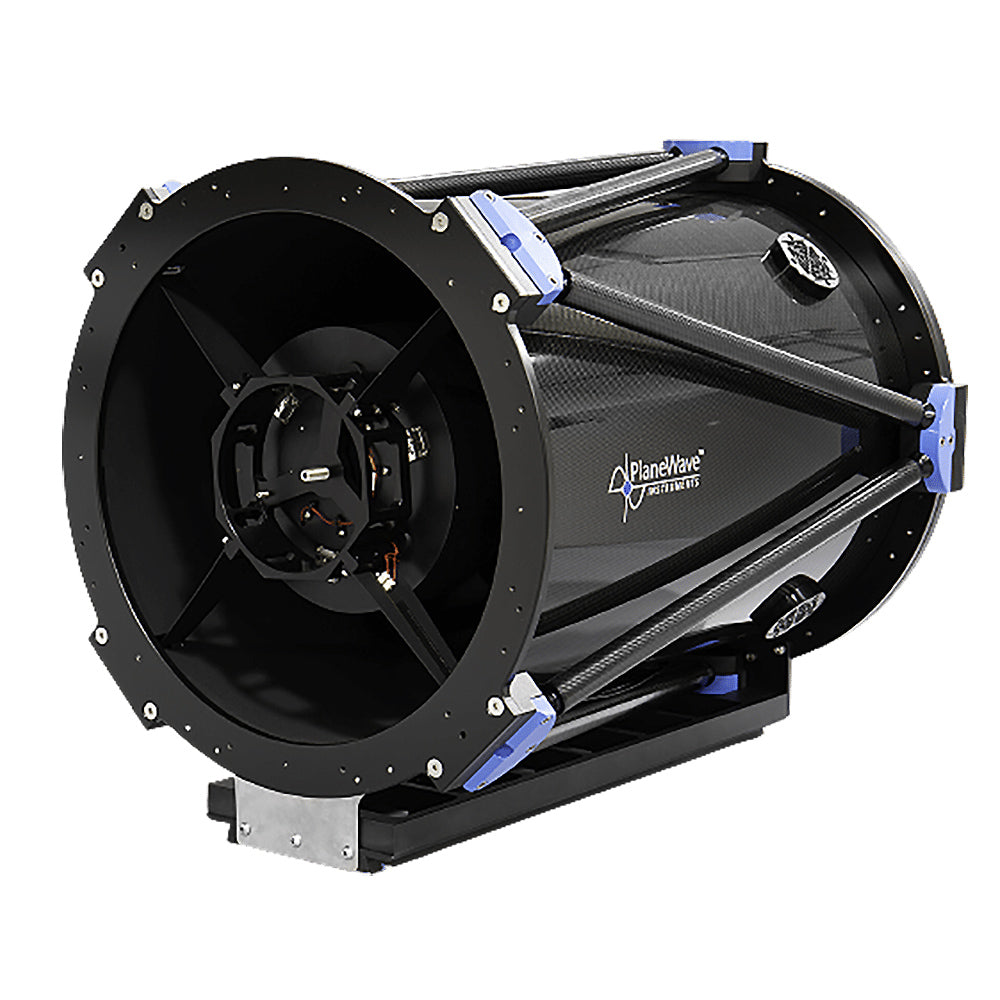

The PlaneWave Delta Rho 500 f/3.03 is an elite widefield astrograph designed for a broad range of applications including Space Situational Awareness (SSA), Space Domain Awareness (SDA), professional astronomy research and deep sky astrophotography.

With rock-solid fused silica mirrors, carbon fibre construction and an advanced baffled 70mm corrected image circle, the Delta Rho 500 is the capable of capturing the most stunning astrophotographs possible.

The Cassegrain focus f/3.03 astrograph has an aperture of 508mm (20") and has a focal length of 1537mm. Additionally, the Delta Rho 500 provides a huge 70mm corrected image circle so your astrophotographs will have stunning clarity from corner to corner of the image without field curvature degrading the photos.

Being a fast imaging system, the Delta Rho has a fixed primary mirror, similar to the CDK series. In addition, the new PlaneWave-designed Series 5 ultra-short derotator and focuser includes a tip/tilt adapter, making tilt adjustment very easy.

As Australia's PlaneWave experts, we can supply all the components necessary for utilizing complex imaging trains as well as the Prima Luce Lab Esatto and Arco with a custom adapter.

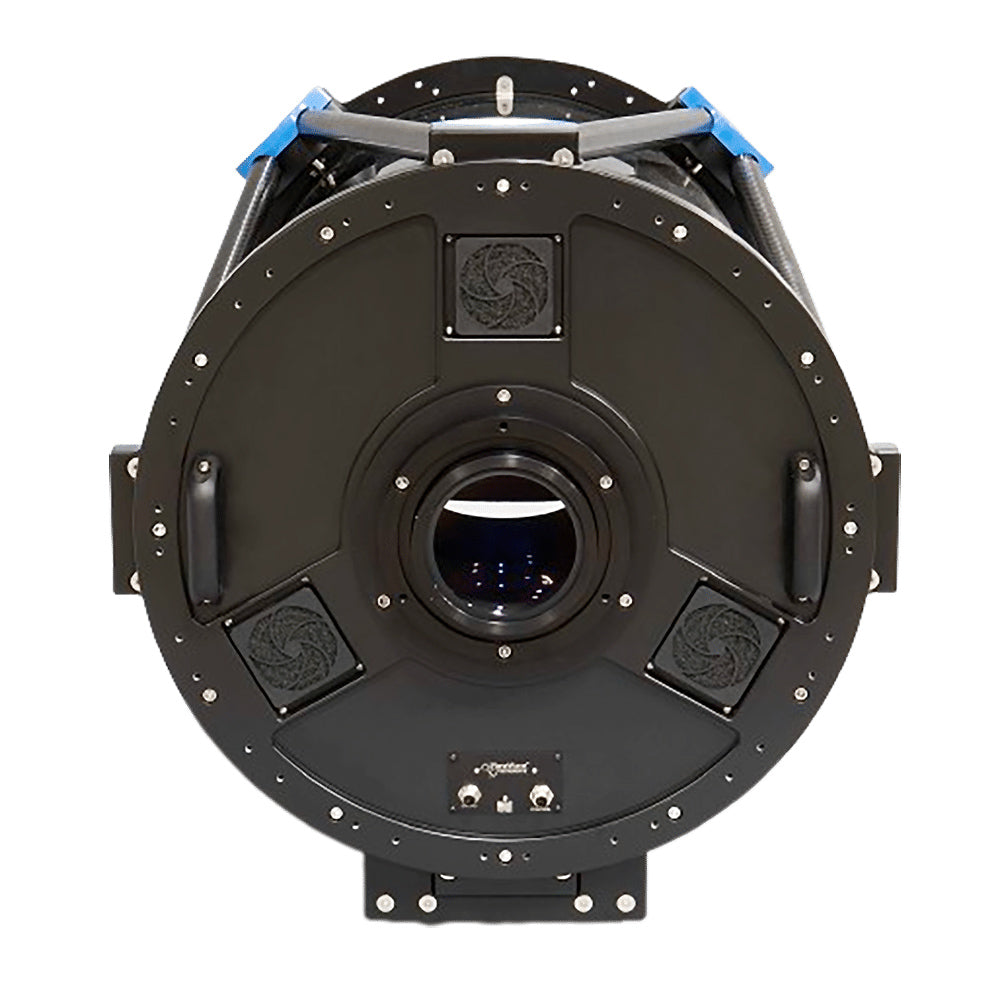

Collimation is extremely straightforward, needing only simple adjustment of the three secondary mirror collimation screws. Multiple cooling fans on the telescope's backplate and sides of the optical tube allow the mirrors to quickly reach thermal equilibrium.



Note: The Delta Rho 500 requires extra crating (not included in the price). Additionally, the Series-5 Rotator and XL Focuser are not included.

Features

  • Carbon fibre tube minimizes thermal expansion, which causes focus shift as temperature changes during an imaging session. Carbon fibre also reaches ambient temperatures quickly and is extremely lightweight and rigid to help ensure excellent imaging data is produced.
  • Dovetail Expansion Joint allows for the difference in thermal expansion between carbon fibre and aluminium. The expansion joint allows the aluminium dovetail to expand and contract without stressing the carbon fibre lower truss.
  • Cooling fans are strategically placed on the backplate and sides of the tube to quickly cool the mirrors to ambient temperature. Built-in heating pads and temperature sensors for the primary and secondary mirrors (controllable via the Series 5 controller, sold separately).
  • Advanced precision positioned, lightweight baffle tubes minimize vignetting and maximize image contrast.
  • Compatible with the new Series 5 rotator and XL focuser (not included), which require only 70.6mm of space. This leaves 147.6mm of backfocus for further accessories. Both the Series 5 rotator and focuser require the Series 5 Controller (not included).

The Delta Rho 500 can be configured to use the PrimaLuceLab ESATTO 3.5" LP robotic microfocuser with the addition of our Testar-engineered adapter as in the below images (Delta Rho 350 shown).



Specifications


Optical system

Aperture 508 mm
Focal length
1537 mm
Focal ratio
f/3.03
Central obstruction
59% by diameter
Backfocus from mounting surface
232.8 mm (184.7 mm from lens cell)
OTA length
892 mm
Optimal field of view 70 mm image circle
Upper cage
Carbon fibre truss poles with carbon fibre shroud
Weight 75 kg



Primary mirror

Optical diameter
508 mm
Outer diameter 528 mm
Material
Fused silica (quartz)
Shape
Prolate ellipsoid
Coating
Enhanced aluminium - 96%


Secondary mirror

Diameter
286 mm
Material
Fused silica (quartz)
Shape
Spherical
Coating
Enhanced aluminium - 96%


Lens group

Diameter
160 mm
Number of lenses
TBD
Coating
Broadband AR coatings (less than .5% reflected from 400 to 700nm)



Included items


  • Delta Rho 500 optical tube
  • OTA cover
  • Integrated heating pads for dew prevention (requires optional controller - sold separately)
  • PlaneWave thumb drive with software and collimation instructions
