OPTEC LEPUS 0.62x TELECOMPRESSOR
Optec
OPTEC LEPUS 0.62x TELECOMPRESSOR is backordered and will ship as soon as it is back in stock.

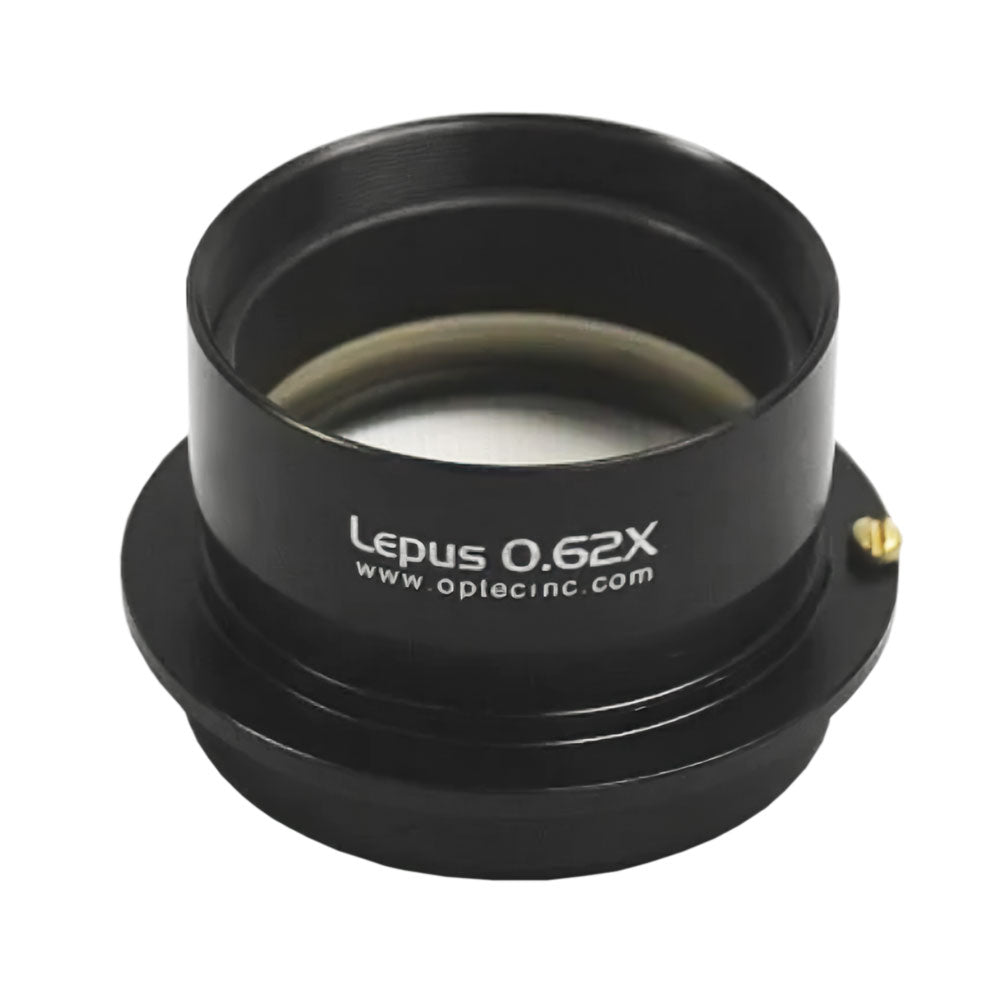

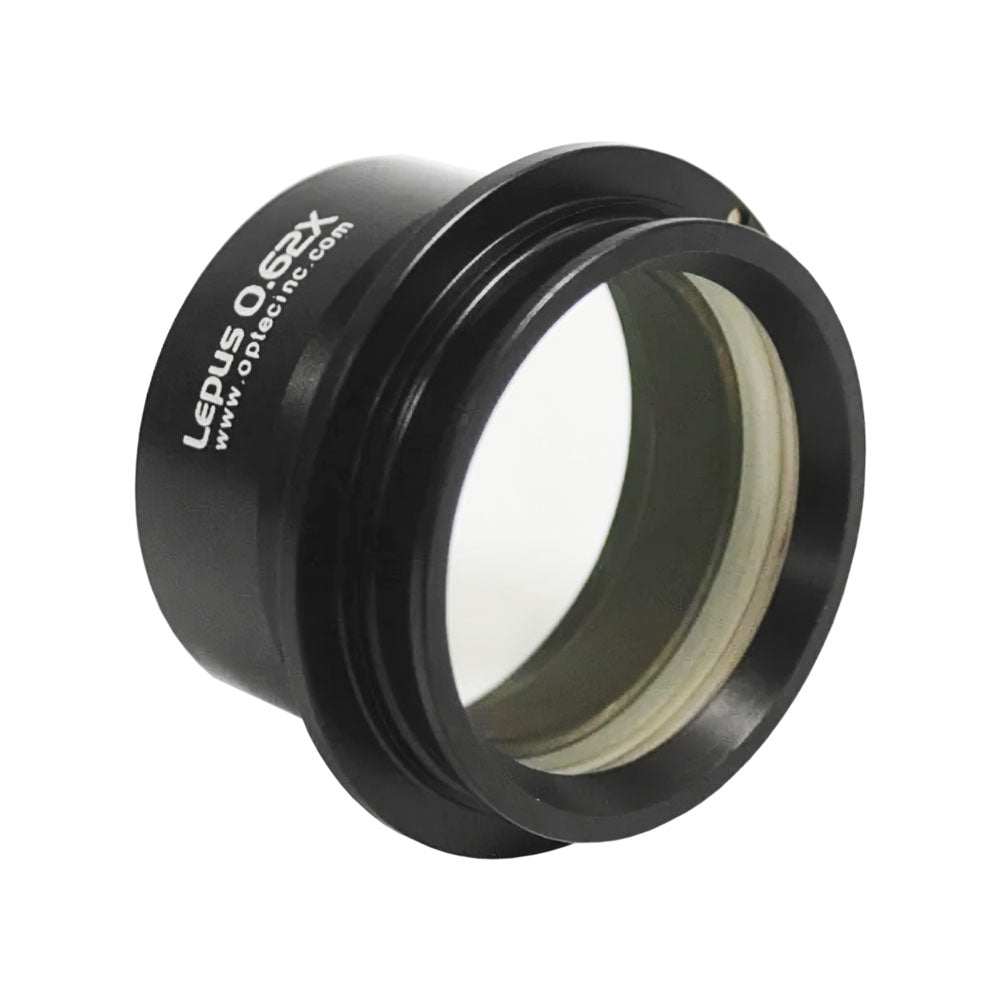

The Optec Lepus 0.62x Telecompressor is a 4-element universal focal reducer for many different telescopes which have 2" focusers. It pairs particularly well with Meade ACF f/10 & f/8 coma-free Schmidt-Cassegrain telescopes as well as the Celestron EdgeHD series for deep sky astrophotography.
The Lepus provides a well-corrected field up to 28mm in diameter, making it suitable for use with APS-C sensors and smaller. The Lepus can deliver a vignetting-free image circle up to 22mm, with minimal light fall off above that. Flat-field calibration is recommended for larger sensors.
With a typical backfocus spacing of 100mm with most telescopes, the Lepus can be used with a wide range of imaging train configurations. The reducer includes a 2" barrel which has an internal M48 x 0.75 thread for 2" filters.
Separate camera-side adapters are required, due to the Optec-2100 dovetail interface design. We have M48 and M54 versions available.
Note: It is not recommended to use the Lepus with Ritchey-Chretien telescopes.
Specifications
| Telescope side connection |
2" barrel with 2" filter thread |
|---|---|
| Camera side connection |
Optec dovetail - requires separate adapter |
| Backfocus distance | Varies - typically 100 mm from last lens surface (105 mm from rear flange) |
| Reduction factor |
0.62 x |
| Corrected field |
28 mm |
| SKU | OP-19407 |
