OFFICINA STELLARE RiDK 700 F/7

SKU: OS-RIDK700

Officina Stellare

Riccardi Dall-Kirkham

140 kg


The RiDK range (Riccardi Dall-Kirkham) represents the new reference point for all modified Dall-Kirkham instruments available on the market. The unique experience and creativity of Massimo Riccardi, Chief Optical Designer at Officina Stellare, gave birth to a new class of astrographs with superior performance and image quality. The results are simply amazing: this optical system is based on a spherical secondary mirror (very easy to align), able to deliver a 70mm corrected field across a wide range of wavelength (between 400 - 750 nm) and a spot size of only 4 micron at the field edge. These outstanding optics are mounted inside the state of the art Officina Stellare truss tube. The same mechanics are approved and used from worldwide research institutes for professional studies, designed to remain stable with temperature change.

The long backfocus allows any type of accessories to be mounted, including cameras and rotators. It is the telescope for anybody who believes that imaging the Universe is one of the most important, serious and fulfilling experience for all night sky lovers.

The Officina Stellare RiDK includes the following features:

  • Low expansion glass optical set
  • Carbon/aluminum truss tube design
  • Splitted light baffle
  • Four support dovetails
  • Three ventilation fans and mirror heaters with manual control
  • Shroud and cap covers
  • Primary cell detachable for easy mirror cleaning.

It is also available in full carbon and it features several optional accessories such as:

  • 0.75x reducer
  • Digital or manual backplate focusers (only for 400mm)
  • Rotators
  • Secondary mirror focuser (from 500mm)
  • Optional primary mirror shutters
  • OS Bus advanced electronic
  • Customized imaging train parts and more

Available also with Officina Stellare mount.


Specifications



Optical design

Riccardi Dall-Kirkham

Diameter

700 mm

Focal length

4900 mm

Focal ratio

f/7

Linear obstruction

48%

Fully corrected and
illuminated field

80 mm

Weight

140 kg

Backfocus extraction

~240 mm

SKU

RIDK700

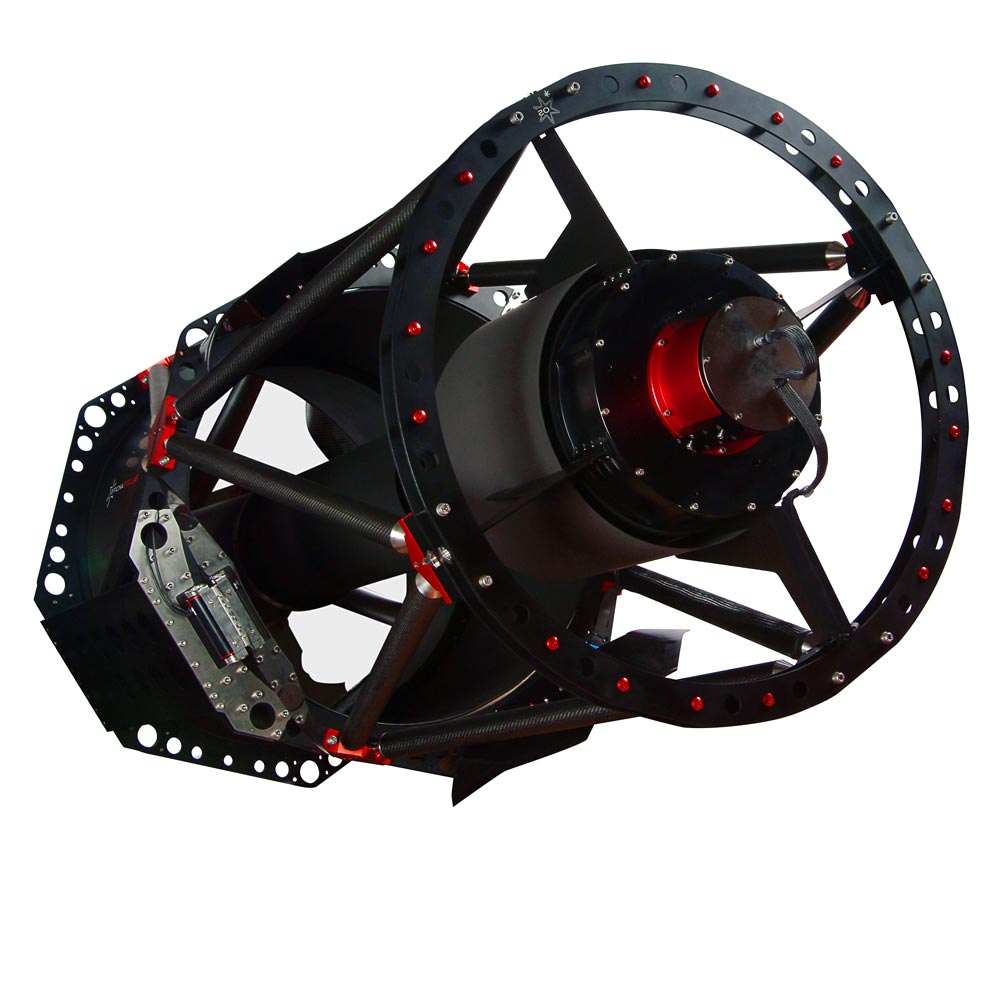

OFFICINA STELLARE RiDK 700 F/7.

OFFICINA STELLARE RiDK 700 F/7

$1.00

Optical design

Riccardi Dall-Kirkham

Image circle

Focal ratio

f/7

Aperture

700 mm

Focal length

4900 mm

Optical thickness

Threads

Cooled

Colour or Mono

Pixel size

Sensor dimensions

Resolution

Sensor diagonal

Quantum efficiency

Read noise

Fullwell capacity

Bit depth

FPS

Camera backfocus

Filter size

Filter size

Bandpass (FWHM)

Bandpass (FWHM)

Glass thickness

Mount type

Payload capacity

Latitude range

Dovetail saddle

Slew speed

Encoders

Periodic error correction

Counterweight shaft

Azimuth adjustment range

Internal diameter

Illuminated diameter

Compatible telescope external diameter

Weight

140 kg

Length

Width

Height
