MULTI-CONNECTION PLATE 150 FOR ASKAR FRA500/600

$75.00AUD
SKU: ASKARMCP150

Askar

0.2 kg

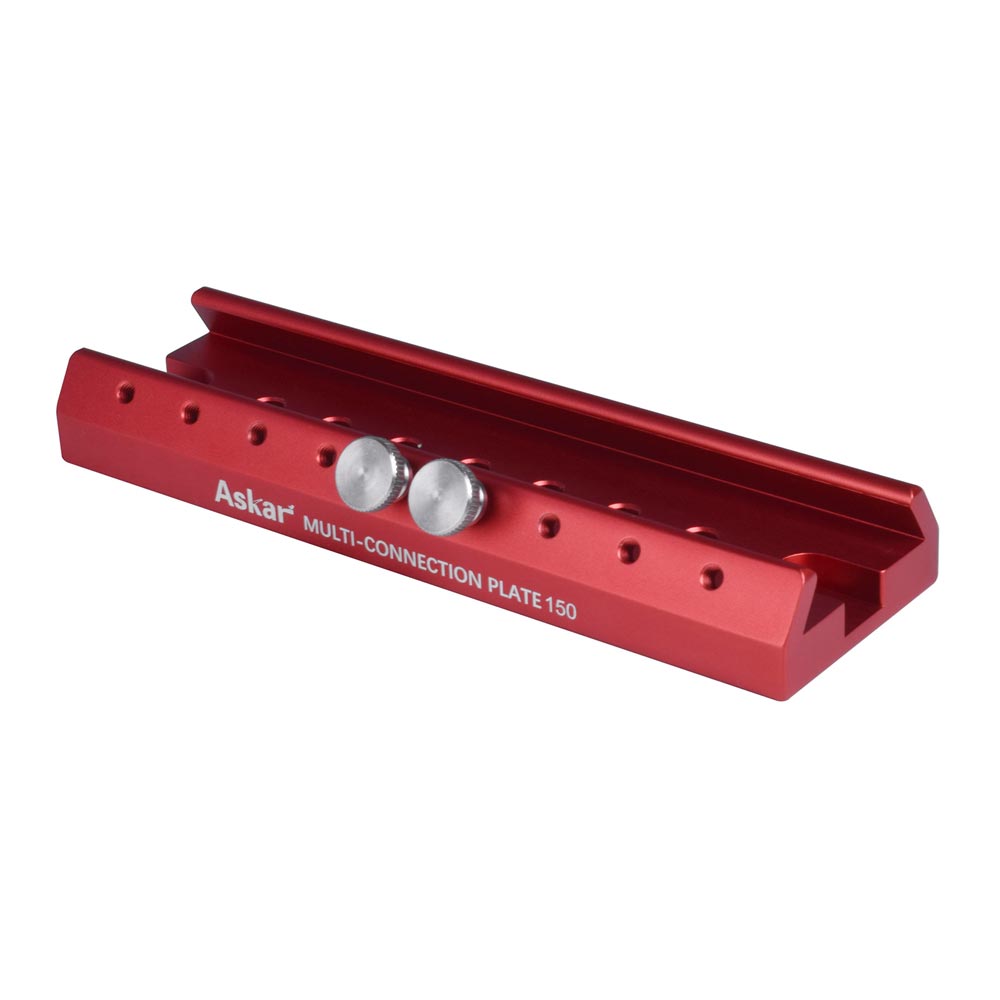

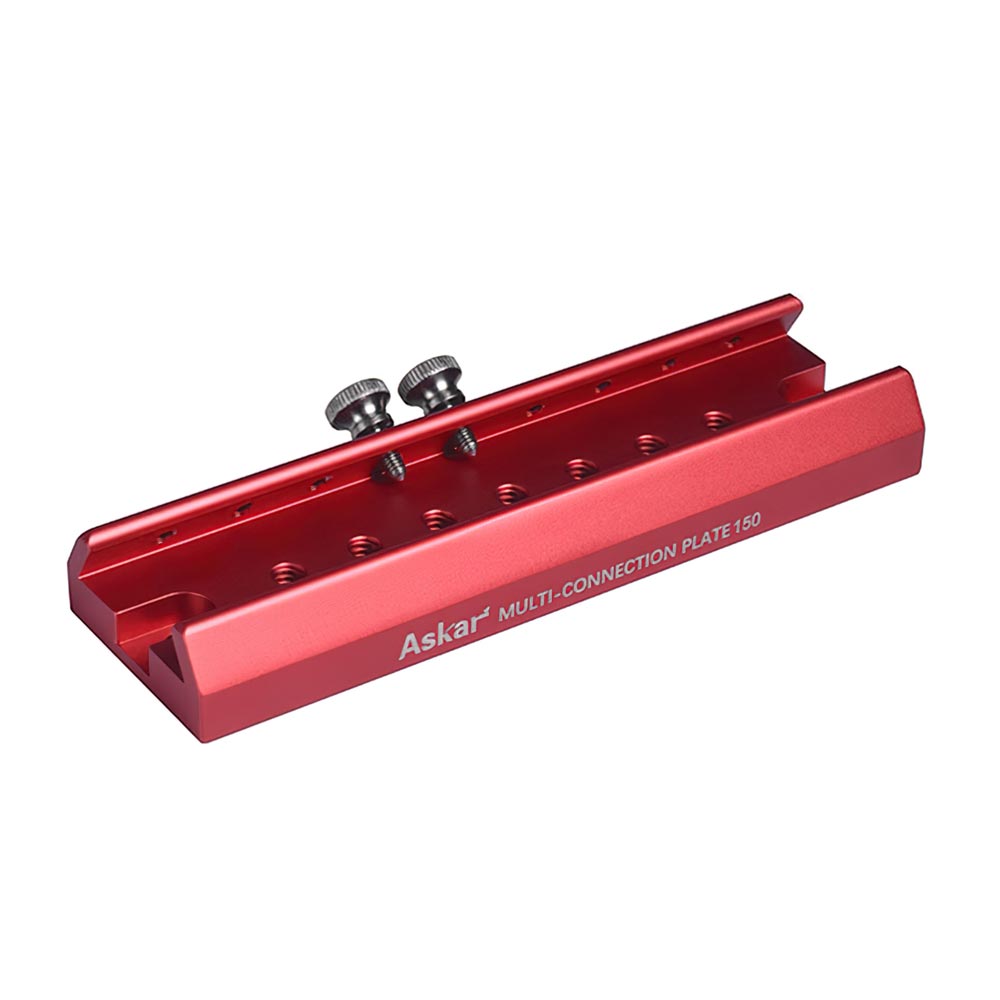

The Askar multi-connection plate 150 can be installed on the Askar FRA 500 & FRA 600 as well as on the handle of SharpStar telescopes. It is useful to connect extra accessories such as finderscopes, guidescopes or small telescopes which have finder-style dovetails. The connection bar is highly versatile as it features 5 threaded 1/4" holes to connect it to any suitable bar with a through hole or a slot such as the handle of the SharpStar 94EDPH or to the SharpStar 100Q-II.

To connect the plate to the Askar FRA500 or FRA600, you can use through holes and the supplied M5 bolts. The two locking screws on the side of the plate can be moved across the 6 threaded holes of the bar. The bar is aluminium and anodized in red.



Askar FRA600 petzval refractor telescope with multi connection plate 150


 Askar FRA600 apo petzval refractor telescope with multi connection plate 150





Specifications



Length

150 mm

Bottom holes

5 x threaded 1/4"-20 and 2 x through holes

Thumb screw holes

6 x threaded holes

Material

Aluminium

Weight

200 g





Askar FRA600 petzval refractor telescope with multi connection plate 150 schematic






Included Items



  • Dovetail saddle bar
  • x2 thumb screws for the connection of the accessory
  • x2 M5 bolts for the connection of the bar to the Askar FRA 600
