MORAVIAN EFW 3M FILTER WHEEL
Moravian Instruments
MORAVIAN EFW 3M FILTER WHEEL - 5 x 50mm SQUARE is backordered and will ship as soon as it is back in stock.
The Moravian EFW 3M is a motorized filter wheel for C1x and C3 series cameras. Three different variants are available to suit the different sensors found in these cameras:

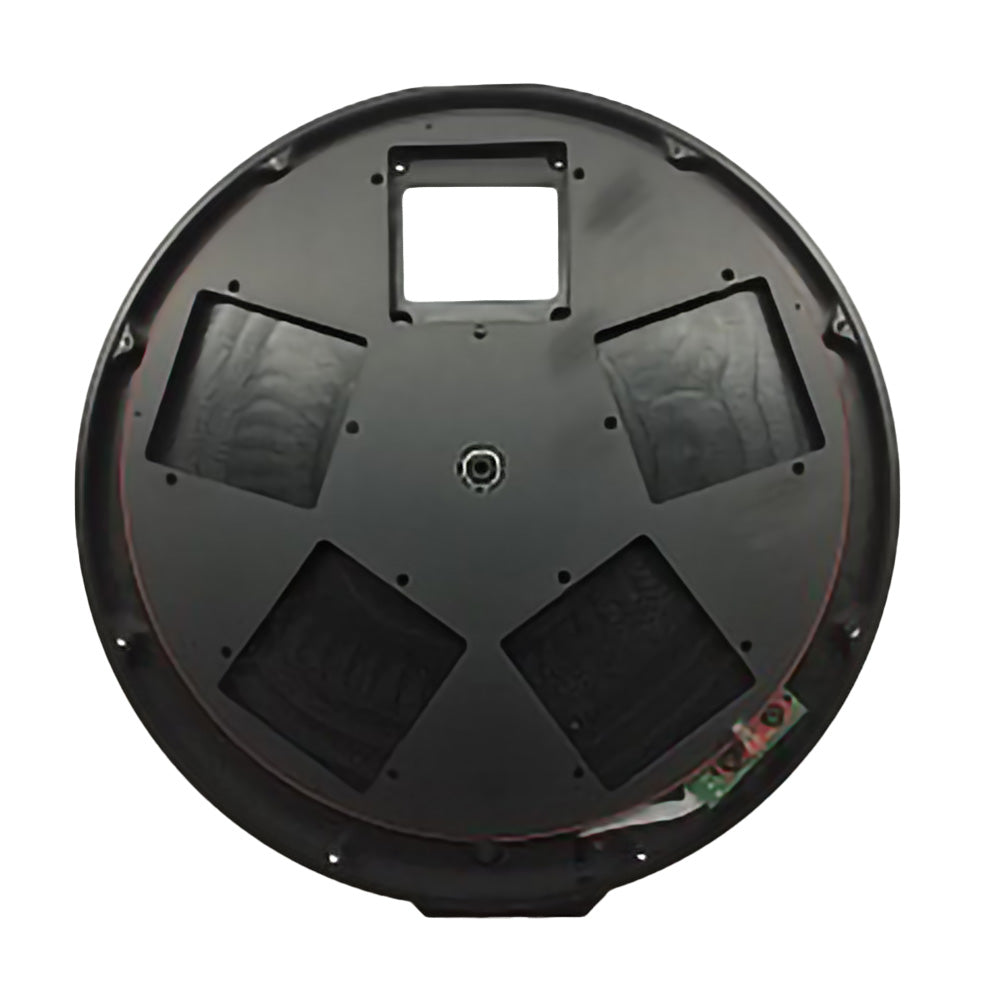

- EFW-3M-5 for 5 x 50 x 50mm square unmounted filters.
-

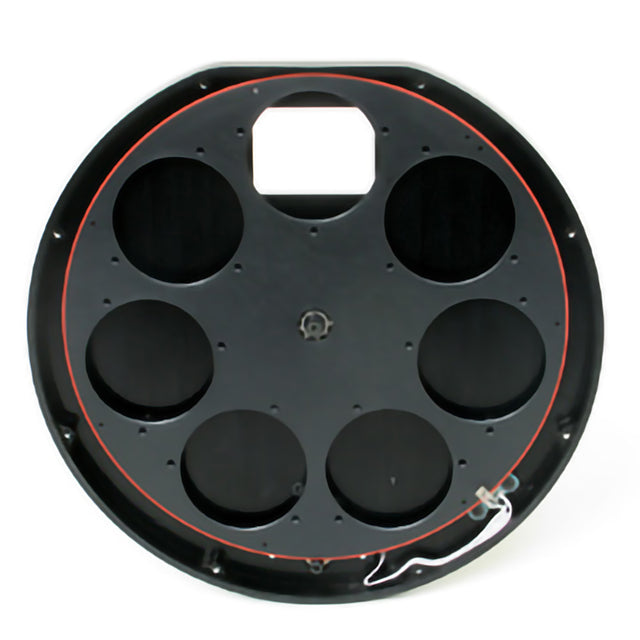

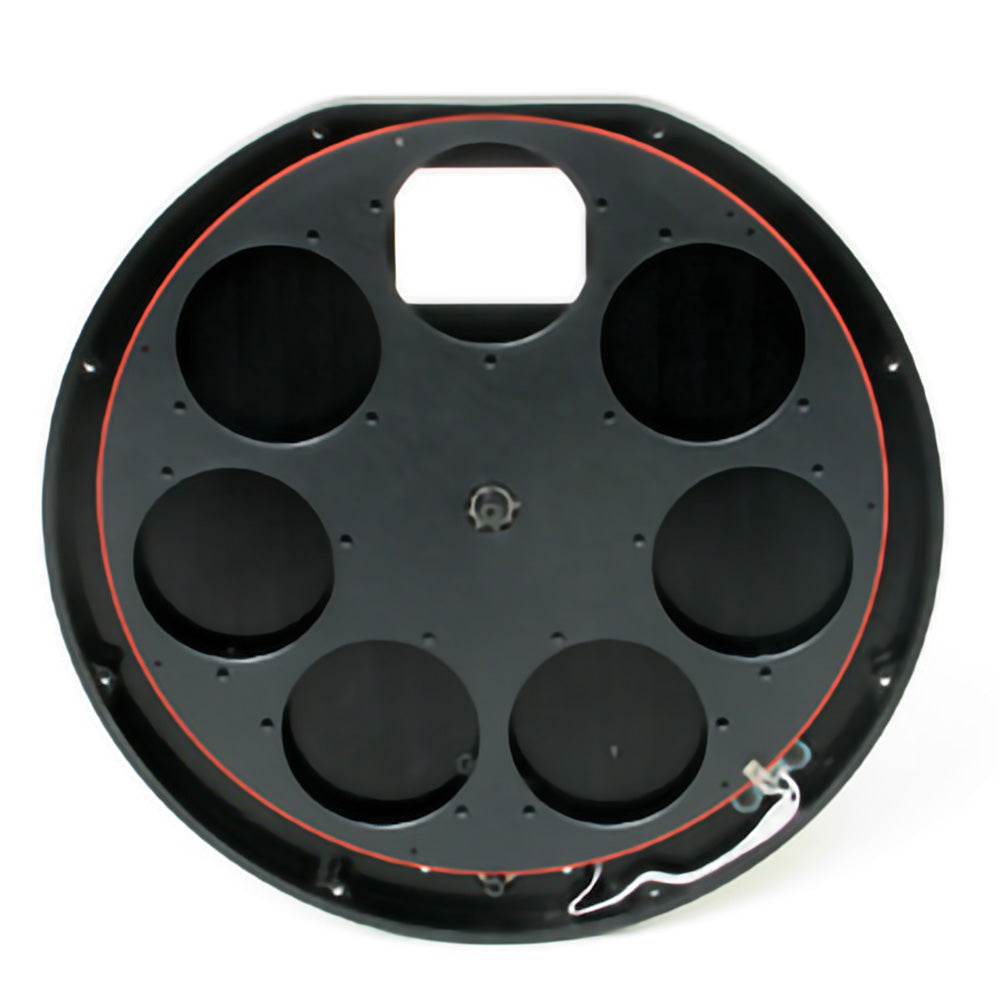

EFW-3M-7 for 7 x 2" mounted or 50mm round unmounted filters.

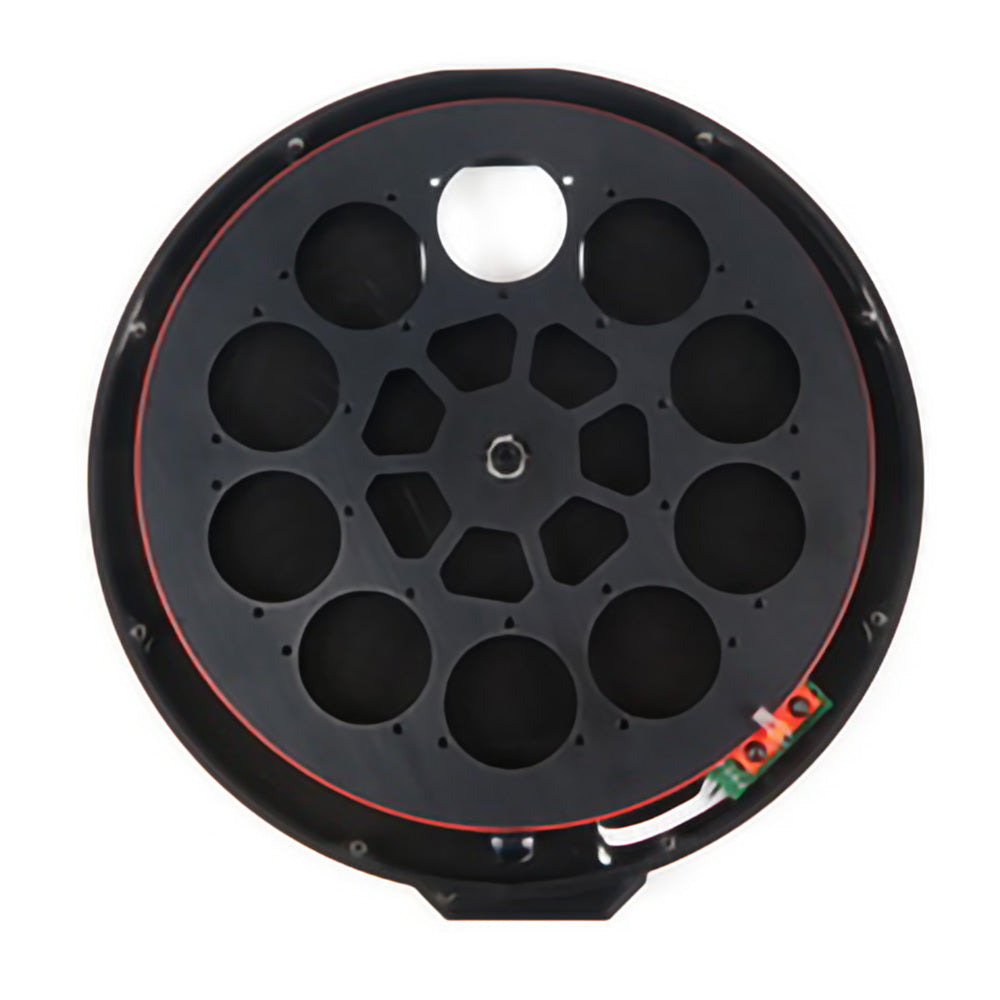

- EFW-3M-10 for 10 x 36mm round unmounted filters.
All EFW filter wheels have the same 17mm thickness, so when used with a C1x or C3 camera the distance to the sensor becomes 33.5mm. The body of the filter wheel is CNC machined from aluminium. EFW 3M filter wheels are compatible with "L" size Mark II adapters.
Moravian EFW filter wheels are controlled and powered over a single 8-pin RJ45 cable which connects directly to the camera, simplifying cable management.
Detailed information for External Filter Wheels can be found on the Moravian website.
Specifications
| Compatible filters | 5 x 50 x 50 mm square, 7 x 2" or 50 mm round, 10 x 36 mm (depending on model) |
|---|---|
| Ports |
8-pin RJ45 |
| Power supply | 12V DC via RJ45 to camera |
| Optical thickness | 17 mm |
| Camera connection |
Direct connection via 4 x M3 screws |
| Telescope connection | Additional adapters necessary |
| Weight | 900 g |
