GEOPTIK MAXI DUAL DOVETAIL SADDLE 300mm
Geoptik
GEOPTIK MAXI DUAL DOVETAIL SADDLE 300mm - Orange is backordered and will ship as soon as it is back in stock.

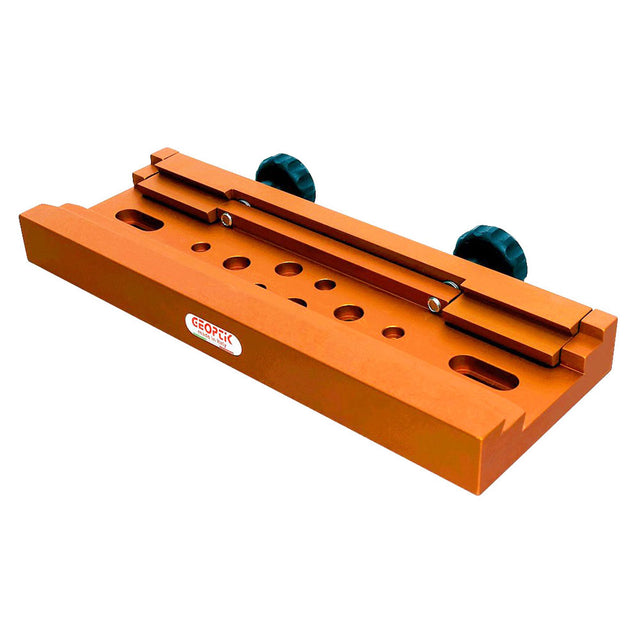

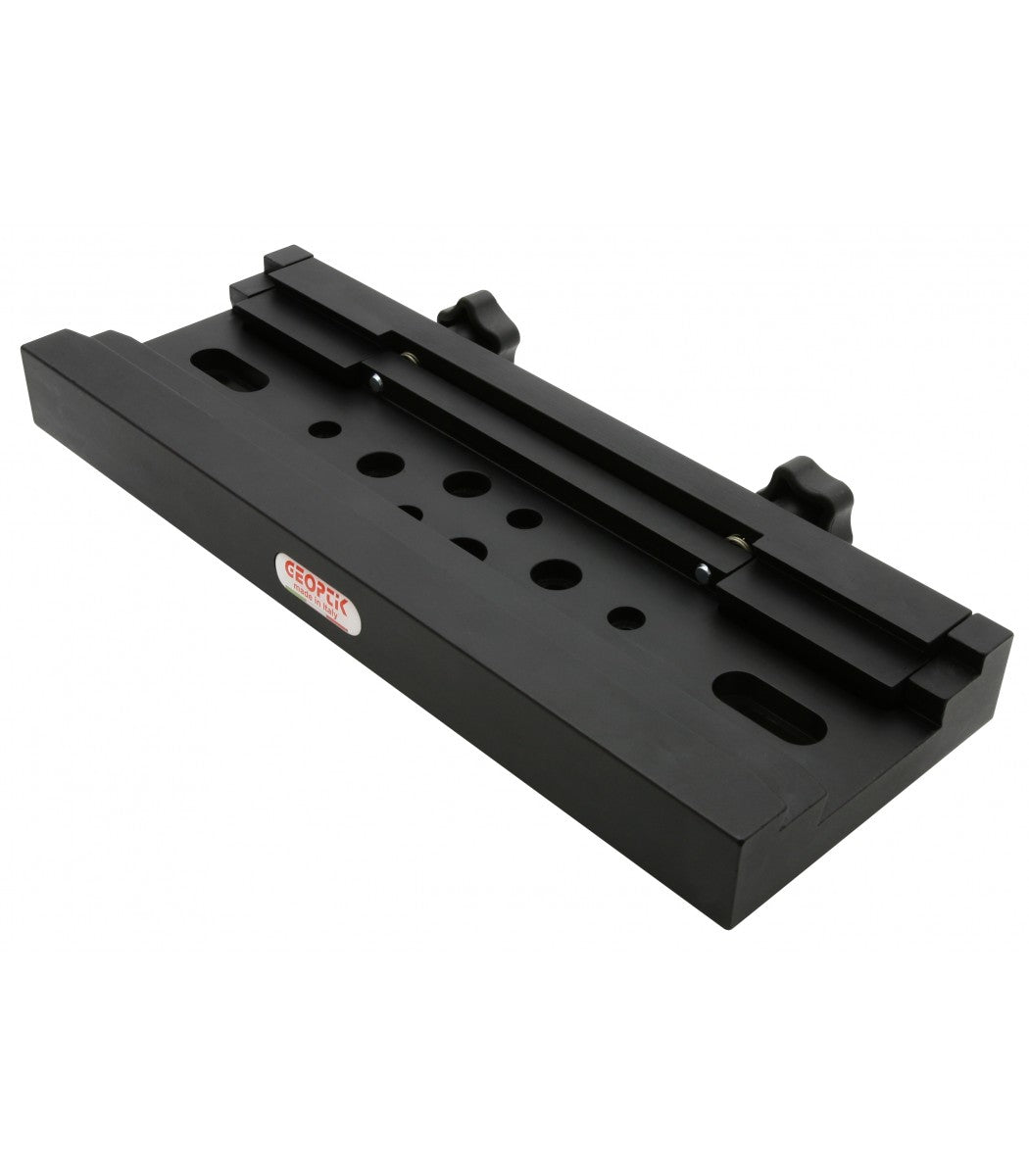

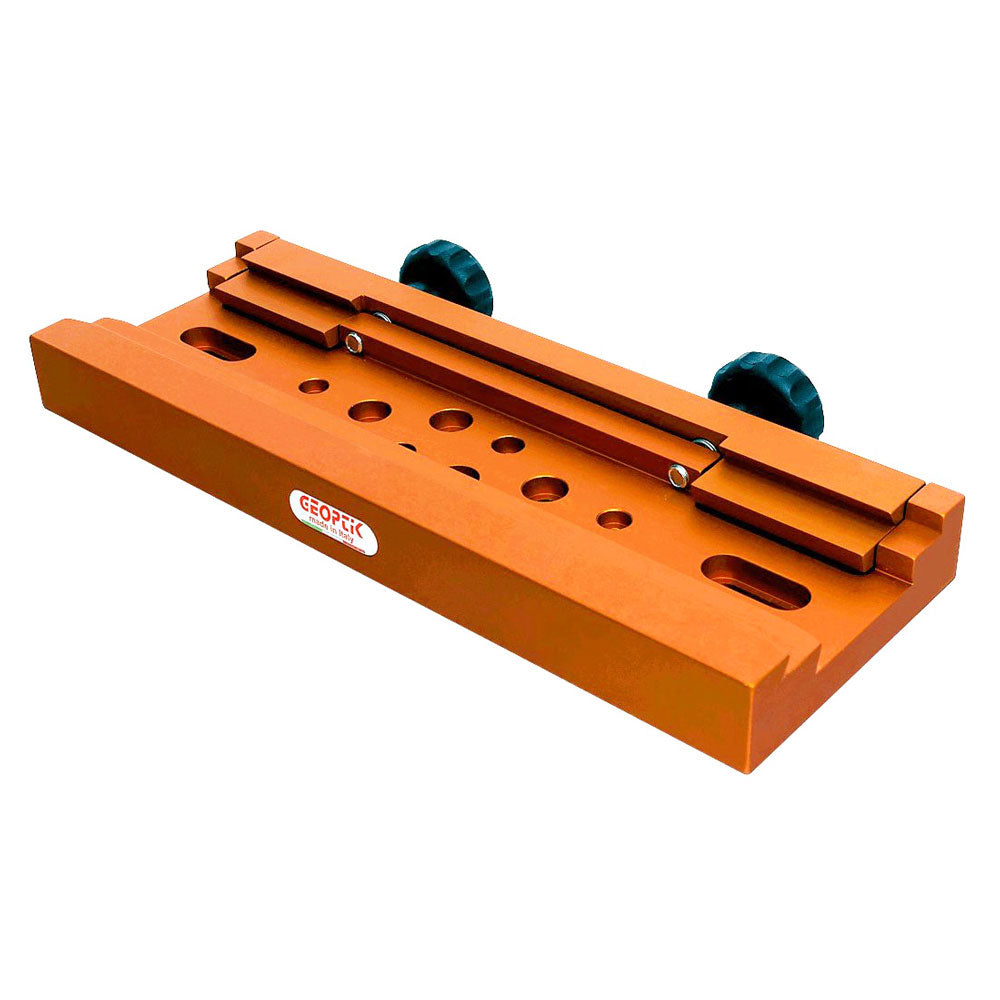

The Geoptik Maxi 300mm dual dovetail saddle is a "must have" to increase the payload and the rigidity of your setup. The saddle is CNC machined and the precision of its geometry guarantees a perfect match with the dovetail bars, a key factor for stability enhancement.
Note: Due to the many different dovetail bars on the market and different manufacturers' tolerances, we cannot guarantee compatibility with all bars. Please contact us first to double check.
This accessory can be installed on several mounts using one of the Geoptik flanges:
- Geoptik connection flange for Az-Eq6 and Neq6
- Geoptik connection flange for EQ6-R and EQ6
- Geoptik connection flange for HEQ5
Made in Italy.
Video
Specifications
| Length |
310mm |
|
Width |
110mm |
|
Thickness |
30 mm |
|
Material |
Aluminium Anticorodal AW-6082-T6 |
|
SKU |
30A056 (Orange) ; 30A056BK (Black) |
Alloy composition
Chemical Composition Aluminium Anticorodal AW-6082 - T6
| Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Pb | Bi | |
|
Min |
0.46% |
0.134% |
0.010% | 0.406% | 0.480% | 0.020% | 0.000% | 0.020% | 0.001% | 0.000% | 0.000% |
|
Max |
1.34% |
0.525% |
0.101% | 1.000% | 1.250% | 0.250% | 0.000% | 0.200% | 0.020% | 0.011% | 0.000% |
