Astronomy Specialist

GSO 10" f/8 RITCHEY-CHRETIEN & ESATTO 3"

$3,686.00 USD
SKU: GSRC10A+ESATTO3

GSO

Ritchey-Chrétien

254 mm

f/8

2032 mm




The Guan Sheng Optical (GSO) 10" f/8 Carbon Truss Ritchey-Chrétien is an excellent telescope for deep sky astrophotography. This bundle includes the Prima Luce Lab ESATTO 3", a highly accurate robotic microfocuser with a weight capacity of 8kg an incredible resolution of 0.04 microns per step.

Note: you will need to purchase an additional camera adapter for the ESATTO 3" to suit your equipment. The product photos of the Esatto bundles show the previous design of the RC10 which did not feature a tilt plate. All new tubes include this, as can be seen on their respective product pages.

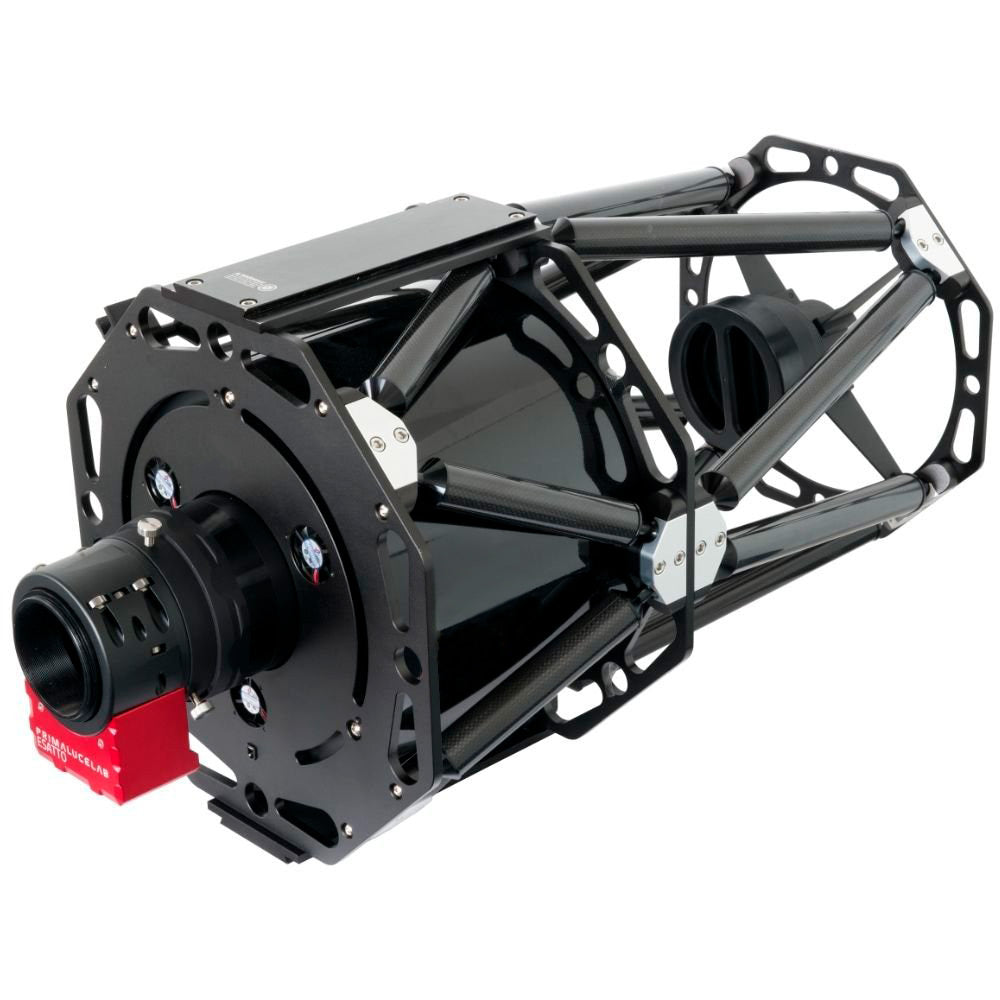

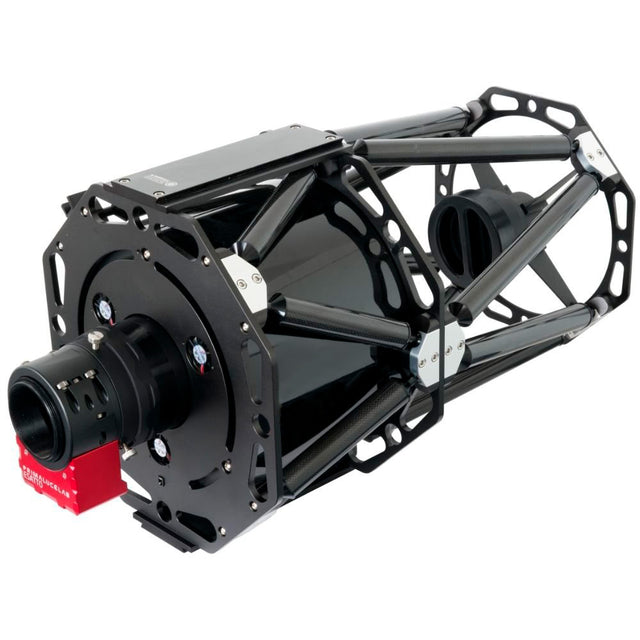

GSO Ritchey-Chretien 254mm f/8 with truss carbon fiber tube and ESATTO 3" and the following optional accessories: EAGLE with PLUS dovetail clamp installed above the telescope.



While Prima Luce Lab's Esatto upgrade kits are engineered to the exact specifications of the telescope. If the manufacturer changes the design of the tube or the manufacturing tolerances are too great, this is out of our control. As a result, this could put the focus point outside of the range of the Esatto. If this is the case, we have plenty of different extensions available and can design custom adapters if necessary.

The Guan Sheng Optical RC's are excellent astrographs with solid build quality and precisely-figured optical surfaces. The concave hyperbolic primary and convex secondary mirrors deliver excellent correction across the field. The low thermal expansion quartz mirrors have a surface correction of 1/12th Lambda PV or better and have highly reflective dielectric coatings ensuring 99% reflectivity.

The telescope is made with a rigid carbon fibre truss tube and features computer-optimized baffles to eliminate stray light.



Optical design Ritchey-Chrétien
Diameter 254 mm
Focal length 2032 mm
Focal ratio f/8
Linear obstruction 112 mm
Corrected field 35 mm (60 mm with optional corrector)
Backfocus distance 250 mm from rear cell
Weight 15.2 kg
Tube outer diameter 375 mm
Tube length 735 mm without focuser
SKU GSRC10A+ESATTO3
